Call for Price
Description

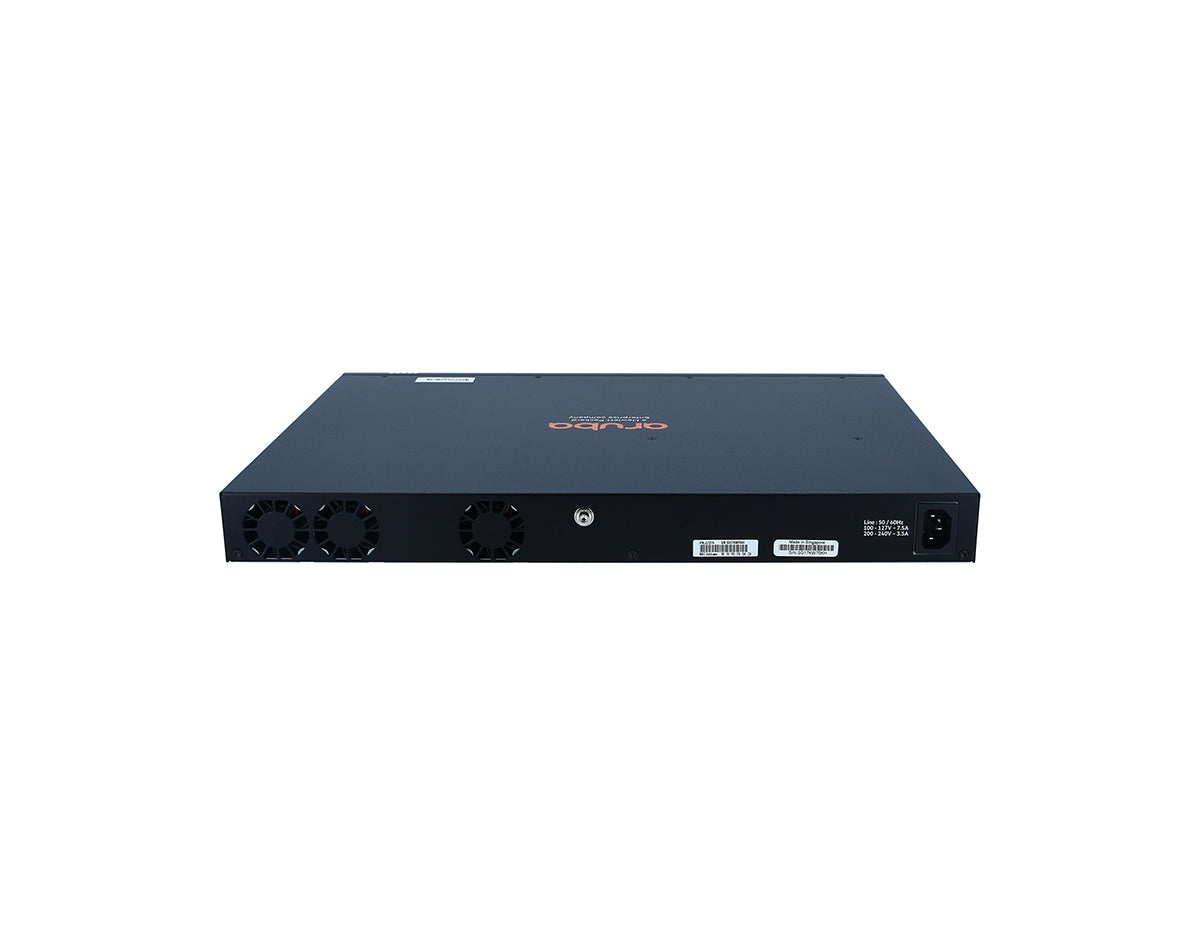

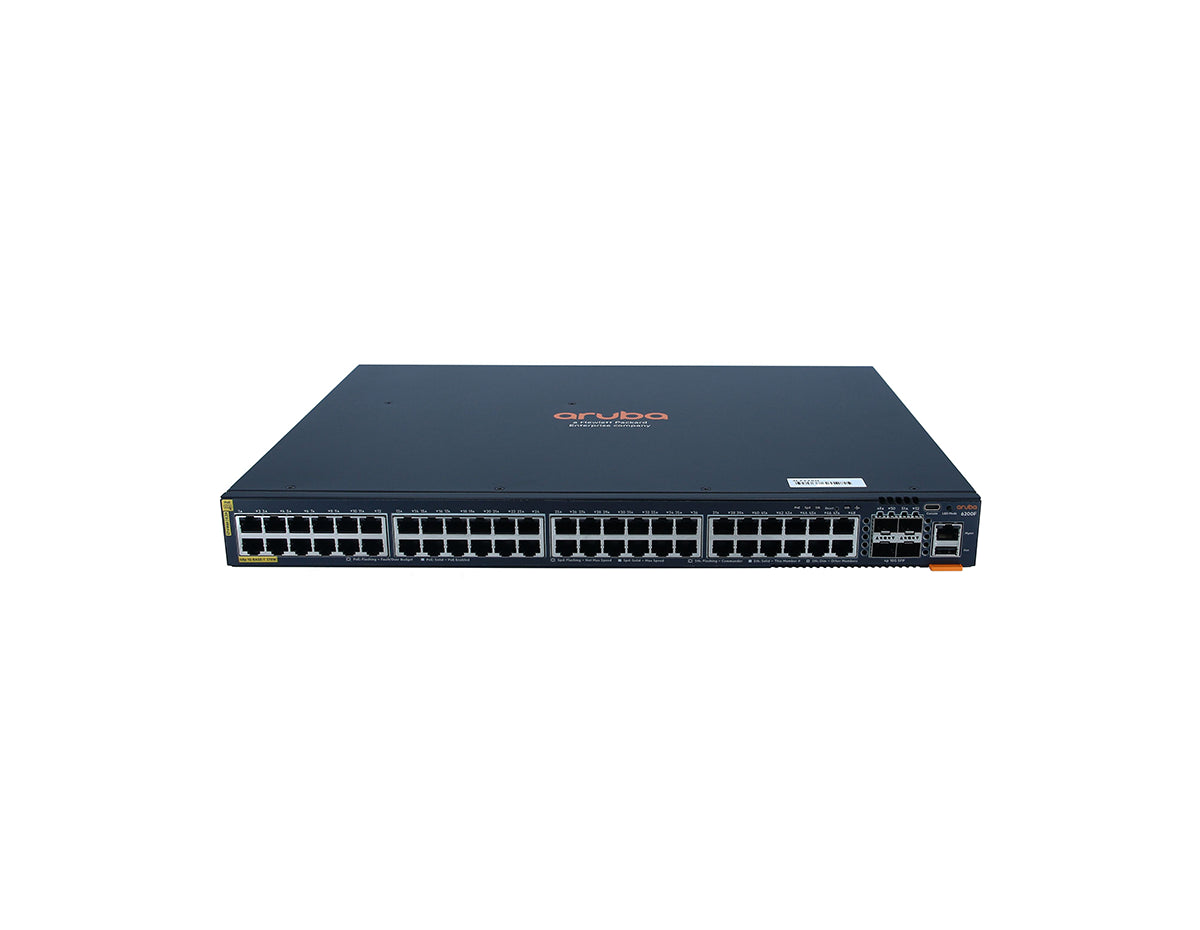

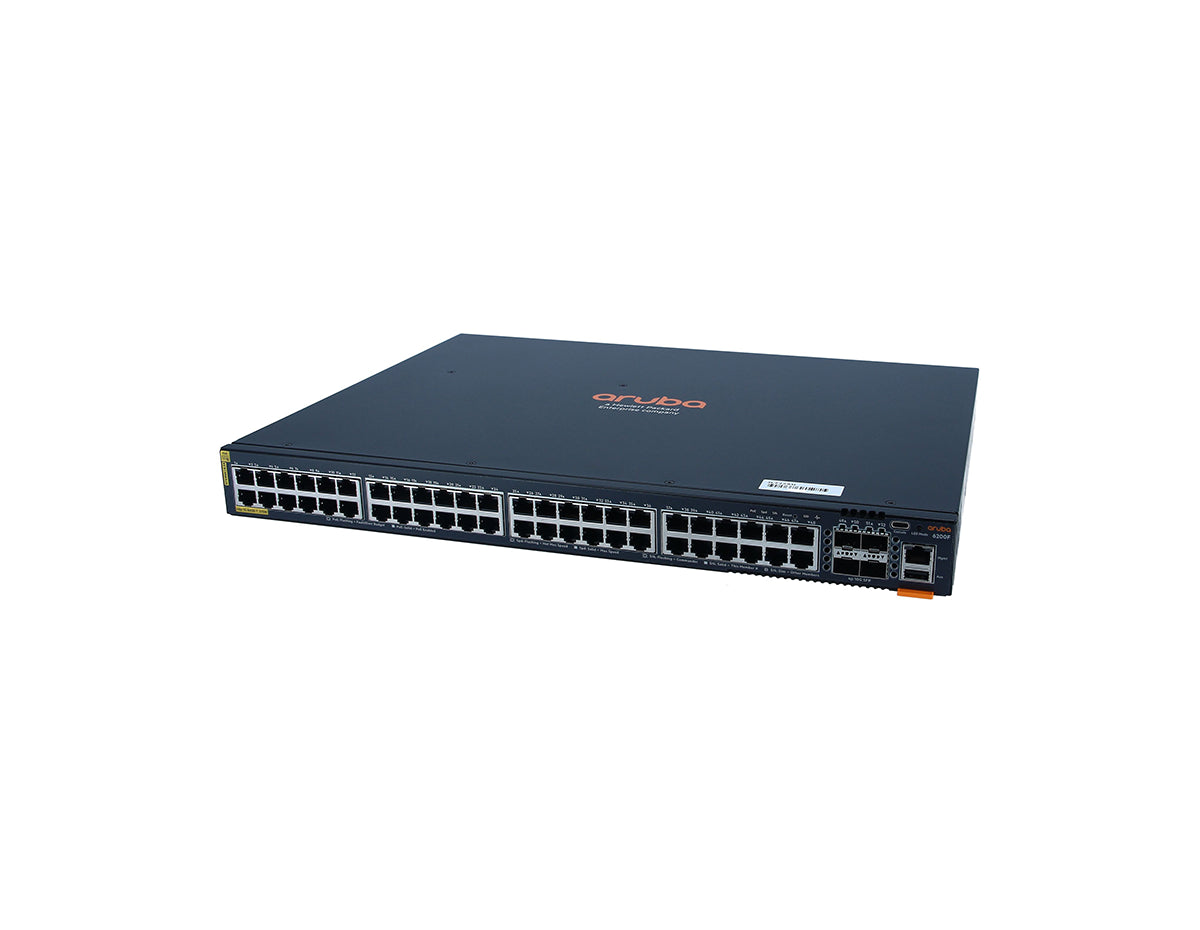

HPE Aruba 6200F 48G Class4 PoE 4SFP+ 370W Switch (JL727A)
The HPE Aruba 6200F 48G Class4 PoE 4SFP+ 370W Switch (JL727A) is an ideal choice for businesses looking for reliable, high-performance network solutions. With 48 Gigabit Ethernet ports and 4 SFP+ uplink ports, this switch provides seamless connectivity and high-speed data transfers. The 370W PoE budget allows for the powering of various devices, including IP cameras, access points, and VoIP phones, making it a great solution for edge networking.
Key Features:
- 48 x 1GbE Class 4 PoE Ports: Supports up to 30W per port, delivering sufficient power to connected devices like IP phones and wireless access points.
- 4 x SFP+ Uplink Ports: Offers up to 10Gbps uplink speeds, ensuring reliable connectivity to the network core or other switches.
- 370W PoE Power Budget: Provides ample power for multiple PoE-enabled devices, reducing the need for external power supplies.
- Layer 2+ Features: Includes VLANs, link aggregation, and QoS for advanced traffic management and network segmentation.
- Cloud-Based Management: Managed through Aruba Central or local CLI, allowing easy setup and monitoring from anywhere.
Technical Overview:
- Recommended for: Small to medium-sized businesses, branch offices, and retail environments.
- Ports: 48 x 1GbE PoE ports, 4 x 1G/10G SFP+ uplink ports.
- Switching Capacity: 176 Gbps.
- Forwarding Rate: 130.9 Mpps.
- PoE Power Budget: 370W to power connected PoE devices.
- Layer 2+ Features: Supports VLANs, link aggregation, and QoS for efficient traffic control.
- Management: Managed via Aruba Central, CLI, and web-based GUI.
- Energy Efficiency: Compliant with IEEE 802.3az standards for reduced power consumption.
You can check the related tab for the JL727A datasheet.
Properties
| Properties | JL727A |
| Description | 48x ports 10/100/1000BASE-T Class 4 PoE Ports, supporting up to 30W per port 4x 1/10G SFP ports Supports PoE Standards IEEE 802.3af, 802.3at 1x USB-C Console Port 1x OOBM 1x USB Type-A Host port 1x Bluetooth Adapter to be used with Aruba CX Mobile App |
| Product Family | HPE Aruba Networking CX 6200 Switch Series |
| Product Type | Switch |
Specifications
| Specifications | |
| Power supplies | Fixed power supply Up to 370W of Class 4 PoE power |
| Fans | Fixed fans |
| Physical characteristics | |
| Dimensions | (H) 4.39 cm x (W) 44.2 cm x (D) 32.7 cm (1.73″” x 17.4″” x 12.9″”) |
| Weight | 5.05 kg (11.13 lbs) |
| CPU | Quad Core ARM Cortex™ A72 @ 1.8 GHz |
| Memory and Flash | 8 GB DDR4 16 GB eMMC |
| Packet buffer | 8 MB packet buffer memory |
| Performance | |
| Model switching capacity | 176 Gbps |
| Model throughput capacity | Up to 130.9 Mpps |
| Average latency (LIFO-64-bytes packets) | 1 Gbps: 2.28 μSec 10 Gbps: 1.46 μSec |
| Stack size | 8 members using 10G SFP ports |
| Max. stacking distance | Up to 10 kms with long range transceivers |
| Switched virtual interfaces (dual stack) | 128 |
| IPv4 host table (ARP) | 8,192 |
| IPv6 host table (ND) | 8,192 |
| IPv4 unicast routes | 2,048 |
| IPv6 unicast routes | 1,024 |
| MAC table capacity | 32,768 |
| IGMP groups | 1,024 |
| Environment | |
| Operating temperature | 32°F to 113°F (0°C to 45°C) up to 5,000 ft – derate -1°C for every 1,000 ft from 5,000 to 10,000 ft |
| Operating relative humidity | 15% to 95% @ 104°F (40°C) non-condensing |
| Non-operating temperature | -40°F to 158°F (-40°C to 70°C) up to 15,000 ft |
| Non-operating relative humidity | 15% to 90% @ 149°F (65°C) non-condensing |
| Max operating altitude | Up to 10,000ft (3.048 Km) |
| Max non-operating altitude | 15,000 feet (4.6 km) max |
| Acoustics | Sound power, LWAd = 4.9 Bel Sound pressure, LpAm (bystander) = 32.7 dB |
| Primary airflow | Front and side-to-back |
| Electrical characteristics | |
| Frequency | 50Hz/60Hz |
| AC voltage | 100-120V/200-240V |
| Current | 7.5A/3.5A |
| Maximum heat dissipation BTU/hr and kJ/hr info needed | 260 BTU/hr 274 kJ/hr |
| Power consumption (230 VAC) | Hibernation (0 rpm fan): 10W Idle: 60W 100% traffic rate: 76W |
| Safety | Europe: EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011 + A2:2013 EN 62368-1:2014 +A11:2017 US: UL 60950-1 2nd Ed. Canada: CAN/CSA-C22.2 No. 60950-1-07 Worldwide: IEC 60950-1:2005 w/all known National Deviations IEC 62368-1:2014 2nd Ed. Taiwan: CNS-14336-1 |
| Emissions | Europe: EN 55032:2015 +AC:2016, Class A EN 55024:2010 EN 55035:2017 EN 61000-3-2:2014 EN 61000-3-3:2013 US: FCC 47 CFR part 15B, Class A Canada: ICES-003 Class A Worldwide: VCCI Class A CISPR 32 Ed 2.0: 2015 + COR1:2016, Class A CISPR 24:2010 CISPR 35:2016 |
| Lasers | EN 60825-1:2007 / IEC 60825-1:2007 Class 1 Class 1 Laser Products / Laser Klasse 1 (Applicable for accessories – Optical Transceivers only) |
| Immunity | |
| Generic | CISPR 35 |
| EN | EN 55035:2017 |
| ESD | EN 61000-4-2 |
| Radiated | EN 61000-4-3 |
| EFT/Burst | EN 61000-4-4 |
| Surge | EN 61000-4-5 |
| Conducted | EN 61000-4-6 |
| Power frequency magnetic field | IEC 61000-4-8 |
| Voltage dips and interruptions | EN 61000-4-11 |
| Harmonics | EN 61000-3-2, IEC 61000-3-2 |
| Flicker | EN 61000-3-3, IEC 61000-3-3 |
| Mounting and Enclosure | Mounts in an EIA-standard 19 in. Telco rack or equipment cabinet. Horizontal surface mounting only. 2-post rack kit included. |
