Call for Price
Description

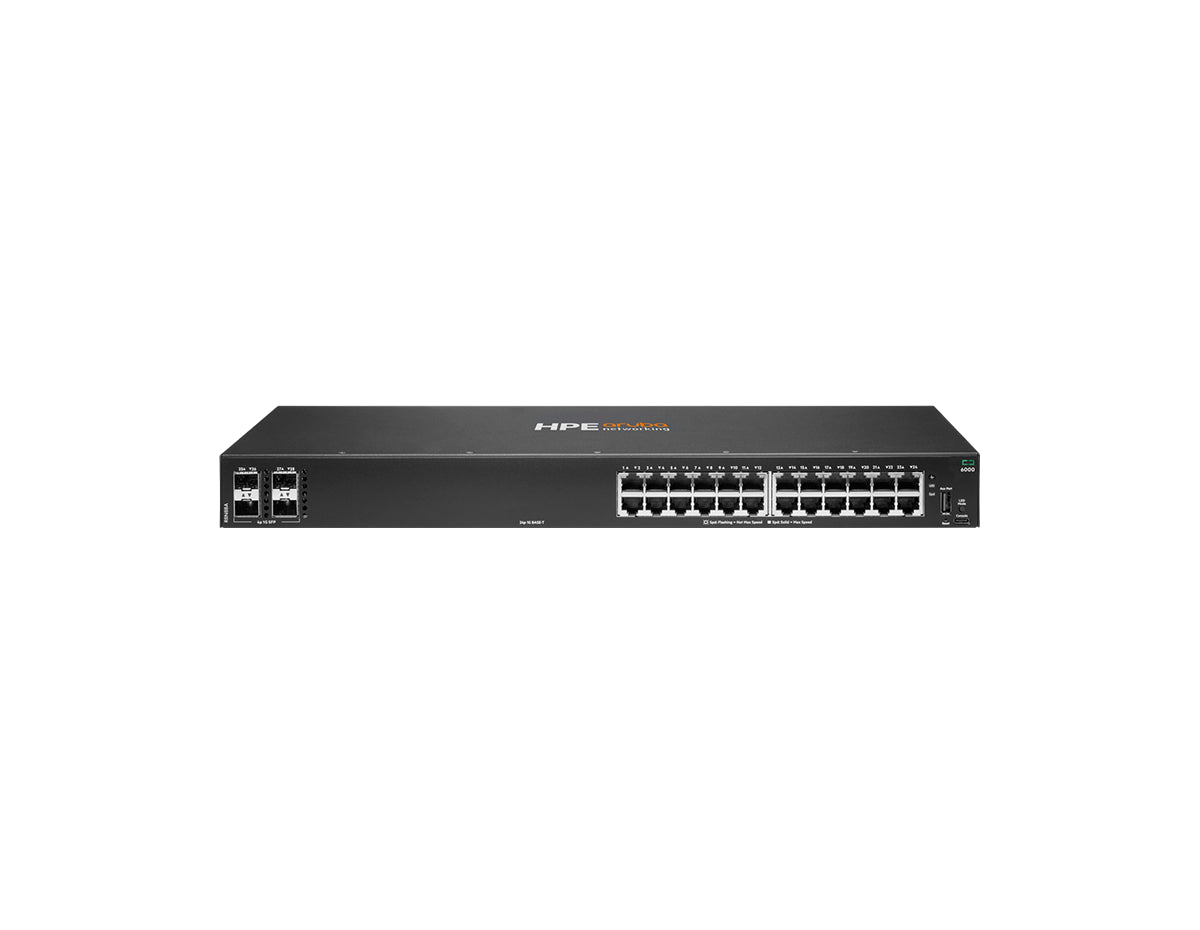

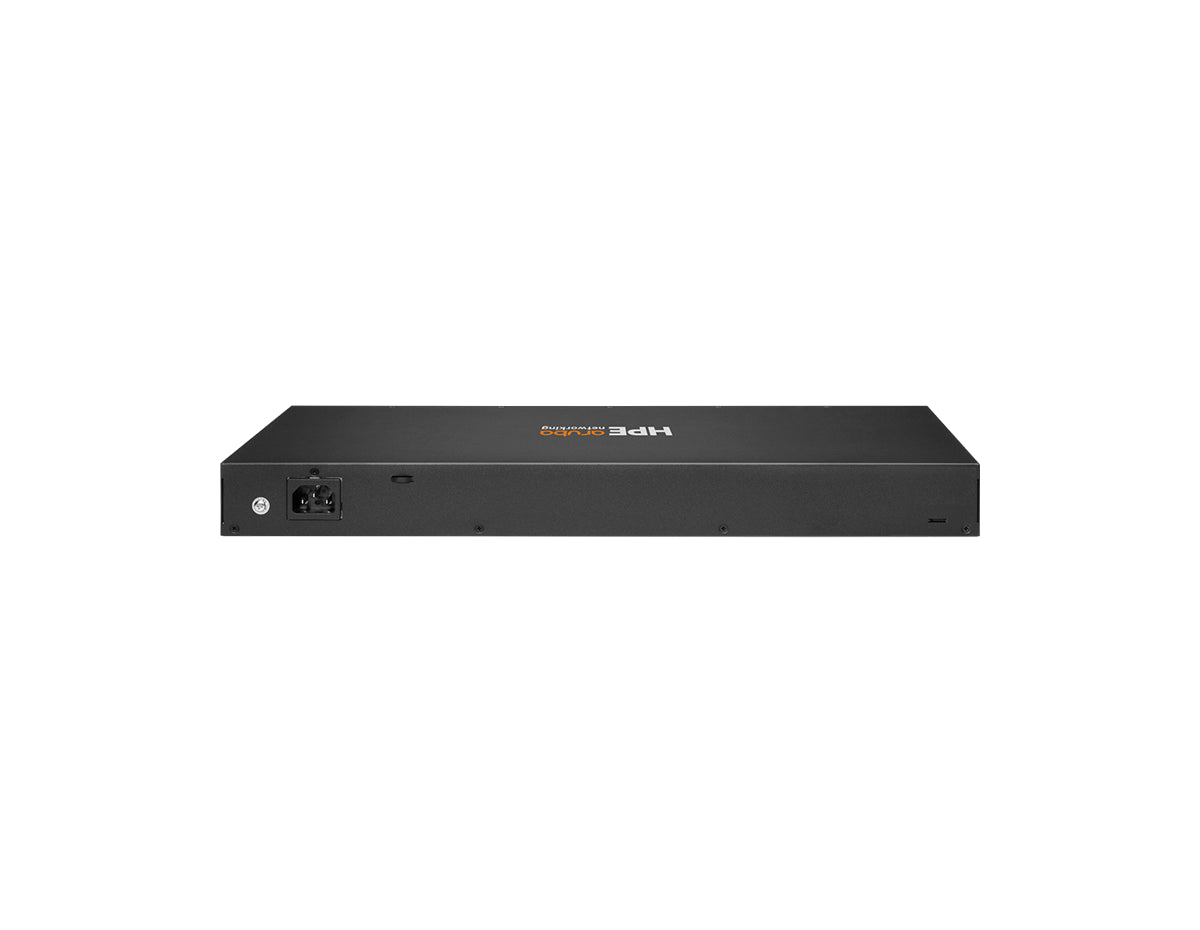

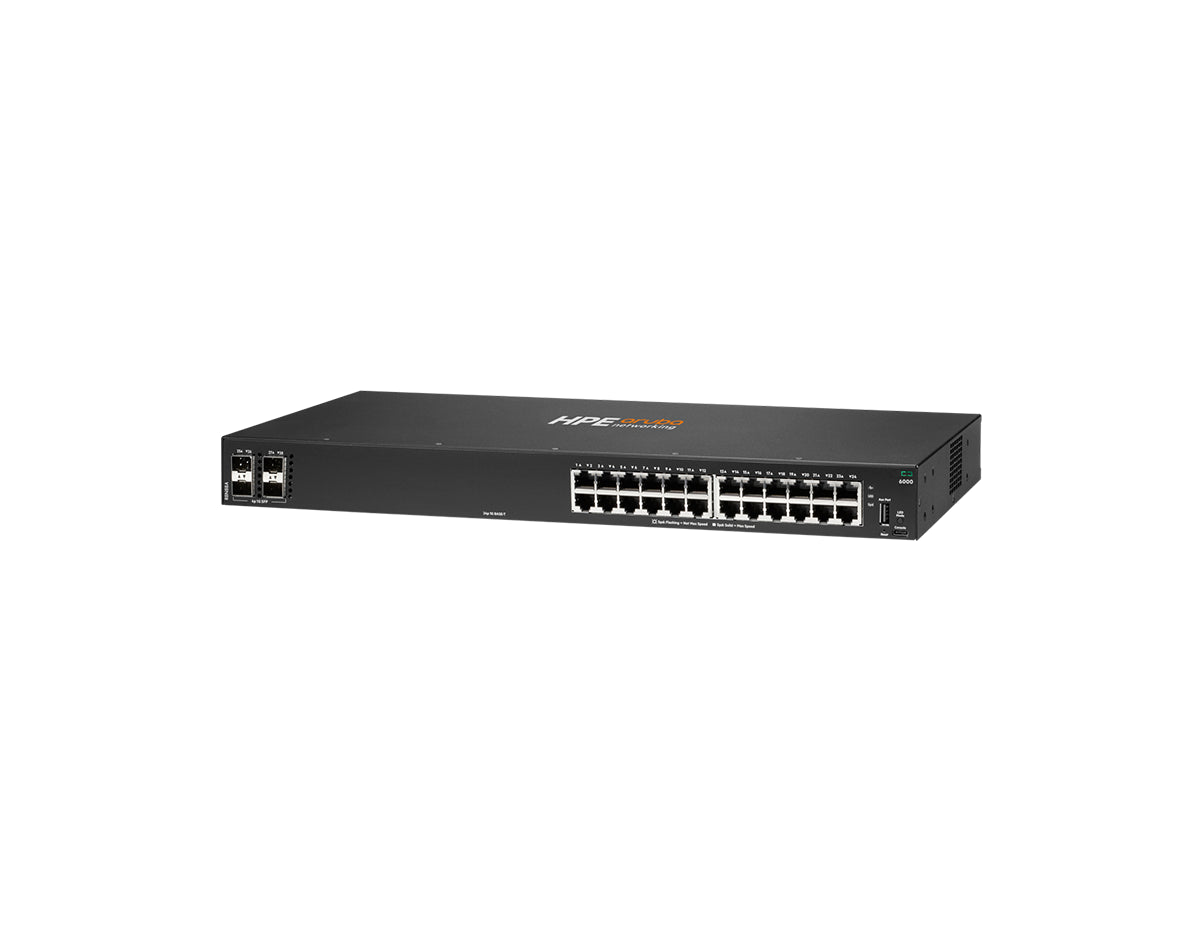

HPE Aruba 6000 24G 4SFP Switch (R8N88A)
The HPE Aruba 6000 24G 4SFP Switch is designed for small to mid-sized businesses, offering reliable and secure Layer 2 networking. Featuring 24 Gigabit Ethernet ports and 4 SFP uplink ports, this switch provides fast connectivity and flexibility for future expansion. Ideal for environments needing scalable performance with simplified management options, it ensures optimal traffic prioritization, VLAN support, and network security.
Key Features:
- 24 x Gigabit Ethernet Ports: Provides reliable and fast connectivity for wired devices.
- 4 x SFP Uplink Ports: High-speed uplinks for scalable fiber connectivity.
- Layer 2 Switching: Offers VLAN support, QoS, and traffic prioritization for improved performance.
- Energy-Efficient Operation: Complies with energy-saving standards to reduce power consumption during low activity.
- Advanced Security Features: Built-in ACLs and 802.1X authentication for secure network access.
Technical Overview:
- Recommended for: Small to mid-sized businesses, branch offices, and educational institutions.
- Ports: 24 x 10/100/1000 Mbps Gigabit Ethernet ports, 4 x SFP uplink ports.
- Switching Capacity: 56 Gbps.
- Forwarding Rate: 41.6 Mpps.
- Management: Managed via Aruba Central, Web GUI, CLI, SNMP.
- Energy Efficiency: Compliant with industry energy-saving standards.
You can check the related tab for the HPE Aruba 6000 24G 4SFP Switch (R8N88A) datasheet.
Properties
| Properties | HPE Aruba R8N88A |
| Description | Aruba 6000 24G 4SFP Switch |
| Product Family | CX6000 Series |
| Product Type | Ethernet Switch |
| I/O ports and slots | 24x 10/100/1000BASE-T Ports |
| 4x 1G SFP ports | |
| 1x USB-C Console Port 1x USB Type-A Host port |
|
| Electrical characteristics | |
| Frequency | 50/60 Hz |
| Voltage | 100 – 127 / 200 – 240 VAC |
| Current | 0.6 A / 0.4 A |
| Power Consumption (230 VAC) | Idle: 15.4W Max Power (w/o PoE): 33W |
| Power supply | Fixed power supply |
| Dimensions (H x W x D) | 1.73x 17.4x 7.92 |
| Weight | 2.62 kg (5.78 lbs) |
| Mounting | Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit included); horizontal surface mounting. |
Specifications
| Specifications | R8N88A |
| CPU | Dual Core ARM Cortex A9 @ 1.016 GHz |
| Memory and Flash | 4 GB DDR3 16 GB eMMC |
| Packet Buffer | 1 MB |
| Performance | |
| Model Switching Capacity | 56 Gbps |
| Model Throughput Capacity | 41.6 Mpps |
| Average Latency (LIFO-64-bytes packets) | 1 Gbps: 1.5 μSec |
| Switched Virtual Interfaces (dual stack) | 16 |
| IPv4 Host Table (ARP) | 1,024 |
| IPv6 Host Table (ND) | 512 |
| IPv4 Unicast Routes | 512 |
| IPv6 Unicast Routes | 512 |
| MAC Table Capacity | 8,192 |
| IGMP Groups | 512 |
| MLD Groups | 512 |
| IPv4/IPv6/MAC ACL Entries (ingress) | 256 / 128 / 256 |
| Operating temperature | 32°F to 113°F (0°C to 45°C) up to 5000 ft (1.5 km) derate by 1°C for every 1000 ft (305 m) from 5000 ft (1.5 km) to 10000 ft (3.0 km) |
| Operating relative humidity | 15% to 95% at 104°F (40°C) noncondensing |
| Nonoperating/Storage temperature | -40°F to 158°F (-40°C to 70°C) up to 15000 ft (4.6 km) |
| Nonoperating/Storage relative humidity | 15% to 90% @ 149°F (65°C) noncondensing |
| Altitude | Sound Power, LWAd = 3.9 Bel Sound Pressure, LpAm (Bystander) = 20.9 dB |
| Acoustic | LWAd = 3.7 Bel LpAm (Bystander) = 23 Db |
| Safety | IEC / EN 62368-1: 2014 IEC / EN 62368-1: 2018 UL 62368-1: 2014, 2nd Ed., CSA C22.2 No. 62368-1:14, 2nd Ed. |
| Emissions | VCCI-CISPR 32, Class A CNS 15936, Class A FCC CFR 47 Part 15, Class A; EN 55032:2015 / A11:2020 / CISPR-32, Class A ICES-003 Issue 7: 2020, Class A AS/NZS CISPR 32: 2015, Class A |
| Lasers | IEC / EN 60825-1:2014, Class 1 Class 1 Laser Products / Laser Klasse 1 (Applicable for accessories – Optical Transceivers only) |
| Immunity | CISPR 35: 2016 EN 55035:2017 / A11:2020 IEC 61000-4-2 IEC 61000-4-3 IEC 61000-4-4 IEC 61000-4-5 IEC 61000-4-6 IEC 61000-4-8 IEC 61000-4-11 EN 61000-3-2, IEC 61000-3-2 EN 61000-3-3, IEC 61000-3-3 |
Accessories
| Transceivers | |
| J4858D | Aruba 1G SFP LC SX 500m MMF Transceiver |
| J4859D | Aruba 1G SFP LC LX 10km SMF Transceiver |
| J8177D | Aruba 1G SFP RJ45 T 100m Cat5e Transceiver |
| Accessories | |
| JL742A | Aruba X511 12-port Cable Guard |
| J9583B | Aruba X414 1U Universal 4-post Rack Mount Kit |
| R9G48A | Aruba USB-A to RJ45 PC-to-Switch Cable |
| R8Z87A | Aruba USB-A to RJ45 PIN3TX-6RX Cable |
| R9J32A | Aruba USB-A to USB-C PC-to-Switch Cable |
| R9J33A | Aruba USB-C to USB-C PC-to-Switch Cable |
