Call for Price
PCI-e 3.0 x8, 2×25 Gigabit SFP28 ports, Dual Ports, Plug-in module
Description

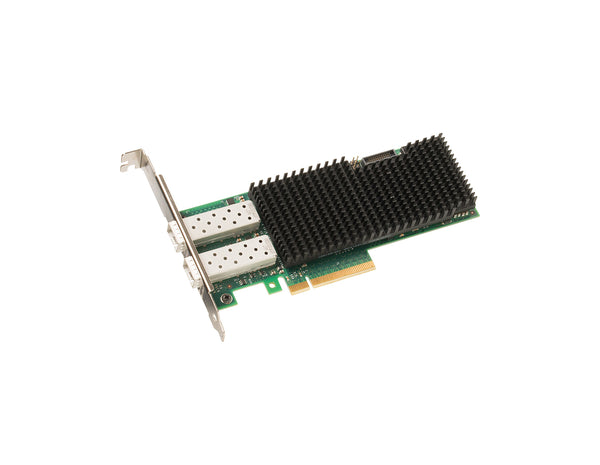

Intel Ethernet Network Adapter XXV710-DA2 (XXV710DA2G1P5)
The Intel XXV710DA2G1P5 network adapter is a high-speed Ethernet adapter that provides quick network connectivity. It has dual ports that offer versatility for a variety of networking tasks. It is designed to be easily integrated into systems with PCI Express 3.0 x8 slots, making it compatible and easy to install. It features 25GB ethernet capability.
Quick Specs:
- PCI-e 3.0 x8
- 2x 25Gigabit SFP28 ports
- Dual Ports
- Plug-in
Please see the related tabs for the XXV710-DA2 datasheet and compatible accessories.
Properties
| Properties | Intel® Ethernet Network Adapter XXV710 |
| Description | The Intel® Ethernet Network Adapter XXV710, part of the Intel® Ethernet 700 Series, is designed to meet the demanding requirements of modern data centers. It offers unparalleled features for server and network virtualization, flexibility for LAN and SAN networks, and delivers proven, reliable performance. |
| Product Family | Intel® Ethernet 700 Series |
| Product Type | Ethernet Network Adapter |
| Key Features | • Single and dual 1/10/25GbE ports • PCI Express* (PCIe*) v3.0, x8 • IEEE 802.3by and 25GEthernet.org specification compliance • Network Virtualization offloads including VXLAN, NVGRE, GENEVE, VXLAN-GPE with Network Service Headers (NSH) and MPLS • Intel® Ethernet Flow Director (Intel® Ethernet FD) for hardware based application traffic steering • Data Plane Development Kit (DPDK) optimized for efficient packet processing • Excellent small packet performance for network appliances and Network Functions Virtualization (NFV) • Intelligent offloads to enable high performance in servers with Intel® Xeon® processors • I/O virtualization innovations for maximum performance in a virtualized server • Adaptive link establishment enables increased interoperability with other 25GbE capable switches and host controllers |
Specifications
| SPECIFICATIONS | |
| General | |
| Connections | Single and dual SFP28 cages supporting Direct Attach Copper (DAC) cable and optical transceivers |
| Network Standard Physical Layer Interfaces | 25GBASE-SR/LR (optical transceivers) 25GBASE-CR (DAC) • Automatically enables no-FEC, BASE-R FEC and RS-FEC to support CA-N, CA-S and CA-L cables 10GBASE-SR/LR (optical transceivers) 10GbE SFP+ DAC |
| TECHNICAL FEATURES | |
| Operating Temperature | 0 °C to 55 °C (32 °F to 131 °F) |
| Air Flow | 100 LFM with 55 °C required for CR (DAC) 250 LFM with 55 °C required for SR optics |
| Storage Temperature | (-40 °C to 70 °C) (-40 °F to 158 °F ) |
| Storage Humidity | Maximum: 90% non-condensing relative humidity at 35 °C |
| LED Indicators | LINK (solid) and ACTIVITY (blinking) LINK SPEED (green = 25 Gbps; yellow = 10 Gbps) |
| POWER CONSUMPTION | |
| Single-port 25BASE-CR-L | Typical Power: 5.9W Maximum Power: 8.0W |
| Single-port 25GBASE-SR | Typical Power: 56.7W Maximum Power: 8.9W |
| Dual-port 25GBASE-CR-L | Typical Power: 8.6W Maximum Power: 11.8 W |
| Dual-port 25GBASE-SR | Typical Power: 10.3 W Maximum Power: 14.1 W |
| ADAPTER FEATURES | |
| Data Rate Supported Per Port | • Optical: 1/10/25GbE • Direct Attach: 10/25GbE |
| Bus Type | PCI Express v3.0 (8 GT/s) |
| Bus Width | PCI Express x8 |
| Interrupt Levels | INTA, MSI, MSI-X |
| Hardware Certifications | FCC A, UL, CE, VCCI, BSMI, CTICK, KCC |
| Controller-processor | Intel® Ethernet Controller XL710-BM2 |
| PHYSICAL DIMENSIONS | |
| Dimension (inches) | 6.578 x 2.703 |
| Dimension (mm) | 167.08 x 68.65 |
| Intel® Ethernet Network Adapter XXV710 Product Codes | |
| XXV710DA1 | Adapter Height: Low Profile Configuration: Single Port |
| XXV710DA2 | Adapter Height: Low Profile Configuration: Dual Port |
| Intel® Ethernet SFP28 Twinaxial Cables | |
| XXVDACBL1M | Cable Length (m): 1 |
| XXVDACBL2M | Cable Length (m): 2 |
| XXVDACBL3M | Cable Length (m): 3 |
| Intel® Ethernet QSFP28 to SFP28 Twinaxial Breakout Cables | |
| XXV4DACBL1M | Cable Length (m): 1 |
| XXV4DACBL2M | Cable Length (m): 2 |
| XXV4DACBL3M | Cable Length (m): 3 |
| Intel® Ethernet SFP28 Optical Module | |
| E25GSFP28SR | SR Optic |
