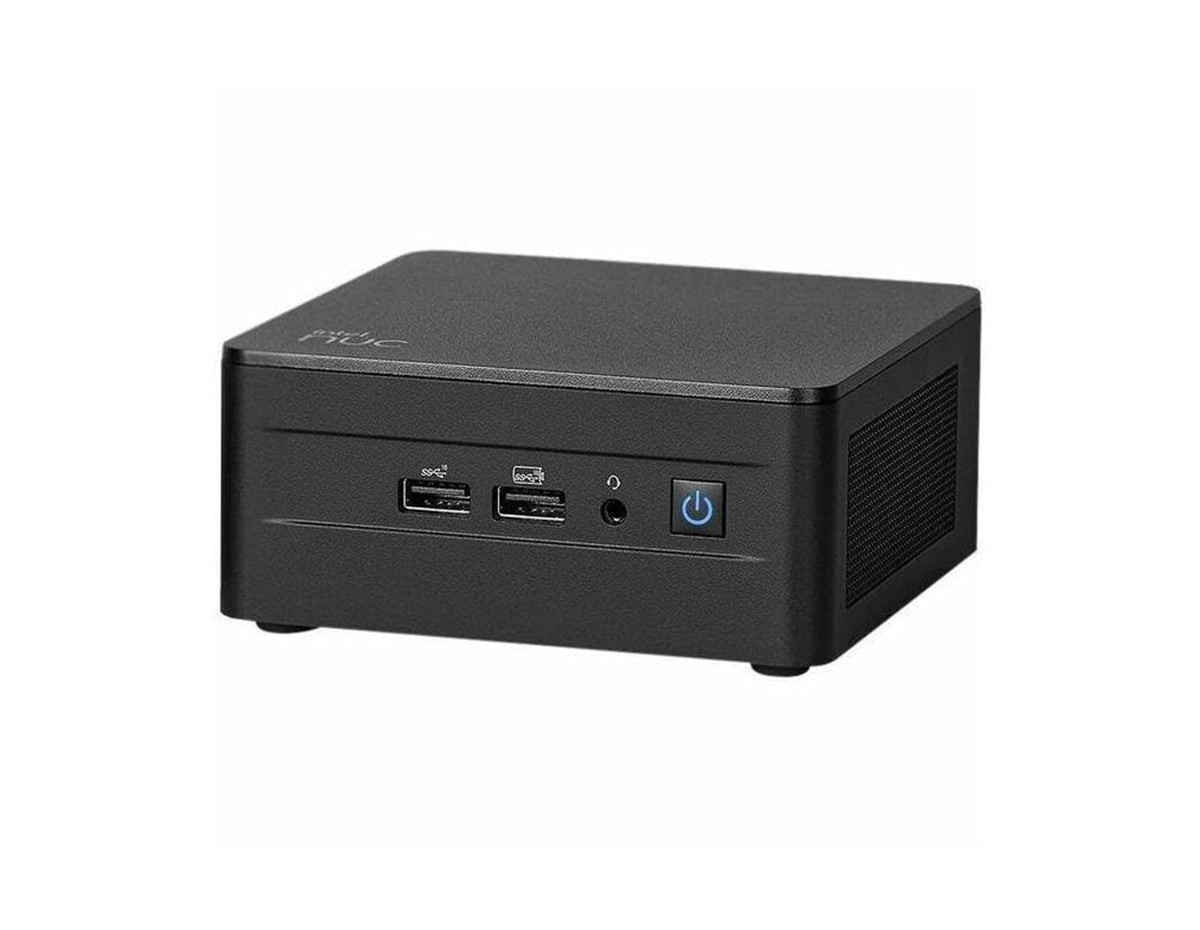

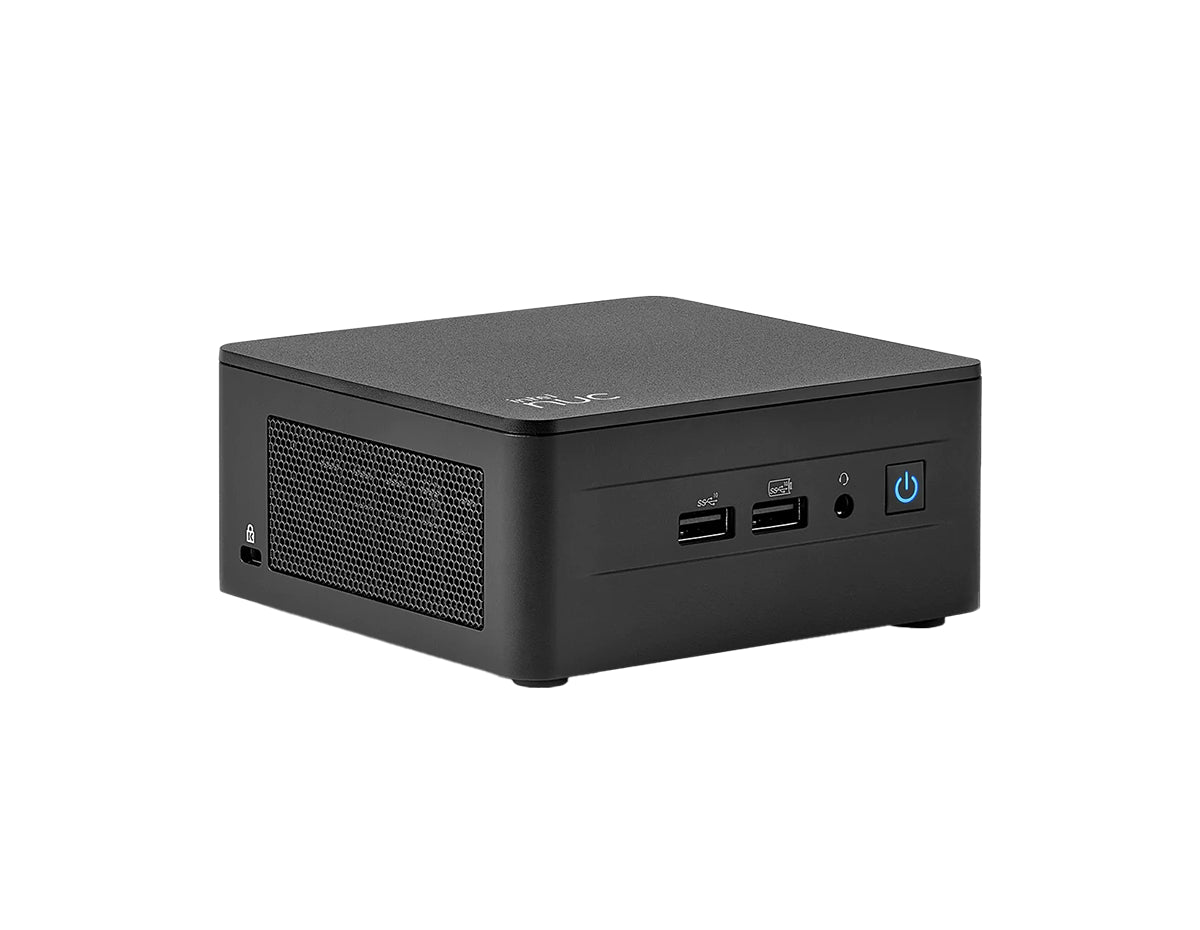

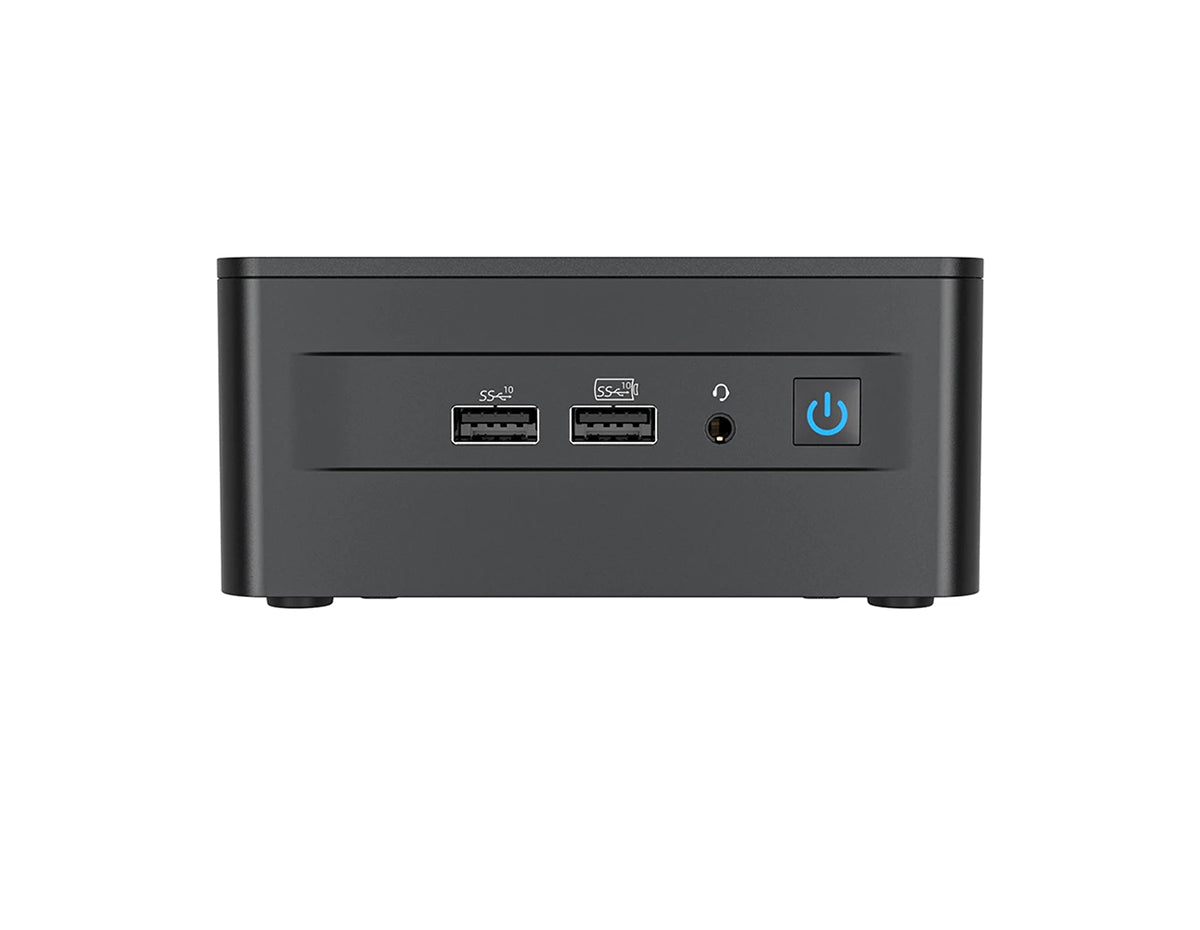

Intel NUC13 MINI PC (NUC13ANHi5)
The Intel NUC13 (NUC13ANHi5) Mini PC is a compact computing device with dimensions of 117mm x 112mm x 38mm, making it suitable for users seeking a powerful yet space-efficient computer. It belongs to Intel’s NUC series of mini-PCs, which are specifically engineered to offer compactness and efficiency without compromising on high-performance computing capabilities. This particular model is equipped with an Intel Core i5-1340P processor and features a 10/100/1000/2500 Mbps RJ45 Ethernet port, as well as 2 front and 1 rear USB 3.2 Gen 2 type A ports.
Quick Specs:
- Intel Core i5-1340 CPU (12 core, 4.60GHz)
- 2x ThunderBolt port
- 64 MB DDR4 RAM
- M.2 SSD
Please see the related tabs for the NUC13ANHi5 datasheet and compatible accessories.
Properties
| Properties | Intel NUC 13 Pro – NUC13ANHi5 Mini PC |
| Description | The Intel NUC 13 NUC13ANHi5 is a compact and powerful Mini PC, featuring a high-performance Intel Core i5 processor and 4×4 form factor. Ideal for space-saving computing needs, it offers impressive processing capabilities and versatility. |
| Product Family | Intel NUC 13 |
| Product Type | Mini PC |
|
Graphics |
Intel Iris® Xe Graphics |
| Graphics Output | 2x HDMI 2.1 TMDS Compatible, 2x DP 1.4a via Type C |
| Numbers of Displays Supported | 4 |
| Numbers of Thunderbolt Ports | 2x Thunderbolt 4 |
| Numbers of USB Ports | 4 |
| USB Configuration | Front: 2x USB 3.2 Rear: 2x USB 4 (type C), 1x USB 3.2, 1x USB 2.0 Internal: 1x USB 3.2 on m.2 22×42 (pins), 2x USB 2.0 (headers) |
| Total # of SATA Ports | 1 |
| Serial Port via Internal Header | No |
| Audio (back channel + front channel) | Front panel: 3.5mm headphone/mic jack |
| Integrated LAN | Intel® Ethernet Controller i226-V |
| Wireless Included | Intel® Wi-Fi 6E AX211 (Gig+) |
| Bluetooth Version | 5.3 |
| M.2 Card Slot (wireless) | 22×30 (E) |
| Additional Headers | Front_panel (PWR, RST, 5V, 5Vsby, 3.3Vsby); Internal 2×2 power connector |
| DC Input Voltage Supported | 12-20 VDC |
| Chassis Dimensions | 117 x 112 x 54 mm |
| Board Form Factor | UCFF (4″ x 4″) |
Specifications
| Processor | Intel Coreni5-1340P Processor (12M Cache, up to 4.60 GHz) |
| Total Cores | 12 |
| Total Threads | 16 |
| Max Turbo Frequency | 4.60 GHz |
| Max Memory Size (dependent on memory type) | 64 GB |
| Number of Memory Slots | 2 |
| Memory Types | DDR4-3200 1.2V SODIMMs |
| Max Numbers of Memory Channels | 2 |
| ECC Memory Supported | No |
| Internal Drive Form Factor | M.2 and 2.5″ Drive |
| Number of Internal Drives Supported | 3 |
| M.2 Card Slot (storage) | 22×80 NVMe (M); 22×42 SATA (B) |
| PCI Express Revision | Gen 4 (m.2 22×80 slot); Gen 3 (otherwise) |
| PCI Express Configurations | PCIe x4 Gen 4: M.2 22×80 (key M) PCIe x1 Gen 3: M.2 22×42 (key B) PCIe x1: M.2 22×30 (key E) |
| Supported Operating Systems | Windows 11 Home, Windows 11 Pro, Windows 10 IoT Enterprise, Red Hat Linux, Ubuntu |
|
Advanced Technologies |
Intel HD Audio Technology Intel Virtualization Technology for Directed I/O (VT-d) Intel Virtualization Technology (VT-x) |
| Intel® Platform Trust Technology (Intel® PTT) | Yes |
| Intel® ME Firmware Version | 16.1 |
| Intel® AES New Instructions | Yes |
Accessories
| Included Accessories | VESA bracket |
