Call for Price
ACX2200AC version1 RUSyncE/1588Temperature hardenedPassive;y cooled2 x GE SFP+2 x GE SFP4 x GE Combo (SFP or RJ45)4 x GE RJ45Redundant AC power supply
Description

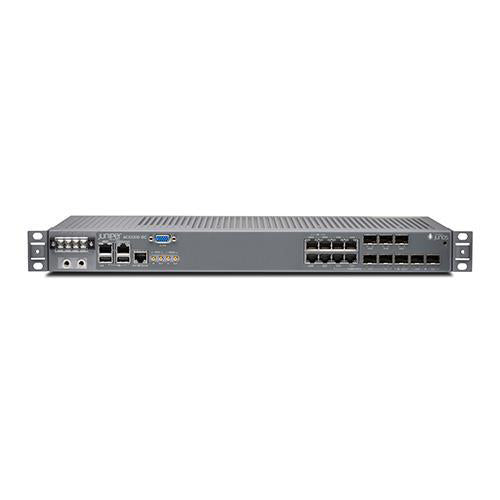

Juniper ACX2200 Universal Metro Router is a compact, Ethernet only, environmentally hardened router with fanless passive cooling. It has a fixed port configuration that includes four copper 10/100/1000 Mbps interfaces, four combination copper/fiber GbE ports, two GbE SFP ports, and two 10 GbE SFP+ ports, making it ideal for IP-RAN deployments.
GUARANTEED to Exceed Expectations.
When purchasing from AMNET Global, rest assured that your information technology equipment is covered for a lifetime. When you receive your order, your unit is already covered by our Lifetime Warranty and Advance Replacement.
Coverage That Never Ends.
In the event of a product malfunction, we fully understand that downtime is not an option. If you experience a product malfunction or failure, we will send you a replacement the same day, fully expedited and at our cost.
Please see our full Terms and Conditions of Warranty here.
QUESTIONS ABOUT THIS PRODUCT OR AVAILABILITY?
You have come to the right place!
If you have an immediate question, please click here and we will be glad to speak with you right away!
To speak to one of our technicians about this product, please call our technical support team at 1.888.428.6677 Option 3 and we will get you taken care of right away!
Properties
| Properties | Juniper ACX2200-AC |
| Description | ACX2200 unit, 2x10GbE SFP+, 4xGbE copper, 4xGbE combination (copper or fiber), 2xGbE SFP, 1 U, ETSI 300, redundant AC power, temperature hardened, passively cooled, Junos OS (optics sold separately) |
| Product Family | ACX2200 Series |
| Product Type | Router |
| Built-In Interface Options | |
| GbE (copper) | 4 |
| GbE (combo) | 4 |
| GbE (SFP) | 2 |
| 10GbE (SFP+) | 2 |
| Console port | RJ-45 connector |
| Management Ethernet port | RJ-45 connector |
| Dimension (WxHxD) | 17.5 x 1.75 x 9.4 in (44.5 x 4.4 x 24 cm) |
| Weight (lb/kg) fully configured | 8.3 lb (3.77 kg) |
| Power | 90 to 240 VAC |
| Maximum power draw | 70 W |
| Rack Unit | 1 U |
Specifications
| Specifications | ACX2200-AC |
| System Throughput | Up to 60 Gbps |
| Operating temperature | -40° to 149° F (-40° to 65° C) |
| Humidity | 95% RH noncondensing |
| Platform Features | |
| Layer 2 | IEEE 802.3 bridging IEEE 802.1q IEEE 802.1ad (Q-in-Q) VLAN id manipulation for outer/inner: swap/pop/push Rapid Spanning Tree Protocol (RSTP)/VLAN Spanning Tree Protocol (VSTP)/Multiple Spanning Tree Protocol (MSTP) Link Aggregation Control Protocol (LACP) Enhanced load balancing based on L2-L4 header info Link Layer Discovery Protocol (LLDP) Layer 2 bridge protocol data unit (BPDU) tunneling/MAC rewrite |
| Layer 3 | IPv4 IPv6 RPF Equal-cost multipath (ECMP) Enhanced load balancing based on L2-L4 header info OSPF IS-IS BGP Indirect/composite next hop |
| MPLS and Seamless MPLS | RSVP LDP Path Computation Element Protocol (PCEP) RSVP-TE BGP-LU LDP-RSVP RSVP fast reroute (FRR) |
| Services | IEEE 802.3 bridge domain PWE (T-LDP) L2VPN (BGP) Layer 3 VPN Integrated routing and bridging (IRB) Stateless filters L2-L4 Circuit emulation SAToP/CESoPSN/ATM o MPLS |
| Class of Service (CoS) | 8 queues per port with schedulers and shaping Classification based on 802.1p, DiffServ code point(DSCP), IP-precedence, Exp bit Single-rate policer ingress/egress Two-rate three-color policer ingress/egress Per-Port Egress Shaping |
| OAM and SLA Management | Bidirectional Forwarding Detection (BFD) Connectivity fault management (CFM) Y.1731 RFC2544 TWAMP |
| Multicast | Protocol Independent Multicast (PIM) Internet Group Management Protocol (IGMP) IGMP snooping |
| Timing and Sync | BITS/1pps/10MHz 1588v2 BC 1588v2 over IP 1588v2 over Ethernet Synchronous Ethernet Hybrid mode |
| Security | L2 storm control |
| Configuration, Management and Automation | CLI NETCONF NMP v2/v3 SLAX/Python on-box scripting tools ZTD YANG |
| Safety Approvals | CAN/CSA-C22.2 No. 60950-1 UL 60950-1 EN 60950-1 IEC 60950-1CB Scheme EN 60825-1 |
| EMC | AS/NZS CISPR22 Class A EN55022 Class A VCCI Class A FCC Part 15 Class A IECS-003 Issue 4 BSMI CNS 13438 and NCC C6357 Taiwan Radiated Emissions KN 22, Class A CISPR 32/EN55032: 2012 European Radiated Emissions Class A EN-61000-4-6 Low Frequency Common Immunity EN-61000-4-11 Voltage Dips and Sags CISPR 24/EN55024 Information Technology Equipment Immunity Characteristics |
| ETSI (European Telecommunications Standardization Institute) | EN 300 386 V1.6.1 Telecommunication Network Equipment, Electromagnetic Compatibility Requirements ETSI EN 300 019-2-3 (2003) Stationary Use at Weather Protected Locations, Class T3.4 ETSI EN 300 019-2-1 (2000) Storage, Class T1.2 ETSI EN 300 019-2-2 (1999) Transportation, Class T2.3 ETSI 300753 (1997) Acoustic Noise Emitted by Telecommunications Equipment |
| NEBS | SR-3580 NEBS Criteria Levels (Level 3 Compliance) GR-63-CORE: NEBS, Physical Protection GR-1089-CORE: EMC and Electrical Safety for Network Telecommunications Equipment (Issue 6 compliant) GR-3108-CORE: Generic Requirements for Network Equipment in the Outside Plant (OSP) |
| Telecomm Compliance | Device management: NETCONF, CLI, SNMP v1/v2/v3 End-to-end provisioning of E-Line, emulated LAN (ELAN), Layer 3 VPN (L3VPN), OAM, class of service (CoS) Device and service-level fault management Device and service-level performance management |
| Metro Ethernet Forum (MEF) | MEF CE2.0 compliant |
Accessories
| Accessories | |
| PKG-1U-ACXS | Package Spare for ACX 1RU Chassis |
| RACK-MNT-1RU-19-S | ACX Series 1 RU 19″ Mounting Bracket” |
| RACK-MNT-1RU-23-S | ACX Series 1 RU 23″ Mounting Bracket” |
| CBL-PWR-C15M-HITEMP-US | Power Cord, AC, C15M |
