Call for Price

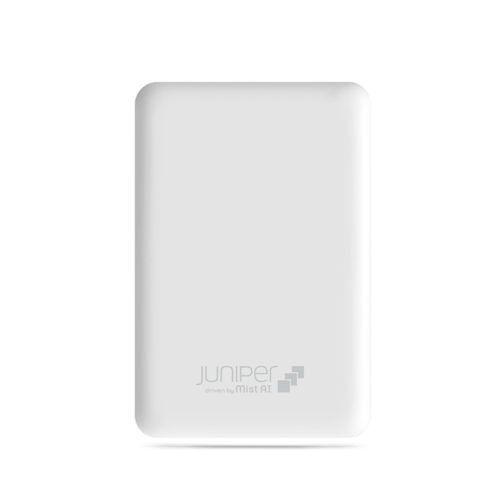

High Performance Wallplate WiFi 6 802.11ax Access Point (AP12) with Bluetooth Low Energy includes four 3yr Cloud Subscriptions (default service is SUB-MAN) and a universal mounting bracket
Description
The wall plate AP12 access point driven by Mist AI automates network operations and boosts Wi-Fi performance for various environments that require easy and flexible deployment, and simultaneous support of multiple IT and IoT devices. It supports an aggregate data rate of up to 1.8 Gbps concurrently on both 2.4GHz and 5GHz radios. Managed by Juniper Mist Cloud Architecture, the AP12 access point delivers unprecedented user experiences at a lower cost for branch offices, remote workers, school dormitories, and hotel room environments.
Properties
| Properties | Juniper MIST MIST-AP12-4S-3Y |
| Description | High Performance Wallplate WiFi 6 802.11ax Access Point (AP12) with Bluetooth Low Energy includes four 3yr Cloud Subscriptions(default service is SUB-MAN) and a universal mounting bracket |
| Product Family | MIST AP Series |
| Product Type | Wireless |
| Deployment | Indoor |
| Wall Plate/Desk Mount | |
| Wi-Fi Standard | 802.11ax (Wi-Fi 6) |
| 2×2 : 2SS | |
| Wi-Fi Radios | Dedicated third radio |
| Antenna Options | Internal |
| Frequencies Supported | 2.4GHz |
| 5GHz | |
| Power Options | 802.3af/at PoE |
| Dimensions | 150 x 100 x 40 mm (5.9 x 3.9 x 1 in) |
| Weight | 0.6 kg (1.3 lbs) excluding mount and accessories |
| I/O and Indicators | |
| Eth0 | 10/100/1000Base-T, RJ45; PoE PD |
| Eth1 | 10/100/1000Base-T; RJ45 PoE Out class 2 (requires . 3at power) |
| Eth2-3 | 10/100/1000BaseT, RJ45 |
| Passthru | Passthru |
| Reset | Reset to the factory default settings |
| Indicators | One multi-color status LED |
Specifications
| Specifications | MIST-AP12-4S-3Y |
| Wi-Fi Standard | 802.11ax (Wi-Fi 6), including support for OFDMA, 1024-QAM, MU-MIMO, Target Wake Time (TWT), and Spatial Frequency Reuse (BSS Coloring). Backwards compatibility with 802.11a/b/g/n/ac |
| Combined Highest Supported Data Rates | 1.8 Gbps |
| 2.4 GHz | 2×2 : 2 802.11b/g/n up to 400 Mbps data rate; 2×2 : 2 802.11ax up to 575 Mbps data rate |
| 5 GHz | 2×2 : 2 802.11ax up to 1,200 Mbps data rate |
| MIMO Operation | Two spatial stream Single User (SU) MIMO for up to 1,200 Mbps wireless data rate to individual 2×2 HE80 Two spatial stream Multi User (MU) MIMO for up to 1,200 Mbps wireless data rate to up to four MUMIMO-capable client devices simultaneously |
| Dedicated Third Radio | 2.4GHz and 5GHz dual-band WIDS/WIPS, spectrum analysis, synthetic client and location analytics radio |
| Internal Antennas | 2.4GHz omnidirectional antennas with 3 dBi peak gain 5GHz omnidirectional antennas with 6 dBi peak gain |
| Bluetooth 5.0 | Omnidirectional Bluetooth antenna Supports superbeacon mode with iBeacon and Eddystone |
| Beam Forming | Transmit Beamforming and Maximal Ratio Combining |
| Operating Temperature | Internal antenna: 0° to 40° C |
| Operating Humidity | 10% to 90% maximum relative humidity, noncondensing |
| Operating Altitude | 3,048 m (10,000 ft) |
| Mean Time Between Failures (MTBF) | Indoor MTBF in hours is 804,043 |
| Trusted Platform Module (TPM) | Includes a TPM for infrastructure security |
Accessories
| Accessories | |
| APBR-WP1 | Wall plate bracket for AP12 |
