Call for Price

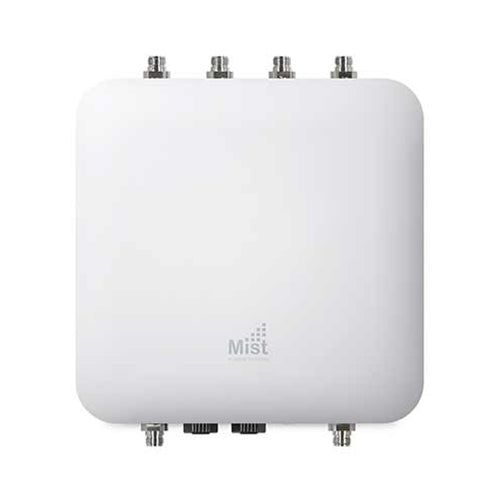

Premium Performance Outdoor Gigabit Wi-Fi Wave 2 Access Point (4×4
Description
The Wi-Fi 6 (802.11ax) AP63 Series access points driven by Mist AI offer high-performance Wi-Fi that ensures business continuity and operational efficiency in outdoor environments. The ruggedized and weather-resistant access points can be deployed in extremely harsh environments to meet service-level expectations (SLEs) and deliver unprecedented user experiences. The AP63 integrates the Juniper-patented AI for AX capabilities and dynamic virtual Bluetooth LE (vBLE) antenna array to automate network operation and boost Wi-Fi performance while providing real-time network insights and location services. Managed by the Juniper Mist Cloud Architecture, the outdoor AP63 is ideal for retail curbside, enterprise campus, public venue, outdoor station, and industrial environments.
Properties
| Properties | Juniper MIST MIST-AP63E-2S-5Y |
| Description | Premium Performance Outdoor MultiGigabit Wi-Fi 802.11ax (AP63E) with Adaptive BLE includes two 5yr Cloud Subscriptions (specify SUB-MAN, SUB-ENG, SUB-AST, SUB-VNA) and a mounting bracket kit |
| Product Family | MIST AP Series |
| Product Type | Wireless |
| Deployment | Outdoor |
| Wi-Fi Standard | 802.11ax (Wi-Fi 6) 4×4 : 4SS |
| Wi-Fi Radios | Dedicated third radio |
| Virtual BLE | Yes |
| Antenna Options | External |
| Frequencies Supported | 2.4GHz |
| 5GHz | |
| Power Options | 802.3at PoE (no PoE out), 802.3bt PoE |
| Power Adapter | 100-240VAC, 50-60 Hz, input. 12V/3A DC output) |
| Dimensions | 285 x 285 x 86 mm (11.2 x 11.2 x 3.4 in) |
| Weight | 3.9kg (8.6 lbs) excluding mount and accessories |
| Shipping Box | 289mm x 268mm x 191mm |
| I/O and Indicators | |
| Eth0 | 100/1000Base-T, 2.5GBase-T (802.3bz); RJ45; PoE PD (requires 802.3bt) |
| Eth1 | 10/100/1000Base-T; RJ45 optional 802.3af PoE PSE mode (requires 802.3bt on Eth0) |
| External Antennas (AP63E) | Six N-type male connectors (four dual- band for client radios; two dual-band for the third radio) |
| Reset | Reset to the factory default settings |
| Indicators | One multicolor status LED |
Specifications
| Specifications | MIST-AP63E-2S-5Y |
| Wi-Fi Standard | 802.11ax (Wi-Fi 6), including support for OFDMA, 1024-QAM, MU-MIMO, Target Wake Time (TWT), Spatial Frequency Reuse (BSS Coloring). Backwards compatibility with 802.11a/b/g/n/ac |
| Combined Highest Supported Data Rates | Dual-Band: 3.5 Gbps Dual-5GHz (internal antenna model): 4.8 Gbps |
| 2.4 GHz | 4×4 : 4 802.11ax up to 1,148 Mbps data rate |
| 5 GHz | 4×4 : 4 802.11ax up to 2,400 Mbps data rate |
| MIMO Operation | Four spatial stream SU-MIMO for up to 2,400 Mbps wireless data rate to individual 4×4 HE80 Four spatial stream MU-MIMO for up to 2,400 Mbps wireless data rate to up to four MU-MIMO capable client devices simultaneously |
| Dedicated Third Radio | 2/2 : 2SS, dual-band WIDS/WIPS, spectrum analysis, synthetic client and location analytics radio |
| Bluetooth 5.0 | vBLE 16-element Directional Antenna Array + Omni Bluetooth Antenna |
| Beam Forming | Transmit Beamforming and Maximal Ratio Combining |
| Operating Temperature | -40° to 55° C with solar loading -40° to 65° C without solar loading |
| Operating Humidity | 10% to 90% maximum relative humidity, noncondensing |
| Operating Altitude | 3,048 m (10,000 ft) |
| Enclosure | IP67 / NEMA 4 compliant |
| Electromagnetic Emissions | FCC Part 15 Class B |
| Trusted Platform Module (TPM) | Includes a TPM for infrastructure security |
| Compliance Standards | CSA/UL 62368-1 FCC Part 15.247, 15.407, 15.107, and 15.109 RSS247 ICES003 (Canada) |
Accessories
| Mounting Brackets | |
| APOUTBR-KIT | Contains Flush Mount and Articulating Mount Brackets |
