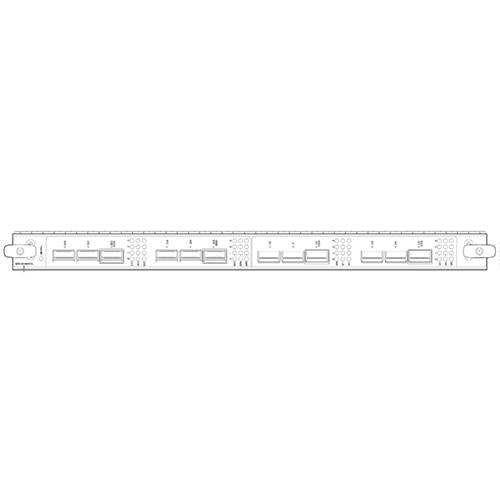

Restricted Use MPC7E-10G-R with 20x10G port included
Description
Modular Port Concentrators (MPCs) with Modular Interface Cards (MICs) provide packet forwarding services and physical interfaces for MX routers. MICs install into MPCs and function similarly to PICs and FPCs. MPCs install vertically in the MX2020, MX2010, MX2008, and MX960 router chassis, and horizontally in the MX480 and MX240 router chassis. On MX5, MX10, MX40, MX80, and MX104 routers, MICs install directly into the router chassis. There are also fixed-configuration MPCs, with built-in network ports and services functionality
Properties
| Product Name | MPC7E-10G-RTU-RB |
| Description | Restricted Use MPC7E-10G-R with 20 x 10G ports; designed for MX Series routers |
| Brand | Juniper |
| Type | Line Card |
| Compatibility | MX Series routers |
| Slot Requirement | 1 slot in chassis |
| Port Configuration | 20 ports |
| Port Type | SFP+ |
| Port Speed | 10 Gbps |
| Features | Restricted Use; optics sold separately |
| Optics | Not included; sold separately |
Specifications
| Dimensions (W x D x H) | 17.2 x 19.05 x 1.89 inches (436.88 x 484 x 48.01 mm) |
| Weight | 31.57 lbs (14.32 kg) |
| Power Consumption | Typical: 1,335 W |
| Power Consumption | Maximum: 1,425 W |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 5% to 90%, non-condensing |
| Compliance | CE, FCC, RoHS |
| Installation | Hot-swappable |
| Management | Monitored via Junos OS |
| Support | Juniper Care Services |
| Additional Information | Modular Port Concentrators (MPCs) with Modular Interface Cards (MICs) provide packet forwarding services and physical interfaces for MX routers. MICs install into MPCs and function similarly to PICs and FPCs. MPCs install vertically in the MX2020, MX2010, MX2008, and MX960 router chassis, and horizontally in the MX480 and MX240 router chassis. On MX5, MX10, MX40, MX80, and MX104 routers, MICs install directly into the router chassis. There are also fixed-configuration MPCs, with built-in network ports and services functionality. |
