Call for Price

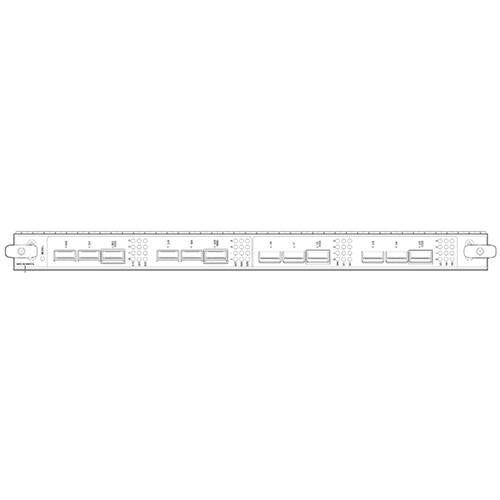

12 x QSFP+/QSFP28 multirate port line card bundle, price includes full scale L2/L2.5 features and reduced scale L3 features. 4 ports out of 12 support QSFP 28.Full scale Per-VLAN queueing, HQoS.Optics sold separately.
Description
Modular Port Concentrators (MPCs) with Modular Interface Cards (MICs) provide packet forwarding services and physical interfaces for MX routers. MICs install into MPCs and function similarly to PICs and FPCs. MPCs install vertically in the MX2020, MX2010, MX2008, and MX960 router chassis, and horizontally in the MX480 and MX240 router chassis. On MX5, MX10, MX40, MX80, and MX104 routers, MICs install directly into the router chassis. There are also fixed-configuration MPCs, with built-in network ports and services functionality
Properties
| Product Name | MPC7EQ-MRATE-B |
| Description | 12 x QSFP+/QSFP28 multirate port line card bundle; includes full-scale L2/L2.5 features and reduced-scale L3 features; 4 ports support QSFP28; full-scale per-VLAN queuing and HQoS; optics sold separately |
| Brand | Juniper |
| Type | Line Card |
| Compatibility | MX2000 series routers |
| Slot Requirement | 1 slot in chassis |
| Port Configuration | 12 ports |
| Port Types | QSFP+/QSFP28 |
| Port Speeds | 10 Gbps, 40 Gbps, 100 Gbps |
| Features | Full-scale L2/L2.5 features; reduced-scale L3 features; full-scale per-VLAN queuing; HQoS |
| Optics | Not included; sold separately |
Specifications
| Dimensions (W x D x H) | 17.2 x 19.05 x 1.89 inches (436.88 x 484 x 48.01 mm) |
| Weight | 31.57 lbs (14.32 kg) |
| Power Consumption | Typical: 1,335 W |
| Power Consumption | Maximum: 1,425 W |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 5% to 90%, non-condensing |
| Compliance | CE, FCC, RoHS |
| Installation | Hot-swappable |
| Management | Monitored via Junos OS |
| Support | Juniper Care Services |
| Additional Information | Modular Port Concentrators (MPCs) with Modular Interface Cards (MICs) provide packet forwarding services and physical interfaces for MX routers. MICs install into MPCs and function similarly to PICs and FPCs. MPCs install vertically in the MX2020, MX2010, MX2008, and MX960 router chassis, and horizontally in the MX480 and MX240 router chassis. On MX5, MX10, MX40, MX80, and MX104 routers, MICs install directly into the router chassis. There are also fixed-configuration MPCs, with built-in network ports and services functionality. |
