Call for Price

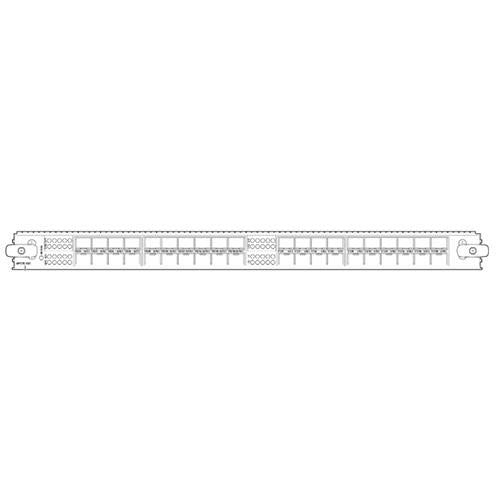

MX Services Interface Card, 128G, Spare, MXaaF only
Description
Modular Port Concentrators (MPCs) with Modular Interface Cards (MICs) provide packet forwarding services and physical interfaces for MX routers. MICs install into MPCs and function similarly to PICs and FPCs. MPCs install vertically in the MX2020, MX2010, MX2008, and MX960 router chassis, and horizontally in the MX480 and MX240 router chassis. On MX5, MX10, MX40, MX80, and MX104 routers, MICs install directly into the router chassis. There are also fixed-configuration MPCs, with built-in network ports and services functionality
Properties
| Product Name | MS-MPC-128G-SX |
| Description | MX Services Interface Card, 128G, Spare, MXaaF only |
| Brand | Juniper |
| Type | Modular Port Concentrator (MPC) |
| Compatibility | MX2020, MX2010, MX2008, MX960, MX480, MX240, MX5, MX10, MX40, MX80, MX104 routers |
| Slot Requirement | 1 slot in chassis |
| Throughput Capacity | Up to 128 Gbps |
| Redundancy | Supports N+1 redundancy |
Specifications
| Dimensions (W x D x H) | 17.2 x 19.05 x 1.89 inches (436.88 x 484 x 48.01 mm) |
| Weight | 31.57 lbs (14.32 kg) |
| Power Consumption | Typical: 1,335 W |
| Power Consumption | Maximum: 1,425 W |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 5% to 90%, non-condensing |
| Compliance | CE, FCC, RoHS |
| Installation | Hot-swappable |
| Management | Monitored via Junos OS |
| Support | Juniper Care Services |
| Additional Information | Modular Port Concentrators (MPCs) with Modular Interface Cards (MICs) provide packet forwarding services and physical interfaces for MX routers. MICs install into MPCs and function similarly to PICs and FPCs. MPCs install vertically in the MX2020, MX2010, MX2008, and MX960 router chassis, and horizontally in the MX480 and MX240 router chassis. On MX5, MX10, MX40, MX80, and MX104 routers, MICs install directly into the router chassis. There are also fixed-configuration MPCs, with built-in network ports and services functionality. |
