Call for Price

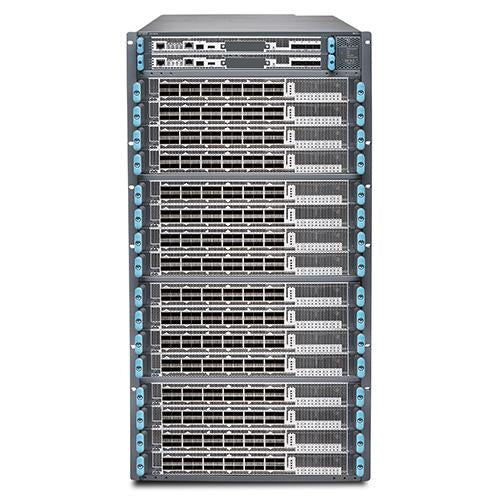

JNP10016/MX10016 Redundant 16-slot chassis – includes 2 Routing Engines, 10 Power Supplies, 2 Fan trays, 2 Fan tray Controllers and6 Switch Fabric Cards.
Description
[accesories]| Software Licenses | |
| S-MX150-IR | Software license to support full L2 and limited L3 features and performance |
| S-MX150-R | Software license to support full L2/L3 features and scale, including HQoS |
| Transceivers | |
| CTP-SFP-1GE-LX | Small Form Factor Pluggable 1000Base-LX Gigabit Ethernet Optic Module, CTP1000 |
| CTP-SFP-1GE-SX | Small Form Factor Pluggable 1000Base-SX Gigabit Ethernet Optic Module, CTP1000 |
| CTP-SFP-1GE-T | Small Form Factor Pluggable 1000Base-T Gigabit Ethernet Module (uses Cat 5 cable) |
| EX-SFP-1GE-LH | Small Form Factor Pluggable 1000Base-LH Gigabit Ethernet Optics |
| EX-SFP-1GE-LX | Small Form Factor Pluggable 1000Base-LX Gigabit Ethernet Optics |
| EX-SFP-1GE-LX40K | SFP 1000Base-LX Gigabit Ethernet Optics, 1310 nm for 40 km transmission on single mode fiber |
| EX-SFP-1GE-SX | Small Form Factor Pluggable 1000Base-SX Gigabit Ethernet Optics |
| EX-SFP-1GE-SX-ET | SFP, 1000Base-SX Gigabit Ethernet, Extended Temperature Range Optics |
| EX-SFP-1GE-T | Small Form Factor Pluggable 10/100/1000 Copper Transceiver Module |
| EX-SFP-GE10KT13R14 | SFP 1000Base-BX Gigabit Ethernet Optics, Tx 1310nm/Rx 1490nm for 10km transmission |
| EX-SFP-GE10KT13R15 | SFP 1000Base-BX Gigabit Ethernet Optics, Tx 1310nm/Rx 1550nm for 10km Transmission |
| EX-SFP-GE10KT14R13 | SFP 1000Base-BX Gigabit Ethernet Optics, Tx 1490nm/Rx 1310nm for 10km transmission |
| EX-SFP-GE10KT15R13 | SFP 1000Base-BX Gigabit Ethernet Optics, Tx 1550nm/Rx 1310nm for 10km Transmission |
| EX-SFP-GE40KT13R15 | SFP 1000Base-BX Gigabit Ethernet Optics, Tx 1310nm/Rx 1550nm for 40km Transmission |
| EX-SFP-GE40KT15R13 | SFP 1000Base-BX Gigabit Ethernet Optics, Tx 1550nm/Rx 1310nm for 40km Transmission |
| EX-SFP-GE80KCW1470 | SFP, Gigabit Ethernet CWDM Optics, 1470nm for 80 km Transmission on SMF |
| EX-SFP-GE80KCW1490 | SFP, Gigabit Ethernet CWDM Optics, 1490nm for 80 km Transmission on SMF |
| EX-SFP-GE80KCW1510 | SFP, Gigabit Ethernet CWDM Optics, 1510nm for 80 km Transmission on SMF |
| EX-SFP-GE80KCW1530 | SFP, Gigabit Ethernet CWDM Optics, 1530nm for 80 km Transmission on SMF |
| EX-SFP-GE80KCW1550 | SFP, Gigabit Ethernet CWDM Optics, 1550nm for 80 km Transmission on SMF |
| EX-SFP-GE80KCW1570 | SFP, Gigabit Ethernet CWDM Optics, 1570nm for 80 km Transmission on SMF |
| EX-SFP-GE80KCW1590 | SFP, Gigabit Ethernet CWDM Optics, 1590nm for 80 km Transmission on SMF |
| EX-SFP-GE80KCW1610 | SFP, Gigabit Ethernet CWDM Optics, 1610nm for 80 km Transmission on SMF |
| QFX-SFP-1GE-LX | SFP 1000Base-LX Gigabit Ethernet Optics, 1310nm for 10km transmission on SMF |
| QFX-SFP-1GE-SX | SFP 1000Base-SX Gigabit Ethernet Optics, 850nm for upto 550m transmission on MMF |
| QFX-SFP-1GE-T | SFP 1000Base-T Copper Transceiver Module for up to 100m transmission |
| SFP-1G-LH-C | SFP, 1G, SMF 70km, Industrial Temperature (-40 through 85 DegC), Duplex LC connector |
| SFP-1G-LX-C | SFP, 1G, SMF 10km and MMF 550m, Extended Temperature (-5 through 70 DegC), Duplex LC connector |
| SFP-1G-SX-C | SFP, 1G, FDDI 220m and OM1 275m/OM2 MMF 550m, Extended Temperature (-10 through 85 DegC), Duplex LC connector |
| SFP-1G-T-C | Small Form Factor Pluggable 1000Base-T Gigabit Ethernet Module (uses Cat 5 cable) |
| SFP-GE10KT13R14 | 1GE Bi-Di (TX1310nm-RX1490nm) 10K w/DDM |
| SFP-GE10KT13R15 | 1-port bidirectional GE SFP with 10km reach, Tx 1310 / Rx 1550 with DDM |
| SFP-GE10KT14R13 | 1-port bidirectional GE SFP with 10km reach, Tx 1490 / Rx 1310 with DDM |
| SFP-GE10KT15R13 | 1-port bidirectional GE SFP with 10km reach, Tx 1550 / Rx 1310 with DDM |
| SFP-GE40KT13R15 | 1-port bidirectional GE SFP with 40km reach, Tx 1310 / Rx 1550 with DDM |
| SFP-GE40KT15R13 | 1-port bidirectional GE SFP with 40km reach; Tx 1550 / Rx 1310; with DDM |
| SRX-SFP-1GE-LH | Small Form Factor Pluggable 1000Base-LH Gigabit Ethernet Optic Module |
| SRX-SFP-1GE-LX | Small Form Factor Pluggable 1000Base-LX Gigabit Ethernet Optic Module |
| SRX-SFP-1GE-LX-ET | Small Form Factor Pluggable 1000Base-LX Gigabit Ethernet Optic Module – Extended temperature |
| SRX-SFP-1GE-SX | Small Form Factor Pluggable 1000Base-SX Gigabit Ethernet Optic Module |
| SRX-SFP-1GE-SX-ET | Small Form Factor Pluggable 1000Base-SX Gigabit Ethernet Optic Module – Extended temperature |
| SRX-SFP-1GE-T | Small Form Factor Pluggable 1000Base-T Gigabit Ethernet Module |
| EX-SFP-10GE-DAC-1M | SFP+ 10 Gigabit Ethernet Direct Attach Copper (Twinax Copper Cable), 1M |
| EX-SFP-10GE-DAC-3M | SFP+ 10 Gigabit Ethernet Direct Attach Copper (Twinax Copper Cable), 3M |
| EX-SFP-10GE-DAC-5M | SFP+ 10 Gigabit Ethernet Direct Attach Copper (Twinax Copper Cable), 5M |
| EX-SFP-10GE-ER | SFP+ 10GBase-ER 10 Gigabit Ethernet Optics Module, 1550nm for 40Km Transmission |
| EX-SFP-10GE-LR | Small Form Factor Pluggable 10 Gigabit Ethernet (SFP+) LR Optics |
| EX-SFP-10GE-SR | Small Form Factor Pluggable 10 Gigabit Ethernet (SFP+) SR Optics |
| EX-SFP-10GE-USR | SFP+ 10 Gigabit Ethernet Ultra Short Reach; 850 nm; 10m on OM1, 20m on OM2, 100m on OM3 Multi-Mode Fiber |
| EX-SFP-10GE-ZR | SFP+, 10GBase-ZR 10 Gigabit Ethernet Optics, 1550nm for 80km Transmission on SMF |
| QFX-SFP-10GE-ER | SFP+ 10GBase-ER 10 Gigabit Ethernet Optics, 1550nm for 40km transmission on SMF |
| QFX-SFP-10GE-LR | SFP+ 10GBase-LR 10 Gigabit Ethernet Optics, 1310nm for 10km transmission on SMF |
| QFX-SFP-10GE-SR | SFP+ 10GBase-SR 10 Gigabit Ethernet Optics, 850nm for up to 300m transmission on MMF |
| QFX-SFP-10GE-USR | SFP+ 10 Gigabit Ethernet Ultra Short Reach Optics, 850 nm for 10m on OM1, 20m on OM2, 100m on OM3 Multi-Mode Fiber |
| QFX-SFP-DAC-1M | SFP+ 10 Gigabit Ethernet Direct Attach Copper (twinax copper cable) 1m |
| QFX-SFP-DAC-3M | SFP+ 10 Gigabit Ethernet Direct Attach Copper (twinax copper cable) 3m |
| QFX-SFP-DAC-5M | SFP+ 10 Gigabit Ethernet Direct Attach Copper (twinax copper cable) 5m |
| SFPP-10G-ER-C | SFP+, 10G-ER Transceiver |
| SFPP-10G-LR-C | SFP+, 10G-LR Transceiver |
| SFPP-10G-LRT2-C | SFP+, 10G-LR Transceiver type 2 |
| SFPP-10G-SR-C | SFP+, 10G-SR Transceiver |
| SFPP-10G-SR-ET-C | SFP+ 10GE-SR MMF 1.0W Beige Bail |
| SFPP-10G-USR-C | SFP+, 10G-USR Transceiver |
GUARANTEED to Exceed Expectations.
When purchasing from AMNET Global, rest assured that your information technology equipment is covered for a lifetime. When you receive your order, your unit is already covered by our Lifetime Warranty and Advance Replacement.
Coverage That Never Ends.
In the event of a product malfunction, we fully understand that downtime is not an option. If you experience a product malfunction or failure, we will send you a replacement the same day, fully expedited and at our cost.
Please see our full Terms and Conditions of Warranty here.
QUESTIONS ABOUT THIS PRODUCT OR AVAILABILITY?
You have come to the right place!
If you have an immediate question, please click here and we will be glad to speak with you right away!
To speak to one of our technicians about this product, please call our technical support team at 1.888.428.6677 Option 3 and we will get you taken care of right away!
Properties
| Properties | Juniper MX10016-PREMIUM |
| Description | MX10016 redundant 16-slot chassis [JNP10016]. Includes 2 REs, 10 power supplies, 2 fan trays, 2 fan tray controllers, and 6 Switch Fabric cards. |
| Product Family | MX10000 Series |
| Product Type | Router |
| Interface Features | |
| Maximum 10GbE | 1536 |
| Maximum 40GbE | 384 |
| Maximum 100GbE | 384 |
| Line card slots per chassis | 16 |
| Physical dimensions (W x D x H) | |
| Chassis, spare |
17.4 x 35 x 36.6 in (44.2 x 88.9 x 92.96 cm)
|
| Chassis base AC configuration
Includes 1 Control Board, 5 AC power supplies, 2 fan trays, 2 fan tray controllers, and 5 Switch Ffabric Boards (SFBs) |
|
| Chassis redundant AC configuration
Includes 2 Control Boards, 10 AC power supplies, 2 fan trays, 2 fan tray controllers, and 6 SIBs |
|
| Chassis base DC configuration
Includes 1 Control Board, 5 DC power supplies, 2 fan trays, 2 fan tray controllers, and 5 SIBs |
|
| Chassis redundant DC configuration
Includes 2 Control Boards, 10 DC power supplies, 2 fan trays, 2 fan tray controllers, and 6 SIBs |
|
| Weights | |
| Chassis, spare | 220 lb (99.79 kg) |
| Chassis base AC configuration | 522 lb (236.78 kg) |
| Chassis redundant AC configuration | 596 lb (270.34 kg) |
| Chassis base DC configuration | 519.5 lb (235.65 kg) |
| Chassis redundant DC configuration | 591 lb (268.07 kg) |
| Maximum weight | 604 lb (274 kg) (excluding line cards) |
| Rack units | 42 U |
| Mounting | 4 post rack |
| Typical power consumption | 23 kW, fully loaded |
| AC input line frequency | 50 to 60 Hz (nominal) |
| Power system rating | 200-240 VAC/50-60 Hz or -48 VDC @ 60 A |
| Maximum output power | JNP10K-PWR-AC: 2700 W JNP10K-PWR-AC2: 5000 W or 5500 W when set for high power (30-A); 3000 W when set for low power (20-A) JNP10K-PWR-DC: 2500 W JNP10K-PWR-DC2: 5500 W when set for high power (80-A) or 4400 W when set for low power (60-A) |
Specifications
| Specifications | MX10016-PREMIUM |
| System capacity | Full-duplex: 38.4 Gbps Half-duplex: 76.8 Gbps |
| Per slot capacity | Full-duplex: 2.4 Tbps Half-duplex: 4.8 Tbps |
| Built-in Routing Engine | 2.2 GHz Intel processor with 64/128 GB memory and 2×200 GB SSD |
| Number of cores | 10 cores |
| Operating temperature | 32° to 115° F (0° to 46° C) |
| Humidity | (Operating) 5 to 90 percent noncondensing |
| Altitude | Up to 6000 feet |
Accessories
| Software Licenses | |
| S-MX150-IR | Software license to support full L2 and limited L3 features and performance |
| S-MX150-R | Software license to support full L2/L3 features and scale, including HQoS |
| Transceivers | |
| CTP-SFP-1GE-LX | Small Form Factor Pluggable 1000Base-LX Gigabit Ethernet Optic Module, CTP1000 |
| CTP-SFP-1GE-SX | Small Form Factor Pluggable 1000Base-SX Gigabit Ethernet Optic Module, CTP1000 |
| CTP-SFP-1GE-T | Small Form Factor Pluggable 1000Base-T Gigabit Ethernet Module (uses Cat 5 cable) |
| EX-SFP-1GE-LH | Small Form Factor Pluggable 1000Base-LH Gigabit Ethernet Optics |
| EX-SFP-1GE-LX | Small Form Factor Pluggable 1000Base-LX Gigabit Ethernet Optics |
| EX-SFP-1GE-LX40K | SFP 1000Base-LX Gigabit Ethernet Optics, 1310 nm for 40 km transmission on single mode fiber |
| EX-SFP-1GE-SX | Small Form Factor Pluggable 1000Base-SX Gigabit Ethernet Optics |
| EX-SFP-1GE-SX-ET | SFP, 1000Base-SX Gigabit Ethernet, Extended Temperature Range Optics |
| EX-SFP-1GE-T | Small Form Factor Pluggable 10/100/1000 Copper Transceiver Module |
| EX-SFP-GE10KT13R14 | SFP 1000Base-BX Gigabit Ethernet Optics, Tx 1310nm/Rx 1490nm for 10km transmission |
| EX-SFP-GE10KT13R15 | SFP 1000Base-BX Gigabit Ethernet Optics, Tx 1310nm/Rx 1550nm for 10km Transmission |
| EX-SFP-GE10KT14R13 | SFP 1000Base-BX Gigabit Ethernet Optics, Tx 1490nm/Rx 1310nm for 10km transmission |
| EX-SFP-GE10KT15R13 | SFP 1000Base-BX Gigabit Ethernet Optics, Tx 1550nm/Rx 1310nm for 10km Transmission |
| EX-SFP-GE40KT13R15 | SFP 1000Base-BX Gigabit Ethernet Optics, Tx 1310nm/Rx 1550nm for 40km Transmission |
| EX-SFP-GE40KT15R13 | SFP 1000Base-BX Gigabit Ethernet Optics, Tx 1550nm/Rx 1310nm for 40km Transmission |
| EX-SFP-GE80KCW1470 | SFP, Gigabit Ethernet CWDM Optics, 1470nm for 80 km Transmission on SMF |
| EX-SFP-GE80KCW1490 | SFP, Gigabit Ethernet CWDM Optics, 1490nm for 80 km Transmission on SMF |
| EX-SFP-GE80KCW1510 | SFP, Gigabit Ethernet CWDM Optics, 1510nm for 80 km Transmission on SMF |
| EX-SFP-GE80KCW1530 | SFP, Gigabit Ethernet CWDM Optics, 1530nm for 80 km Transmission on SMF |
| EX-SFP-GE80KCW1550 | SFP, Gigabit Ethernet CWDM Optics, 1550nm for 80 km Transmission on SMF |
| EX-SFP-GE80KCW1570 | SFP, Gigabit Ethernet CWDM Optics, 1570nm for 80 km Transmission on SMF |
| EX-SFP-GE80KCW1590 | SFP, Gigabit Ethernet CWDM Optics, 1590nm for 80 km Transmission on SMF |
| EX-SFP-GE80KCW1610 | SFP, Gigabit Ethernet CWDM Optics, 1610nm for 80 km Transmission on SMF |
| QFX-SFP-1GE-LX | SFP 1000Base-LX Gigabit Ethernet Optics, 1310nm for 10km transmission on SMF |
| QFX-SFP-1GE-SX | SFP 1000Base-SX Gigabit Ethernet Optics, 850nm for upto 550m transmission on MMF |
| QFX-SFP-1GE-T | SFP 1000Base-T Copper Transceiver Module for up to 100m transmission |
| SFP-1G-LH-C | SFP, 1G, SMF 70km, Industrial Temperature (-40 through 85 DegC), Duplex LC connector |
| SFP-1G-LX-C | SFP, 1G, SMF 10km and MMF 550m, Extended Temperature (-5 through 70 DegC), Duplex LC connector |
| SFP-1G-SX-C | SFP, 1G, FDDI 220m and OM1 275m/OM2 MMF 550m, Extended Temperature (-10 through 85 DegC), Duplex LC connector |
| SFP-1G-T-C | Small Form Factor Pluggable 1000Base-T Gigabit Ethernet Module (uses Cat 5 cable) |
| SFP-GE10KT13R14 | 1GE Bi-Di (TX1310nm-RX1490nm) 10K w/DDM |
| SFP-GE10KT13R15 | 1-port bidirectional GE SFP with 10km reach, Tx 1310 / Rx 1550 with DDM |
| SFP-GE10KT14R13 | 1-port bidirectional GE SFP with 10km reach, Tx 1490 / Rx 1310 with DDM |
| SFP-GE10KT15R13 | 1-port bidirectional GE SFP with 10km reach, Tx 1550 / Rx 1310 with DDM |
| SFP-GE40KT13R15 | 1-port bidirectional GE SFP with 40km reach, Tx 1310 / Rx 1550 with DDM |
| SFP-GE40KT15R13 | 1-port bidirectional GE SFP with 40km reach; Tx 1550 / Rx 1310; with DDM |
| SRX-SFP-1GE-LH | Small Form Factor Pluggable 1000Base-LH Gigabit Ethernet Optic Module |
| SRX-SFP-1GE-LX | Small Form Factor Pluggable 1000Base-LX Gigabit Ethernet Optic Module |
| SRX-SFP-1GE-LX-ET | Small Form Factor Pluggable 1000Base-LX Gigabit Ethernet Optic Module – Extended temperature |
| SRX-SFP-1GE-SX | Small Form Factor Pluggable 1000Base-SX Gigabit Ethernet Optic Module |
| SRX-SFP-1GE-SX-ET | Small Form Factor Pluggable 1000Base-SX Gigabit Ethernet Optic Module – Extended temperature |
| SRX-SFP-1GE-T | Small Form Factor Pluggable 1000Base-T Gigabit Ethernet Module |
| EX-SFP-10GE-DAC-1M | SFP+ 10 Gigabit Ethernet Direct Attach Copper (Twinax Copper Cable), 1M |
| EX-SFP-10GE-DAC-3M | SFP+ 10 Gigabit Ethernet Direct Attach Copper (Twinax Copper Cable), 3M |
| EX-SFP-10GE-DAC-5M | SFP+ 10 Gigabit Ethernet Direct Attach Copper (Twinax Copper Cable), 5M |
| EX-SFP-10GE-ER | SFP+ 10GBase-ER 10 Gigabit Ethernet Optics Module, 1550nm for 40Km Transmission |
| EX-SFP-10GE-LR | Small Form Factor Pluggable 10 Gigabit Ethernet (SFP+) LR Optics |
| EX-SFP-10GE-SR | Small Form Factor Pluggable 10 Gigabit Ethernet (SFP+) SR Optics |
| EX-SFP-10GE-USR | SFP+ 10 Gigabit Ethernet Ultra Short Reach; 850 nm; 10m on OM1, 20m on OM2, 100m on OM3 Multi-Mode Fiber |
| EX-SFP-10GE-ZR | SFP+, 10GBase-ZR 10 Gigabit Ethernet Optics, 1550nm for 80km Transmission on SMF |
| QFX-SFP-10GE-ER | SFP+ 10GBase-ER 10 Gigabit Ethernet Optics, 1550nm for 40km transmission on SMF |
| QFX-SFP-10GE-LR | SFP+ 10GBase-LR 10 Gigabit Ethernet Optics, 1310nm for 10km transmission on SMF |
| QFX-SFP-10GE-SR | SFP+ 10GBase-SR 10 Gigabit Ethernet Optics, 850nm for up to 300m transmission on MMF |
| QFX-SFP-10GE-USR | SFP+ 10 Gigabit Ethernet Ultra Short Reach Optics, 850 nm for 10m on OM1, 20m on OM2, 100m on OM3 Multi-Mode Fiber |
| QFX-SFP-DAC-1M | SFP+ 10 Gigabit Ethernet Direct Attach Copper (twinax copper cable) 1m |
| QFX-SFP-DAC-3M | SFP+ 10 Gigabit Ethernet Direct Attach Copper (twinax copper cable) 3m |
| QFX-SFP-DAC-5M | SFP+ 10 Gigabit Ethernet Direct Attach Copper (twinax copper cable) 5m |
| SFPP-10G-ER-C | SFP+, 10G-ER Transceiver |
| SFPP-10G-LR-C | SFP+, 10G-LR Transceiver |
| SFPP-10G-LRT2-C | SFP+, 10G-LR Transceiver type 2 |
| SFPP-10G-SR-C | SFP+, 10G-SR Transceiver |
| SFPP-10G-SR-ET-C | SFP+ 10GE-SR MMF 1.0W Beige Bail |
| SFPP-10G-USR-C | SFP+, 10G-USR Transceiver |
Be the first to review “JUNIPER MX10016-PREMIUM CHASSIS” Cancel reply
You must be logged in to post a review.
Reviews
There are no reviews yet.
