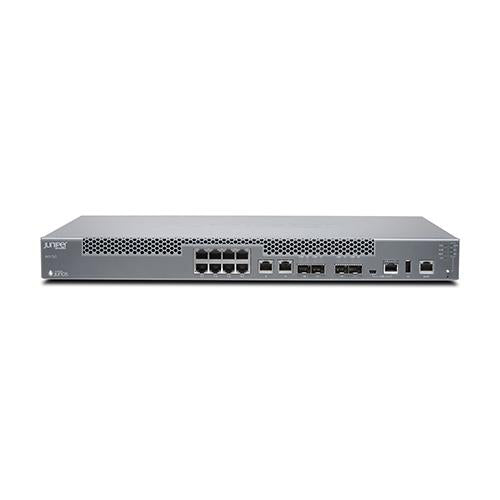

MX150with S-MX150-R‚ license10 x 10/100/1000BASE-T ports2 x 100/1000BASE-X SFP ports2 x 10GBASE-X SFP+ ports6-core x86 processor400 GB SSD32 GB memory
Description
Juniper compact MX150 Universal Routing Platform is a high-performance, feature-rich 20 Gbps edge router that is ideally suited for lower bandwidth service provider applications and distributed service architectures, and for enterprise WAN uses. With support for an outstanding mix of 10/100/1000 and 10GbE interfaces, all in a single rack unit (1 U), the MX150 helps conserve precious space resources and contain costs associated with power and cooling.
GUARANTEED to Exceed Expectations.
When purchasing from AMNET Global, rest assured that your information technology equipment is covered for a lifetime. When you receive your order, your unit is already covered by our Lifetime Warranty and Advance Replacement.
Coverage That Never Ends.
In the event of a product malfunction, we fully understand that downtime is not an option. If you experience a product malfunction or failure, we will send you a replacement the same day, fully expedited and at our cost.
Please see our full Terms and Conditions of Warranty here.
QUESTIONS ABOUT THIS PRODUCT OR AVAILABILITY?
You have come to the right place!
If you have an immediate question, please click here and we will be glad to speak with you right away!
To speak to one of our technicians about this product, please call our technical support team at 1.888.428.6677 Option 3 and we will get you taken care of right away!
Properties
| Properties | Juniper MX150-R |
| Description | MX150 with 10 10/100/1000BASE-T ports, two 100/1000BASEX SFP ports, and two 10GBASE-X SFP+ ports (optics sold separately)and S-MX150-R license, 6-core x86 processor, 400 GB SSD, and 32 GB memory. Supports basic L2 features. |
| Product Family | MX150 Series |
| Product Type | Router |
| Interface Features | |
| Maximum 1GbE | 12 |
| Maximum 10GbE | 2 |
| Maximum 40GbE | NA |
| Maximum 100GbE | NA |
| 10GbE DWDM | NA |
| 100GbE DWDM | NA |
| Ports | 1 Mini-USB Type-B console port 1 RJ-45 console port 1 USB port 1-Gigabit management port |
| Slots | NA |
| Physical dimensions (W x D x H) | 17.36 in. (44.1 cm) x 12 in. (30.5 cm) x 1.72 in. (4.3 cm) |
| Weight (lb/kg) fully configured | 9.4 lb (4.3 kg) |
| Rack units | 1 |
| Systems per rack | 48 |
| Redundancy | Fans |
| Air flow | Front to back |
| Maximum power consumption | 140 W |
| AC input voltage | 100-240 VAC |
| AC input line frequency | 50 to 60 Hz (nominal) |
| AC system current rating | 3 A at 240 VAC |
Specifications
| Specifications | MX150-R |
| System capacity | 20 Gbps |
| Maximum system throughput | Full-duplex: 20 Gbps Half-duplex: 40 Gbps |
| Packet forwarding capacity | 55 to 60 Mpps |
| Per slot capacity | N/A |
| Slot orientation | N/A |
| Built-in Routing Engine | Xeon D processor running Wind River Linux 7; 32 GB DDR4 RAM; 400 GB SSD |
| Number of cores | 6 core |
| Platform Features | |
| Security | Firewall filters/ACLs DDoScontrol plane DDoSFlowSpec Stateless filters L2-L4 |
| Inline Services | GRE reassembly 1:1 NAT* Flow monitoring** Lawful intercept Mirroring |
| Service Card Supported Services | Intrusion detection system |
| Resiliency | Fast restoration Operation, Administration, and Maintenance (OAM) |
| System Virtualization |
Enhanced SLA and queuing Logical systems Virtual router/switch Path Computation Element Protocol (PCEP) OpenConfig YANG data modeling Juniper Extension Toolkit |
| Operating temperature | 32° to 115° F (0° to 46° C) |
| Humidity | 5% to 90% noncondensing humidity |
Accessories
| Software Licenses | |
| S-MX150-IR | Software license to support full L2 and limited L3 features and performance |
| S-MX150-R | Software license to support full L2/L3 features and scale, including HQoS |
| Transceivers | |
| CTP-SFP-1GE-LX | Small Form Factor Pluggable 1000Base-LX Gigabit Ethernet Optic Module, CTP1000 |
| CTP-SFP-1GE-SX | Small Form Factor Pluggable 1000Base-SX Gigabit Ethernet Optic Module, CTP1000 |
| CTP-SFP-1GE-T | Small Form Factor Pluggable 1000Base-T Gigabit Ethernet Module (uses Cat 5 cable) |
| EX-SFP-1GE-LH | Small Form Factor Pluggable 1000Base-LH Gigabit Ethernet Optics |
| EX-SFP-1GE-LX | Small Form Factor Pluggable 1000Base-LX Gigabit Ethernet Optics |
| EX-SFP-1GE-LX40K | SFP 1000Base-LX Gigabit Ethernet Optics, 1310 nm for 40 km transmission on single mode fiber |
| EX-SFP-1GE-SX | Small Form Factor Pluggable 1000Base-SX Gigabit Ethernet Optics |
| EX-SFP-1GE-SX-ET | SFP, 1000Base-SX Gigabit Ethernet, Extended Temperature Range Optics |
| EX-SFP-1GE-T | Small Form Factor Pluggable 10/100/1000 Copper Transceiver Module |
| EX-SFP-GE10KT13R14 | SFP 1000Base-BX Gigabit Ethernet Optics, Tx 1310nm/Rx 1490nm for 10km transmission |
| EX-SFP-GE10KT13R15 | SFP 1000Base-BX Gigabit Ethernet Optics, Tx 1310nm/Rx 1550nm for 10km Transmission |
| EX-SFP-GE10KT14R13 | SFP 1000Base-BX Gigabit Ethernet Optics, Tx 1490nm/Rx 1310nm for 10km transmission |
| EX-SFP-GE10KT15R13 | SFP 1000Base-BX Gigabit Ethernet Optics, Tx 1550nm/Rx 1310nm for 10km Transmission |
| EX-SFP-GE40KT13R15 | SFP 1000Base-BX Gigabit Ethernet Optics, Tx 1310nm/Rx 1550nm for 40km Transmission |
| EX-SFP-GE40KT15R13 | SFP 1000Base-BX Gigabit Ethernet Optics, Tx 1550nm/Rx 1310nm for 40km Transmission |
| EX-SFP-GE80KCW1470 | SFP, Gigabit Ethernet CWDM Optics, 1470nm for 80 km Transmission on SMF |
| EX-SFP-GE80KCW1490 | SFP, Gigabit Ethernet CWDM Optics, 1490nm for 80 km Transmission on SMF |
| EX-SFP-GE80KCW1510 | SFP, Gigabit Ethernet CWDM Optics, 1510nm for 80 km Transmission on SMF |
| EX-SFP-GE80KCW1530 | SFP, Gigabit Ethernet CWDM Optics, 1530nm for 80 km Transmission on SMF |
| EX-SFP-GE80KCW1550 | SFP, Gigabit Ethernet CWDM Optics, 1550nm for 80 km Transmission on SMF |
| EX-SFP-GE80KCW1570 | SFP, Gigabit Ethernet CWDM Optics, 1570nm for 80 km Transmission on SMF |
| EX-SFP-GE80KCW1590 | SFP, Gigabit Ethernet CWDM Optics, 1590nm for 80 km Transmission on SMF |
| EX-SFP-GE80KCW1610 | SFP, Gigabit Ethernet CWDM Optics, 1610nm for 80 km Transmission on SMF |
| QFX-SFP-1GE-LX | SFP 1000Base-LX Gigabit Ethernet Optics, 1310nm for 10km transmission on SMF |
| QFX-SFP-1GE-SX | SFP 1000Base-SX Gigabit Ethernet Optics, 850nm for upto 550m transmission on MMF |
| QFX-SFP-1GE-T | SFP 1000Base-T Copper Transceiver Module for up to 100m transmission |
| SFP-1G-LH-C | SFP, 1G, SMF 70km, Industrial Temperature (-40 through 85 DegC), Duplex LC connector |
| SFP-1G-LX-C | SFP, 1G, SMF 10km and MMF 550m, Extended Temperature (-5 through 70 DegC), Duplex LC connector |
| SFP-1G-SX-C | SFP, 1G, FDDI 220m and OM1 275m/OM2 MMF 550m, Extended Temperature (-10 through 85 DegC), Duplex LC connector |
| SFP-1G-T-C | Small Form Factor Pluggable 1000Base-T Gigabit Ethernet Module (uses Cat 5 cable) |
| SFP-GE10KT13R14 | 1GE Bi-Di (TX1310nm-RX1490nm) 10K w/DDM |
| SFP-GE10KT13R15 | 1-port bidirectional GE SFP with 10km reach, Tx 1310 / Rx 1550 with DDM |
| SFP-GE10KT14R13 | 1-port bidirectional GE SFP with 10km reach, Tx 1490 / Rx 1310 with DDM |
| SFP-GE10KT15R13 | 1-port bidirectional GE SFP with 10km reach, Tx 1550 / Rx 1310 with DDM |
| SFP-GE40KT13R15 | 1-port bidirectional GE SFP with 40km reach, Tx 1310 / Rx 1550 with DDM |
| SFP-GE40KT15R13 | 1-port bidirectional GE SFP with 40km reach; Tx 1550 / Rx 1310; with DDM |
| SRX-SFP-1GE-LH | Small Form Factor Pluggable 1000Base-LH Gigabit Ethernet Optic Module |
| SRX-SFP-1GE-LX | Small Form Factor Pluggable 1000Base-LX Gigabit Ethernet Optic Module |
| SRX-SFP-1GE-LX-ET | Small Form Factor Pluggable 1000Base-LX Gigabit Ethernet Optic Module – Extended temperature |
| SRX-SFP-1GE-SX | Small Form Factor Pluggable 1000Base-SX Gigabit Ethernet Optic Module |
| SRX-SFP-1GE-SX-ET | Small Form Factor Pluggable 1000Base-SX Gigabit Ethernet Optic Module – Extended temperature |
| SRX-SFP-1GE-T | Small Form Factor Pluggable 1000Base-T Gigabit Ethernet Module |
| EX-SFP-10GE-DAC-1M | SFP+ 10 Gigabit Ethernet Direct Attach Copper (Twinax Copper Cable), 1M |
| EX-SFP-10GE-DAC-3M | SFP+ 10 Gigabit Ethernet Direct Attach Copper (Twinax Copper Cable), 3M |
| EX-SFP-10GE-DAC-5M | SFP+ 10 Gigabit Ethernet Direct Attach Copper (Twinax Copper Cable), 5M |
| EX-SFP-10GE-ER | SFP+ 10GBase-ER 10 Gigabit Ethernet Optics Module, 1550nm for 40Km Transmission |
| EX-SFP-10GE-LR | Small Form Factor Pluggable 10 Gigabit Ethernet (SFP+) LR Optics |
| EX-SFP-10GE-SR | Small Form Factor Pluggable 10 Gigabit Ethernet (SFP+) SR Optics |
| EX-SFP-10GE-USR | SFP+ 10 Gigabit Ethernet Ultra Short Reach; 850 nm; 10m on OM1, 20m on OM2, 100m on OM3 Multi-Mode Fiber |
| EX-SFP-10GE-ZR | SFP+, 10GBase-ZR 10 Gigabit Ethernet Optics, 1550nm for 80km Transmission on SMF |
| QFX-SFP-10GE-ER | SFP+ 10GBase-ER 10 Gigabit Ethernet Optics, 1550nm for 40km transmission on SMF |
| QFX-SFP-10GE-LR | SFP+ 10GBase-LR 10 Gigabit Ethernet Optics, 1310nm for 10km transmission on SMF |
| QFX-SFP-10GE-SR | SFP+ 10GBase-SR 10 Gigabit Ethernet Optics, 850nm for up to 300m transmission on MMF |
| QFX-SFP-10GE-USR | SFP+ 10 Gigabit Ethernet Ultra Short Reach Optics, 850 nm for 10m on OM1, 20m on OM2, 100m on OM3 Multi-Mode Fiber |
| QFX-SFP-DAC-1M | SFP+ 10 Gigabit Ethernet Direct Attach Copper (twinax copper cable) 1m |
| QFX-SFP-DAC-3M | SFP+ 10 Gigabit Ethernet Direct Attach Copper (twinax copper cable) 3m |
| QFX-SFP-DAC-5M | SFP+ 10 Gigabit Ethernet Direct Attach Copper (twinax copper cable) 5m |
| SFPP-10G-ER-C | SFP+, 10G-ER Transceiver |
| SFPP-10G-LR-C | SFP+, 10G-LR Transceiver |
| SFPP-10G-LRT2-C | SFP+, 10G-LR Transceiver type 2 |
| SFPP-10G-SR-C | SFP+, 10G-SR Transceiver |
| SFPP-10G-SR-ET-C | SFP+ 10GE-SR MMF 1.0W Beige Bail |
| SFPP-10G-USR-C | SFP+, 10G-USR Transceiver |
| SFPP-10GE-ER | 10 Gigabit Ethernet Extended Reach SFP+ |
| SFPP-10GE-LR | 10 Gigabit Ethernet Long Reach SFP+ |
| SFPP-10GE-SR | 10 Gigabit Ethernet Short Reach SFP+ |
| SFPP-10GE-ZR | SFP+ 10GE Pluggable Transceiver, SMF, 1550nm for 80KM Transmission |
| SRX-SFP-10GE-DAC-1M | SFP+ 10 Gigabit Ethernet Direct Attach Copper (Twinax Copper Cable), 1M |
| SRX-SFP-10GE-DAC-3M | SFP+ 10 Gigabit Ethernet Direct Attach Copper (Twinax Copper Cable), 3M |
| SRX-SFP-10GE-ER | SFP+ 10GBase-ER 10 Gigabit Ethernet Optics Module, 1550nm for 40Km transmission |
| SRX-SFP-10GE-LR | Small Form Factor Pluggable 10 Gigabit Ethernet (SFP+) LR Optics |
| SRX-SFP-10GE-SR | Small Form Factor Pluggable 10 Gigabit Ethernet (SFP+) SR Optics |
| SRX-SFPP-10G-SR-ET | SFP+ 10GE pluggable transceiver, short reach, 850nm for 200m transmission, Extended temperature 0-85 |
