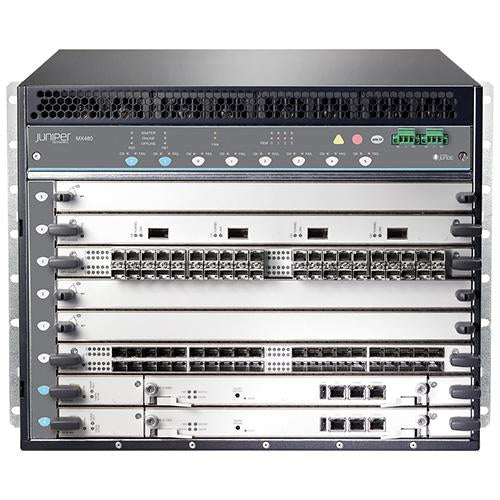

MX480 Base Chassis with Enhanced Midplane, 1 nos. SCB-E, DC Power, Discounted RE
Description
The SDN-enabled MX480 Universal Routing Platform delivers high performance, reliability, and scalability for service provider and cloud applications, enabling the delivery of advanced business and residential applications and services. At just eight rack units (8 U), the MX480 offers up to 9 Tbps of system capacity in support of high-density 10GbE, 40GbE, 100GbE, and 400GbE interfaces, as well as SONET/SDH, ATM, and PDH connectivity.
Properties
| Properties | MX480BASE3-DC |
| Description | 8 slot MX480 base bundle, DC power |
| Product Family | Juniper MX Routers |
| Product Type | Router |
| Slots | 6 MPCs |
| Per slot capacity | 1.5 Tbps |
| Maximum system throughput1 | 7.5 Tbps |
| PDH | Yes |
| Sonet/SDH | Yes |
| Maximum 1GbE | 240 |
| Maximum 10GbE | 300 |
| Maximum 40GbE | 75 |
| Maximum 100GbE | 75 |
| Maximum 400GbE | 15 |
| 10GbE DWDM | 48 |
| 100GbE DWDM | 40 |
| Rack units | 8 |
| Systems per rack | 6 |
| Redundancy Components | Power supplies, REs, fans |
| Air flow | Side to side |
| Mounting | Front or center |
| Dimensions | 17.45 x 14 x 24.5 in (44.3 x 35.6 x 62.2 cm) |
| Weight fully loaded | 180 lbs/81.6 kg |
| Weight unloaded | 65.5 lbs/29.7 kg |
Specifications
| System capacity | 7.5 Tbps |
| Slot orientation | Horizontal |
| Default memory | 2×16 MB NOR flash storage; 64 GB of DDR4 RAM; 2×50 GB SSD |
| Number of cores | 6 cores |
| Security | Firewall filters/ACLs DDoS—control plane DDoS—FlowSpec Stateless filters L2-L4 Stateful services |
| Inline Services | GRE reassembly 1:1 NAT Flow monitoring Video monitoring Lawful intercept Mirroring Corero SmartWall Threat Defense Director SecIntel Threat Intelligence |
| Service Card Supported Services6 | Deep packet inspection CGNAT Flow monitoring Server traffic load balancing7 IPsec Stateful firewall HTTP header manipulation Web filtering DNS sinkhole Intrusion detection system |
| Resiliency | Redundant RE Unified ISSU Nonstop active routing (NSR) Fast restoration Operation, Administration, and Maintenance (OAM) |
| System Virtualization | Enhanced SLA and queuing Junos Fusion Edge (AD) Logical systems Virtual router/switch Path Computation Element Protocol (PCEP) OpenConfig YANG data modeling Juniper Extension Toolkit |
| Operating temperature | 32° to 115° F (0° to 46° C) at sea level |
| Certifications | GR-1089-Core EMC and Electrical Safety – Common Bonding Network (CBN) – National Electrical Code (NEC) – GR-63-Core -Physical Protection |
