NFX250, ‚ 10 x 10/100/1000BASE-T ports, ‚ 2 x 100/1000BASE-X SFP ports, ‚ 2 x 10GBASE-X SFP+ ports, ‚ 6 x core x86 processor, 400 GB SSD, 32 GB memory
Description
[specifications]| Specifications | NFX250-S2 |
| CPU | Intel 6 Core Xeon D |
| Memory | 32 GB DDR4 |
| Storage | 400 GB SSD |
| Software | Wind River Linux 7 |
| Managed Secure Router | 4 Gbps |
| Managed Security | 4 Gbps |
| IPSec | 1.2 Gbps |
| Maximum number of VNFs | 8 |
| Software Specifications | |
| Packet Switching Capacities | Packet Forwarding Engine (PFE) capacity: 64 Gbps VNF capacity: 20 Gbps full-duplex path to CPU for VNF traffic Throughput via VNFs will vary depending on network function and acceleration technologies supported |
| Layer 2 Switching | Maximum media access control (MAC) addresses in hardware: up to 16,000‡ Jumbo frames: 9216 bytes‡ Number of VLANs: up to 1024 (VLAN IDs: 4096)‡ Port-based VLAN MAC-based VLAN Voice VLAN Private VLAN (PVLAN) Number of MST instances supported: 64 Compatible with Per-VLAN Spanning Tree Plus (PVST+) Routed VLAN interface (RVI)‡ Link Layer Discovery Protocol–Media Endpoint Discovery (LLDP-MED) with VoIP integration |
| Routing Protocols | IPv4, IPv6, ISO, Connectionless Network Service (CLNS) Static routes RIP v1/v2 OSPF/OSPF v3 BGP with Route Reflector Multicast: Internet Group Management Protocol (IGMP) v1/v2, Protocol Independent Multicast (PIM) sparse mode (SM)/dense mode (DM)/source-specific multicast (SSM), Session Description Protocol (SDP), Distance Vector Multicast Routing Protocol (DVMRP), Multicast Source Discovery Protocol (MSDP), Reverse Path Forwarding (RPF) Encapsulation: VLAN, Point-to-Point Protocol (PPP), Frame Relay, High-Level Data Link Control (HDLC), serial, Multilink Point-to-Point Protocol (MLPPP), Multilink Frame Relay (MLFR), and Point-to-Point Protocol over Ethernet (PPPoE) Virtual routers Policy-based routing, source-based routing Equal-Cost Multipath (ECMP) |
| Threat Defense and Intelligence Services | Intrusion prevention Antivirus Antispam Category/reputation-based URL filtering SecIntel to provide threat intelligence Protection from botnets (command and control) Adaptive enforcement based on GeoIP Juniper Cloud Advanced Threat Prevention to detect and block zeroday malware attacks |
| High Availability | VRRP Backup link via 3G/4G LTE wireless or other WAN (NFX150) Stateful failover and dual CPE clustering‡ Active/active—L3 mode Active/passive—L3 mode Configuration synchronization Session synchronization firewall and VPN Session failover for routing change Device failure detection, link failure detection IP monitoring with route and interface failover |
| VPN Features | Tunnels: Generic routing encapsulation (GRE)3, IP-IP3, IPsec Site-site IPsec VPN IPsec crypto algorithms: Data Encryption Standard (DES), triple DES (3DES), Advanced Encryption Standard (AES-256), AES-GCM IPsec authentication algorithms: MD5, SHA-1, SHA-128, SHA-256 Perfect forward secrecy, anti-reply IPv4 and IPv6 IPsec VPN Multiproxy ID for site-site VPN Internet Key Exchange (IKEv1, IKEv2), NAT-T Virtual router and quality-of-service (QoS) aware Standard-based dead peer detection (DPD) support VPN monitoring |
| Quality of Service (QoS) | Layer 2 QoS Layer 3 QoS Ingress policing: 1 rate 2 color Hardware queues per port: 8 Scheduling methods (egress): Strict priority (SP), shaped-deficit weighted round-robin (SDWRR) 802.1p: DiffServ code point (DSCP)/IP precedence trust and marking L2-L4 classification criteria: Interface, MAC address, Ethertype, 802.1p, VLAN, IP address, DSCP/IP precedence TCP/UDP port numbers Congestion avoidance capabilities: Tail drop |
| Multicast | Internet Group Management Protocol (IGMP) snooping entries: 1000 IGMP: v1, v2, v3 IGMP snooping PIM-SM |
| Services and Manageability | Junos OS CLI Web interface (J-Web) Out-of-band management: Serial, 10/100BASE-T Ethernet ASCII configuration Rescue configuration Configuration rollback Simple Network Management Protocol (SNMP): v1, v2c, v3 Remote monitoring (RMON) (RFC 2819) Groups 1, 2, 3, 9 Network Time Protocol (NTP) DHCP server DHCP client and DHCP proxy DHCP relay and helper RADIUS authentication TACACS+ authentication SSHv2 Secure copy HTTP/HTTPs Domain Name System (DNS) resolver System logging Temperature sensor Configuration backup via FTP/secure copy Interface range |
| Advanced Routing Services | MPLS (RSVP, LDP) Circuit cross-connect (CCC), translational cross-connect (TCC) L2/L3 MPLS VPN Virtual private LAN service (VPLS), next-generation multicast VPN (NG-MVPN) MPLS traffic engineering and MPLS fast reroute |
| Application Security Services | Application visibility and control Application-based firewall Application QoS Application-based advanced policy-based routing Application quality of experience (AppQoE) |
| Access Control Lists (Junos OS Firewall Filters) | Port-based ACL (PACL)—ingress VLAN-based ACL (VACL)—ingress and egress Router-based ACL (RACL)—ingress and egress ACL entries (ACE) in hardware per system: 1500 ACL counter for denied packets ACL counter for permitted packets Ability to add/remove/change ACL entries in middle of list (ACL editing) L2-L4 ACL |
| Security | MAC limiting Allowed MAC addresses—configurable per port Sticky MAC (persistent MAC address learning) Dynamic ARP inspection (DAI) Proxy ARP Static ARP support Dynamic Host Configuration Protocol (DHCP) snooping |
| Troubleshooting | Debugging: CLI via console, telnet, or SSH Diagnostics: Show and debug command statistics Traffic mirroring (port) Traffic mirroring (VLAN) ACL-based mirroring Mirroring destination ports per system: 1 LAG port monitoring Multiple destination ports monitored to 1 mirror (N:1) Maximum number of mirroring sessions: 1 Mirroring to remote destination (over L2): 1 destination VLAN IP tools: Extended ping and trace Juniper Networks commit and rollback |
| Optics | EX-SFP-10GE-USR EX-SFP-10GE-DAC-1M EX-SFP-1GE-SX EX-SFP-1GE-SX-ET EX-SFP-1GE-LX EX-SFP-10GE-SR EX-SFP-10GE-LR EX-SFP-10GE-DAC-3M EX-SFP-10GE-DAC-5M EX-SFP-10GE-ER EX-SFP-10GE-ZR EX-SFP-1GE-LH EX-SFP-1GE-LX40K EX-SFP-GE10KT13R14 EX-SFP-GE10KT14R13 EX-SFP-GE10KT13R15 EX-SFP-GE10KT15R13 EX-SFP-GE40KT13R15 EX-SFP-GE40KT15R13 EX-SFP-GE80KCW1470 EX-SFP-GE80KCW1490 EX-SFP-GE80KCW1510 EX-SFP-GE80KCW1530 EX-SFP-GE80KCW1550 EX-SFP-GE80KCW1570 EX-SFP-GE80KCW1590 EX-SFP-GE80KCW1610 |
| Operating temperature | 32° to 122° F (0° to 50° C) |
| Storage temperature | -40° to 158° F (-40° to 70° C) |
| Operating altitude | Up to 10,000 ft. (3048 m) |
| Relative humidity operating | 5% to 90% (noncondensing) |
| Relative humidity non-operating | 5% to 90% (noncondensing) |
| Seismic | Designed to meet GR-63, Zone 4 earthquake requirements |
| Safety | cNRTL-UL60950-1 (Second Edition) C-UL to CAN/CSA 22.2 No.60950-1 (Second Edition) TUV/GS to EN 60950-1 (Second Edition) CB-IEC60950-1 (Second Edition with all country deviations) EN 60825-1 (Second Edition) |
| Electromagnetic Compatibility | FCC 47CFR Part 15 Class A EN 55022 Class A ICES-003 Class A VCCI Class A AS/NZS CISPR 32 Class A CISPR 22 Class A, CISPR 32 Class A EN 55024 EN 300386 CE |
| Environmental Compliance | Restriction of Hazardous Substances (ROHS) 6/6 ROHS 7a exemption for power supply components acceptable Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) Waste Electronics and Electrical Equipment (WEEE) |
| IEEE Standards | IEEE 802.1AB: Link Layer Discovery Protocol (LLDP) IEEE 802.1ag: Connectivity Fault Management (CFM) IEEE 802.1ak: Multiple VLAN Registration Protocol (MVRP) IEEE 802.1D: Spanning Tree Protocol IEEE 802.1p: CoS prioritization IEEE 802.1Q: VLAN tagging IEEE 802.1Q-in-Q: VLAN Stacking IEEE 802.1w: Rapid Spanni |

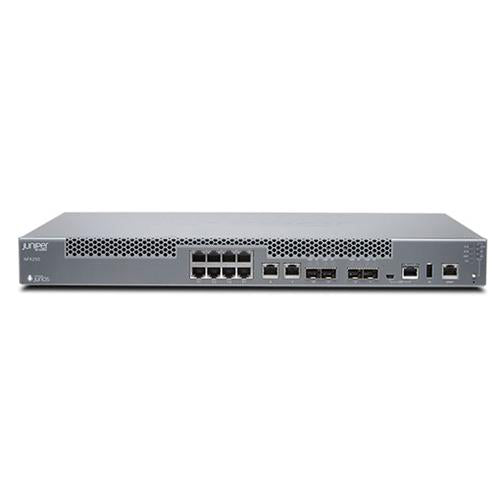

Juniper NFX250-S2 Firewall (NFX250-S2)
The NFX250 Network Services Platform offers enhanced capacity, performance, and scalability for larger enterprise entities and service providers seeking to consolidate multiple services onto a single platform. This product provides increased Virtual Network Function (VNF) capacity. It is equipped with Juniper Networks’ vSRX Virtual Firewall to ensure the secure deployment of Software-Defined Wide Area Network (SD-WAN), secure routing, and a diverse range of managed services.
Quick Specs:
- 400GB SSD
- 32GB DDR4 Ram
- CPU: Intel 6 Core Xeon D
- Front-to-back forced cooling
Please see the related tabs for the NFX250-S2 datasheet and compatible accessories.
GUARANTEED to Exceed Expectations.
When purchasing from AMNET Global, rest assured that your information technology equipment is covered for a lifetime. When you receive your order, your unit is already covered by our Lifetime Warranty and Advance Replacement.
Coverage That Never Ends.
In the event of a product malfunction, we fully understand that downtime is not an option. If you experience a product malfunction or failure, we will send you a replacement the same day, fully expedited and at our cost.
Please see our full Terms and Conditions of Warranty here.
QUESTIONS ABOUT THIS PRODUCT OR AVAILABILITY?
You have come to the right place!
If you have an immediate question, please click here and we will be glad to speak with you right away!
To speak to one of our technicians about this product, please call our technical support team at 1.888.428.6677 Option 3 and we will get you taken care of right away!
Properties
| Properties | Juniper NFX250-S2 |
| Description | NFX250, 10 10/100/1000BASE-T ports, 2 100/1000BASE-X SFP ports, 2 10GBASE-X SFP+ ports, 6 core x86 processors, 400 GB SSD, 32 GB memory, Junos Device Manager (Linux container for virtual machine [VM] life cycle management and service activation), Junos Control Plane (VM to handle switching), vSRX NGFW with 60 day trial license (optics sold separately). |
| Product Family | NFX250 Series |
| Product Type | Security Firewall |
| Network interfaces | 8 x 10/100/1000BASE-T RJ-45 LAN ports 2 x 10/100/1000BASE-T RJ-45 LAN/WAN ports 2 x 100/1000BASE-X SFP WAN ports 2 x 1GbE/10GbE SFP+ WAN ports 1 x 10/100/1000BASE-T RJ-45 management port ADSL2/VDSL2 SFP |
| Out-of-band interfaces | RJ-45 console port Mini USB console port USB 2.0 port |
| Rack units (U) | 1 U |
| Dimensions (WxHxD) | 1.72 x 17.36 x 12 in. (4.37 x 44.09 x 30.48 cm) |
| Weight | 9.48 lb (4.3 kg) |
| Power supply | Fixed PSU 100-240 VAC |
| Airflow/cooling | Front-to-back (AFO) forced cooling |
| Acoustic noise level | 50 Dba |
