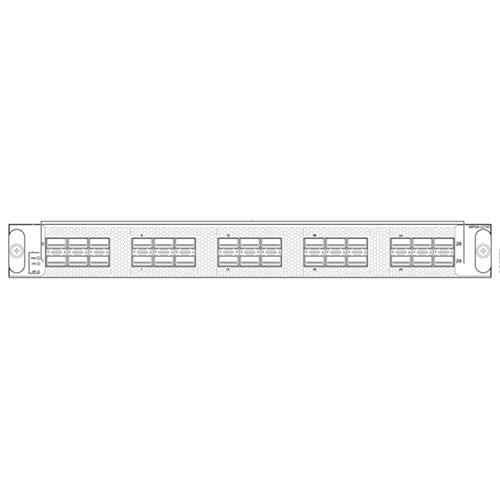

PTX10K 1.44T Line Card – 36X40G/12X100G (JNP10K-LC1102)
Description
The Juniper Networks PTX10008 Packet Transport Router enables cloud and data center operators to smoothly transition from 10-Gigabit and 40-Gigabit Ethernet networks to 100-Gigabit and 400-Gigabit Ethernet high-performance networks. This flexible, 13 rack unit (13-U) modular chassis has eight line card slots that can support a maximum of 288 400-Gigabit Ethernet ports that can also be configured as 576 200-Gigabit Ethernet ports, 1152 100-Gigabit Ethernet ports, 288 50-Gigabit Ethernet ports, 288 40-Gigabit Ethernet ports, 288 25-Gigabit Ethernet ports, or 1152 10-Gigabit Ethernet ports.
Properties
| Properties | Juniper PTX10K-LC1102 |
| Description | 36X40GbE/12X100GbE line card [JNP10K-LC1102] |
| Product Family | PTX10000 Series |
| Product Type | Line Card |
| Maximum Port Densities | |
| QSFP28 | 12 |
| QSFP+ | 36 |
| Port Modes | Each of the 12 QSFP28 ports supports: 100GbE QSFP28 transceivers 40GbE QSFP+ transceivers 40GbE to 10GbE or 1GbE QSA (Junos OS Release 18.4R1 and later) Each of the 36 QSFP+ ports supports: 40GbE QSFP+ transceivers 40GbE to 10GbE or 1GbE QSA (Junos OS Release 18.4R1 and later) |
| Supported Switch Fabric | JNP10008-SF |
| Dimensions | 17.2 in. x 1.89 in x 20.5 in (43.68 cm x 4.8 cm x 52.07 cm) |
| Net Shipping Weight | 22.6 lbs (10.25 kg) |
| Bandwidth | 1.4 Tbps |
| Silicon | Express2 |
| 100GbE Ports | 12 |
Accessories
| Adapters | |
| MAM1Q00A-QSA | Mellanox® Ethernet Cable Adapter 40Gbps QSFP+ to 10Gbps SFP+ / 1Gbps SFP ports. |
| Transceivers | |
| CTP-SFP-1GE-T | Small Form Factor Pluggable 1000Base-T Gigabit Ethernet Module (uses Cat 5 cable) |
| EX-SFP-1GE-T | Small Form Factor Pluggable 10/100/1000 Copper Transceiver Module |
| QFX-SFP-1GE-T | SFP 1000Base-T Copper Transceiver Module for up to 100m transmission |
| SFP-1G-T-C | Small Form Factor Pluggable 1000Base-T Gigabit Ethernet Module (uses Cat 5 cable) |
| SFP-1GE-SX | GE SFP SX Plug In, Module |
| SRX-SFP-1GE-T | Small Form Factor Pluggable 1000Base-T Gigabit Ethernet Module |
| EX-SFP-10GE-SR | Small Form Factor Pluggable 10 Gigabit Ethernet (SFP+) SR Optics |
| QFX-SFP-10GE-SR | SFP+ 10GBase-SR 10 Gigabit Ethernet Optics, 850nm for up to 300m transmission on MMF |
| SFPP-10G-SR-C | SFP+, 10G-SR Transceiver |
| SFPP-10G-SR-ET-C | SFP+ 10GE-SR MMF 1.0W Beige Bail |
| SRX-SFP-10GE-SR | Small Form Factor Pluggable 10 Gigabit Ethernet (SFP+) SR Optics |
| SRX-SFPP-10G-SR-ET | SFP+ 10GE pluggable transceiver, short reach, 850nm for 200m transmission, Extended temperature 0-85 |
| QSFPP-40GBASE-LR4 | 40GE QSFP+ LR4 Pluggable Optics module |
| QSFPP-40GBASE-SR4 | 40GE QSFP+ SR4 Pluggable Optics module |
| QSFPP-4X10GE-SR | 40G QSFP+ breakout into 4x10GBASE SR Ethernet module |
| JNP-QSFP-100G-CWDM | 100G CWDM4 optics |
| JNP-QSFP-100G-LR4 | QSFP28 100GBase-L4 Optics for up to 10km transmission over serial SMF |
| JNP-QSFP-100G-SR4 | QSFP28 100GBase-SR4 Optics for up to 100m transmission over parallel MMF |
| QSFP-100G-CWDM-C | QSFP-28, 100G-CWDM4 Transceiver |
| QSFP-100G-CWDM-T2 | QSFP28 CWDM4 for <70C operation |
| QSFP-100G-DR | QSFP28 100GBASE-DR; Media-Side RS (544,514) FEC enabled, Host-side CAUI-4 no FEC; SMF 500 m; Standard Temperature (0 through 70°C); Duplex LC connector |
| QSFP-100G-ER4L | QSFP28 100G-ER4 Lite Ethernet only module |
| QSFP-100G-FR | QSFP28 100G-FR/100GBASE-FR1; Media-Side RS (544,514) FEC enabled, Host-side CAUI-4 no FEC; SMF 2 km; Standard Temperature (0 through 70°C); Duplex LC connector |
| QSFP-100G-LR | QSFP28 100G-LR/100GBASE-LR1; Media-Side RS (544,514) FEC enabled, Host-side CAUI-4 no FEC; SMF 10 km; Standard Temperature (0 through 70°C); Duplex LC connector |
| QSFP-100G-LR4-C | QSFP-28, 100G-LR4 Transceiver |
| QSFP-100G-LR4-T2 | 100G-LR4 Ethernet only QSFP28 Module T2 |
| QSFP-100G-SR4-C | QSFP-28, 100G-SR4 Transceiver |
| QSFP-100G-SR4-T2 | 100G-SR4 Ethernet only QSFP28 Module T2 |
| QSFP-100GBASE-LR4 | 100GBASE-LR4 QSFP28 pluggable module, support only Ethernet rate |
| QSFPP-40GBASE-SR4 | 40GE QSFP+ SR4 Pluggable Optics module |
| QSFPP-4X10GE-LR | 40G QSFP+ breakout into 4x10GBASE LR Ethernet module |
| QSFPP-4X10GE-SR | 40G QSFP+ breakout into 4x10GBASE SR Ethernet module |
