Call for Price

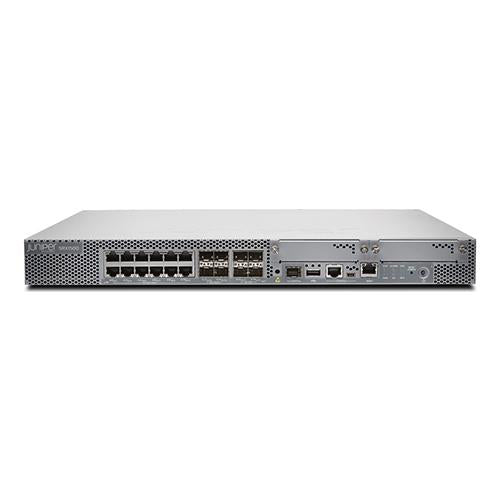

SRX1500 Services GatewayJunos Software EnhancedApplication security16GbE4 x 10GbE16G RAM16G Flash100G SSDDC power supplyRouting & switchingMPLSIPSecNAT
Description
[specifications]| Specifications | SRX1500-SYS-JE-DC |
| System memory (RAM) | 16 GB |
| Primary boot storage (mSATA) | 16 GB |
| Secondary storage (SSD) | 100 GB |
| Routing/firewall (IMIX packet size) Gbps | 4.8 |
| Routing/firewall (1,518 B packet size) Gbps | 9.2 |
| IPsec VPN (IMIX packet size) Gbps | 1.3 |
| IPsec VPN (1400 B packet size) in Gbps | 4.5 |
| Application visibility and control in Gbps | 7.9 |
| Recommended IPS in Gbps | 3.3 |
| Next-generation firewall in Gbps | 2.1 |
| Secure Web Access firewall in Gbps | 1.6 |
| Route table size (RIB/FIB) (IPv4) | 2 million / 1 million |
| Maximum concurrent sessions (IPv4 or IPv6) | 2,000,000 |
| Maximum security policies | 16,000 |
| Connections per second | 90,000 |
| NAT rules | 8,000 |
| Media access control (MAC) table size | 64,000 (standalone mode) |
| IPsec VPN tunnels | 2,000 |
| Number of remote access/SSL VPN (concurrent) users | 2,000 |
| GRE tunnels | 2,048 |
| Maximum security zones | 512 |
| Maximum virtual router | 512 |
| Maximum VLANs | 3,900 |
| Software Specifications | |
| Routing Protocols | IPv4, IPv6 Static routes RIP v1/v2 OSPF/OSPF v3 BGP with Route Reflector IS-IS Multicast: Internet Group Management Protocol (IGMP) v1/v2; Protocol Independent Multicast (PIM) sparse mode (SM)/dense mode (DM)/source-specific multicast (SSM); Session Description Protocol (SDP); Distance Vector Multicast Routing Protocol (DVMRP); Multicast Source Discovery Protocol (MSDP); Reverse Path Forwarding (RPF) Encapsulation: VLAN, Point-to-Point Protocol over Ethernet (PPPoE) Virtual routers Policy-based routing, source-based routing Equal-cost multipath (ECMP) |
| QoS Features | Support for 802.1p, DiffServ code point (DSCP), EXP Classification based on VLAN, data-link connection identifier (DLCI), interface, bundles, or multifield filters Marking, policing, and shaping Classification and scheduling Weighted random early detection (WRED) Guaranteed and maximum bandwidth Ingress traffic policing Virtual channels Hierarchical shaping and policing |
| Switching Features | ASIC-based Layer 2 forwarding MAC address learning VLAN addressing and integrated routing and bridging (IRB) support Link aggregation and LACP LLDP and LLDP-MED STP, RSTP, MSTP MVRP 802.1X authentication |
| Firewall Services | Stateful and stateless firewall Zone-based firewall Screens and distributed denial of service (DDoS) protection Protection from protocol and traffic anomalies Integration with Pulse Unified Access Control (UAC) Integration with Aruba Clear Pass Policy Manager User role-based firewall SSL Inspection |
| Network Address Translation (NAT) | Source NAT with Port Address Translation (PAT) Bidirectional 1:1 static NAT Destination NAT with PAT Persistent NAT IPv6 address translation |
| VPN Features | Tunnels: Site-to-Site, Hub and Spoke, Dynamic Endpoint, AutoVPN, ADVPN, Group VPN (IPv4/IPv6/Dual Stack) Juniper Secure Connect: Remote access/SSL VPN Configuration payload: Yes IKE Encryption algorithms: Prime, DES-CBC, 3DES-CBC, AEC-CBC, AES-GCM, SuiteB IKE authentication algorithms: MD5, SHA-1, SHA-128, SHA-256, SHA-384 Authentication: Pre-shared key and public key infrastructure (PKI) (X.509) IPsec (Internet Protocol Security): Authentication Header (AH)/Encapsulating Security Payload (ESP) protocol IPsec Authentication Algorithms: hmac-md5, hmac-sha-196 IPsec Encryption Algorithms: Prime, DES-CBC, 3DES-CBC, AEC-CBC, AES-GCM, SuiteB Perfect forward secrecy, anti-reply Internet Key Exchange: IKEv1, IKEv2 Monitoring: Standard-based dead peer detection (DPD) support, VPN monitoring VPNs GRE, IP-in-IP, and MPLS |
| Network Services | Dynamic Host Configuration Protocol (DHCP) client/server/relay Domain Name System (DNS) proxy, dynamic DNS (DDNS) Juniper real-time performance monitoring (RPM) and IP monitoring Juniper flow monitoring (J-Flow) Bidirectional Forwarding Detection (BFD) Two-Way Active Measurement Protocol (TWAMP) IEEE 802.3ah Link Fault Management (LFM) IEEE 802.1ag Connectivity Fault Management (CFM) |
| High Availability Features | Virtual Router Redundancy Protocol (VRRP) Stateful high availability -Dual box clustering -Active/passive -Active/active -Configuration synchronization -Firewall session synchronization -Device/link detection -In-Service Software Upgrade (ISSU) IP monitoring with route and interface failover |
| Management, Automation, Logging, and Reporting | Management, Automation, Logging, and Reporting SSH, Telnet, SNMP Smart image download Juniper CLI and Web UI Juniper Networks Junos Space and Security Director Python Junos OS event, commit and OP scripts Application and bandwidth usage reporting Auto installation Debug and troubleshooting tools |
| Advanced Routing Services | Packet mode MPLS (RSVP, LDP) Circuit cross-connect (CCC), translational cross-connect (TCC) L2/L2 MPLS VPN, pseudo-wires Virtual private LAN service (VPLS), next-generation multicast VPN (NG-MVPN) MPLS traffic engineering and MPLS fast reroute |
| Application Security Services | Application visibility and control Application-based firewall Application QoS Advanced/application policy-based routing (APBR) Application Quality of Experience (AppQoE) Application-based multipath routing |
| Threat Defense and Intelligence Services | Intrusion prevention Antivirus Antispam Category/reputation-based URL filtering Protection from botnets (command and control) Adaptive enforcement based on GeoIP Juniper Advanced Threat Prevention, a cloud-based SaaS offering, to detect and block zero-day attacks Juniper ATP Appliance, a distributed, on-premises advanced threat prevention solution to detect and block zero-day attacks Adaptive Threat Profiling Encrypted Traffic Insights SecIntel to provide threat intelligence |
| Operating temperature | 32° to 104° F (0° to 40° C) |
| Storage temperature | -4° to 158° F (-20° to 70° C) |
| Relative humidity operating | 10% to 90% (noncondensing) |
| Relative humidity non-operating | 5% to 95% (noncondensing) |
| Meantime between failures (MTBF) | 9.78 years (85,787 hours) |
| FCC classification | Class A |
| RoHS compliance | |
GUARANTEED to Exceed Expectations.
When purchasing from AMNET Global, rest assured that your information technology equipment is covered for a lifetime. When you receive your order, your unit is already covered by our Lifetime Warranty and Advance Replacement.
Coverage That Never Ends.
In the event of a product malfunction, we fully understand that downtime is not an option. If you experience a product malfunction or failure, we will send you a replacement the same day, fully expedited and at our cost.
Please see our full Terms and Conditions of Warranty here.
QUESTIONS ABOUT THIS PRODUCT OR AVAILABILITY?
You have come to the right place!
If you have an immediate question, please click here and we will be glad to speak with you right away!
To speak to one of our technicians about this product, please call our technical support team at 1.888.428.6677 Option 3 and we will get you taken care of right away!
Properties
| Properties | Juniper SRX1500-SYS-JE-DC |
| Description | SRX1500 Services Gateway includes hardware (16GbE, 4x10GbE, 16G RAM, 16G Flash, 100G SSD, DC PSU, cable and RMK) and Junos Software Enhanced (Firewall, NAT, IPSec, Routing, MPLS, Switching and Application Security) |
| Product Family | SRX1500 Series |
| Product Type | Security Firewall |
| Connectivity Specification | |
| Total onboard ports | 16x1GbE and 4x10GbE |
| Onboard RJ-45 ports | 12x1GbE |
| Onboard small form-factor pluggable (SFP) transceiver ports | 4x1GbE |
| MACsec-capable ports | 2x1GbE |
| Onboard SFP+ ports | 4x10GbE |
| Out-of-band (OOB) management ports | 1x1GbE |
| Dedicated high availability (HA) ports | 1x1GbE (SFP) |
| PIM slots | 2 |
| Console (RJ-45 + miniUSB) | 1 |
| USB 2.0 ports (type A) | 1 |
| Form factor | 1 U |
| Dimensions (WxHxD) | 17.28 x 1.75 x 18.2 in (43.9 x 4.44 x 46.22 cm) |
| Weight (device and PSU) | 16.1 lb (7.30 kg) |
| Power | |
| Power supply | DC (external) |
| Redundant PSU | 1+1 |
| Average power consumption | 150 W |
| Average heat dissipation | 512 BTU / hour |
| Maximum current consumption | 6.2A (for DC PSU) |
| Maximum inrush current | 50A by 1 AC cycle |
| Airflow/cooling | Front to back |
| Acoustic noise level | 66.5dBA |
Specifications
| Specifications | SRX1500-SYS-JE-DC |
| System memory (RAM) | 16 GB |
| Primary boot storage (mSATA) | 16 GB |
| Secondary storage (SSD) | 100 GB |
| Routing/firewall (IMIX packet size) Gbps | 4.8 |
| Routing/firewall (1,518 B packet size) Gbps | 9.2 |
| IPsec VPN (IMIX packet size) Gbps | 1.3 |
| IPsec VPN (1400 B packet size) in Gbps | 4.5 |
| Application visibility and control in Gbps | 7.9 |
| Recommended IPS in Gbps | 3.3 |
| Next-generation firewall in Gbps | 2.1 |
| Secure Web Access firewall in Gbps | 1.6 |
| Route table size (RIB/FIB) (IPv4) | 2 million / 1 million |
| Maximum concurrent sessions (IPv4 or IPv6) | 2,000,000 |
| Maximum security policies | 16,000 |
| Connections per second | 90,000 |
| NAT rules | 8,000 |
| Media access control (MAC) table size | 64,000 (standalone mode) |
| IPsec VPN tunnels | 2,000 |
| Number of remote access/SSL VPN (concurrent) users | 2,000 |
| GRE tunnels | 2,048 |
| Maximum security zones | 512 |
| Maximum virtual router | 512 |
| Maximum VLANs | 3,900 |
| Software Specifications | |
| Routing Protocols | IPv4, IPv6 Static routes RIP v1/v2 OSPF/OSPF v3 BGP with Route Reflector IS-IS Multicast: Internet Group Management Protocol (IGMP) v1/v2; Protocol Independent Multicast (PIM) sparse mode (SM)/dense mode (DM)/source-specific multicast (SSM); Session Description Protocol (SDP); Distance Vector Multicast Routing Protocol (DVMRP); Multicast Source Discovery Protocol (MSDP); Reverse Path Forwarding (RPF) Encapsulation: VLAN, Point-to-Point Protocol over Ethernet (PPPoE) Virtual routers Policy-based routing, source-based routing Equal-cost multipath (ECMP) |
| QoS Features | Support for 802.1p, DiffServ code point (DSCP), EXP Classification based on VLAN, data-link connection identifier (DLCI), interface, bundles, or multifield filters Marking, policing, and shaping Classification and scheduling Weighted random early detection (WRED) Guaranteed and maximum bandwidth Ingress traffic policing Virtual channels Hierarchical shaping and policing |
| Switching Features | ASIC-based Layer 2 forwarding MAC address learning VLAN addressing and integrated routing and bridging (IRB) support Link aggregation and LACP LLDP and LLDP-MED STP, RSTP, MSTP MVRP 802.1X authentication |
| Firewall Services | Stateful and stateless firewall Zone-based firewall Screens and distributed denial of service (DDoS) protection Protection from protocol and traffic anomalies Integration with Pulse Unified Access Control (UAC) Integration with Aruba Clear Pass Policy Manager User role-based firewall SSL Inspection |
| Network Address Translation (NAT) | Source NAT with Port Address Translation (PAT) Bidirectional 1:1 static NAT Destination NAT with PAT Persistent NAT IPv6 address translation |
| VPN Features | Tunnels: Site-to-Site, Hub and Spoke, Dynamic Endpoint, AutoVPN, ADVPN, Group VPN (IPv4/IPv6/Dual Stack) Juniper Secure Connect: Remote access/SSL VPN Configuration payload: Yes IKE Encryption algorithms: Prime, DES-CBC, 3DES-CBC, AEC-CBC, AES-GCM, SuiteB IKE authentication algorithms: MD5, SHA-1, SHA-128, SHA-256, SHA-384 Authentication: Pre-shared key and public key infrastructure (PKI) (X.509) IPsec (Internet Protocol Security): Authentication Header (AH)/Encapsulating Security Payload (ESP) protocol IPsec Authentication Algorithms: hmac-md5, hmac-sha-196 IPsec Encryption Algorithms: Prime, DES-CBC, 3DES-CBC, AEC-CBC, AES-GCM, SuiteB Perfect forward secrecy, anti-reply Internet Key Exchange: IKEv1, IKEv2 Monitoring: Standard-based dead peer detection (DPD) support, VPN monitoring VPNs GRE, IP-in-IP, and MPLS |
| Network Services | Dynamic Host Configuration Protocol (DHCP) client/server/relay Domain Name System (DNS) proxy, dynamic DNS (DDNS) Juniper real-time performance monitoring (RPM) and IP monitoring Juniper flow monitoring (J-Flow) Bidirectional Forwarding Detection (BFD) Two-Way Active Measurement Protocol (TWAMP) IEEE 802.3ah Link Fault Management (LFM) IEEE 802.1ag Connectivity Fault Management (CFM) |
| High Availability Features | Virtual Router Redundancy Protocol (VRRP) Stateful high availability -Dual box clustering -Active/passive -Active/active -Configuration synchronization -Firewall session synchronization -Device/link detection -In-Service Software Upgrade (ISSU) IP monitoring with route and interface failover |
| Management, Automation, Logging, and Reporting | Management, Automation, Logging, and Reporting SSH, Telnet, SNMP Smart image download Juniper CLI and Web UI Juniper Networks Junos Space and Security Director Python Junos OS event, commit and OP scripts Application and bandwidth usage reporting Auto installation Debug and troubleshooting tools |
| Advanced Routing Services | Packet mode MPLS (RSVP, LDP) Circuit cross-connect (CCC), translational cross-connect (TCC) L2/L2 MPLS VPN, pseudo-wires Virtual private LAN service (VPLS), next-generation multicast VPN (NG-MVPN) MPLS traffic engineering and MPLS fast reroute |
| Application Security Services | Application visibility and control Application-based firewall Application QoS Advanced/application policy-based routing (APBR) Application Quality of Experience (AppQoE) Application-based multipath routing |
| Threat Defense and Intelligence Services | Intrusion prevention Antivirus Antispam Category/reputation-based URL filtering Protection from botnets (command and control) Adaptive enforcement based on GeoIP Juniper Advanced Threat Prevention, a cloud-based SaaS offering, to detect and block zero-day attacks Juniper ATP Appliance, a distributed, on-premises advanced threat prevention solution to detect and block zero-day attacks Adaptive Threat Profiling Encrypted Traffic Insights SecIntel to provide threat intelligence |
| Operating temperature | 32° to 104° F (0° to 40° C) |
| Storage temperature | -4° to 158° F (-20° to 70° C) |
| Relative humidity operating | 10% to 90% (noncondensing) |
| Relative humidity non-operating | 5% to 95% (noncondensing) |
| Meantime between failures (MTBF) | 9.78 years (85,787 hours) |
| FCC classification | Class A |
| RoHS compliance | |
