ConnectX-6 Dx EN Adapter Card OCP3.0 100GbE with Host Management Dual-Port QSFP56 PCIe 4.0 x16 No Crypto Thumbscrew Pull Tab Bracket
Description

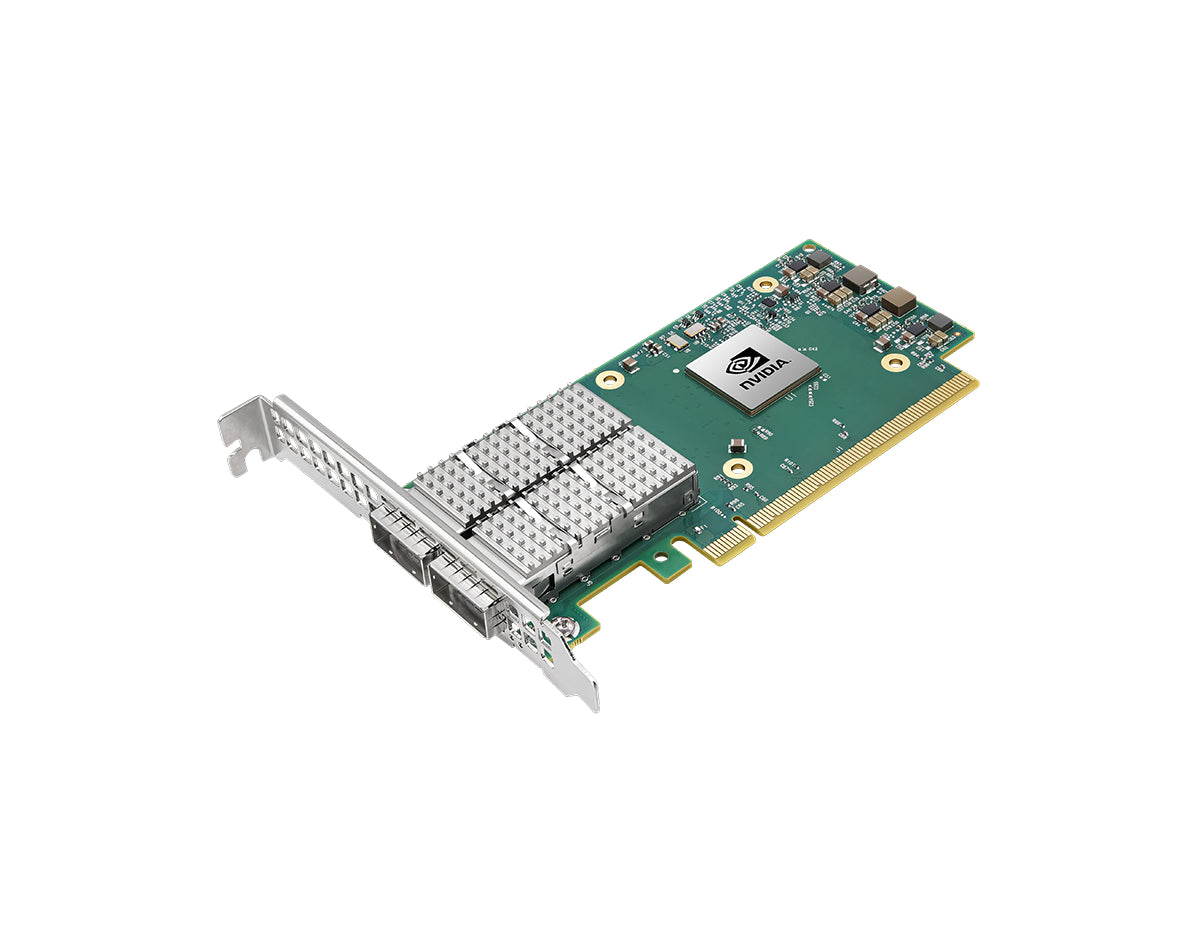

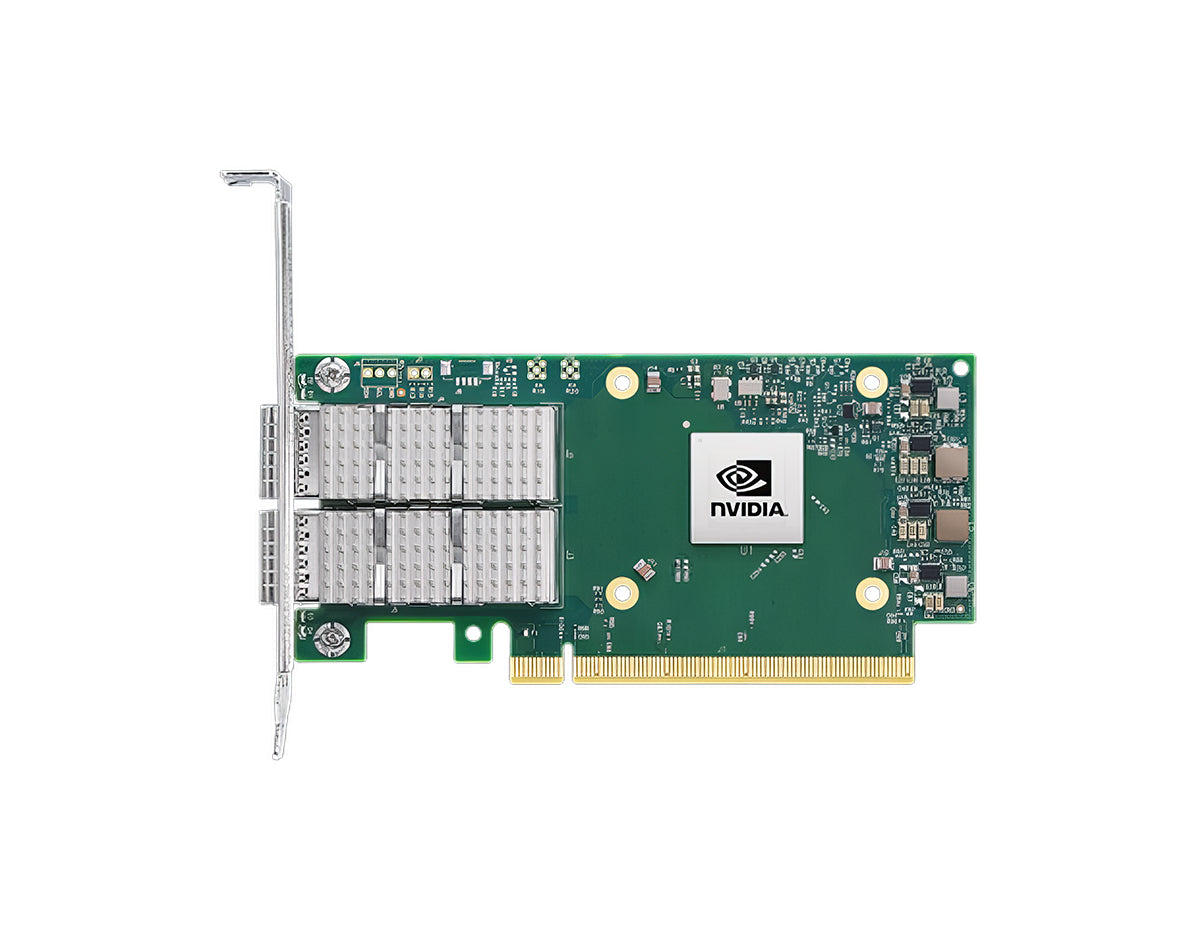

Mellanox MCX623436AN-CDAB Adapter Card
The MCX623436AN-CDAB is a small form factor SmartNIC card that excels in cybersecurity, virtualization, SDN/NFV, big data, machine learning, and storage infrastructures. It utilizes PAM4/NRZ technology and supports up to 100 Gbps Ethernet speed. It implements Hardware Root-of-Trust and secure firmware update capabilities. It also features a programmable pipeline for adapting to new network flows.
Key Features:
- Non-crypto
- Message rate: 215 Mpps
- Sub 0.8 usec latency
- Supports x86, Power, and Arm architectures
Properties
| Product Name | Mellanox MCX623436AN-CDAB Adapter Card |
| Description | Small form factor SmartNIC optimized for cybersecurity, virtualization, and data-intensive applications |
| Product Family | ConnectX-6 Dx Ethernet Adapter Cards |
| Product Type | Network Adapter Card |
| Interface | PCIe Gen 3.0 / 4.0 x16 |
| Network Connector Type | Dual-port QSFP56 |
| Ethernet Data Rate | Supports 10/25/40/50/100 Gb/s |
| Dimensions | Small Form Factor (SFF) OCP 3.0, 4.52 in. x 2.99 in (115.00mm x 76.00mm) |
| Retention Mechanism | Thumbscrew (Pull Tab) Bracket |
| Compliance | RoHS Compliant |
| IC Part Number | MT28928A0-XCCFCE |
| Host Management | Supported |
| Device ID | PF: 4125, VF: 4126 |
| Latency | Sub 0.8 µsec |
Specifications
| Protocol Support | PAM4/NRZ technology for high-speed Ethernet up to 100Gbps |
| Key Features | Non-crypto, Hardware Root-of-Trust, Secure Firmware Update |
| Message Rate | Up to 215 million packets per second (Mpps) |
| Supported Architectures | x86, Power, and Arm |
| Environmental Specifications | Operational Temperature: 0°C to 55°C, Storage Temperature: -40°C to 70°C |
| Cooling | Passive |
| Compliance Standards | CE, FCC, UL |
| Management Features | Programmable pipeline for flexible network flow adaptation |
| Supported Environments | Cybersecurity, SDN/NFV, big data, machine learning, and storage infrastructures |
| Power Consumption | Typical: 18.5W |
