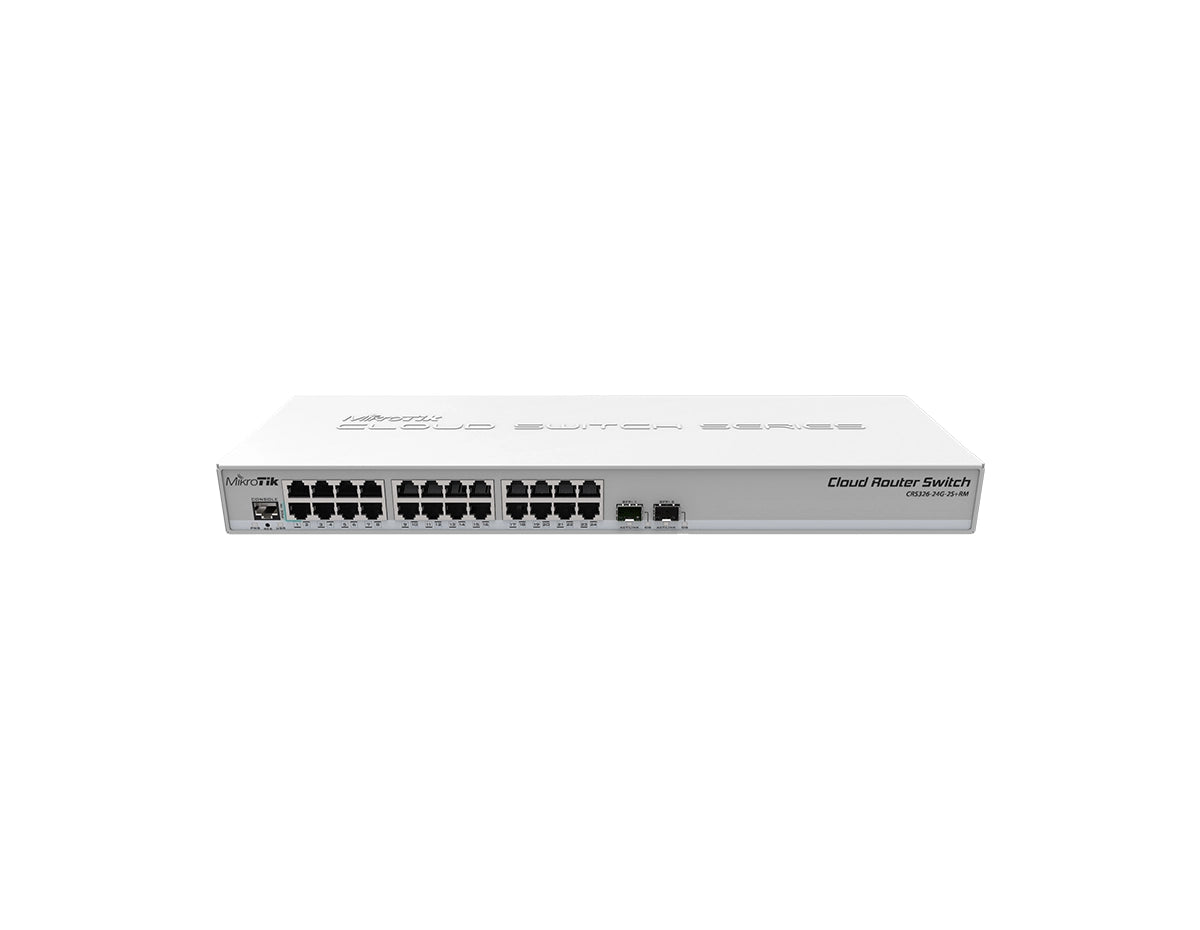

MikroTik CRS326-24G-2S+RM Switch
The CRS326-24G-2S+RM provides a distinctive dual boot functionality, enabling users to select between the RouterOS and SwOS operating systems. This feature allows for the flexibility to utilize the simplified switch-specific functions of SwOS or the comprehensive features of RouterOS, catering to the specific networking needs of the user. This exceptional switch is equipped with 24 Gigabit ports and 2 high-speed SFP+ cages, all housed in a compact 1U rackmount case.
Quick Specs:
- 24x 10/100/1000 Gigabit Ethernet ports
- 2 SFP+ Ports
- Non-blocking layer 2 switching capacity
Please see the related tabs for the CRS326-24G-2S+RM datasheet and compatible accessories.
Properties
| Properties | MikroTik CRS326-24G-2S+RM |
| Description | 24 Gigabit port switch with 2 x SFP+ cages in 1U rackmount case, Dual boot (RouterOS or SwitchOS) |
| Product Family | CRS Series |
| Product Type | Ethernet Switch |
| Ports | |
| 10/100/1000 Ethernet ports | 24 |
| SFP+ | 2 |
| Serial console port | 1 RJ45 |
| Dimensions | 443 x 144 x 44 mm |
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 10-30 V |
| Max power consumption | 24 W |
| Cooling type | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 10-30 V |
Specifications
| Specifications | CRS326-24G-2S+RM |
| Memory | 512 MB |
| Flash Storage size | 16 MB |
| CPU | 98DX3236A1 800 MHz |
| CPU core count | 1 |
| Switch chip model | 98DX3236 |
| OS | RouterOS / SwitchOS |
| Features | Non-blocking Layer 2 switching capacity 16K host table IEEE 802.1Q VLAN Supports up to 4K VLANs Port isolation Port security Broadcast storm control Port mirroring of ingress/egress traffic Rapid Spanning Tree Protocol Access Control List MikroTik neighbor discovery SNMP v1 Web-based GUI |
| Ethernet test results | |
| Bridging | |
| 64 byte | |
| none (fast path) | kpps: 449 Mbps: 229.9 |
| 25 bridge filter rules | kpps: 104,5 Mbps: 53.5 |
| 512 byte | |
| none (fast path) | kpps: 273,5 Mbps: 1120.3 |
| 25 bridge filter rules | kpps: 104.6 Mbps: 428.4 |
| 1518 byte | |
| none (fast path) | kpps: 104,3 Mbps: 1266.6 |
| 25 bridge filter rules | kpps: 104 Mbps: 1263.0 |
| Routing | |
| 64 byte | |
| none (fast path) | kpps: 343.5 Mbps: 175.9 |
| 25 simple queues | kpps: 137,4 Mbps: 70.3 |
| 25 ip filter rules | kpps: 65,8 Mbps: 33.7 |
| 512 byte | |
| none (fast path) | kpps: 273,9 Mbps: 1121.9 |
| 25 simple queues | kpps: 136,9 Mbps: 560.7 |
| 25 ip filter rules | kpps: 65,9 Mbps: 269.9 |
| 1518 byte | |
| none (fast path) | kpps: 104,3 Mbps: 1266.6 |
| 25 simple queues | kpps: 104,3 Mbps: 1266.6 |
| 25 ip filter rules | kpps: 64,8 Mbps: 786.9 |
| Switching results | |
| 64 byte | |
| Non blocking Layer 2 throughput | kpps: 65,476.2 Mbps: 33,523.8 |
| Non blocking Layer 2 capacity | kpps: 65,476.2 Mbps: 67,047.6 |
| Non blocking Layer 1 throughput | kpps: 65,476.2 Mbps: 44,000.0 |
| Non blocking Layer 1 capacity | kpps: 65,476.2 Mbps: 88,000.0 |
| 512 byte | |
| Non blocking Layer 2 throughput | kpps: 10,338.3 Mbps: 42,345.9 |
| Non blocking Layer 2 capacity | kpps: 10,338.3 Mbps: 84,691.7 |
| Non blocking Layer 1 throughput | kpps: 10,338.3 Mbps: 44,000.0 |
| Non blocking Layer 1 capacity | kpps: 10,338.3 Mbps: 88,000.0 |
| 1518 byte | |
| Non blocking Layer 2 throughput | kpps: 3,576.1 Mbps: 43,427.8 |
| Non blocking Layer 2 capacity | kpps: 3,576.1 Mbps: 86,855.7 |
| Non blocking Layer 1 throughput | kpps: 3,576.1 Mbps: 44,000.0 |
| Non blocking Layer 1 capacity | kpps: 3,576.1 Mbps: 88,000.0 |
| MTBF | Approximately 200.000 hours at 25C |
| Temperature | -40°C to 60°C tested |
| Certification & Approvals | |
| Certification | CE, EAC, ROHS |
| IP | IP20 |
Accessories
| Accessories |
| 24 V 1.2 A power adapter |
| Rack ears |
| Screw set |
