Hot Swap -48V DC telecom power supply for CCR1072, CCR2216 and CRS518. Supported input Voltage -36 to -57V.
Description

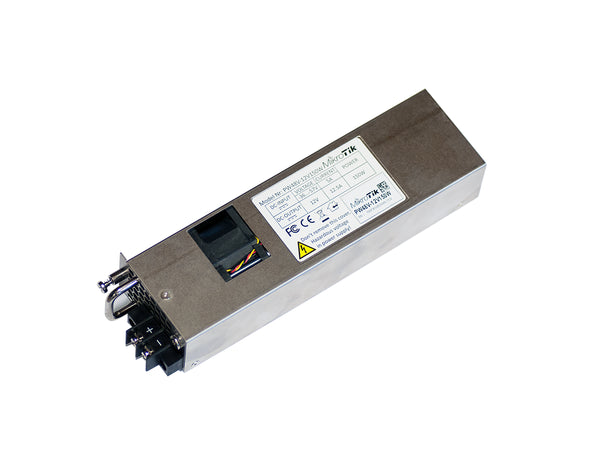

The Hot Swap -48V DC Telecom Power Supply (PW48V-12V150W) is designed for seamless integration with CCR1072, the newest flagship CCR2216, CRS518, or CRS520 devices. It allows for easy replacement of one of the current power supplies without the need to power down the device, making it ideal for -48V installations. This power supply supports input voltages from -36V to -57V, ensuring reliable performance in telecom environments. Simply swap out the existing power supply with the PW48V-12V150W for hassle-free, uninterrupted power.
Properties
| Product Name | PW48V-12V150W |
| Description | Mikrotik Hot Swap -48V DC Telecom Power Supply, designed for telecom applications to convert -48V DC to 12V DC with 150W output, suitable for powering MikroTik networking equipment. |
| Input Voltage | -36V to -57V DC |
| Output Voltage | 12V DC |
| Output Power | 150W |
| Output Current | 12.5A |
| Connector Type | 2-pin terminal block |
| Hot-Swap Capability | Yes, supports hot-swapping without interrupting power |
| Operating Temperature | -40°C to 70°C (-40°F to 158°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5% to 95% non-condensing |
| Dimensions | 20.0 cm x 9.8 cm x 4.1 cm (7.87 in x 3.86 in x 1.61 in) |
| Weight | 0.65 kg (1.43 lb) |
| Compatibility | Compatible with MikroTik equipment requiring 12V input in telecom environments |
| Usage | Designed for telecom installations and other applications requiring -48V DC power |
| Durability | Rated for 200,000 hours of operation in telecom conditions |
Specifications
| Certifications | CE, UL, FCC, RoHS compliant |
| Environmental Safety | RoHS 3 compliant (Directive 2015/863/EU) |
| EMC Compliance | Meets EN 55022, EN 55024, and CISPR 22 standards for telecom environments |
| Efficiency | >92% at full load |
| MTBF | >250,000 hours at 25°C |
| Shock Resistance | Tested to withstand 20 G for 11 ms under IEC 60068-2-27 |
| Vibration Resistance | Tested for 2.0 Grms at 5-500 Hz according to IEC 60068-2-6 |
| Thermal Management | Features temperature-controlled fan for heat dissipation |
| Heat Dissipation | <45 BTU/hr |
| Overload Protection | Integrated protection against overcurrent, overvoltage, and short-circuits |
| Power Factor | >0.95 at full load |
| Installation | Supports hot-swappable installation in telecom racks |
| Safety Standards | Conforms to IEC/EN 60950-1 and IEC/EN 62368-1 |
| Reliability | Tested under thermal cycling from -40°C to 70°C for 1,000 cycles with no failures |
| Firmware Compatibility | Not applicable |
| Deployment | Optimized for telecom rack environments with continuous operation requirements |
