Call for Price
Detail:Great solution for great distances
Description

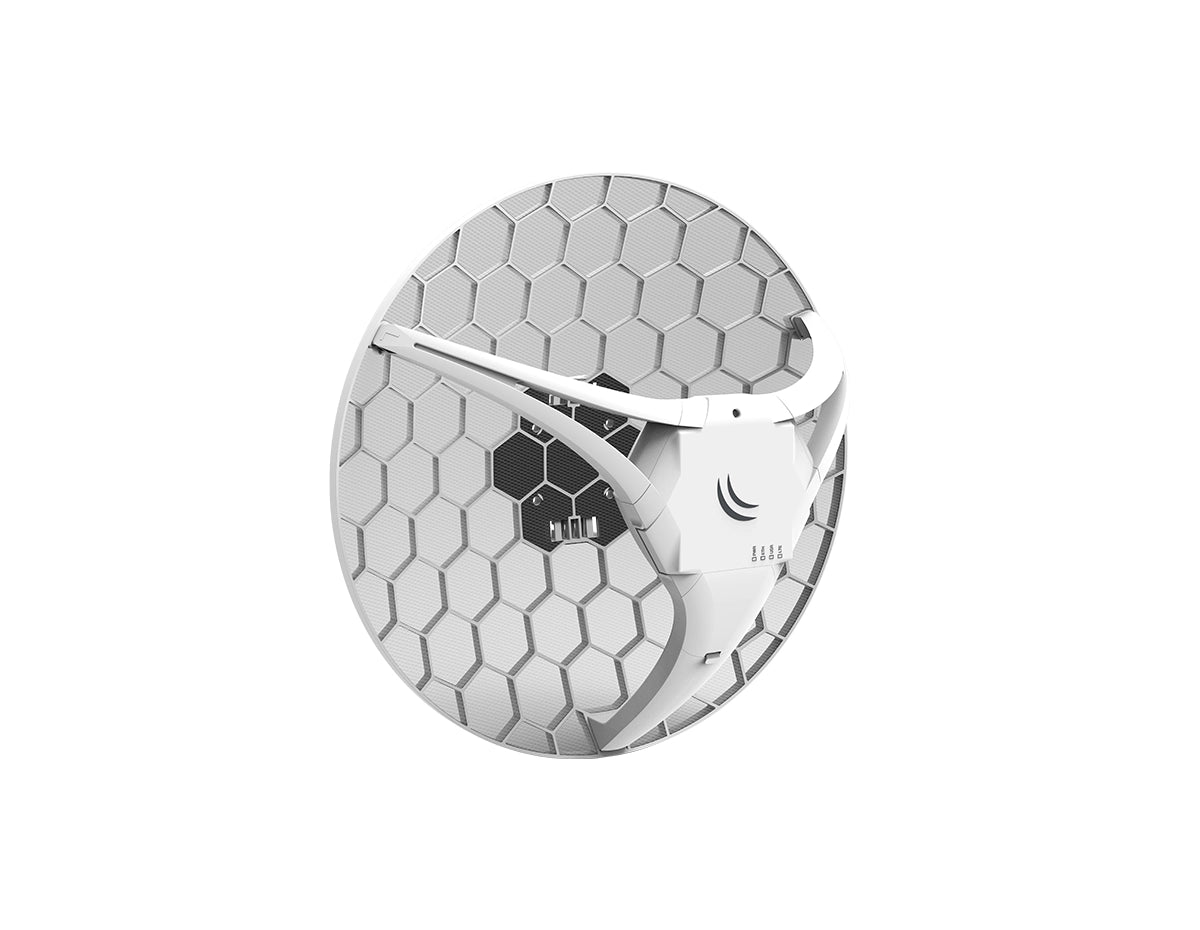

MikroTik RBLHGR&R11E-LTE6 Antenna
The RBLHGR&R11E-LTE6 is designed for use in highly isolated areas within the cellular network coverage range. It can be mounted outdoors, on a pole, mast, or other elevated structure, providing connectivity in locations where traditional cell phones may not function. The RBLHGR&R11E-LTE6 has a CAT6 LTE modem that supports carrier aggregation, enabling the device to utilize multiple bands simultaneously.
Quick Specs:
- 1x 10/100 Ethernet Port
- QCA9531, 1 core, 650 MHz CPU
- 64 MB Ram
- 1 Modem (Micro SIM)
Please see the related tabs for the RBLHGR&R11E-LTE6 datasheet and compatible accessories.
GUARANTEED to Exceed Expectations.
When purchasing from AMNET Global, rest assured that your information technology equipment is covered for a lifetime. When you receive your order, your unit is already covered by our Lifetime Warranty and Advance Replacement.
Coverage That Never Ends.
In the event of a product malfunction, we fully understand that downtime is not an option. If you experience a product malfunction or failure, we will send you a replacement the same day, fully expedited and at our cost.
Please see our full Terms and Conditions of Warranty here.
QUESTIONS ABOUT THIS PRODUCT OR AVAILABILITY?
You have come to the right place!
If you have an immediate question, please click here and we will be glad to speak with you right away!
To speak to one of our technicians about this product, please call our technical support team at 1.888.428.6677 Option 3 and we will get you taken care of right away!
Properties
| Properties | MikroTik LHG LTE6 Antenna RBLHGR&R11E-LTE6 |
| Description | High-speed outdoor wireless device with LTE support for bands 1, 2, 3, 7, 8, 20, 38 and 40. Includes a powerful dual-chain 802.11ac wireless and two RP-SMA connectors for external antennas. |
| Product Family | LHG Series |
| Product Type | Antenna |
| 10/100/1000 Ethernet ports | 1 |
| Number of SIM slots | 1 (Micro SIM) |
| Extras | Mode button |
| Dimensions | 391 x 391 x 227 mm |
| Number of DC inputs | 1 (PoE-IN) |
| Max power consumption | 6 W |
| Cooling type | Passive |
| PoE in | 802.3af/at |
| PoE in input Voltage | 12-57 V |
Specifications
| Specifications | RBLHGR&R11E-LTE6 |
| Memory | 64 MB |
| Flash Storage size | 16 MB |
| CPU | QCA9531 650 MHz |
| CPU core count | 1 |
| OS | RouterOS level 3 license |
| LTE antenna gain | 17 dBi |
| Antenna beam width | 25° |
| MTBF | Approximately 200.000 hours at 25C |
| Temperature | -30°C to 70°C tested |
| Certification | CE, EAC, ROHS |
| IP | IP54 |
| Supported Bands | |
| 2G Category | Class12 |
| 2G bands | 2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz) |
| 3G Category | R7 (21Mbps Downlinks, 5.76Mbps Uplink) R8 (42.2Mbps Downlink, 5.76Mbps Uplink) |
| 3G bands | 1 (2100MHz) / 2 (1900MHz) / 5 (850MHz) / 8 (900MHz) |
| LTE Category | 6 (300Mbit/s Downlink, 50Mbit/s Uplink) |
| LTE FDD bands | 1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 5 (850MHz) / 12 (700MHz) / 17 (700MHz) / 25 (1900MHz) / 26 (850MHz) |
| LTE TDD bands | 38 (2600MHz) / 40 (2300MHz) / 39 (1900MHz) / 41n (2500MHz) |
Accessories
|
24 V 0.38 A power adapter
|
| 2x metal ring |
| PoE injector |
| K-LHG kit |
