Dual-band, dual-chain Wi-Fi 6 for increased speed, stability, and performance, Equipped with 1 Gigabit Ethernet port and 2.5 Gbps SFP for high-speed networking, Supports PoE-In and DC jack inputs for versatile deployment options.
Description

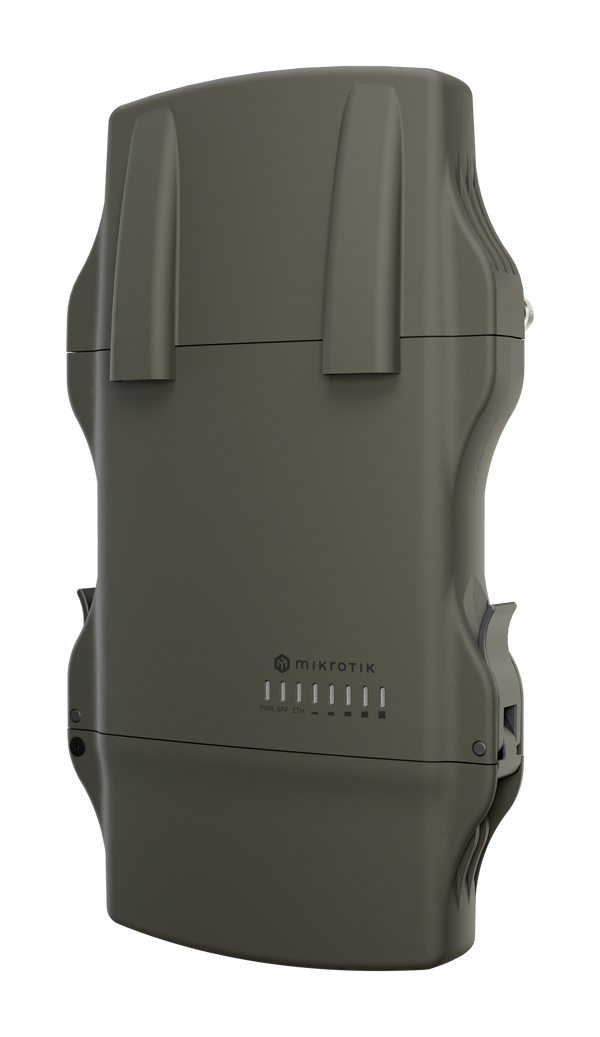

MikroTik NetMetal ax Outdoor Access Point
The MikroTik NetMetal ax is a powerful and rugged outdoor access point designed for extreme environments. Equipped with the latest Wi-Fi 6 technology, this access point delivers fast and stable wireless connections even in challenging conditions. Its durable IP66-rated case protects it from dust and powerful water jets, making it ideal for use in outdoor, industrial, and remote locations. With a dual-band, dual-chain Wi-Fi 6 radio, Gigabit Ethernet, and 2.5 Gbps SFP port, the NetMetal ax provides flexibility, high-speed connectivity, and powerful performance.
Key Features:
- Wi-Fi 6 Technology: Dual-band, dual-chain Wi-Fi 6 for increased speed, stability, and performance.
- Rugged Design: IP66-rated for protection against dust and powerful water jets, ideal for extreme outdoor conditions.
- Customizable: Includes a miniPCIe slot for LTE or LoRa cards, allowing for flexible IoT and mobile internet applications.
- High-Speed Connectivity: Equipped with 1 Gigabit Ethernet port and 2.5 Gbps SFP for high-speed networking.
- NanoSIM Slot: Integrated NanoSIM slot for LTE connectivity.
- Flexible Powering Options: Supports PoE-In and DC jack inputs for versatile deployment options.
Technical Specifications:
- CPU: Dual-Core IPQ-5010 800 MHz
- RAM: 256 MB DDR3L
- Storage: 128 MB NAND
- Ethernet Ports: 1 x 1G Ethernet
- SFP Ports: 1 x 2.5 Gbps SFP
- Wireless Interface: 2.4 GHz 802.11b/g/n/ax and 5 GHz 802.11a/n/ac/ax dual-chain
- Operating Temperature: -40°C to +70°C
- Powering Options: PoE-In (18-28V), DC jack (12-28V)
- Max Power Consumption: 25 W
- Dimensions: 143 x 247 x 48 mm
Properties
| Product Name | L23UGSR-5HaxD2HaxD-NM |
| Description | Mikrotik NetMetal ax, a long-range outdoor dual-band Wi-Fi 6 access point designed for rugged environments, offering high-speed connectivity and robust performance. |
| Wireless Standard | Wi-Fi 6 (802.11ax) |
| Radio Configuration | Dual-band, 2.4 GHz (2×2 MIMO) and 5 GHz (2×2 MIMO) |
| Maximum Data Rate | 1.8 Gbps combined (574 Mbps on 2.4 GHz, 1200 Mbps on 5 GHz) |
| Ethernet Ports | 1 x 2.5 Gbps Ethernet with PoE-in support |
| Antenna Type | N-type connectors for external antennas (antennas not included) |
| Power Supply | Powered via 802.3af/at PoE or DC jack (12-57V) |
| Operating Temperature | -40°C to 70°C (-40°F to 158°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5% to 95% non-condensing |
| Dimensions | 14.3 cm x 14.3 cm x 3.9 cm (5.63 in x 5.63 in x 1.54 in) |
| Weight | 0.865 kg (1.91 lb) |
| Mounting Options | Pole and wall mount (brackets included) |
| Usage | Ideal for outdoor environments such as industrial sites, campuses, and remote locations |
| Durability | IP66-rated for dust and water resistance |
Specifications
| Frequency Bands | 2.4 GHz (up to 574 Mbps) and 5 GHz (up to 1200 Mbps) |
| Transmit Power | Up to 27 dBm on 2.4 GHz, 30 dBm on 5 GHz |
| Certifications | CE, FCC, IC, RoHS compliant |
| Environmental Safety | RoHS 3 compliant (Directive 2015/863/EU), halogen-free components |
| EMC Compliance | Meets EN 301 489, EN 55032, and FCC Part 15 standards for outdoor equipment |
| MTBF | >200,000 hours |
| Heat Resistance | Tested for thermal cycling from -40°C to 70°C for 500 cycles with no failures |
| Vibration Resistance | Tested under IEC 60068-2-6, up to 3.0 Grms for 5-500 Hz |
| Shock Resistance | Tested to withstand 25 G for 11 ms under IEC 60068-2-27 |
| Power Consumption | Maximum 15W |
| Advanced Features | Supports OFDMA, MU-MIMO, and Target Wake Time for efficient wireless performance |
| Latency | <3 ms under typical conditions |
| Firmware Updates | Supports automated updates via RouterOS |
| Ingress Protection | IP66-rated for dust and water resistance |
| Deployment | Optimized for long-range outdoor installations in challenging environments |
| Reliability | Tested to maintain stable connections under high humidity and extreme temperatures |
| Security Features | Supports WPA3 encryption, MAC filtering, and firewall features in RouterOS |
