Palo Alto Networks PA-220R. DC Power Unit. Must confirm data center has DC power or purchase the AC power converter kit (PAN-PWR-60W-AC). Inlcudes DIN rail kit
Description

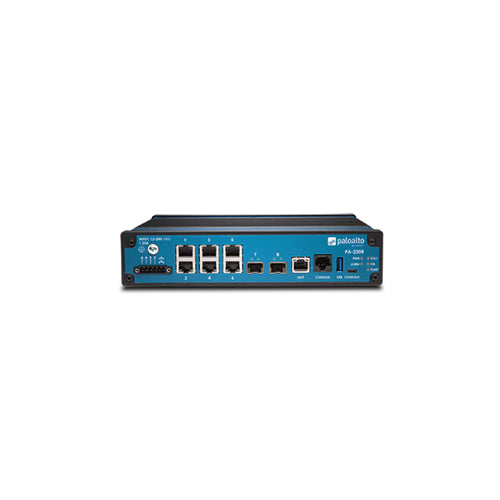

Palo Alto PAN-PA-220R Firewall
The PA-220R represents an advanced firewall device designed in a durable form, offering robust network protection for challenging settings, including utility substations, power plants, manufacturing plants, oil and gas facilities, building management systems, and healthcare networks. The PA-220R firewalls are designed to accommodate a user range of 1-10, with a firewall throughput of 575 Mbps and a VPN throughput of 540.0 Mbps.
Quick Specs:
- Firewall throughput (HTTP/appmix): 545/535 Mbps
- SD-WAN functionality
- IoT security
- Dual DC power (12-48V)
Please see the related tabs for the PA-220R datasheet and compatible accessories.
Properties
| Properties | Palo Alto PAN-PA-220R Firewall |
| Description | Palo Alto Networks PA-220R. DC Power Unit. Must confirm data center has DC power or purchase the AC power converter kit (PAN-PWR-60W-AC). Inlcudes DIN rail kit |
| Product Family | Palo Alto PAN-PA-220R Firewall |
| Product Type | Firewall |
| Key Features: | Firewall throughput (HTTP/appmix): 545/535 Mbps SD-WAN functionality IoT security |
| Advanced Features | Advanced Threat Prevention WildFire malware prevention Advanced URL Filtering DNS Security Enterprise DLP SaaS Security IoT Security |
Specifications
| Specifications | |
| Performance and Capacities | |
| Firewall throughput (HTTP/appmix) (Throughput is measured with App-ID and logging enabled, using 64 KB HTTP/appmix transactions.) | 545/535 Mbps |
| Threat Prevention throughput ( Threat Prevention throughput is measured with App-ID, IPS, antivirus, anti-spyware, WildFire, DNS Security, file blocking, and logging enabled, utilizing 64 KB HTTP/appmix transactions.) | 265/320 Mbps |
| IPsec VPN throughput ( IPsec VPN throughput is measured with 64 KB HTTP transactions and logging enabled.) | 550 Mbps |
| Max sessions | 64.000 |
| New sessions per second (New sessions per second is measured with application override, utilizing 1 byte HTTP transactions.) | 4.200 |
| Note: Results were measured on PAN-OS 10.2 | |
| Networking Features | |
| Interface Modes | L2, L3, tap, virtual wire (transparent mode) |
| Routing | OSPFv2/v3 with graceful restart, BGP with graceful restart, RIP, static routing Policy-based forwarding Point-to-Point Protocol over Ethernet (PPPoE) Multicast: PIM-SM, PIM-SSM, IGMP v1, v2, and v3 |
| SD-WAN | Path quality measurement (jitter, packet loss, latency) Initial path selection (PBF) Dynamic path change |
| IPv6 | L2, L3, tap, virtual wire (transparent mode) Features: App-ID, User-ID, Content-ID, WildFire, and SSL Decryption SLAAC |
| IPsec VPN | Key exchange: manual key, IKEv1, and IKEv2 (pre-shared key, certificate-based authentication) Encryption: 3DES, AES (128-bit, 192-bit, 256-bit) Authentication: MD5, SHA-1, SHA-256, SHA-384, SHA-512 |
| VLANs | 802.1Q VLAN tags per device/per interface: 4,094/4,094 |
| Network Address Translation | NAT modes (IPv4): static IP, dynamic IP, dynamic IP and port (port address translation) NAT64, NPTv6 Additional NAT features: dynamic IP reservation, tunable dynamic IP and port oversubscription |
| High Availability | Modes: active/active, active/passive Failure detection: path monitoring, interface monitoring |
| Zero Touch Provisioning (ZTP) | Available with -ZTP SKUs (PA-220-ZTP) Requires Panorama 9.1.3 or higher |
| Hardware Specifications | |
| I/O | 10/100/1000 (6), SFP (2) |
| Management I/O | 10/100/1000 out-of-band management port (1) RJ-45 console port (1) USB port (1) Micro USB console port (1) |
| Storage Capacity | 32 GB EMMC |
| Power Supply (Avg/Max Power Consumption) | Optional: dual redundant DC power feeds (13 W/16 W) |
| Max BTU/hr | 55 |
| Input Voltage Frequency | 12–48 VDC 1.4 A |
| Max Current Consumption | Firewall – 1.4 A @ 12 VDC Max inrush current 4.9 A @ 12 VDC |
| Weight (Standalone Device/As Shipped) | 4.5 lbs / 6.0 lbs |
| Safety | cTUVus, CB |
| EMI | FCC Class A, CE Class A, VCCI Class A |
| Environment | Operating temperature: -40° to 158° F, -40° to 70° C Non-operating temperature: -40° to 167° F, -40° to 75° C Passive cooling |
