Palo PA-7080 – Security appliance – AC 90 – 305 V – 19U – rack-mountable
Description

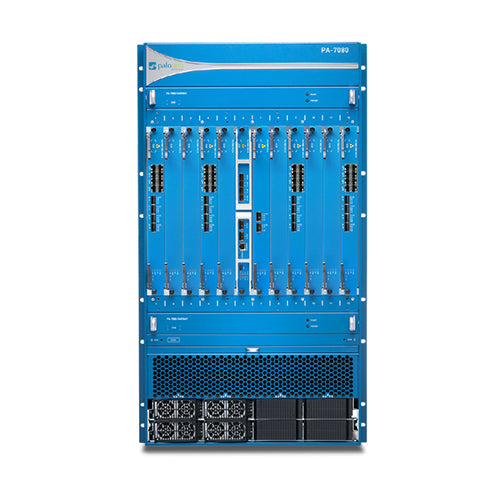

Palo Alto PAN-PA-7080-AC-SYS Firewall
The PAN-PA-7080-AC-SYS is designed to have exceptional scalability to answer growing needs. Its scalable architecture allows you to appropriate the processing power of this chassis to your desire. This chassis includes three subsystems: the processing cards (10 slots), the Switch Management Card, and the Dedicated Logging Card. Combined with Machine Learning, you can be sure that you are ready for ever-evolving and complex cyberattacks.
Quick Specs:
- Firewall throughput (HTTP/appmix): 567/595 Gbps
- IPsec VPN throughput: 312.9 Gbps
- Max Concurrent Sessions: 416M
- New Sessions per Second: 6M
Please see the related tabs for the PA-7080-AC-SYS datasheet and compatible accessories.
Properties
| Properties | Palo Alto PAN-PA-7080-AC-SYS Firewall |
| Description | PA-7080 Base AC Hardware Bundle. Includes AC Chassis, 4xAC power supplies, 2xFan Trays, Fan Filter, system cards, or optional upgraded system cards |
| Product Family | Palo Alto PAN-PA-7000 Series |
| Product Type | Firewall |
Specifications
| Specifications | Palo Alto PAN-PA-7080-AC-SYS Firewall |
| Performance and Capacities | |
| Firewall throughput (HTTP/appmix) (Throughput is measured with App-ID and logging enabled, with 64 KB HTTP/appmix transactions.) | 567/595 Gbps |
| Threat Prevention throughput (HTTP/appmix) (Threat Prevention throughput measured with App-ID, IPS, antivirus, antispyware, WildFire, DNS Security, file blocking, and logging enabled, utilizing 64 KB HTTP/appmix transactions) | 292.4/312.8 Gbps |
| IPsec VPN throughput ( IPsec VPN throughput is measured with 64 KB HTTP transactions, and logging enabled.) | 312.9 Gbps |
| Max concurrent sessions (Max concurrent sessions are measured utilizing HTTP transactions.) | 416M |
| New sessions per second (New sessions per second is measured with application override, utilizing 1 byte HTTP transactions.) | 6M |
| Virtual systems (base/max) (The base system includes 25 virtual systems at no cost, and up to 200 additional licenses may be purchased. The maximum number of virtual systems supported is 225.) | 25/225 |
| PA-7000 Series Networking Features | |
| Interface Modes | L2, L3, tap, virtual wire (transparent mode) |
| Routing | OSPFv2/v3 with graceful restart, BGP with graceful restart, RIP, static routing Policy-based forwarding Point-to-Point Protocol over Ethernet (PPPoE) and DHCP supported for dynamic address assignment Multicast: PIM-SM, PIM-SSM, IGMP v1, v2, and v3 Bidirectional Forwarding Detection (BFD) |
| SD-WAN | Path quality measurement (jitter, packet loss, latency) Initial path selection (PBF) Dynamic path change |
| IPv6 | L2, L3, tap, virtual wire (transparent mode) Features: App-ID, User-ID, Content-ID, WildFire, and SSL decryption SLAAC |
| IPsec and SSL VPN | Key exchange: manual key, IKEv1 and IKEv2 (pre-shared key, certificate-based authentication) Encryption: 3des, AES (128-bit, 192-bit, 256-bit) Authentication: MD5, SHA-1, SHA-256, SHA-384, SHA-512 GlobalProtect Large Scale VPN for simplified configuration and management (Requires GlobalProtect License.) Secure access over IPsec and SSL VPN tunnels using GlobalProtect Gateway and Portals ((Requires GlobalProtect License.)) |
| VLANs | 802.1Q VLAN tags per device/per interface: 4,094/4,094 Aggregate interfaces (802.3ad) intracard and/or intercard, and LACP |
| Network Address Translation | NAT modes (IPv4): static IP, Dynamic IP, Dynamic IP and Port (port address translation) NAT64, NPTv6 Additional NAT features: Dynamic IP reservation, tunable Dynamic IP and Port oversubscription |
| High Availability | Modes: active/active, active/passive, HA clustering Failure detection: path monitoring, interface monitoring |
| Mobile Network Infrastructure | 5G Security GTP Security SCTP Security |
| Hardware Specifications (PA-7080 Full System) | |
| PA-7000-100G-NPC-A | SFP/SFP+ (80), QSFP+/QSFP28 (40) |
| PA-7050-SMC-B PA-7080-SMC-B |
SFP MGT (2), SFP HA1 (2), HSCI HA2/HA3 QSFP+/QSFP28 (2), RJ45 serial console (1), Micro USB serial console (1) |
| PA-7000-LFC-A | 480 GB SSD, system drive RAID1 (2 x 240 GB) |
| AC input voltage | 100–240 VAC (50–60 Hz) |
| Rated input current | 65-27A |
| AC power supply output | 2500 W @ 240 VAC 1200 W @ 120 VAC |
| DC input voltage | -40 to -60 VDC |
| Rated input current | 135A |
| DC power output | 2500 watts / power supply |
| Max current / power supply | 12 A @ 240 VAC In 75 A @ >40 VDC In |
| Power supplies (base/max) | (4/8) |
| Max inrush current / power supply | 30Aac / 100Adc peak |
| Mean time between failure (MTBF) | Configuration dependent; contact your Palo Alto Networks representative for MTBF details. |
| Max BTU/hr | 20,132 |
| Rack mountable (dimensions) | 19U, 19” standard rack (32.22”H x 19”W x 24.66”D) |
| Weight (stand-alone device/as shipped) | 299.3 lbs. AC / 298.3 lbs. DC |
| Safety | cTUVus, cCSAus, CB |
| EMI | FCC Class A, CE Class A, VCCI Class A |
| Certifications | NEBS Level 3 |
| Environment | |
| Operating temperature | 32° to 122° F, 0° to 50° C |
| Non-operating temperature | -4° to 158° F, -20° to 70° C |
