Call for Price
901-R350
Description

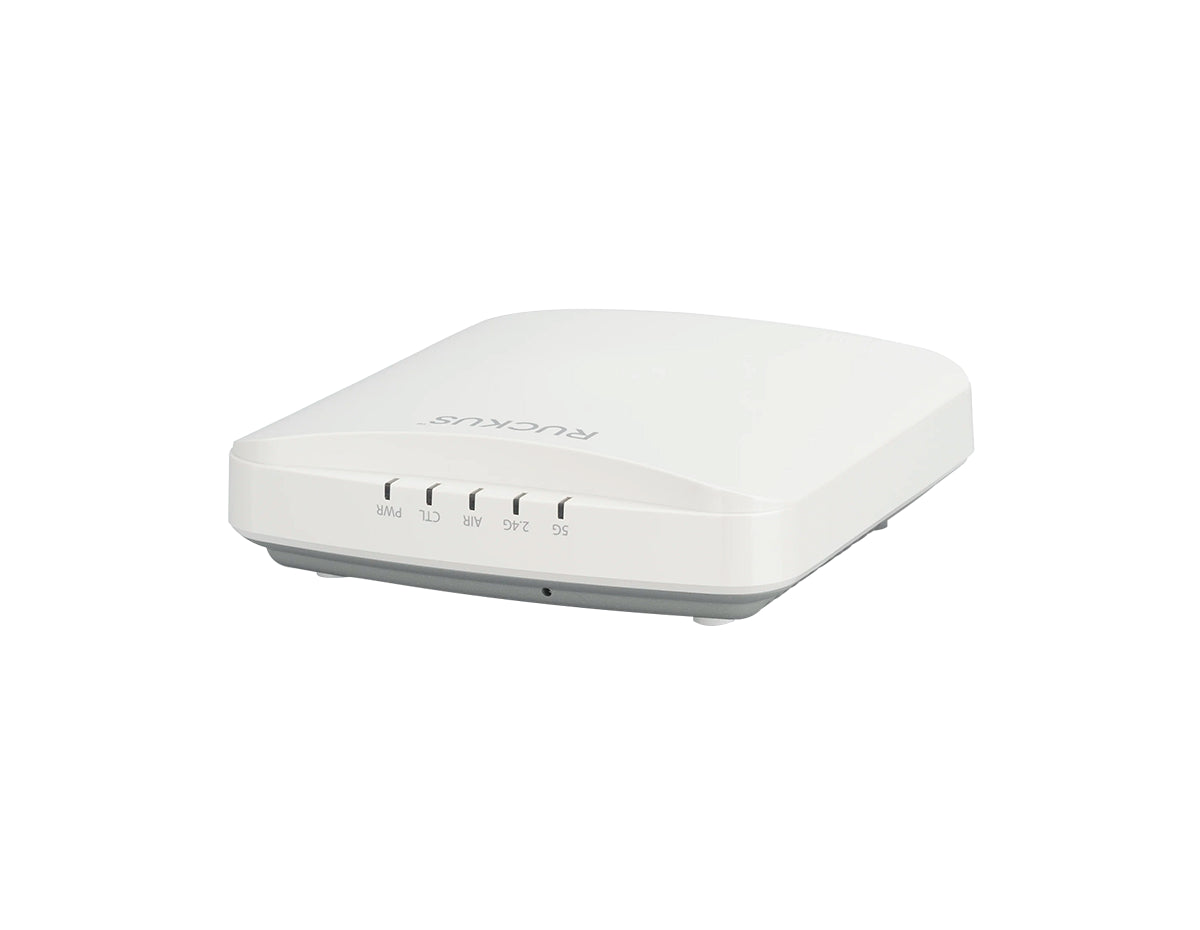

Elevate your connectivity experience with the Ruckus R350. This indoor access point delivers industry-leading Wi-Fi performance and reliability, even in the most challenging high-density environments. With support for the latest Wi-Fi 5 (802.11ac Wave 2) standards, the R350 ensures high-speed and efficient wireless connections. Its patented technologies, such as BeamFlex+ and ChannelFly, optimize every connection for the highest performance. Whether you’re looking to support demanding applications, streaming multimedia, or high-density scenarios, the R350 is built to deliver an exceptional user experience.
Properties
| Properties | R350 |
| Description | Entry level Wi-Fi 6 (802.11ax) dual concurrent Access Point with BeamFlex+ |
| Product Family | Ruckus Indoor Access Points |
| Product Type | Access Point |
| Ethernet Interface | · 1 x 1GbE port, RJ-45 |
| USB | · 1 USB 2.0 Port, Type A |
| Maximum Power Consumption | PoE (Full Functionality): 12.62W DC input: 11.4 W |
| Dimensions in. |
5.75(L) x 6.14(W) x 1.55(H) in |
|
Operating Temperature |
· 32-104 F |
| Mounting | · Wall, Drop ceiling, Desk · Secure bracket (sold separately) |
Specifications
| Concurrent users | 256 |
| Radio chains:streams | 2×2:2 |
| Antenna patterns (per band) | 64 |
| Antenna gain | Up to 3dBi |
| Rx sensitivity (2.4/5GHz) | -101dBm |
| Maximum PHY rate | 1200 Mbps (5GHz) 574 Mbps (2.4GHz) |
| Wi-Fi technology | 802.11ax (2.4GHz, 5GHz) Wi-Fi CERTIFIED 6™ |
| Supported Rates | · 802.11ax: 4 to 1774 Mbps · 802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 2 for VHT20/40/80) · 802.11n: 6.5 Mbps to 300 Mbps (MCS0 to MCS15) · 802.11a/g: 54, 48, 36, 24, 18, 12, 9, 6Mbps · 802.11b: 11, 5.5, 2 and 1 Mbps |
| Supported Channels | · 2.4GHz: 1-13 · 5GHz: 36-64, 100-144, 149-165 |
| PD-MRC | Yes |
| ChannelFly | Yes |
| SmartMesh | Yes |
| Integrated BLE/ZigBee | — |
| WLAN Control and Management | • ZoneDirector • SmartZone • Unleashed • RUCKUS Cloud |
| IP | IPv4, IPv6 |
| MIMO | · 2×2 SU-MIMO · 2×2 MU-MIMO |
| Standards Compliance | · EN 60950-1 Safety · EN 60950-1 Safety · EN 60601-1-2 Medical · EN 61000-4-2/3/5 Immunity · EN 50121-1 Railway EMC · EN 50121-4 Railway Immunity · IEC 61373 Railway Shock & Vibration · UL 2043 Plenum · EN 62311 Human Safety/RF Exposure · WEEE & RoHS · ISTA 2A Transportation |
Accessories
| 902-0162-XXYY | · PoE injector (24W) (Sold in quantities of 1, 10 or 100) |
| 902-0195-0000 | · Spare, T-bar ceiling mount kit for mounting to flush frame ceiling |
| 902-0120-0000 | · Spare, Accessory Mounting Bracket |
| 902-0173-XXYY | · Power Adapter (12V, 1.0A, 12W) (Sold in quantities of 1 or 10) |
