Call for Price
Access Point, Ruckus BeamFlex+ technology, Dual band support (2.4 GHz & 5 GHz), Supports up to 512 clients, 867 Mbps (5 GHz) and 300 Mbps (2.4 GHz) of, User Data Rate, Up to 4 dB of Signal-to-interference and Noise (SINR) Improvement, Up to 10 dB of Interference Mitigation
Description

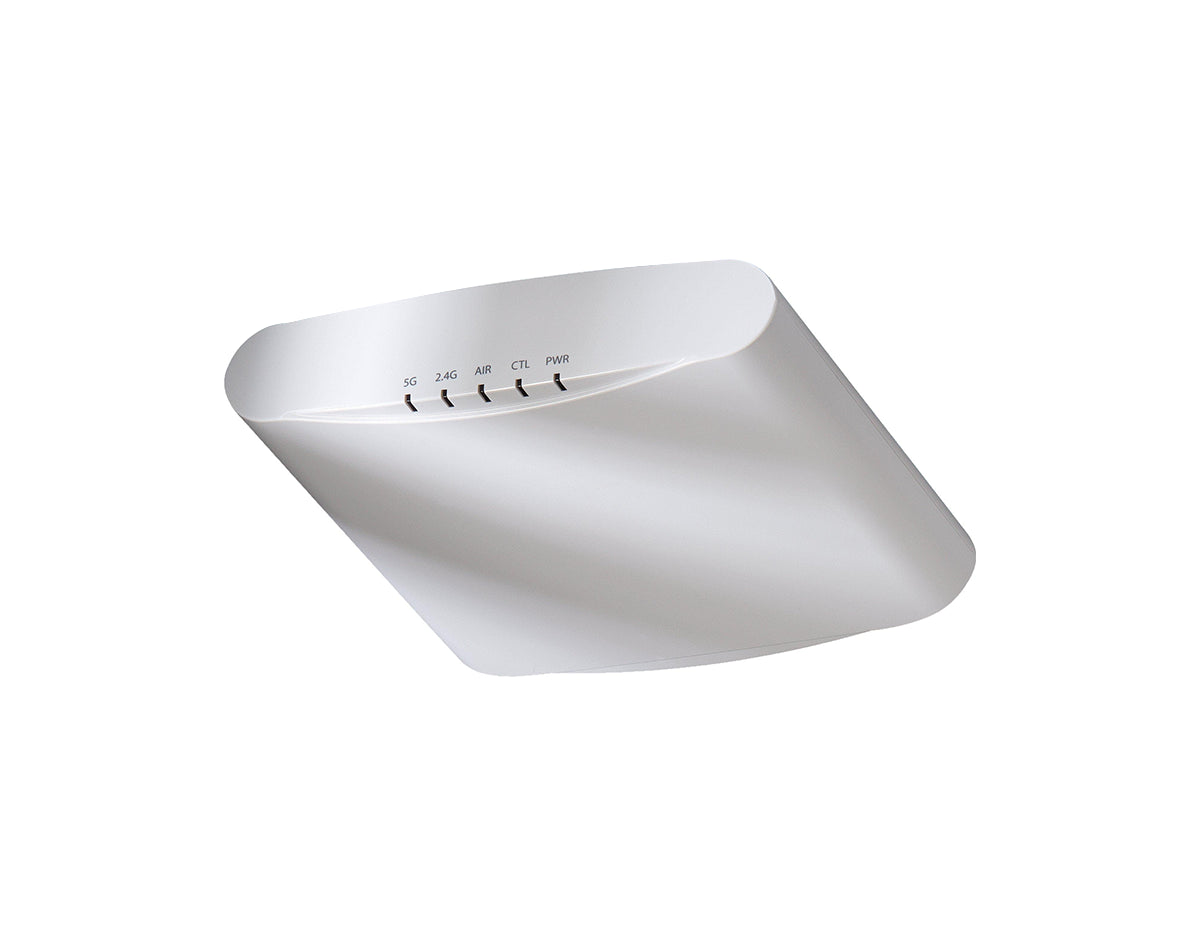

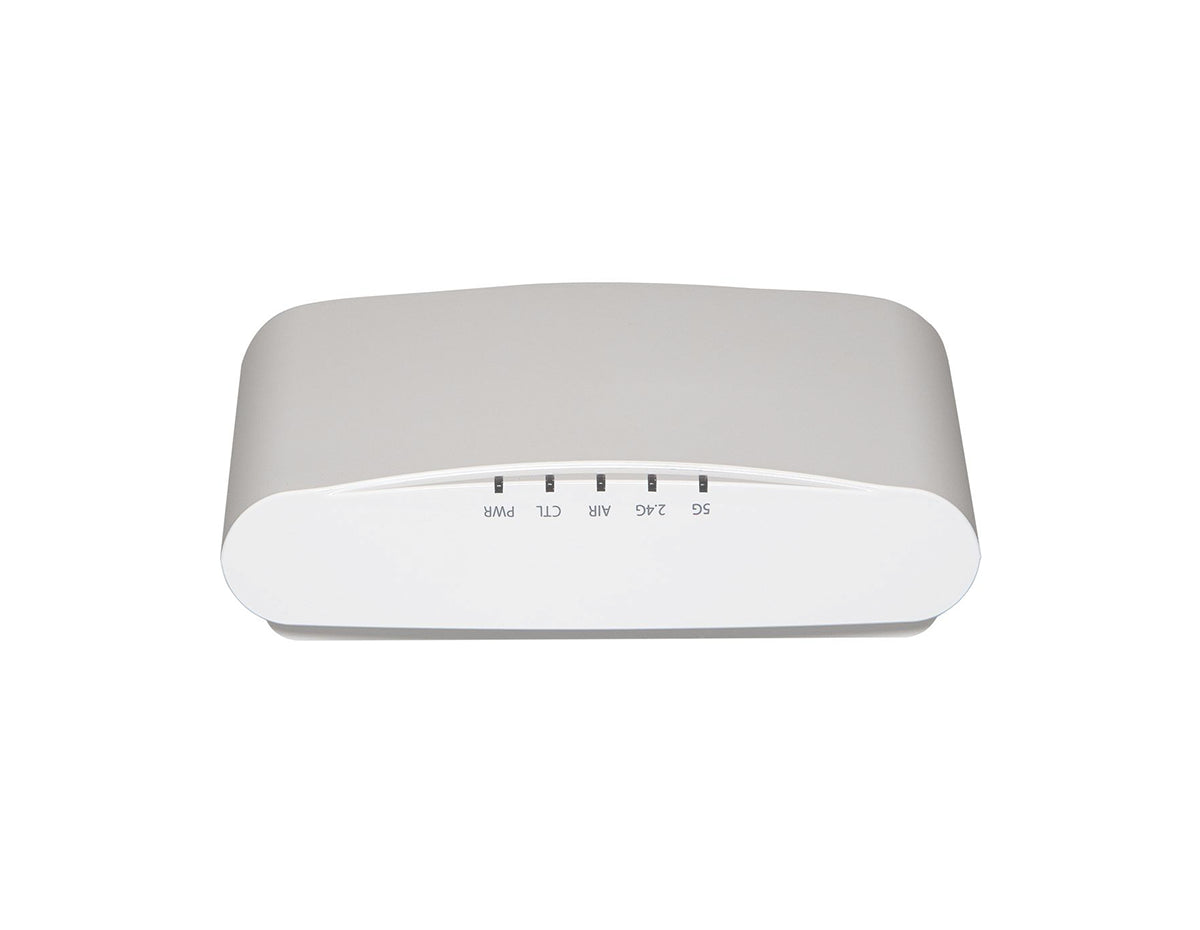

Ruckus ZoneFlex R510 Wireless Access Point (901-R510-US00)
The Ruckus R510 802.11ac Wave 2 Indoor Access Point is well-suited for medium-sized indoor environments. It incorporates patented technologies found in Ruckus’ high-density APs, enabling data rates of up to 1.2Gps and Wi-Fi intelligence to extend coverage and minimize interference. It provides high-quality video devices, wireless IP phones, and portable point-of-sale scanners with secure, inconspicuous networking in retail stores. Additionally, the R510 supports next-generation 802.11ac functionality such as MultiUser MIMO (MUMIMO).
Quick Specs:

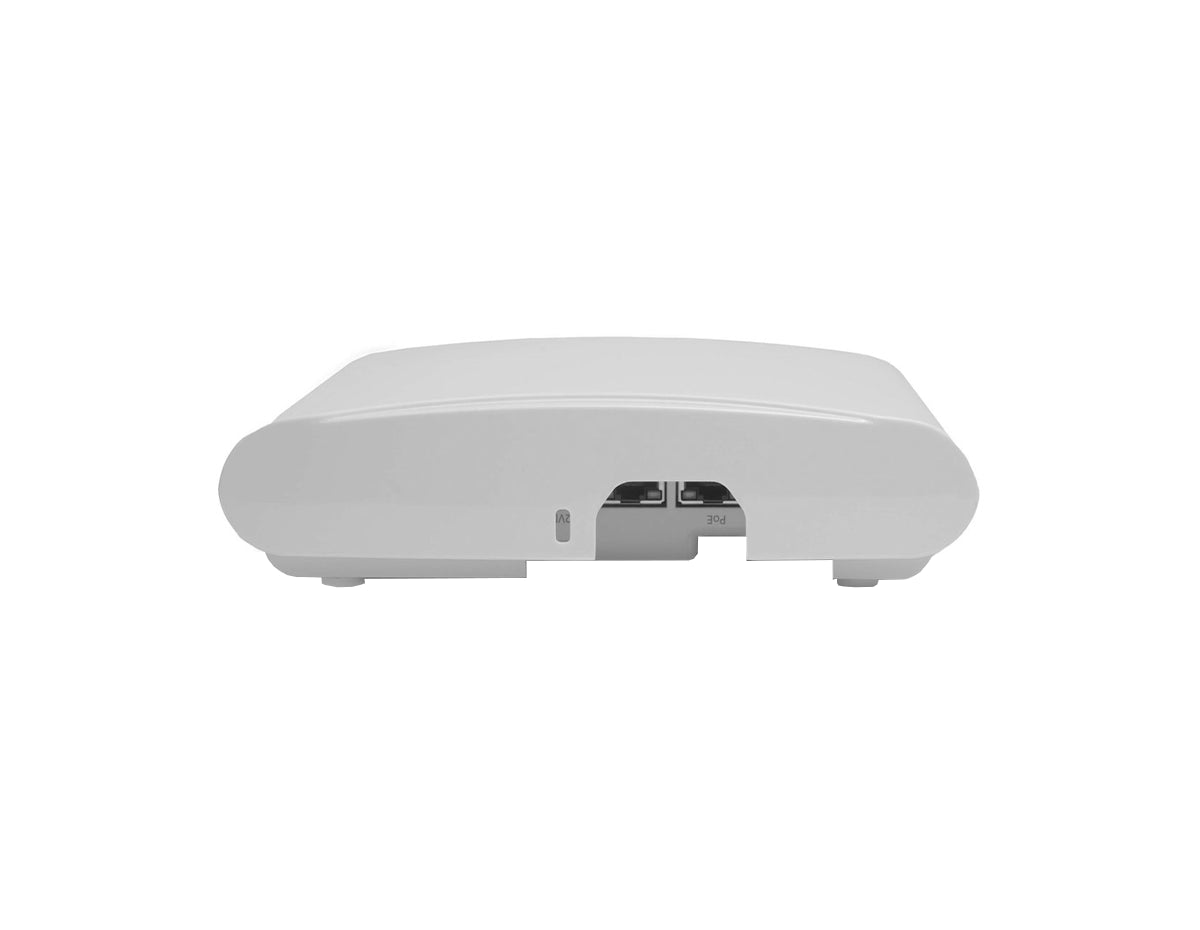

- 2x 1GbE ports, RJ45, PoE in on one port
- 1x USB-A 2.0 port
- IoT ready
- Wi-Fi Interface Standard: IEEE 802.11 a/b/g/n/ac Wave 2
Please see the related tabs for the 901-R510-US00 datasheet and compatible accessories.
Properties
| Properties | R510 |
| Description | Mid-range Wi-Fi 6 (802.11ax) 2 dual-concurrent Access Point with MU-MIMO and BeamFlex+ |
| Product Family | Ruckus Indoor Access Points |
| Product Type | Access Point |
| Ethernet Interface | 2 x 1GbE ports, RJ-45, PoE in on one port |
| USB | USB 2.0 port, Type A Connector |
| Maximum Power Consumption | 802.3a: 12.6W DC Input 12VDC 10A : 11.9W |
| Dimensions in. | 6.6(L) x 6.49(W) x 1.6(H) in |
| Operating Temperature | · 0ºC (32ºF) – 50ºC (122ºF) |
| Mounting | · Wall, Drop ceiling, Desk · Secure bracket (sold separately) |
Specifications
| Concurrent users | 512 |
| Radio chains:streams | 2×2:2 |
| Antenna patterns (per band) | 64 |
| Antenna gain | Up to 3dBi |
| Rx sensitivity (2.4/5GHz) | -103dBm |
| Maximum PHY rate | 867 Mbps (5GHz) 300 Mbps (2.4GHz) |
| Wi-Fi technology | 802.11ac (5GHz) 802.11n (2.4GHz) |
| Supported Rates | 802.11ac: 6.5 to 867Mbps (MCS0 to MCS9, NSS = 1 to 2 for VHT20/40/80) 802.11n: 6.5 Mbps to 300Mbps (MCS0 to MCS15) 802.11a/g: 54, 48, 36, 24, 18, 12, 9 , 6Mbps 802.11b: 11, 5.5, 2 and 1 Mbps |
| Supported Channels | 2.4GHz: 1-13 5GHz: 36-64, 100-144, 149-165 |
| PD-MRC | Yes |
| ChannelFly | Yes |
| SmartMesh | Yes |
| Integrated BLE/ZigBee | Yes |
| WLAN Control and Management | • ZoneDirector • SmartZone • Unleashed • RUCKUS Cloud |
| IP | IPv4, IPv6 |
| MIMO | · 2×2 SU-MIMO · 2×2 MU-MIMO |
| Standards Compliance | EN 60950-1 Safety EN 60601-1-2 Medical EN 61000-4-2/3/5 Immunity EN 50121-1 Railway EMC EN 50121-4 Railway Immunity IEC 61373 Railway Shock & Vibration UL 2043 Plenum EN 62311 Human Safety/RF Exposure WEEE & RoHS ISTA 2A Transportation |
Accessories
| 902-0162-XXYY | PoE injector (24W) (Sold in quantities of 1, 10 or 100) |
| 902-0195-0000 | Spare, T-bar ceiling mount kit for mounting to flush frame ceiling |
| 902-1169-XX00 | Power Supply (12V, 2.0A, 24W) |
| 902-0108-0000 | Spare, accessory mounting bracket with padlock support |
| 902-0120-0000 | Spare, Accessory Mounting Bracket |
| 902-0173-XXYY | Power Adapter (12V, 1.0A, 12W) (Sold in quantities of 1 or 10) |
