1TB Capacity, 1.8M hours MTBF, Halogen-free, TRIM, PCI-e Gen4 x4 NVMe 1.4
Description

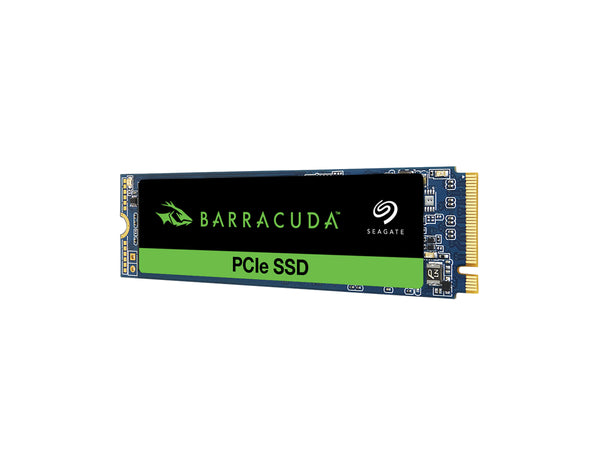

Seagate BarraCuda PCIe SSD (ZP1000CV3A002)
The Seagate ZP1000CV3A002 is a member of the BarraCuda PCI-e SSD series. This series is designed to meet the demands of modern computing. This product features 1TB storage capacity, 3600MB/s sequential read, 2750 sequential write, PCI-e Gen4 x 4 NVMe 1.4 and 1.8M hours MTBF.
Quick Specs:
- 1TB capacity
- PCI-e Gen4 x4 NVMe 1.4
- 2 2280-D2 form factor
- 8M hours MTBF
Please see the related tabs for the ZP1000CV3A002datasheet and compatible accessories.
Properties
| Properties | ZP1000CV3A002 |
| Description | High-speed 1TB PCIe SSD with up to 3600MB/s speed, M.2 2280 form factor for versatility, low power consumption, and included Seagate software for data management and monitoring. |
| Product Family | BarraCuda PCIe SSD Series |
| Product Type | Solid-State Drive (SSD) |
Specifications
| Specifications | |
| Interface | PCIe Gen4 ×4 NVMe 1.4 |
| Form Factor | M.2 2280-D2 |
| Performance | |
| Sequential Read (Max, MB/s), 128KB* | 3600MB/s |
| Sequential Write (Max, MB/s), 128KB* | 2800 |
| Endurance/Reliability | |
| Total Bytes Written (TB) | 600 |
| Mean Time Between Failures (MTBF, hours) | 1800000hr |
| Power Management | |
| Active Power, Average (W) | 4.8W |
| Idle Power PS3, Average (mW) | 0.04W |
| Low Power L1.2 mode (mW) | 5 |
| Environmental | |
| Temperature, Operating Internal (°C) | 0 to 70 |
| Temperature, Nonoperating (°C) | –40 to 85 |
| Shock, Nonoperating: 0.5ms (Gs) | 1500Gs |
| Special Features | |
| TRIM | Yes |
| S.M.A.R.T. | Yes |
| Halogen Free | Yes |
| RoHS Compliance | Yes |
| Physical | |
| Length (mm/in, max) | 80.15mm/3.155in |
| Width (mm/in, max) | 22.15mm/0.872in |
| Height (mm/in, max) | 3.58mm/0.141in |
| Weight (g/lb) | 8g/0.0176lb |
| System Requirements | • M.2 (M key) slot, PCIe® G4 ×4 interface (backwards compatible with PCIe G3 interface) • Windows ® 11, Windows ® 10 • Linux |
| What’s Included | Seagate ® BarraCudaTM PCIe SSD |
| *Fresh out of box (FOB) performance obtained on newly formatted drive. Performance may vary based on SSD’s firmware version, system hardware, and configuration. Performance based on CrystalDiskMark v.6.0.2 ×64 on Windows 10 host with PCIe Gen4 motherboard |
|
