Description

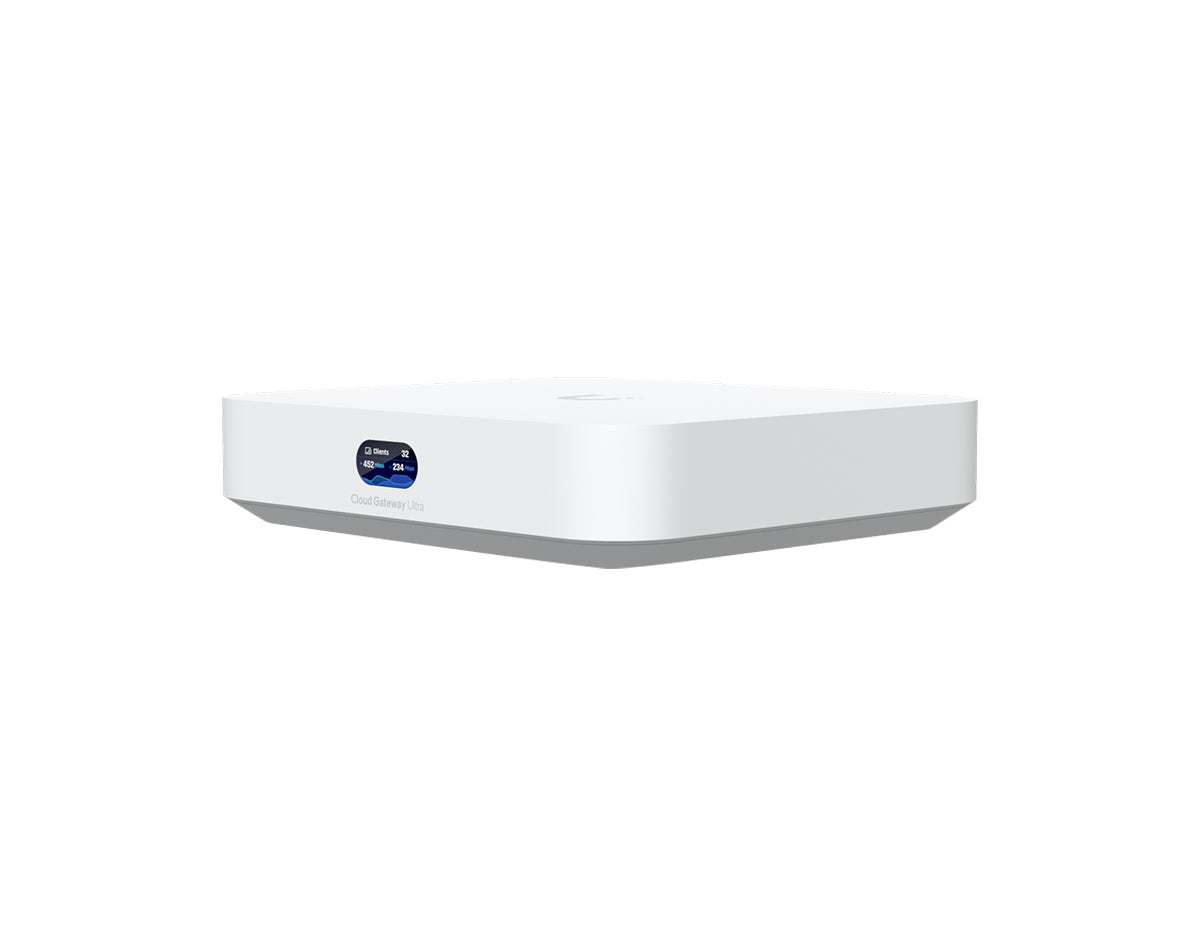

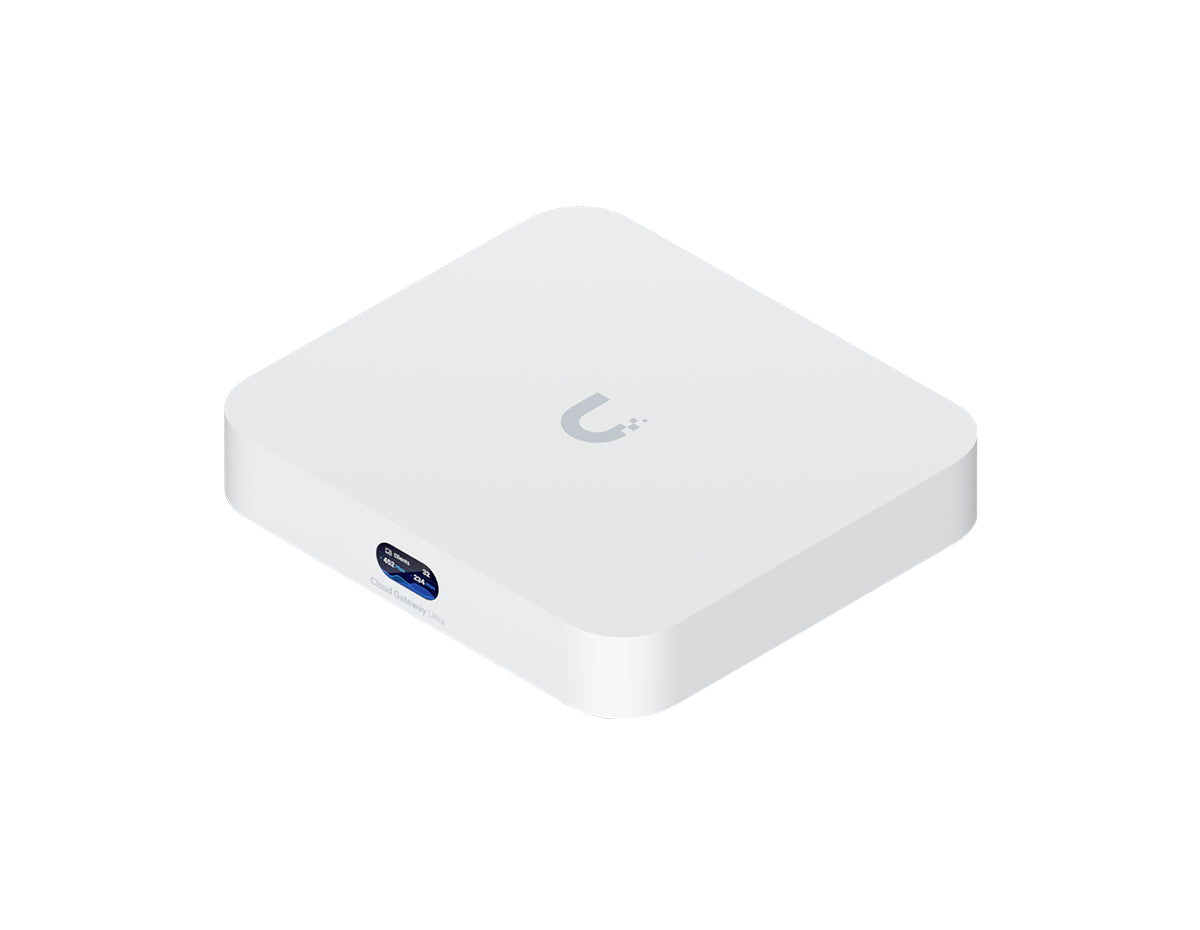

Ubiquiti Cloud Gateway Ultra (UCG-ULTRA)

Monitor your network with the Ubiquiti Cloud Gateway Ultra (UCG-ULTRA). This advanced gateway is designed for high-performance network management, providing robust security features and seamless connectivity options.

Mechanical

• Dimensions: 141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2″)
• Weight: 520 g (1.1 lb)
• Enclosure Material: Polycarbonate

Hardware

• Processor: Quad-core ARM® Cortex®-A53 at 1.5 GHz
• System Memory: 3 GB DDR4
• On-board Storage: 16 GB eMMC
• Management Interface: Ethernet, Bluetooth

Networking Interface

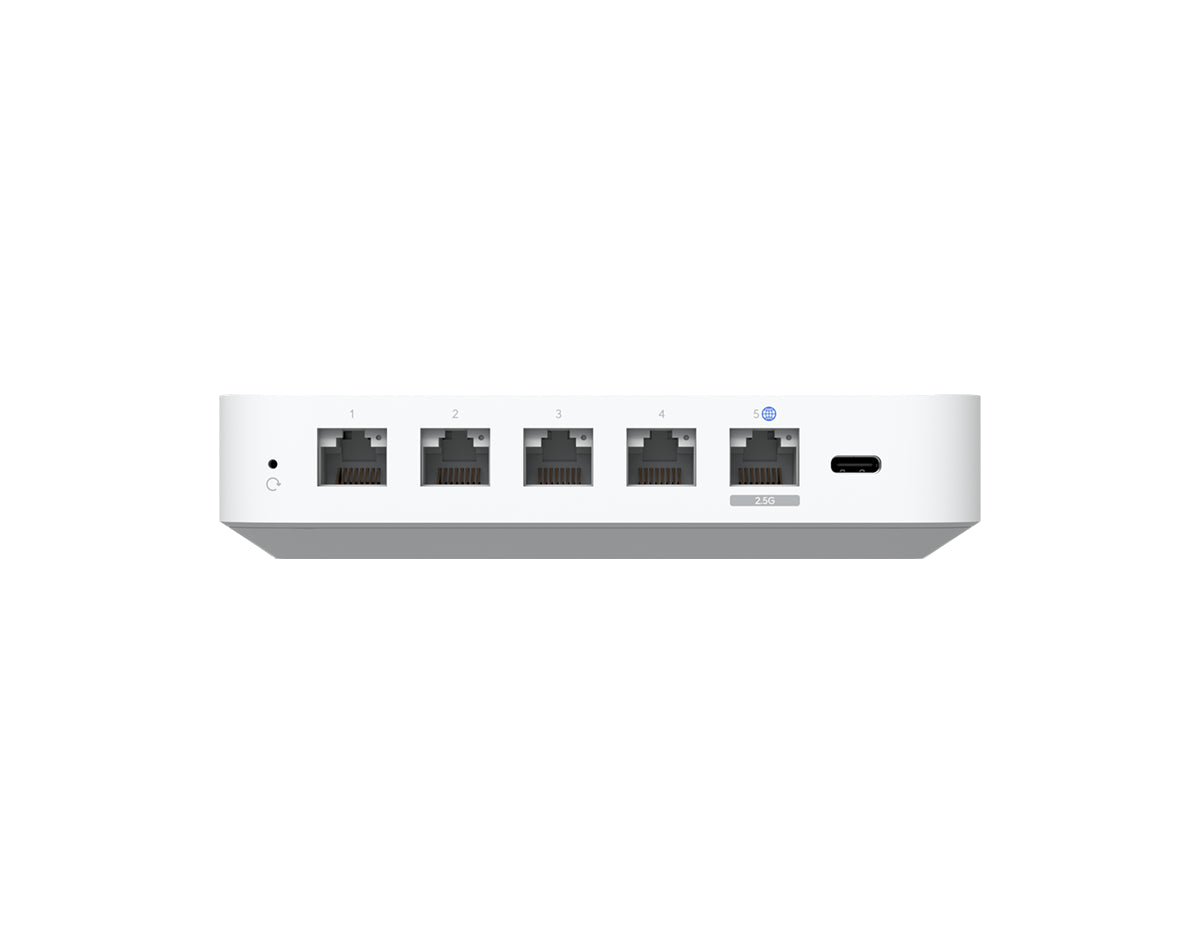

• LAN: (4) GbE RJ45 ports
• WAN: (1) 1/2.5 GbE RJ45 port

LEDs

• Green: link/activity

Application Requirements

• Mobile App: UniFi iOS™: Version 10.12.0 and later
• UniFi Android™: Version 10.11.2 and later

Advanced Networking

• License-free SD-WAN
• WireGuard, L2TP and OpenVPN server
• OpenVPN client
• OpenVPN and IPsec site-to-site VPN
• One-click Teleport and Identity VPN
• Policy-based WAN and VPN routing
• DHCP relay
• Customizable DHCP server
• IGMP proxy
• IPv6 ISP support

Gateway Features

• Redundant WAN with failover and load balancing
• WiFi QoS with UniFi APs
• Application, domain, and country-based QoS
• Application and device type identification
• Additional internet failover with LTE Backup
• Internet quality and outage reporting

Performance

• IDS/IPS Throughput: 1 Gbps

Power Method

• USB Type C (5V DC/3A)
• Supported Voltage Range: 100–240V AC
• Max. Power Consumption: 6.2W

Next-Generation Security

• Application-aware firewall rules
• Signature-based IPS/IDS threat detection
• Content, country, domain, and ad filtering
• VLAN/subnet-based traffic segmentation
• Full stateful firewall

Additional Specifications

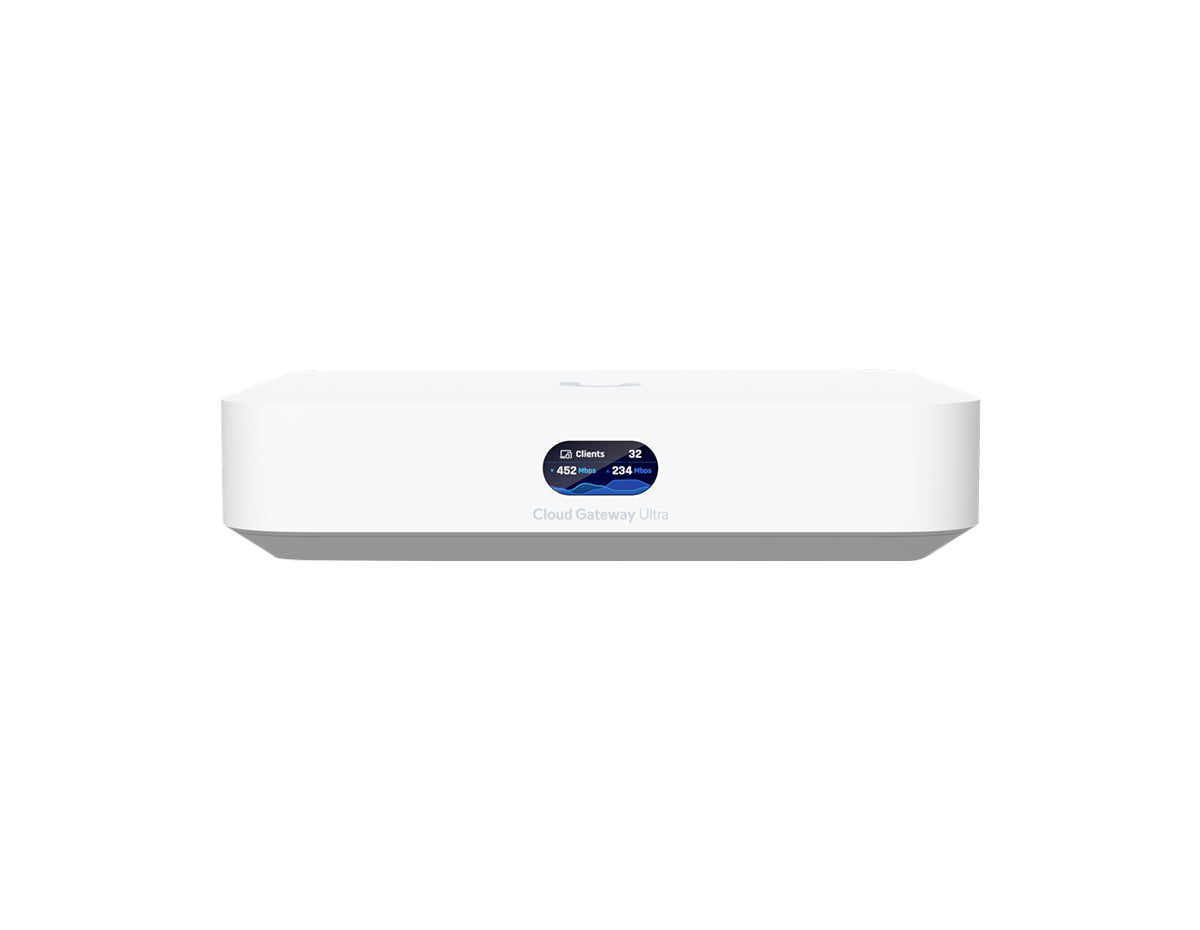

• LCM Display: 0.96″ status display
• Button: Factory reset
• Ambient Operating Temperature: -10 to 40° C (14 to 104° F)
• Ambient Operating Humidity: 5 to 95% noncondensing
• Certifications: CE, FCC, IC
