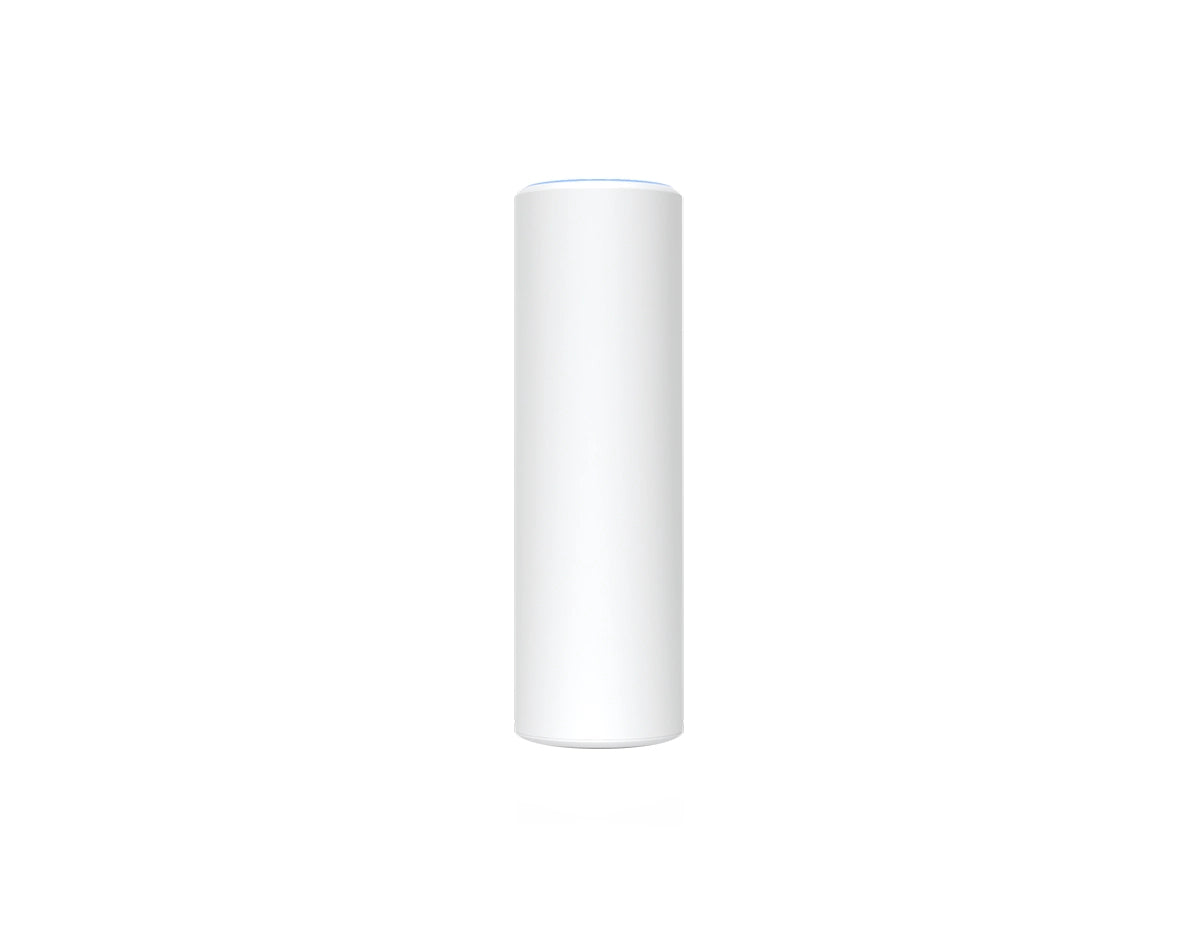

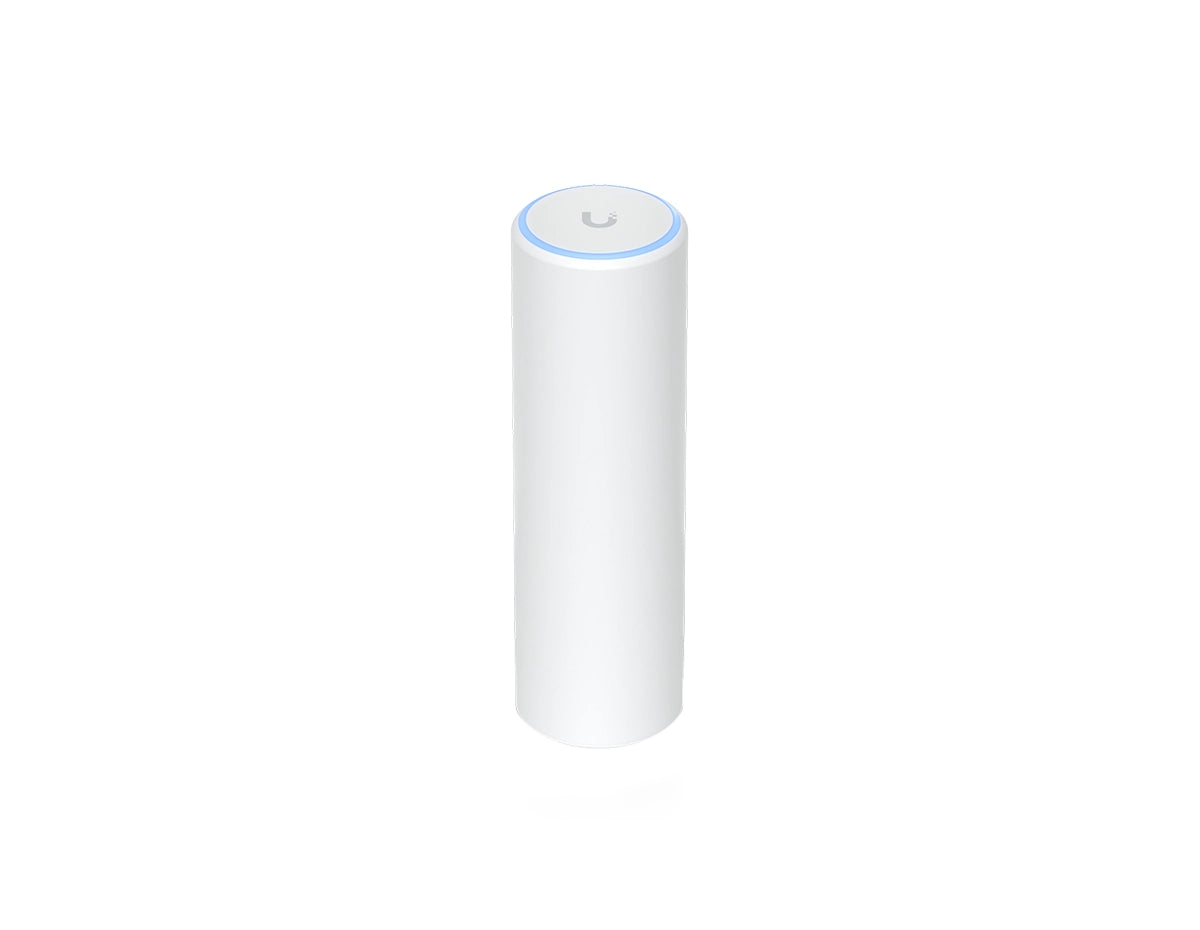

The Ubiquiti UniFi FlexHD (UAP-FlexHD) is a compact indoor/outdoor dual-band WiFi 5 access point designed for flexible placement and high-density wireless deployments. It features 4×4 MU-MIMO on the 5 GHz band, 2×2 MIMO on 2.4 GHz, Gigabit Ethernet connectivity, 802.3af PoE power, wireless meshing, and support for 200+ connected clients. Its compact cylindrical design supports tabletop, wall, pole, and optional ceiling installations.
32 in stock
Technical Specifications
Manufacturer: Ubiquiti
Product Family: UniFi
Product: UniFi FlexHD Access Point
Model / Part Number: UAP-FlexHD
Product Type: Indoor/Outdoor Wireless Access Point
WiFi Standard: WiFi 5 (802.11ac Wave 2)
Deployment: Indoor / Outdoor
Coverage Area: Up to approximately 1,500 sq. ft. (140 m²)
Maximum Client Capacity: 200+ Tech Specs
Wireless Performance
- Frequency Bands: 2.4 GHz and 5 GHz
- Spatial Streams: 6
- 2.4 GHz MIMO: 2×2
- 5 GHz MIMO: 4×4 MU-MIMO
- Maximum 2.4 GHz Data Rate: 300 Mbps
- Maximum 5 GHz Data Rate: 1.7 Gbps
- Channel Widths: HT 20/40 MHz; VHT 20/40/80 MHz
- Maximum TX Power – 2.4 GHz: 23 dBm
- Maximum TX Power – 5 GHz: 26 dBm
- Antenna Gain – 2.4 GHz: 1.6 dBi
- Antenna Gain – 5 GHz: 4 dBi
- Maximum BSSIDs: 8 per radio Tech Specs
Network & Wireless Features
- Network Interface: 1 × 10/100/1000 Gigabit Ethernet RJ45
- Wireless Meshing: Supported
- Band Steering: Supported
- 802.11r Fast Roaming: Supported
- 802.11k Radio Resource Management: Supported
- 802.11v BSS Transition Management: Supported
- Guest Network Isolation: Supported
- VLAN Support: IEEE 802.1Q
- Per-User Rate Limiting: Supported
- Captive Hotspot Portal: Supported
- Client Device Isolation: Supported Tech Specs
Power
- Power Method: 802.3af PoE
- Supported Voltage Range: 44–57V DC
- Maximum Power Consumption: 10.5W
- PoE Adapter: Included
- PoE Adapter Rating: 48V, 0.32A Gigabit PoE Tech Specs
Physical Specifications
- Dimensions: Ø48.5 × 159.5 mm (Ø1.9 × 6.3 in.)
- Weight: 315 g (11.1 oz.)
- Mounting: Wall, pole or tabletop with included mounts
- Optional Ceiling Mount: Supported
- Reset Button: Yes
- LED: System / Status
- Outdoor Installation: Supported when installed according to Ubiquiti’s weatherproof mounting requirements Tech Specs
Environmental Specifications
- Operating Temperature: -30°C to 70°C (-22°F to 158°F)
- Operating Humidity: 5%–95% non-condensing
- Certifications: CE, FCC, IC
- NDAA Compliant: Yes Tech Specs
Key Features
- Dual-band WiFi 5 (802.11ac Wave 2)
- 4×4 MU-MIMO on 5 GHz
- Up to 1.7 Gbps 5 GHz radio rate
- 6 spatial streams
- 200+ client capacity
- Up to approximately 1,500 sq. ft. coverage
- Gigabit Ethernet uplink
- 802.3af PoE
- Wireless meshing
- Fast roaming and band steering
- Indoor/outdoor deployment
- Flexible tabletop, wall, pole and optional ceiling mounting
- Centralized management through UniFi Network
GUARANTEED to Exceed Expectations.
When purchasing from AMNET Global, rest assured that your information technology equipment is covered for a lifetime. When you receive your order, your unit is already covered by our Lifetime Warranty and Advance Replacement.
Coverage That Never Ends.
In the event of a product malfunction, we fully understand that downtime is not an option. If you experience a product malfunction or failure, we will send you a replacement the same day, fully expedited and at our cost.
Please see our full Terms and Conditions of Warranty here.
QUESTIONS ABOUT THIS PRODUCT OR AVAILABILITY?
You have come to the right place!
If you have an immediate question, please click here and we will be glad to speak with you right away!
To speak to one of our technicians about this product, please call our technical support team at 1.888.428.6677 Option 3 and we will get you taken care of right away!
Properties
| Product Name | Ubiquiti UAP-FlexHD Access Point |
| Description | Sleek, indoor/outdoor WiFi 5 access point with 6 spatial streams designed for mesh applications |
| Operating System | Managed via UniFi Network Application |
| Type | 802.11ac Wave 2 Enterprise Wi-Fi Access Point |
| Applications | Indoor and outdoor wireless networking for enterprise environments |
| Architecture | Compact form factor with 4×4 MU-MIMO technology |
| Management | Managed through UniFi Network Application (web or mobile app) |
| Features | Weatherproof design, flexible mounting options, scalable enterprise Wi-Fi management |
| Certifications | CE, FCC, IC |
| Physical Dimensions | 48.50 x 159.49 mm (1.90 x 6.28 inches) |
| Weight | 315 g (0.69 lb) |
Specifications
| Networking Interface | (1) 10/100/1000 Ethernet Port |
| Button | Reset |
| LED | System/Status |
| Power Method | 802.3af PoE |
| Power Supply | 48V, 0.32A Gigabit PoE Adapter (included) |
| Max. Power Consumption | 10.5W |
| Voltage Range | 44–57V DC |
| Operating Frequency | 2.4 GHz, 5 GHz |
| Max. TX Power | 2.4 GHz: 23 dBm; 5 GHz: 26 dBm |
| Throughput | 2.4 GHz: 300 Mbps; 5 GHz: 1733 Mbps |
| Antenna Gain | 2.4 GHz: 1.6 dBi; 5 GHz: 4 dBi |
| Wi-Fi Standards | 802.11 a/b/g/n/ac/ac-wave2 |
| Wireless Security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) |
| Mounting | Ceiling, Pole, Desktop, Wall |
| Operating Temperature | -30 to 70° C (-22 to 158° F) |
| Operating Humidity | 5% to 95% noncondensing |
