Call for Price
Extended range scanning up to 70 feet, Bluetooth connectivity, PowerPrecision+ battery
Description

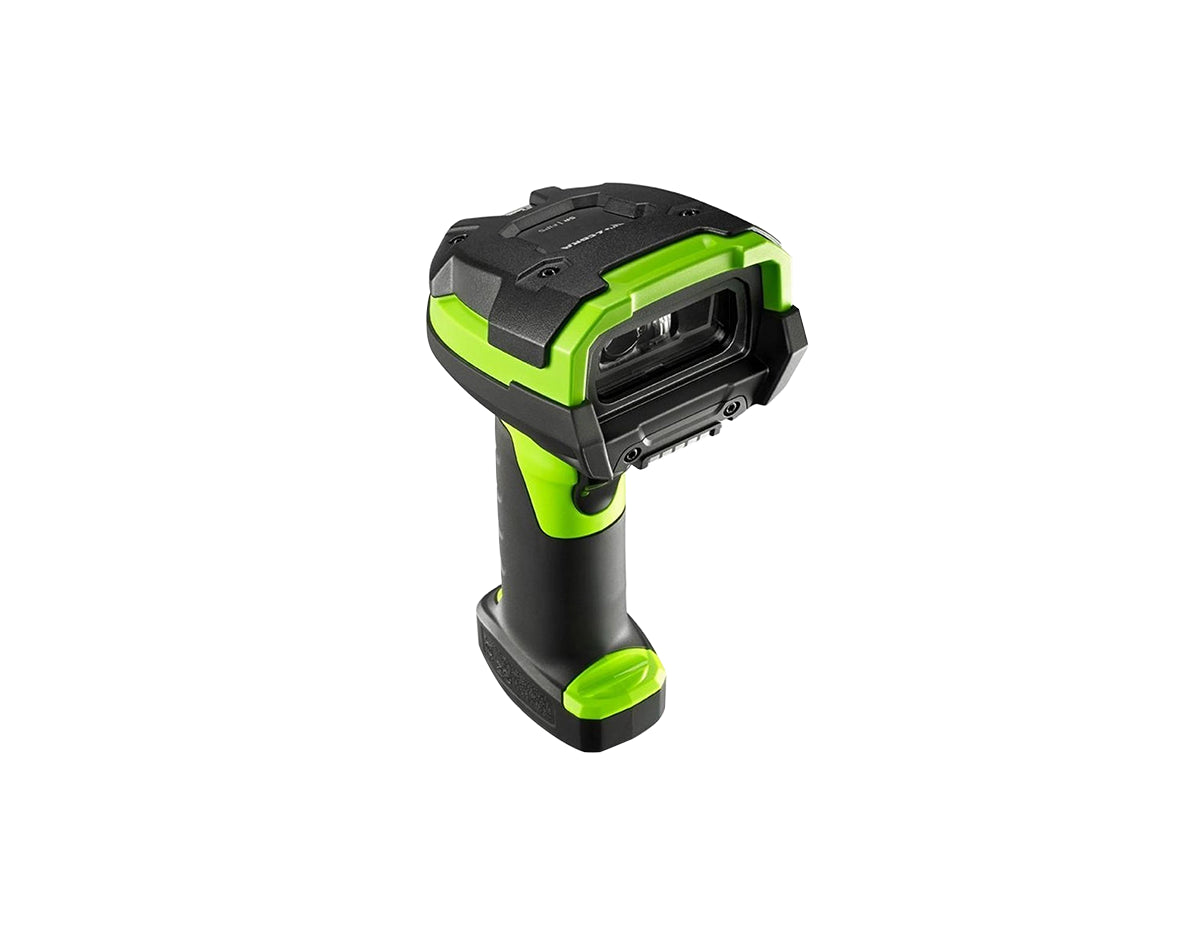

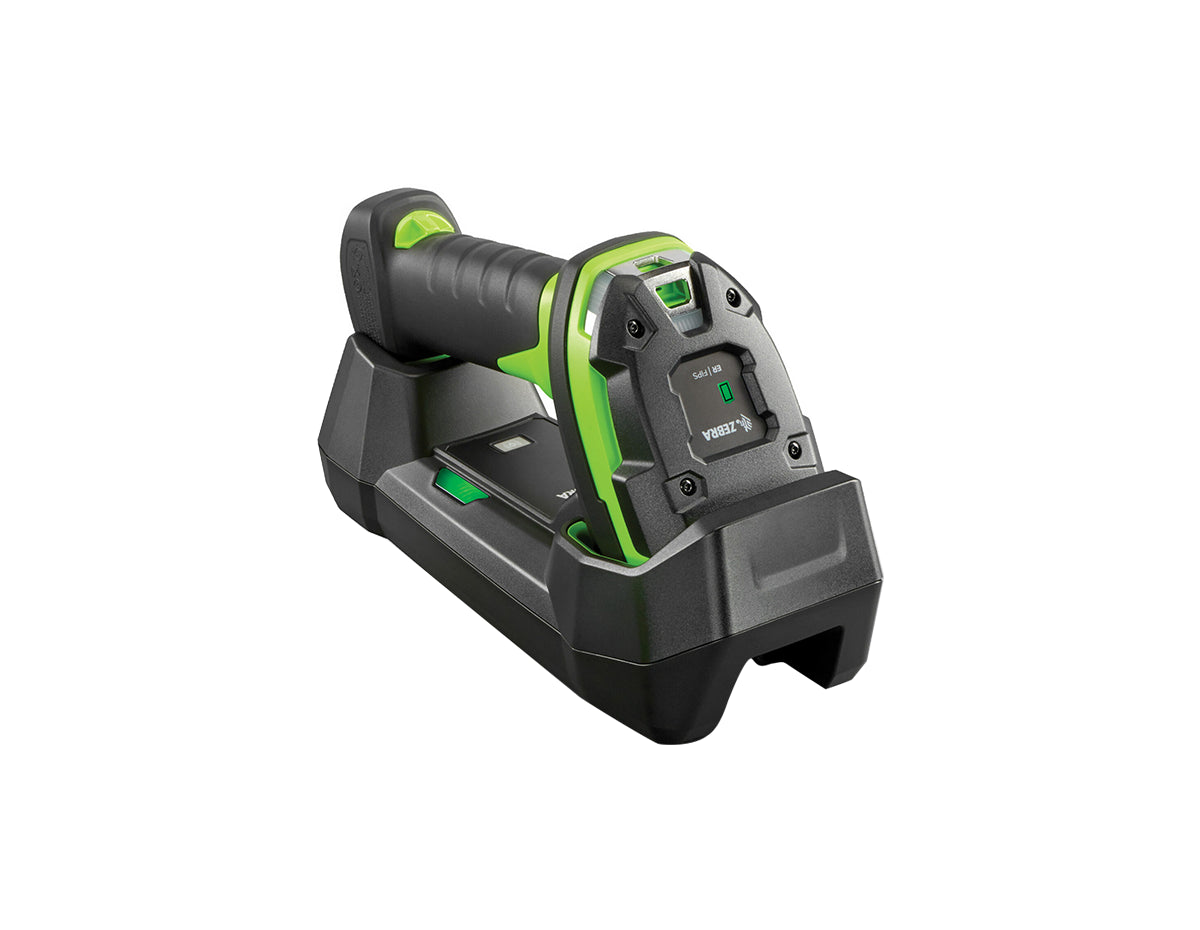

Zebra DS3678-ER3U42A2SVW Ultra-Rugged Barcode Scanner
The Zebra DS3678-ER3U42A2SVW is an ultra-rugged, cordless extended range 1D/2D imager scanner designed for industrial environments. Built to endure the toughest conditions, it captures barcodes from a near distance of 3 inches to as far as 70 feet. With superior scanning performance, it’s perfect for warehouses and manufacturing settings where reliability and durability are crucial.
Product Highlights
- Extended range scanning up to 70 feet (21.4 meters)
- Unmatched rugged design with IP67 sealing
- Bluetooth connectivity for wireless freedom
- Freezer-ready and drop-resistant up to 8 feet (2.4 meters)
- Advanced PowerPrecision+ battery for longer operational time
Specifications
| Category | Specifications |
|---|---|
| Scanning Range | 3 inches to 70 feet (7.6 cm to 21.4 m) |
| Drop Specification | Survives drops from 8 feet (2.4 meters) onto concrete |
| Sealing | IP67 dustproof, waterproof up to 30 minutes |
| Connectivity | Bluetooth 4.0 (Low Energy) |
| Power | PowerPrecision+ battery with advanced management features |
| Operating Temperature | -22°F to 122°F (-30°C to 50°C) |
Advanced Features
- Multi-code capturing up to 20 barcodes simultaneously
- Faster pick-list processing
- Ready for freezer environments with special accessories
- Industry-best management tools for easy configuration and monitoring
Properties
| Category | Details |
| Connectivity Technology | Wireless |
| Scanning Capability | 1D, 2D |
| Barcode Symbology Supported | 1D: |
| Code 39 | |
| Code 128 | |
| Code 93 | |
| Codabar/NW7 | |
| Code 11 | |
| MSI Plessey | |
| UPC/EAN, I 2 of 5 | |
| Korean 3 of 5 | |
| GS1 DataBar | |
| Base 32 (Italian Pharma) | |
| 2D: | |
| PDF417 | |
| Micro PDF417 | |
| Composite Codes | |
| TLC-39 | |
| Aztec | |
| DataMatrix | |
| MaxiCode | |
| QR Code | |
| Micro QR | |
| Chinese Sensible (Han Xin) | |
| Postal Codes | |
| DotCode | |
| Digimarc | Digital watermark technology |
| IUID Support | Supports IUID parsing, ability to read and separate IUID fields per application requirement |
| Image Sensor Type | Imager |
| Scan Pattern | Omni-directional |
| Scanner Range | Extended Range |
| Scanning Distance | 8.60″ |
| Cable Type Included | USB |
| Field of View (Horizontal) | 42° |
| Field of View (Vertical) | 28° |
| Reading Angle (Skew) | 60° |
| Reading Angle (Pitch) | 60° |
| Reading Angle (Roll) | 360° |
| Drop Specification | Withstands multiple 8.0 ft. / 2.4 m drops to concrete |
| Minimum Print Contrast | 15% |
| Minimum Element Resolution (DataMatrix) | 10 mil |
Specifications
| Category | Details |
| Physical Characteristics | |
| Form Factor | Handheld |
| Rugged | Yes |
| Product Color | Industrial Green |
| Height | 7.3″ |
| Width | 3″ |
| Depth | 5.6″ |
| Weight (Approximate) | 15.38 oz |
| Miscellaneous | |
| Additional Information | USB Cable separate |
| Ingress Protection (IP) Rating | IP67, IP65 |
