Description

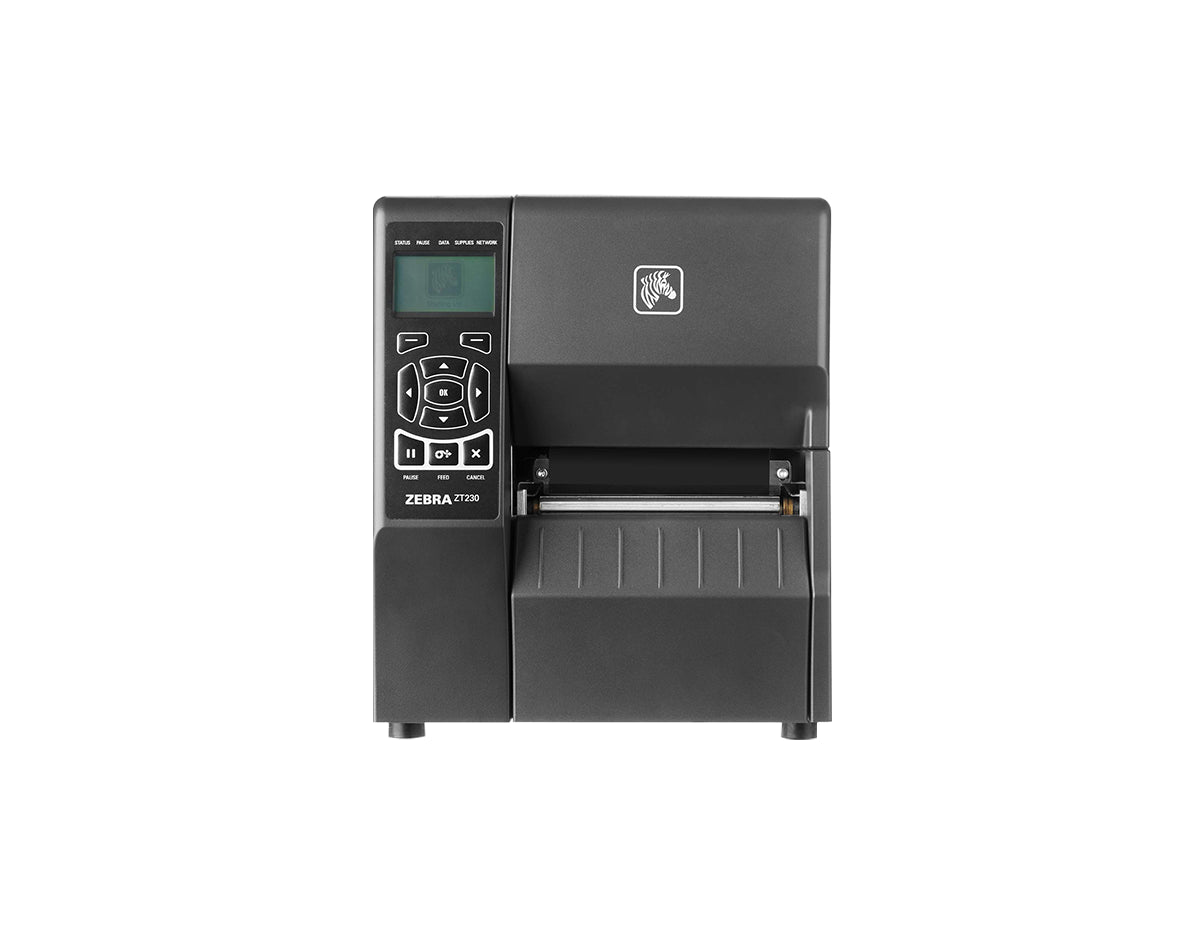

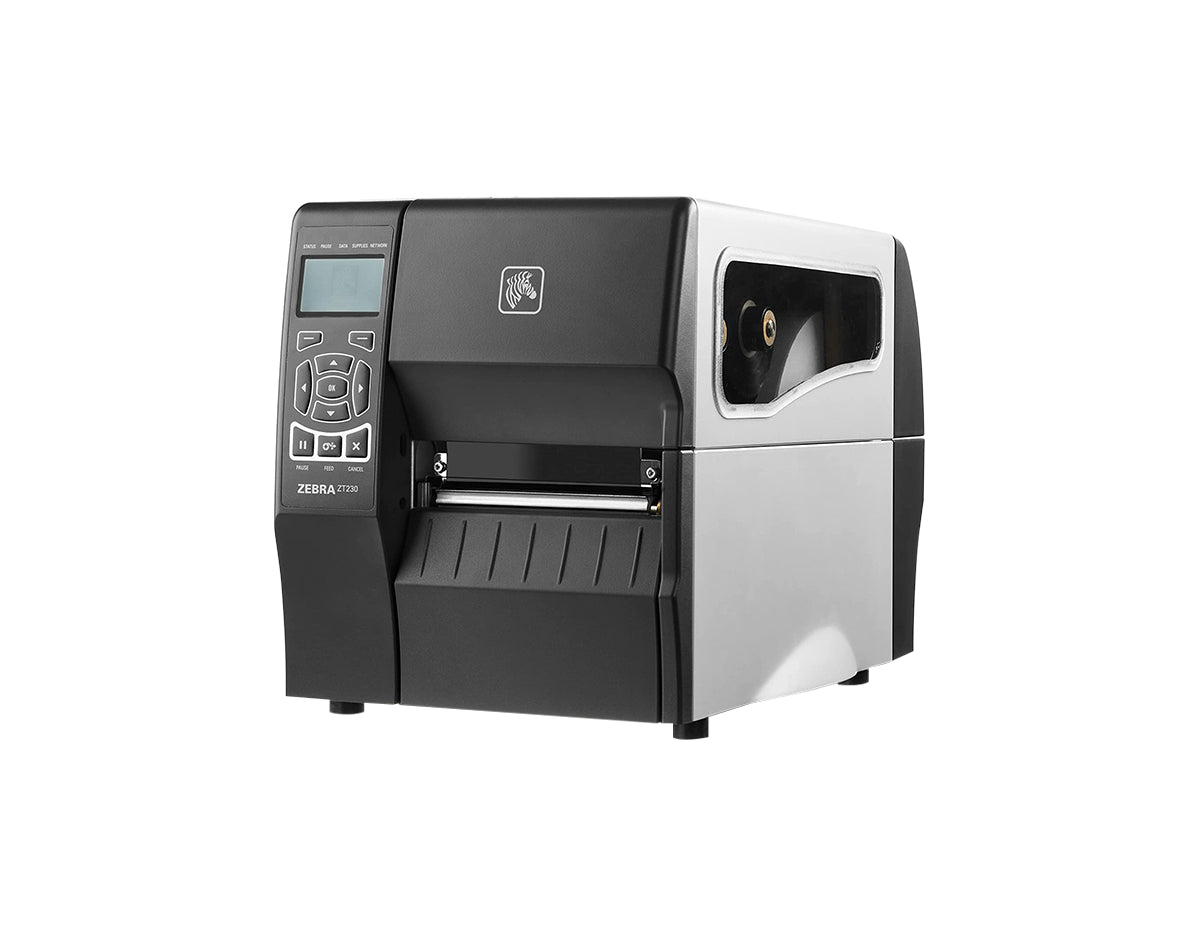

Zebra ZT23043-T01200FZ Thermal Barcode Label Printer (ZT230)

The Zebra ZT23043-T01200FZ (ZT230) is a durable industrial barcode label printer designed for high-precision applications requiring 300 dpi resolution. With a maximum print speed of 6 inches per second, it produces clear and detailed labels for various industries, including manufacturing, logistics, healthcare, and retail. Equipped with Serial, USB, and Ethernet interfaces, the ZT230 ensures seamless connectivity and integration into different workflows. Its rugged design features a bi-color LED indicator, an LCD display for intuitive operation, and a clear bi-fold media side door for easy media and ribbon loading.

Ribbon Requirement: Ribbon Required (for Thermal Transfer printing)

Key Features:

• Thermal Transfer Printing: Delivers high-quality, durable labels with 300 dpi resolution.
• Fast Printing Speed: Prints at up to 6 inches per second for high-volume tasks.
• Multiple Connectivity Options: Features Serial (RS-232), USB, and Ethernet interfaces.
• Compact Industrial Design: Ideal for warehouse, manufacturing, and healthcare environments.

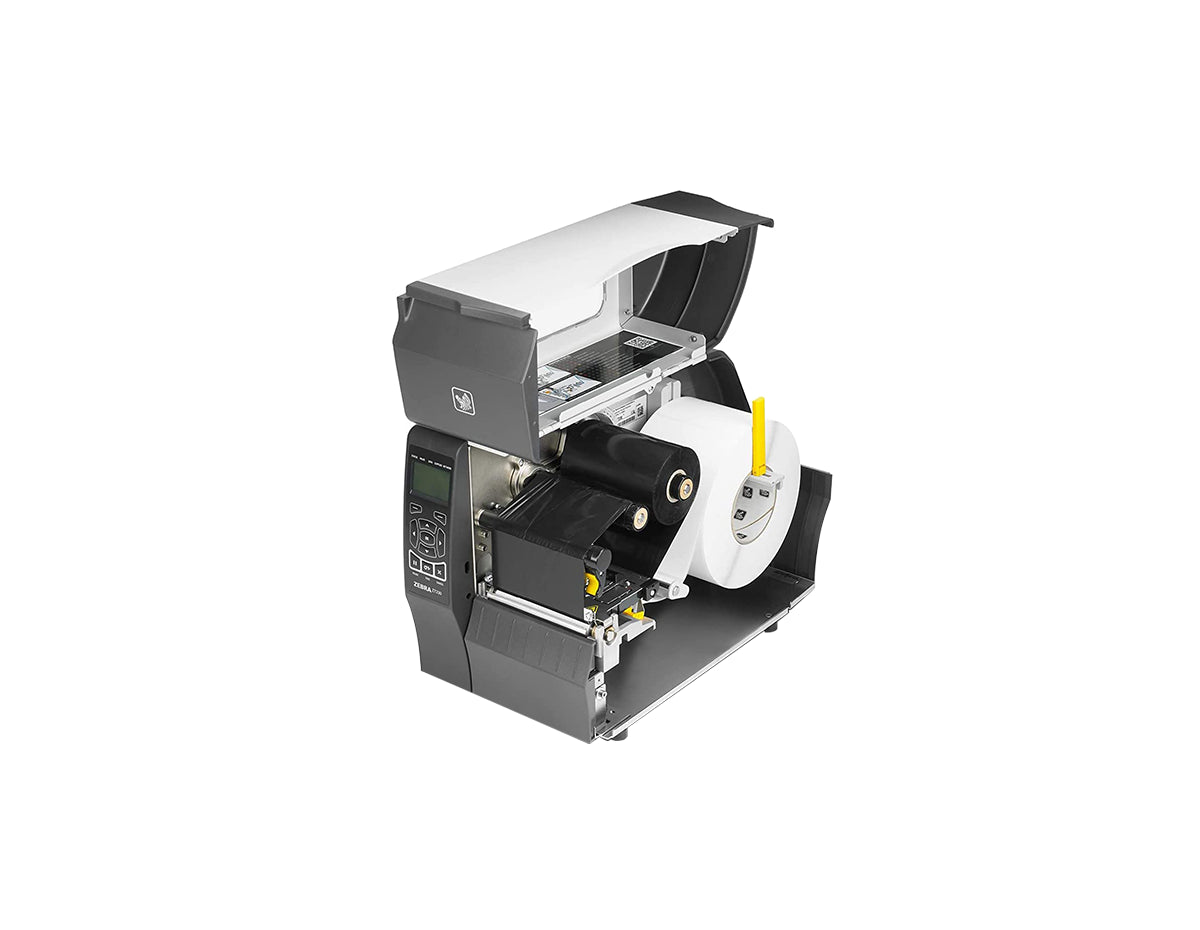

• Easy Media Handling: Clear bi-fold side door allows for quick media and ribbon loading.
• Advanced Sensors: Transmissive and reflective media sensors for accurate label positioning.
• Barcode & Font Support: Supports various barcode symbologies including QR codes, Data Matrix, and PDF-417.

Technical Specifications:

• Print Technology: Thermal Transfer
• Print Resolution: 300 dpi
• Maximum Print Speed: 6 in/sec
• Maximum Print Width: 4.09 inches
• Memory: 128MB DRAM, 128MB Flash
• Interface Options: Serial (RS-232), USB, Ethernet (Fast Ethernet)
• Display: LCD screen with bi-color LED indicators
• Barcode Symbologies Supported: Code 39, Code 128, UPC-A, UPC-E, EAN-13, QR Code, Data Matrix, Maxi Code, PDF-417, and more
• Supported Media Types: Continuous Label, Die-cut Label, Notch, Black Mark
• Maximum Roll Diameter: 8 inches
• Maximum Label Width: 4.50 inches
• Maximum Label Length: 39 inches
• Media Sensor: Transmissive and Reflective
• Ribbon Core Size: 1 inch
• Power Supply: AC input (110V/220V)
• Dimensions (H x W x D): 10.9 x 9.5 x 17 inches
• Weight: 20 lb
