Provides clear, high-resolution video for detailed surveillance, 2.9 mm F2.0 with horizontal field of view 105° vertical field of view 79°, Supports alarm triggers and other actions with connected devices.
Description

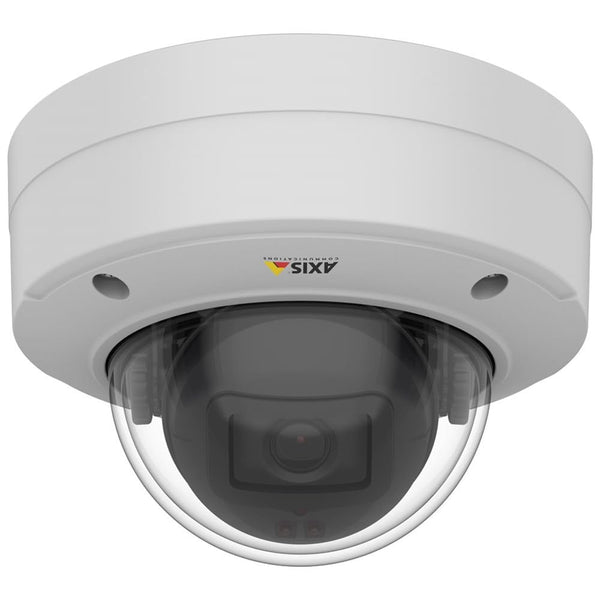

AXIS M3206–LVE Network Camera
The AXIS M3206–LVE Network Camera provides robust, wide-angle surveillance with 4 MP resolution, ideal for both indoor and outdoor environments. This IK10-rated fixed dome camera includes a weathershield and mounting bracket for easy installation. With Wide Dynamic Range (WDR) and built-in IR illumination, it delivers sharp and clear video even in challenging light conditions or complete darkness. Additionally, the camera supports I/O connectivity for triggering alarms or actions, and its HDMI port allows direct connection to monitors for public viewing. AXIS Zipstream technology significantly reduces bandwidth and storage requirements, supporting both H.264 and H.265 formats.
Key Features:
- 4 MP Video Quality: Provides clear, high-resolution video for detailed surveillance.
- WDR and Built-in IR Illumination: Ensures high-quality video in varying light conditions, including total darkness.
- Wide-Angle View: Horizontal and vertical fields of view for comprehensive area coverage.
- I/O Connectivity: Supports alarm triggers and other actions with connected devices.
- Zipstream Technology: Reduces bandwidth and storage usage without sacrificing image quality, supporting H.264 and H.265.
Technical Specifications:
- Image Sensor: 1/2.5” progressive scan RGB CMOS
- Lens: 2.9 mm, F2.0, with horizontal field of view 105°, vertical field of view 79°
- Resolution: 2304×1728 (4 MP) to 320×240
- Power: Power over Ethernet (PoE) IEEE 802.3af/at, max 12.5 W
- Operating Conditions: -40 °C to 50 °C (-40 °F to 122 °F)
- Dimensions: Ø 149 mm (5.87 in), Height: 104 mm (4.06 in)
- Weight: 720 g (1.6 lb) with weathershield
For more information about the AXIS M3206–LVE Network Camera, visit the Axis product page.
This product has reached its end-of-life. The recommended replacement model is M3216-LVE (02372-001)
Properties
| Product Name | AXIS M3206–LVE Network Camera |
| Description | The AXIS M3206–LVE is a robust 4 MP fixed dome camera suitable for both indoor and outdoor surveillance. Equipped with Wide Dynamic Range (WDR) and built-in IR illumination, it provides clear video in challenging light and complete darkness. The IK10-rated casing, weathershield, and mounting bracket make it ideal for reliable, wide-angle surveillance in tough environments. |
| Resolution | 2304×1728 (4 MP) at 30 fps |
| Optical Technology | WDR and built-in IR illumination for varied light conditions |
| Lens | 2.9 mm, F2.0, horizontal field of view 105°, vertical field of view 79° |
| Power Supply | Power over Ethernet (PoE) IEEE 802.3af/at, max 12.5 W |
| Dimensions | Ø149 mm (5.87 in), Height: 104 mm (4.06 in) |
| Weight | 720 g (1.6 lb) with weathershield |
| Mounting Options | Surface mount with included bracket |
| Usage | Ideal for wide-angle, high-resolution surveillance in both indoor and outdoor settings |
| Durability | IK10-rated for impact resistance, designed for outdoor environments |
Specifications
| Image Sensor | 1/2.5” progressive scan RGB CMOS |
| Field of View | Horizontal: 105°, Vertical: 79° |
| IR Illumination | Integrated IR LEDs with illumination for clear night vision |
| Bandwidth Optimization | Axis Zipstream technology for reduced bandwidth and storage, supports H.264 and H.265 formats |
| I/O Connectivity | Supports input and output for alarm triggers and connected devices |
| Certifications | CE, FCC, UL, RoHS compliant |
| Environmental Safety | RoHS 3 compliant (Directive 2015/863/EU) |
| EMC Compliance | Meets EN 55032, EN 55024, and FCC Part 15 standards |
| Operating Temperature | -40°C to 50°C (-40°F to 122°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Humidity | 10% to 100% (condensing) |
| Ingress Protection | IP66-rated for dust and water resistance |
| Impact Protection | IK10-rated for vandal and impact resistance |
| Power Consumption | Maximum 12.5W via PoE |
| HDMI Output | HDMI port for direct connection to monitors for public viewing |
| Cybersecurity Features | Signed firmware, secure boot, and HTTPS encryption for device integrity |
| Reliability | Tested for continuous operation in extreme temperatures and environmental conditions |
| Monitoring and Diagnostics | Real-time monitoring and diagnostics via Axis Camera Station |
