Control processorGigE1UPlug-in modulefor C9606R
Description

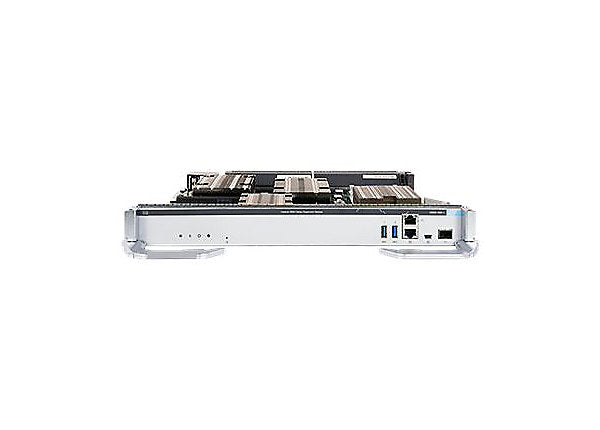

Cisco C9600-SUP-1 Supervisor Engine
The C9600-SUP-1 supervisor engine is ideal for IoT applications and cloud adoption. It makes secure networks and next-generation mobility possible. The Supervisor Engine 1 is designed with the latest UADP ASIC, with its programmable pipeline and configurable allocation of Layer 2 and 3, forwarding, QoS, and ACLs. It gives you investment protection and resilience to keep your operations running smoothly.
Quick Specs:
- MACsec-256 encryption
- Max bandwidth: 2.4 Tbps per slot
- RFID tags
Please check the related tabs for the C9600-SUP-1 datasheet and detailed specifications.
Properties
| Properties | Cisco C9600-SUP-1 |
| Description | Cisco Catalyst 9600 Series Supervisor 1 Module |
| Product Family | Catalyst 9600 |
| Product Type | Supervisor Engine |
| Maximum bandwidth scalability per Line Card slot | 6.4 Tbps with C9600X-SUP-2 2.4 Tbps with C9600-SUP-1 |
| Maximum Chassis Port Densities | |
| 400G | C9600-SUP-1: – C9600X-SUP-2: 8 |
| 200G | C9600-SUP-1: – C9600X-SUP-2: 8 |
| 100G | C9600-SUP-1: 48 C9600X-SUP-2: 96 (with breakouts) |
| 50G | C9600-SUP-1: – C9600X-SUP-2: 256 (with breakouts) |
| 40G | C9600-SUP-1: 96 C9600X-SUP-2: 96 (with breakouts) |
| 25G | C9600-SUP-1: 192 C9600X-SUP-2: 256 (with breakouts) |
| 10G | C9600-SUP-1: 192 C9600X-SUP-2: 256 (with breakouts) |
| 5G *Using C9600-LC-48TX |
C9600-SUP-1: 192 C9600X-SUP-2: – |
| 2.5G *Using C9600-LC-48TX |
C9600-SUP-1: 192 C9600X-SUP-2: – |
| 1G | C9600-SUP-1: 192 C9600X-SUP-2: – |
| 100M *Using C9600-LC-48TX |
C9600-SUP-1: 192 C9600X-SUP-2: – |
| 10M *Using C9600-LC-48TX |
C9600-SUP-1: 192 C9600X-SUP-2: – |
| Minimum Software Requirement | Cisco IOS XE Software Release 16.11.1 |
Specifications
| Specifications | C9600-SUP-1 |
| Platform Benefits | |
| Resiliency and High Availability | Software Maintenance Upgrade (SMU) Cisco StackWise Virtual Stateful Switchover (SSO) In-Service Software Upgrade (ISSU) Graceful Insertion and Removal (GIR) MKA High Availability |
| Enterprise Security | Trustworthy Solutions Image Signing Secure Boot Cisco Trust Anchor Module MACsec Encryption (256-bit AES-GCM)‚ ‚ Object-Group ACLs (IPv4/IPv6) |
| Enterprise QoS | Modular QoS CLI (MQC) Strict Priority Queuing Class/Color-aware Queuing (WFQ)‚ ‚ Policing/Metering Shaping/Bandwidth Hierarchical QoS (2-level) |
| IP Routing | Routing Information Protocol version 2 (RIPv2), and next generation (RIPng) Open Shortest Path First version 2 (OSPFv2), and OSPFv3 Enhanced Interior Gateway Routing Protocol (EIGRP), and EIGRPv6 Intermediate System-to-Intermediate System Version 4 (IS-ISv4) Border Gateway Protocol version 4 (BGPv4), and BGPv6 Protocol-Independent Multicast (PIM) Sparse- Mode (PIM- SM) Protocol-Independent Multicast (PIM) Source- Specific Mode (PIM-SSM) Bidirectional PIM (BIDIR-PIM) IPv6 routing L3 Routed Sub-Interfaces |
| Multi-Protocol Label Switching (MPLS) | MPLS L3 VPN Ethernet over MPLS (EoMPLS) Virtual Private LAN Service (VPLS) MPLS over GRE MPLS Traffic-Engineering (MPLS-TE) |
| Ethernet VPN (EVPN) | Virtual eXtensible LAN (VXLAN) L2 Virtual Network Interface (VNI) L3 Virtual Network Interface (VNI) Distributed Anycast Gateway EVPN Spine VPN Border EVPN Leaf |
| Software-Defined Access (SD-Access) | Virtual eXtensible LAN (VXLAN) L2 Virtual Network Interface (VNI) L3 Virtual Network Interface (VNI) Distributed Anycast Gateway SDA Control-Plane SDA Border SDA Edge |
| Flexible NetFlow (FNF) | FNF IPv4 flow records FNF IPv6 flow records FNF sampler FNF data export NetFlow version 9 (NFv9) export IPFIX export |
| Programmability | NETCONF RESTCONF gNMI/gNOI YANG models ZTP/PTP |
| Smart Operations | Bluetooth Wireless UI RFID tags Blue beacon Out-of-Band Management |
| Operating Temperature | -5° to 45° C (23° to 113° F) up to 6000 feet -5° to 40° C (23° to 104° F) up to 10,000 feet |
| Storage Temperature | -40° to 75° C (40° to 167° F) |
| Relative Humidity, Operating and Non-operating, Non-condensing |
10% to 95%, Non-condensing |
| Altitude | -60 to 3000 m (-197 to 9843 feet) |
| Mean Time Between Failures (MTBF) (hours) | C9606R chassis: 4,113,900 C9606 fan tray: 452,570 C9600-PWR-3KWAC: 300,000 C9600-PWR-2KWAC: 300,000 C9600-PWR-2KWDC: 300,000 |
| Safety certifications | ‚ IEC 60950-1 plus Am1, Am2, Am9, Am10, Am11, Am12 and all deviations and differences ‚ AS/NZS 60950.1.2011 ‚ CAN/CSA-C22.2 No. 60950-1-07 ‚ GB 4943-95 ‚ EN 60950-1; 2006 plus Am1, Am 2, Am9, Am10, Am11, Am12 and all deviations and differences ‚ NOM-019-SCFI-1998 ‚ UL 60950-1, Second Edition |
| EMI and EMC Compliance | 47 CFR Part 15 Class A CNS13438: 2006 Class A EN 300 386 V1.6.1 EN61000-3-2: 2014 EN61000-3-3: 2013 ICES-003 Issue 6: 2016 Class A KN 32: 2015 Class A TCVN 7189: 2009 Class A EN 55032:2012/ AC:2013 Class A EN 55032:2015 Class A CISPR 32 Edition 2 Class A V-2/2015.04 Class A V-3/2015.04 Class A CISPR24: 2010 + A1: 2015 EN 300 386 V1.6.1 EN55024: 2010 + A1: 2015 KN35: 2015 TCVN 7317: 2003 |
