Call for Price
Indoor 2 MP dome with IR and deep learning, Excellent image quality in 2 MP, Lightfinder 2.0, Forensic WDR, and OptimizedIR, Analytics with deep learning, Audio and I/O connectivity, Built-in cybersecurity features
Description

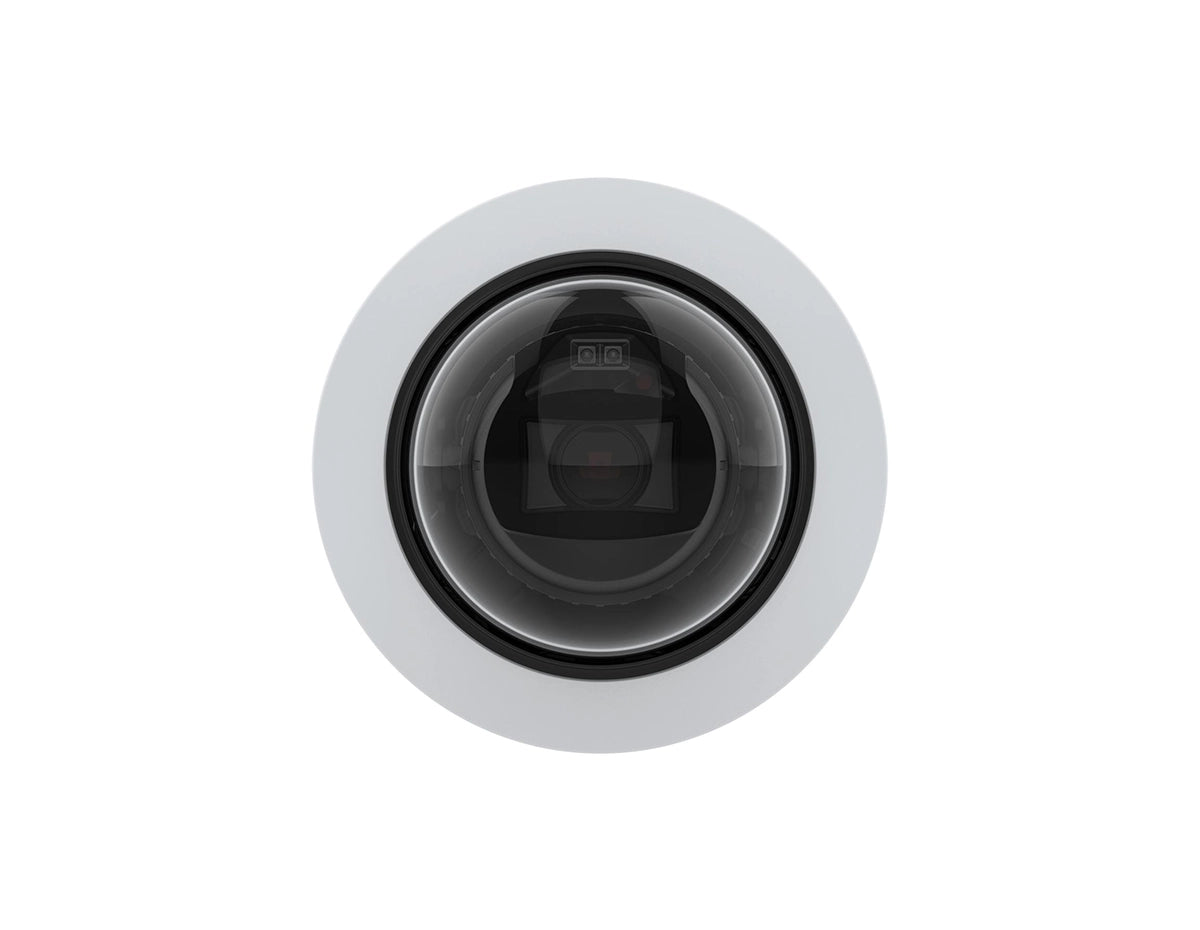

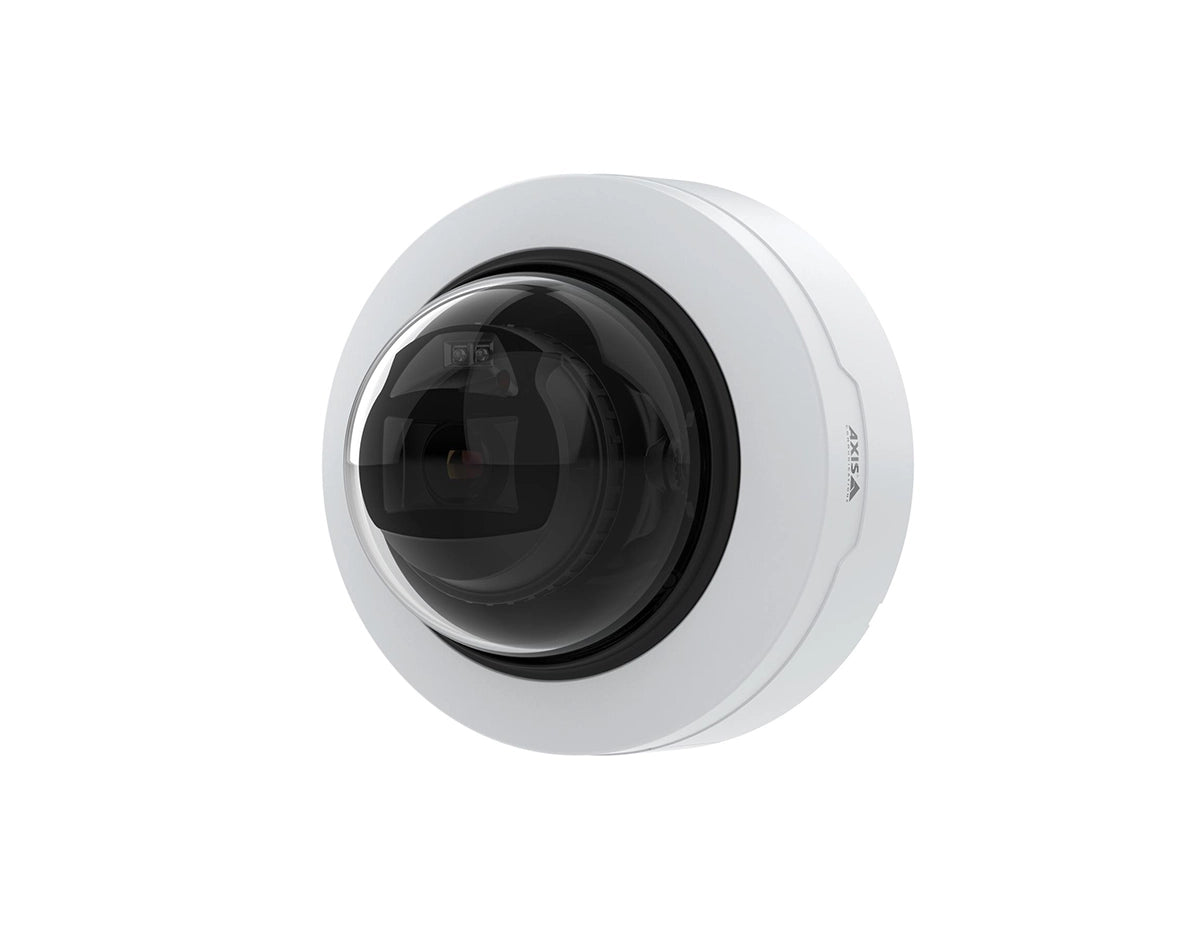

AXIS P3265-LV Dome Camera (02327-001)
The AXIS P3265-LV is a high-quality dome camera that provides exceptional image quality and detail in 2 MP resolution. It has a varifocal 9mm lens, offering a wide-area view of 100-36 degrees and the capability to capture up to 60 fps at a total frame rate. This camera is easy to install and is designed to blend into any environment seamlessly.
Quick Specs:
- Excellent image quality in 2 MP
- Lightfinder 2.0, Forensic WDR, and OptimizedIR
- Analytics with deep learning
- Audio and I/O connectivity
Please see the related tabs for the 02327-001 datasheet and compatible accessories.
| Feature | AXIS P3265-LV | AXIS P3265-LVE | AXIS P3265-LVE-3 | AXIS P3265-V | AXIS P3267-LV | AXIS P3267-LVE | AXIS P3268-LV | AXIS P3268-LVE |
|---|---|---|---|---|---|---|---|---|
| Max video resolution | 1920×1080 | 1920×1080 | 1920×1080 | 1920×1080 | 2592×1944 | 2592×1944 | 3840×2160 | 3840×2160 |
| Horizontal field of view | 100-36 | 100-36 / 35-15 | 100-36 | 100-36 | 104 – 40 | 104 – 40 | 100 – 53 | 100 – 53 |
| OptimizedIR | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ||
| Day and Night functionality | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Remote zoom | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Remote focus | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Audio Support | ✓ | ✓ | ✓ | ✓ | ✓ | |||
| Alarm inputs/outputs | 1/1 | 1/1 | 1/1 | 1/1 | 1/1 | 1/1 | 1/1 | 1/1 |
| Lightfinder | Lightfinder 2.0 | Lightfinder 2.0 | Lightfinder 2.0 | Lightfinder 2.0 | Lightfinder 2.0 | Lightfinder 2.0 | Lightfinder 2.0 | Lightfinder 2.0 |
| Wide dynamic range | Forensic WDR | Forensic WDR | Forensic WDR | Forensic WDR | Forensic WDR | Forensic WDR | Forensic WDR | Forensic WDR |
| Zipstream | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Vandal rating | IK10 | IK10 | IK10 | IK10 | IK10 | IK10 | IK10 | IK11 |
| Analytics compute capability | DLPU | DLPU | DLPU | DLPU | DLPU | DLPU | DLPU | DLPU |
| Axis Edge Vault | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
Properties
| Properties | AXIS P3265-LV Dome Camera |
| Description | The AXIS P3265-LV Dome Camera is a versatile indoor 2 MP camera with IR and deep learning. With Lightfinder 2.0, Forensic WDR, and OptimizedIR, it excels in image quality across lighting conditions. Powered by the latest Axis system-on-chip with deep learning processing, it supports advanced analytics on the edge. AXIS Object Analytics, preinstalled for nuanced object classification, ensures fast search in the VMS. The camera features audio and I/O connectivity for seamless integration with peripheral equipment, and built-in cybersecurity, including Axis Edge Vault, safeguards against unauthorized access. |
| Product Family |
AXIS P3265-LV Dome Camera |
| Product Type | Camera |
Specifications
| Specifications | AXIS P3265-LV Dome Camera |
| Camera | |
| Image sensor | 1/2.8” progressive scan RGB CMOS |
| Lens | Varifocal, 3.4–8.9 mm, F1.8 |
| Horizontal field of view: 100°-36° | |
| Vertical field of view: 53°-20° | |
| Minimum focus distance: 50 cm (20 in) | |
| IR corrected, remote zoom and focus, P-Iris control | |
| Day and night | Automatically removable infrared-cut filter |
| Minimum illumination | With Forensic WDR and Lightfinder 2.0: |
| Color: 0.1 lux at 50 IRE, F1.8 | |
| B/W: 0 lux at 50 IRE, F1.8 | |
| Shutter speed | 1/66500 s to 2 s |
| Camera angle adjustment | Pan ±180° |
| Tilt ±75° | |
| Rotation ±175° | |
| System on chip (SoC) | |
| Model | ARTPEC-8 |
| Memory | 1024 MB RAM, 8192 MB Flash |
| Compute capabilities | Deep learning processing unit (DLPU) |
| Video | |
| Video compression | H.264 (MPEG-4 Part 10/AVC) Baseline, Main, and High Profiles |
| H.265 (MPEG-H Part 2/HEVC) Main Profile | |
| Motion JPEG | |
| Resolution | 1920×1080 to 160×90 |
| Frame rate | With WDR: 25/30 fps with power line frequency 50/60 Hz |
| Without WDR: 50/60 fps with power line frequency 50/60 Hz | |
| Video streaming | Multiple, individually configurable streams in H.264, H.265, and |
| Motion JPEG | |
| Axis Zipstream technology in H.264 and H.265 | |
| Controllable frame rate and bandwidth | |
| VBR/ABR/MBR H.264/H.265 | |
| Video streaming indicator | |
| Multi-view streaming | Up to 2 individually cropped-out view areas in full frame rate |
| Image settings | Saturation, contrast, brightness, sharpness, Forensic WDR, white |
| balance, day/night threshold, local contrast, tone mapping , | |
| exposure mode, exposure zones, defogging, barrel distortion | |
| correction, compression, rotation: 0°, 90°, 180°, 270° including | |
| Corridor Format, mirroring, dynamic text and image overlay, | |
| privacy masks, polygon privacy mask | |
| Pan/Tilt/Zoom | Digital PTZ, preset positions |
| Audio | |
| Audio streaming | Two-way, full duplex |
| Audio encoding | 24bit LPCM, AAC-LC 8/16/32/44.1/48 kHz, G.711 PCM 8 kHz, |
| G.726 ADPCM 8 kHz, Opus 8/16/48 kHz | |
| Configurable bit rate | |
| Audio output/output | External microphone input, line input, digital input with ring |
| power, line output, automatic gain control | |
| Network | |
| Security | Password protection, IP address filtering, HTTPS* encryption, IEEE 802.1x (EAP-TLS)* network access control, digest authentication, user access log, centralized certificate management, brute force delay protection, signed firmware, secure boot signed video, Axis Edge Vault, Axis device ID, secure keystore (CC EAL4 certified) |
| *: This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (openssl.org), and cryptographic software written by Eric Young | |
| Supported protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS* , HTTP/2, TLS* , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTCP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SOCKS, SSH, SIP, LLDP, CDP, MQTT v3.1.1, Syslog, Link-Local address (ZeroConf) |
| *: This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (openssl.org), and cryptographic software written by Eric Young | |
| System Integration | |
| Application Programming Interface | Open API for software integration, including VAPIX® and |
| AXIS Camera Application Platform; specifications at axis.com | |
| One-click cloud connection | |
| ONVIF® Profile G, ONVIF® Profile M, ONVIF® Profile S, and | |
| ONVIF® Profile T, specification at onvif.org | |
| Support for Session Initiation Protocol (SIP) for integration with | |
| Voice over IP (VoIP) systems, peer to peer or integrated with | |
| SIP/PBX. | |
| Onscreen controls | Day/night shift |
| Defogging | |
| Wide dynamic range | |
| Video streaming indicator | |
| IR illumination | |
| Event conditions | Analytics, external input, supervised external input, virtual inputs |
| through API | |
| Audio: audio clip playing, audio clip currently playing | |
| Call: state, state change | |
| Device status: above operating temperature, above or below | |
| operating temperature, below operating temperature, within | |
| operating temperature, IP address removed, new IP address, | |
| network lost, system ready, ring power overcurrent protection, | |
| live stream active | |
| Digital audio: digital signal contains Axis metadata, digital signal | |
| has invalid sample rate, digital signal missing, digital signal okay | |
| Edge storage: recording ongoing, storage disruption, storage | |
| health issues detected | |
| I/O: digital input, manual trigger, virtual input | |
| MQTT: subcribe | |
| Scheduled and recurring: schedule | |
| Video: average bitrate degradation, day-night mode, live stream | |
| open, tampering | |
| Event actions | Overlay text, external output activation, play audio clip, zoom |
| preset, day/night mode, flash status LED, use lights, set defog | |
| mode, set WDR mode | |
| Calls: end SIP call, make SIP call, answer call | |
| I/O: toggle I/O once, toggle I/O while the rule is active | |
| MQTT: publish | |
| Notification: email, HTTP, HTTPS, TCP, and SNMP trap | |
| Pre- and post-alarm video or image buffering for recording or | |
| upload | |
| Record video: SD card and network share | |
| Upload of images or video clips: FTP, SFTP, HTTP, HTTPS, network | |
| share, and email | |
| Data streaming | Event data |
| Built-in installation aids | Remote zoom and focus, straighten image, pixel counter, level grid |
| Analytics | |
| AXIS Object Analytics | Object classes: humans, vehicles (types: cars, buses, trucks, bikes) |
| Trigger conditions: line crossing, object in area | |
| Up to 10 scenarios | |
| Metadata visualized with color-coded bounding boxes | |
| Polygon include/exclude areas | |
| Perspective configuration | |
| ONVIF Motion Alarm event | |
| Applications | Included |
| AXIS Object Analytics | |
| AXIS Video Motion Detection, active tampering alarm, audio detection | |
| Support for AXIS Camera Application Platform enabling | |
| installation of third-party applications, see axis.com/acap | |
| General | |
| Casing | IP52- and IK10-rated |
| Polycarbonate hard-coated dome | |
| Polycarbonate casing | |
| Color: white NCS S 1002-B | |
| For repainting instructions, go to the product’s support | |
| page. For information go to | |
| axis.com | |
| single-gang, and 4” octagon) and for wall or ceiling mount | |
| ¼”-20 UNC tripod screw thread | |
| Sustainability | PVC and BFR/CFR free, 5% recycled plastics |
| Power | Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3 |
| Typical 4.8 W, max 8.9 W | |
| Connectors | RJ45 10BASE-T/100BASE-TX PoE |
| I/O: 4-pin 2.5 mm (0.098 in) terminal block for 1 supervised | |
| digital input and 1 digital output (12 V DC output, max. Load 25 mA) | |
| Audio: 4-pin 2.5 mm (0.098 in) terminal block for audio in and out | |
| IR illumination | OptimizedIR with power-efficient, long-life 850 nm IR LEDs |
| Range of reach 40 m (130 ft) or more depending on the scene | |
| Storage | Support for microSD/microSDHC/microSDXC card |
| Support for SD card encryption (AES-XTS-Plain64 256bit) | |
| Recording to network-attached storage (NAS) | |
| For SD card and NAS recommendations see axis.com | |
| Operating conditions | (0 °C to 50 °C) (32 °F to 122 °F) |
| Humidity 10–85% RH (non-condensing) | |
| Storage conditions | (-40 °C to 65 °C) (-40 °F to 149 °F) |
| Humidity 5–95% RH (non-condensing) | |
| Approvals | EMC |
| EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-3-2, | |
| EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, | |
| FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4, | |
| KC KN32 Class A, KC KN35, RCM AS/NZS CISPR 32 Class A, | |
| VCCI Class A | |
| Safety | |
| CAN/CSA C22.2 No. 62368-1, IEC/EN/UL 62368-1, IEC/EN 62471, | |
| IS 13252 | |
| Environment | |
| IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, | |
| IEC 60068-2-27, IEC 60068-2-78 | |
Accessories
| Optional accessories | • AXIS TP3201 Recessed Mount • AXIS TP3202 Recessed Mount • AXIS T94K01D Pendant Kit • AXIS Dome Intrusion Switch C • AXIS T8355 Digital Microphone 3.5 mm • AXIS TP3901 Microphone Kit • AXIS ACI Conduit Adapters • Smoked dome • Black casing |
