Call for Price
Seamless, 180 degree coverage with no blind spots, 13 MP multisensor with seamless stitching, 180 degree horizontal, 90 degree vertical coverage, Seamless pan/tilt/roll, AXIS Edge Vault, Built-in cybersecurity features
Description

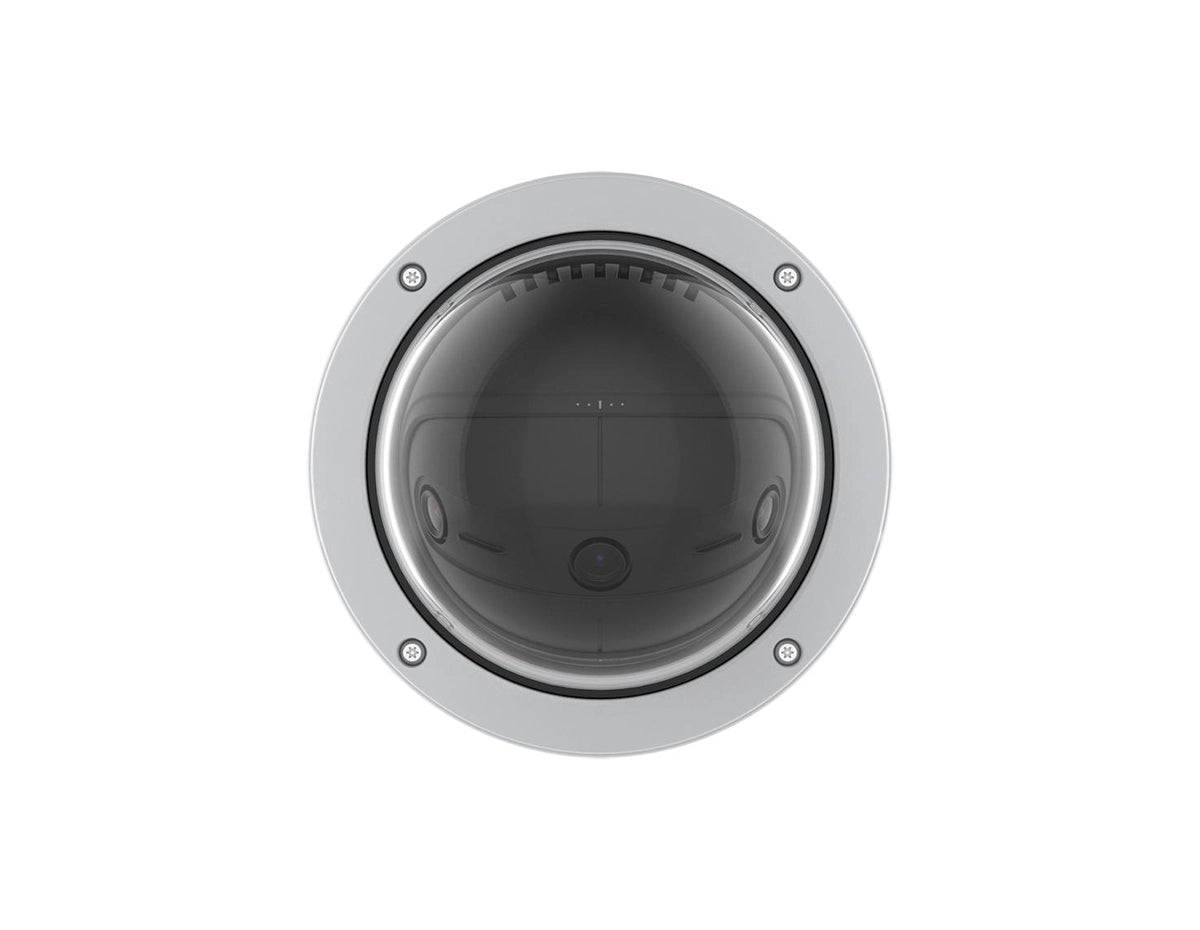

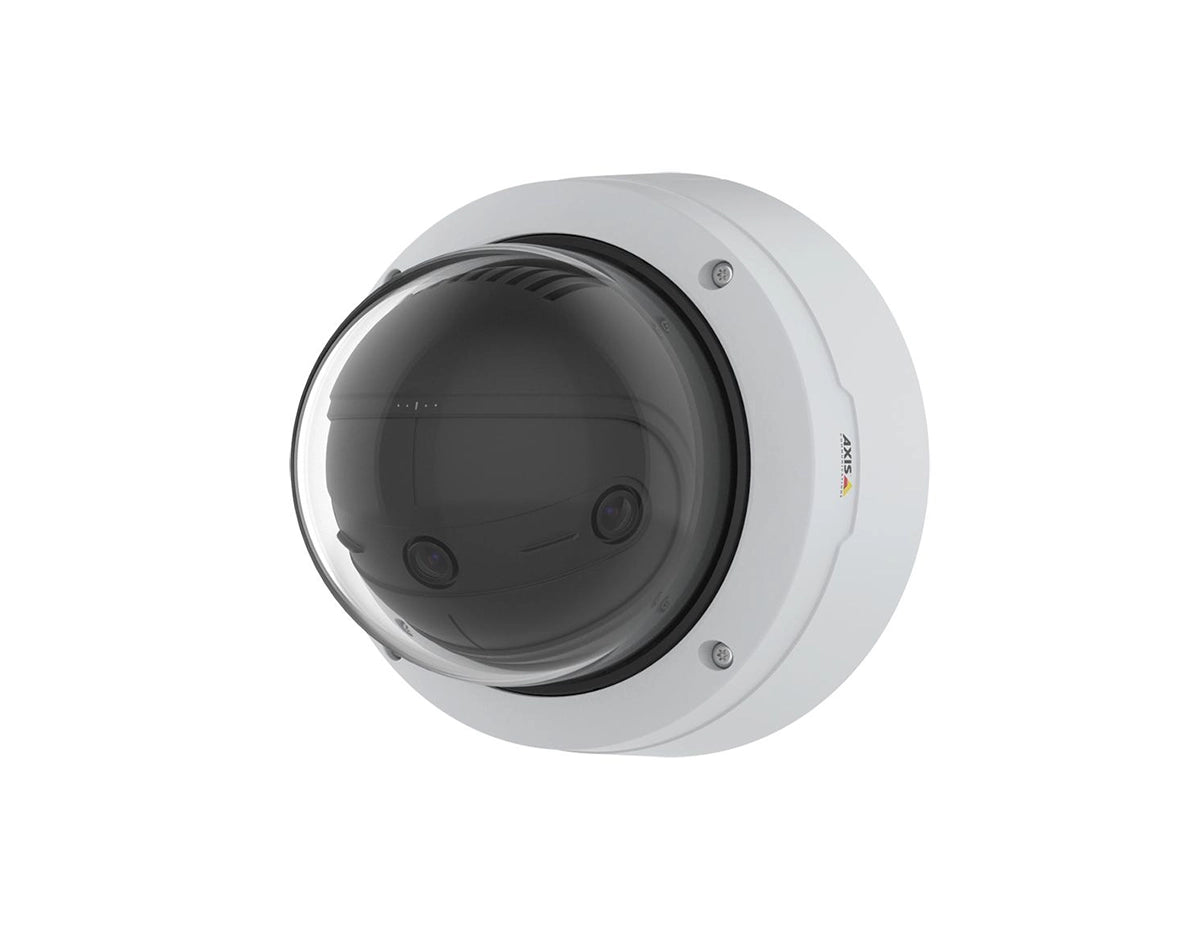

AXIS P3818-PVE Panoramic Camera (02060-001)
This camera has 13 megapixels and features multiple sensors. It is called the P3818-PVE camera and provides 180° horizontal coverage and 90° vertical coverage without any blind spots. Users can also mount two of these cameras back-to-back using the Axis T94V01C Dual Camera mount, which allows for a more comprehensive situational awareness over larger areas and distances. The P3818-PVE camera provides seamless stitching across all three images, resulting in a single, smooth video stream with a coherent-looking image.
Quick Specs:
- 13 MP multisensor with seamless stitching
- Seamless pan/tilt/roll
- AXIS Edge Vault
- Built-in cybersecurity features
Please see the related tabs for the 02060-001 datasheet and compatible accessories.
| Feature | AXIS P3818-PVE | AXIS P3827-PVE |
|---|---|---|
| Max video resolution | 5120×2560 | 3712×1856 |
| Horizontal field of view | 180 | 180 |
| Vertical field of view | 90 | 90 |
| OptimizedIR | – | – |
| Day and Night functionality | ✔ | ✔ |
| Lightfinder | Lightfinder | Lightfinder |
| Wide dynamic range | Forensic WDR | Forensic WDR |
| Zipstream | ✔ | ✔ |
| Alarm inputs/outputs | 2 | 2 |
| Audio Support | ✔ | ✔ |
| Axis Edge Vault | ✔ | ✔ |
Properties
| Properties | AXIS P3818-PVE Panoramic Camera |
| Description | The AXIS P3818-PVE Panoramic Camera provides seamless 180° coverage with 13 MP resolution and 30 fps. With no blind spots, it seamlessly stitches three images for 180° horizontal and 90° vertical coverage. Mounting options allow for a complete 360° overview, and audio support enables transaction monitoring. Built on ARTPEC-8, it includes cybersecurity features for system protection. |
| Product Family | AXIS P3818-PVE Panoramic Camera |
| Product Type | Camera |
Specifications
| Specifications | AXIS P3818-PVE Panoramic Camera |
| Camera | |
| Image sensor | 3 x 5 MP 1/2.8” progressive scan RGB CMOS |
| Lens | Fixed 3.2 mm, F2.0 |
| Horizontal field of view: 180° | |
| Vertical field of view: 90° | |
| Day and night | Automatically removable infrared-cut filter |
| Minimum illumination | With Forensic WDR and Lightfinder: |
| Color: 0.16 lux, F2.0 | |
| B/W: 0.05 lux, F2.0 | |
| Shutter speed | 1/91000 to 1/25 s |
| With WDR: 1/50000 to 1/25 s | |
| Camera angle adjustment | Pan ±180° |
| Tilt 0° to 50° | |
| Roll ±5 | |
| System on chip (SoC) | |
| Model | ARTPEC-7 (x2) |
| Memory | 2048 MB RAM (x2), 512 MB Flash |
| Compute capabilities | Machine learning processing unit (MLPU) |
| Video | |
| Video compression | H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles |
| H.265 (MPEG-H Part 2/HEVC) Main Profile | |
| Motion JPEG | |
| Resolution | 5120×2560 (13.1 MP) to 608×128 |
| Frame rate | 13.1 MP @ 25/30 fps (50/60 Hz) WDR |
| Video streaming | 13.1 MP: 1 configurable stream in H.264, H.265 and Motion |
| JPEG in full frame rate | |
| Controllable frame rate and bandwidth | |
| VBR/ABR/MBR H.264/H.265 | |
| Image settings | Saturation, contrast, brightness, sharpness, Forensic WDR: up to |
| 120 dB depending on scene, white balance, day/night threshold, | |
| exposure mode, compression, dynamic text and image overlay, | |
| orientation aid, exposure control, noise reduction, fine-tuning of | |
| behavior at low light, polygon privacy masks | |
| Audio | |
| Audio streaming | Two-way audio via edge-to-edge technology |
| Audio output/output | External microphone input, line input, digital audio input, |
| automatic gain control, network speaker pairing | |
| Audio encoding | 24bit LPCM, AAC-LC 8/16/32/48 kHz, G.711 PCM 8 kHz, G.726 |
| ADPCM 8 kHz, Opus 8/16/48 kHz, 44.1 kHz ACC-LC, LPCM | |
| Configurable bit rate | |
| Network | |
| Security | Password protection, IP address filtering, HTTPS |
| encryption, IEEE 802.1X (EAP-TLS) network access | |
| control, digest authentication, user access log, | |
| centralized certificate management, brute force delay | |
| protection, signed firmware, protection of cryptographic | |
| keys with FIPS 140-2 certified TPM 2.0 module, | |
| Axis Edge Vault with Axis device ID | |
| Supported protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTP/2, HTTPS, SSL/TLS, |
| QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), | |
| UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, | |
| RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, | |
| LLDP, CDP, MQTT, Syslog, Link-Local address (ZeroConf) | |
| System Integration | |
| Application Programming Interface | Open API for software integration |
| ONVIF® Profile G, ONVIF® Profile S and ONVIF® Profile T | |
| Event conditions | Analytics, external input, supervised external input, edge storage |
| events, virtual inputs through API | |
| Audio: audio detection | |
| Digital audio: digital signal contains Axis metadata, digital signal | |
| as invalid sample rate, digital signal missing, digital signal ok | |
| Device status: above operating temperature, above or below | |
| operating temperature, below operating temperature, fan failure, | |
| IP address removed, network lost, new IP address, shock detected, | |
| storage failure, system ready, within operating temperature, | |
| casing open, ring power overcurrent protection | |
| Edge storage: recording ongoing, storage disruption, storage | |
| health issues detected | |
| I/O: digital input, manual trigger, virtual input | |
| MQTT subscribe | |
| Scheduled and recurring: scheduled event | |
| Video: live stream open, average bitrate degradation, day-night | |
| mode, tampering | |
| Event actions | Day/night mode, overlay text, video recording to edge storage, |
| pre- and post-alarm video buffering, send SNMP trap, play audio | |
| clipm I/O events, status LED events | |
| File upload: FTP, SFTP, HTTP, HTTPS network share, email | |
| MQTT publish | |
| Notification: email, HTTP, HTTPS TCP | |
| Data streaming | Event data |
| Built-in installation aids | Pixel counter, leveling guide |
| Analytics | |
| Applications | Included |
| AXIS Fence Guard, AXIS Motion Guard, AXIS Loitering Guard | |
| AXIS Video Motion Detection, active tampering alarm, audio | |
| detection | |
| Supported | |
| Support for AXIS Camera Application Platform enabling | |
| installation of third-party applications, see axis.com/acap | |
| General | |
| Casing | IP66-/IP67- and NEMA 4X-rated, IK10-rated impact-resistant |
| casing with polycarbonate hard coated clear dome, aluminum | |
| base and dehumidifying membrane | |
| Color: white NCS S 1002-B | |
| Casing open detection | |
| For repainting instructions contact your | |
| distributor partner. | |
| Mounting | Mounting bracket with junction box holes (double-gang, |
| single-gang, 4” square, and 4” octagon) and for wall or ceiling mount | |
| ¾” (M25) conduit side entries | |
| Sustainability | PVC free |
| Power | Power over Ethernet (PoE) IEEE 802.3at Type 2 Class 4 |
| Typical 11 W, max 18 W | |
| Connectors | Shielded RJ45 1000BASE-T |
| Terminal block for two configurable supervised inputs/digital | |
| outputs (12 V DC output, max load 50 mA), 3.5 mm analog/digital | |
| mic/line in | |
| Storage | Support for microSD/microSDHC/microSDXC card |
| Support for SD card encryption | |
| Support for recording to network-attached storage (NAS) | |
| Operating conditions | (-40 °C to 50 °C) (-40 °F to 122 °F) |
| Humidity 10–100% RH (condensing) | |
| Maximum temperature according to NEMA TS 2 (2.2.7): 74 °C | |
| (165 °F) | |
| Start-up temperature: -40 °C | |
| Storage conditions | (-40 °C to 65 °C) (-40 °F to 149 °F) |
| Humidity 5-95% RH (non-condensing) | |
| Approvals | EMC |
| EAC, EN 55032 Class A, EN 55035, EN 50121-4, | |
| IEC 62236-4, EN 55024, EN 61000-6-1, EN 61000-6-2, | |
| FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), VCCI Class A, | |
| RCM AS/NZS CISPR 32 Class A, KC KN32 Class A, KC KN35, | |
| CISPR 24, CISPR 35 | |
| Safety | |
| IEC/EN/UL 60950-22, IEC/EN/UL 62368-1, | |
| CAN/CSA C22.2 No. 62368-1, CAN/CSA-C22.2 No. 60950-22 | |
| Environment | |
| IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, | |
| IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, | |
| IEC/EN 60529 IP66/IP67, IEC/EN 62262 IK10, NEMA 250 Type 4X, | |
| NEMA TS 2 (2.2.7-2.2.9), MIL-STD-810H (Method 501.7, 502.7, | |
| 505.7, 506.6, 507.6, 509.7, 512.6) | |
| Network | |
| NIST SP500-267 | |
| Dimensions | Height: 170 mm (6.6 in) |
| Width in diameter: 195 mm (7.6 in) | |

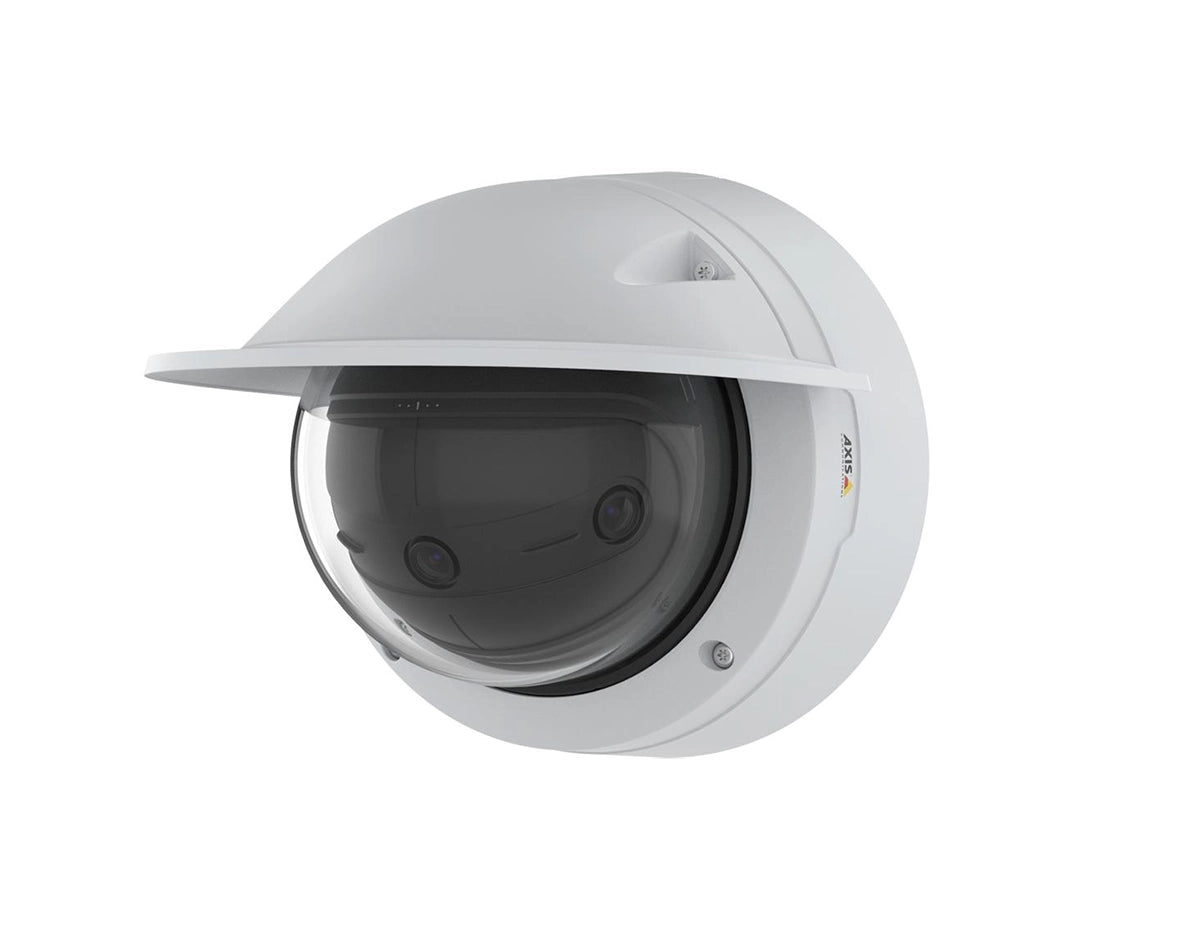

| With weathershield: | |
| Height 221 mm (8.7 in) | |
| Width 206 mm (8.1 in) | |
| Weight | 2.2 kg (4.9 lb) |
| Mounting height | Recommended: 4–15 m |
| Included accessories | Installation guide, Windows® decoder 1-user license, |
| weathershield, RESITORX® T20 bit, connector guard | |
| Languages | English, German, French, Spanish, Italian, Russian, Simplified |
| Chinese, Japanese, Korean, Portuguese, Traditional Chinese | |
Accessories
| Optional accessories | • AXIS T8415 Wireless Installation Tool • AXIS Surveillance Cards • AXIS TQ3102 Pendant Kit • AXIS TQ3101–E Pendant Kit • AXIS TQ3201–E Recessed Mount • AXIS T94V01C Dual Camera Mount |
