Outstanding detection and fast verification, High-resolution thermal imaging, Superb image contrast, for more details, Built-in analytics for high-quality detection, Electronic Image Stabilization, Axis Zipstream technology
Description

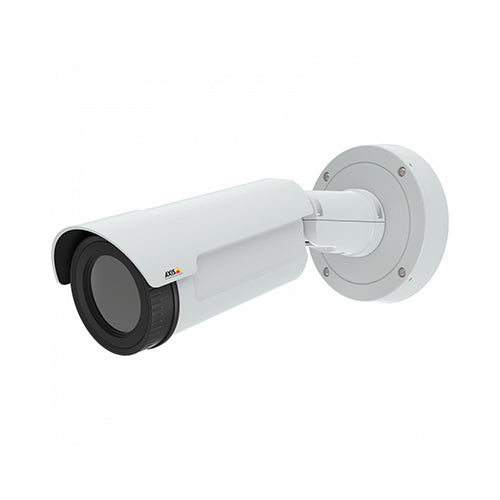

AXIS Q1942-E 60 mm 30 fps Thermal Network Camera (0922-001)
The AXIS Q1942-E is an affordable outdoor, bullet-style, thermal camera with a built-in window heater for harsh weather conditions. This product lets you accurately detect, promptly verify, and then act upon events of all kinds in conditions ranging from pitch darkness to glaring sunlight. It is perfect for surveillance in critical circumstances.
Quick Specs:
- High resolution thermal imaging
- Superb image contrast, for more details
- Electronic Image Stabilization
- AXIS Zipstream technology
Please see the related tabs for the 0922-001 datasheet and compatible accessories.
| Feature | AXIS Q1941-E | AXIS Q1941-E PT Mount | AXIS Q1942-E | AXIS Q1942-E PT Mount | AXIS Q1951-E | AXIS Q1952-E | AXIS Q1961-TE | AXIS Q1971-E |
|---|---|---|---|---|---|---|---|---|
| Image sensor size | 384×288 | 384×288 | 640×480 | 640×480 | 384×288 | 640×480 | 384×288 | 384×288 |
| Two-way audio | ✔ | – | ✔ | – | – | – | – | – |
| Alarm inputs/outputs | 2 | 2 | 2 | 2 | 1/1 | 1/1 | 1/1 | 1/1 |
| Zipstream | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
This product has been discontinued.
Properties
| Properties | AXIS Q1942-E 60 mm 30 fps Thermal Network Camera |
| Description | AXIS Q1942-E offers outstanding VGA detection with powerful video analytics. This affordable outdoor thermal camera features a 640×480 resolution, Electronic Image Stabilization for smooth video, and Axis Zipstream for optimized bandwidth. With a built-in heater, it’s reliable in harsh weather conditions, supporting various lens options for flexible detection. High-performance analytics are enabled through AXIS Camera Application Platform (ACAP) and third-party applications. |
| Product Family | AXIS Q1942-E Thermal Network Series Camera |
| Product Type | Thermal Camera |
Specifications
| Specifications | AXIS Q1942-E 60 mm 30 fps Thermal Network Camera |
| Camera | |
| Image sensor | Uncooled microbolometer 384×288 pixels, pixel size 17 μm. Spectral range: 8-14 μm |
| Lens | Athermalized |
| 60 mm | |
| Horizontal field of view: 10°, F1.25 | |
| Near focus distance: 91 m (300 ft) | |
| Sensitivity | NETD < 50 mK |
| Pan/Tilt | Preset positions, guard tour, driver selection, control queue |
| Video | |
| Video compression | H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles |
| Motion JPEG | |
| Resolution | Sensor is 640×480. Image can be scaled up to 800×600 (SVGA). |
| Frame rate | Up to 30 fps |
| Video streaming | At least three H.264 and Motion JPEG streams, simultaneous and |
| individually configured in max. resolution in full frame rate | |
| Axis Zipstream technology in H.264 | |
| Controllable frame rate a | |
| Image settings | Compression, brightness, sharpness, contrast, exposure zone, text |
| and image overlay, privacy mask, mirroring of images, electronic | |
| image stabilization, multiple palettes | |
| Rotation: 0°, 90°, 180°, 270° including Corridor Format | |
| Audio | |
| Audio streaming | Two-way, full duplex |
| Audio encoding | 24bit LPCM, AAC-LC 8/16 kHz, G.711 PCM 8 kHz, G.726 ADPCM |
| 8 kHz, Opus 8/16/48 kHz | |
| Configurable bit rate | |
| Audio input/output | External microphone input or line input, line output |
| Network | |
| Security | Password protection, IP address filtering, HTTPS (*) encryption, IEEE 802.1x (EAP-TLS)(*) network access control, digest authentication, user access log, centralized certificate management, brute force delay protection, signed firmware |
| (*: This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (www.openssl.org), and cryptographic software written by Eric Young) | |
| System Integration | |
| Application Programming Interface | Open API for software integration, including VAPIX® and |
| AXIS Camera Application Platform; specifications at axis.com | |
| AXIS Video Hosting System (AVHS) with One-Click Connection | |
| One-click cloud connection | |
| ONVIF® Profile G and ONVIF® Profile S specification | |
| Event triggers | Analytics, temperature, external input, time scheduled, edge |
| storage events | |
| Event actions | Record video: SD card and network share |
| Upload of images or video clips: FTP, SFTP, HTTP, HTTPS network | |
| share and email | |
| Pre- and post-alarm video or image buffering for recording or | |
| upload | |
| Notification: email, HTTP, HTTPS, TCP and SNMP trap | |
| Overlay text, play audio clip | |
| Data streaming | Event data |
| Built-in installation aids | Pixel counter |
| Analytics | |
| Applications | Included |
| AXIS Motion Guard, AXIS Fence Guard, AXIS Loitering Guard | |
| AXIS Video Motion Detection, audio detection, active tampering | |
| alarm | |
| Supported | |
| AXIS Perimeter Defender | |
| Support for AXIS Camera Application Platform enabling | |
| installation of third-party applications, see axis.com/acap | |
| General | |
| Casing | IP66-, IP67- and NEMA 4X-rated |
| Metal casing (aluminum) with integrated dehumidifying | |
| membrane and a germanium window | |
| Color: White NCS S 1002-B | |
| Sustainability | PVC free |
| Memory | 512 MB RAM, 256 MB Flash |
| Power | Power over Ethernet IEEE 802.3af/802.3at Type 1 Class 3 |
| Typical 4.8 W, max 11.8 W | |
| 8–28 V DC, typical 6.6 W, max 13 W | |
| 20–24 V AC (50/60 Hz), typical 11 VA, max 19 VA | |
| Power supply not included. | |
| Connectors | RJ45 10BASE-T/100BASE-TX PoE |
| I/O connector for DC or AC input, two configurable inputs/outputs | |
| and mic in/line in, line out, (AXIS Multicable A I/O Audio not | |
| included), AC/DC input | |
| Storage | Support for microSD/microSDHC/microSDXC card |
| Support for SD card encryption | |
| Support for recording to network-attached storage (NAS) | |
| For SD card and NAS recommendations see axis.com | |
| Operating conditions | (-40 °C to 60 °C )(-40 °F to 140 °F) |
| Humidity 10–100% RH (condensing) | |
| De-icing capability, compliant to MIL-STD-810F Method 521.3 | |
| Storage conditions | (-40 °C to 70 °C) (-40 °F to 158 °F) |
| Approvals | EMC |
| EN 55022 Class A, EN 50121-4, IEC 62236-4, EN 55024, | |
| EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, | |
| ICES-003 Class A, VCCI Class A, RCM AS/NZS CISPR22 Class A | |
| KCC KN32 Class A, KN35 | |
| Safety | |
| IEC/EN/UL 60950-1, IEC/EN/UL 60950-22, IS 13252 | |
| EN 62368-1 | |
| Environment | |
| EN 50581, NEMA 250 Type 4X, IEC 60068-2-1, IEC 60068-2-2, | |
| IEC 60068-2-6 Class 4M4, IEC 60068-2-27, IEC 60068-2-52, | |
| IEC 60721-3-4 Class 4K3, MIL-STD-810F Method 521.3 | |
| IEC 60529 IP66/IP67 | |
| Network | |
| NIST SP500-267 | |
| Dimensions | 344 x 146 mm (13 9/16 x 5 3/4 in) |
| Weight | 2200 g (4.9 lb) |
| Included accessories | Resistorx® L-key, wall and ceiling mount bracket terminal block |
| connector | |
| Installation Guide, Windows® decoder 1-user license | |
| Video management software | AXIS Companion, AXIS Camera Station, Video management software from Axis’ Application Development Partners available |
| Languages | English, German, French, Spanish, Italian, Russian, Simplified |
| Chinese, Japanese, Korean, Portuguese, Traditional Chinese | |
Accessories
| Optional accessories | • AXIS T98A17-VE Surveillance Cabinet • AXIS T94G01P, AXIS T91A47 Pole Mount • AXIS Multicable A I/O Audio • AXIS PoE Midspans • AXIS T8129 PoE Extender • AXIS T8640 PoE+ over Coax Adapter Kit • AXIS T8604 Media Converter Switch • AXIS T8415 Wireless Installation Tool |
