Call for Price
Advanced 4 MP dome with remote adjustment, Outstanding image quality in 4 MP, Remote adjustment of the camera angle, Analytics with deep learning, Electronic image stabilization, Axis Edge Vault
Description

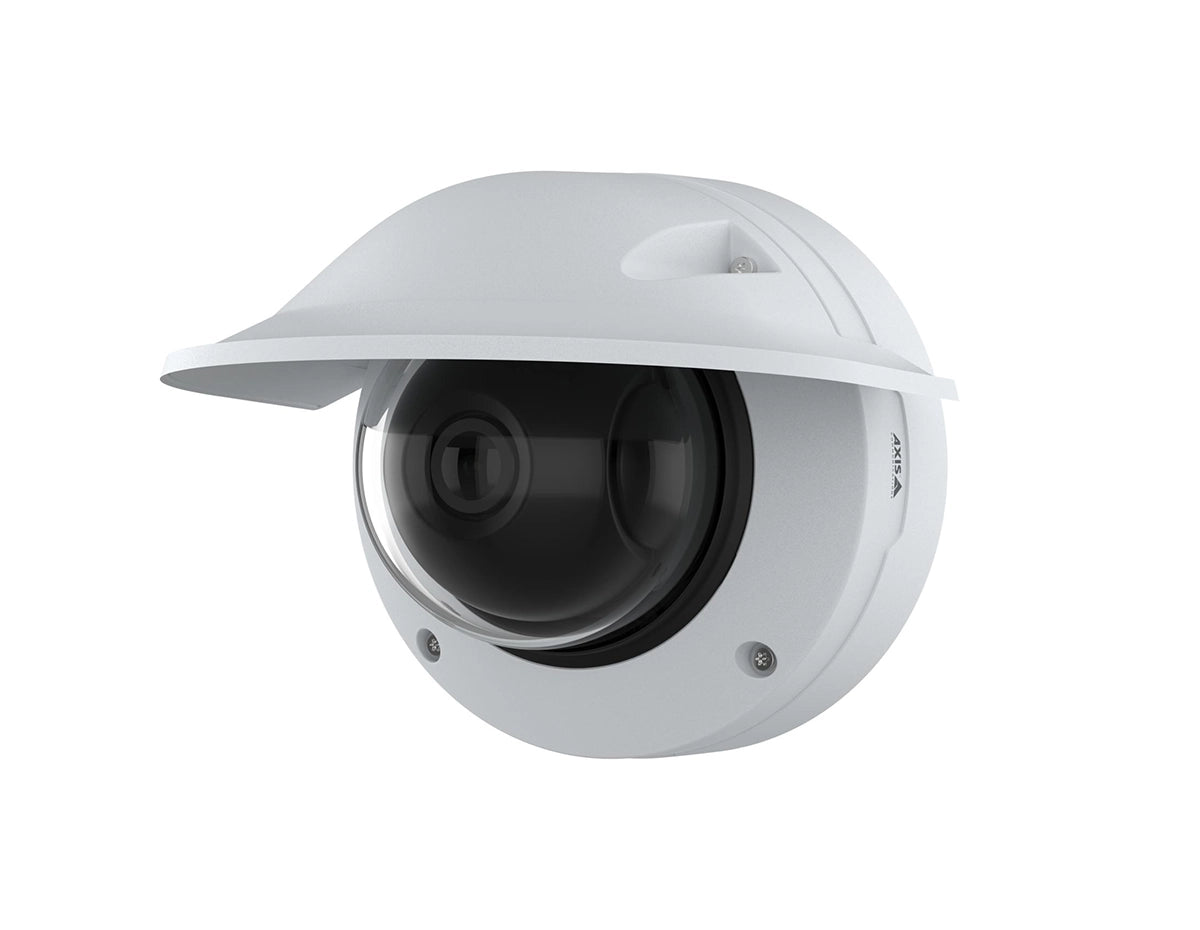

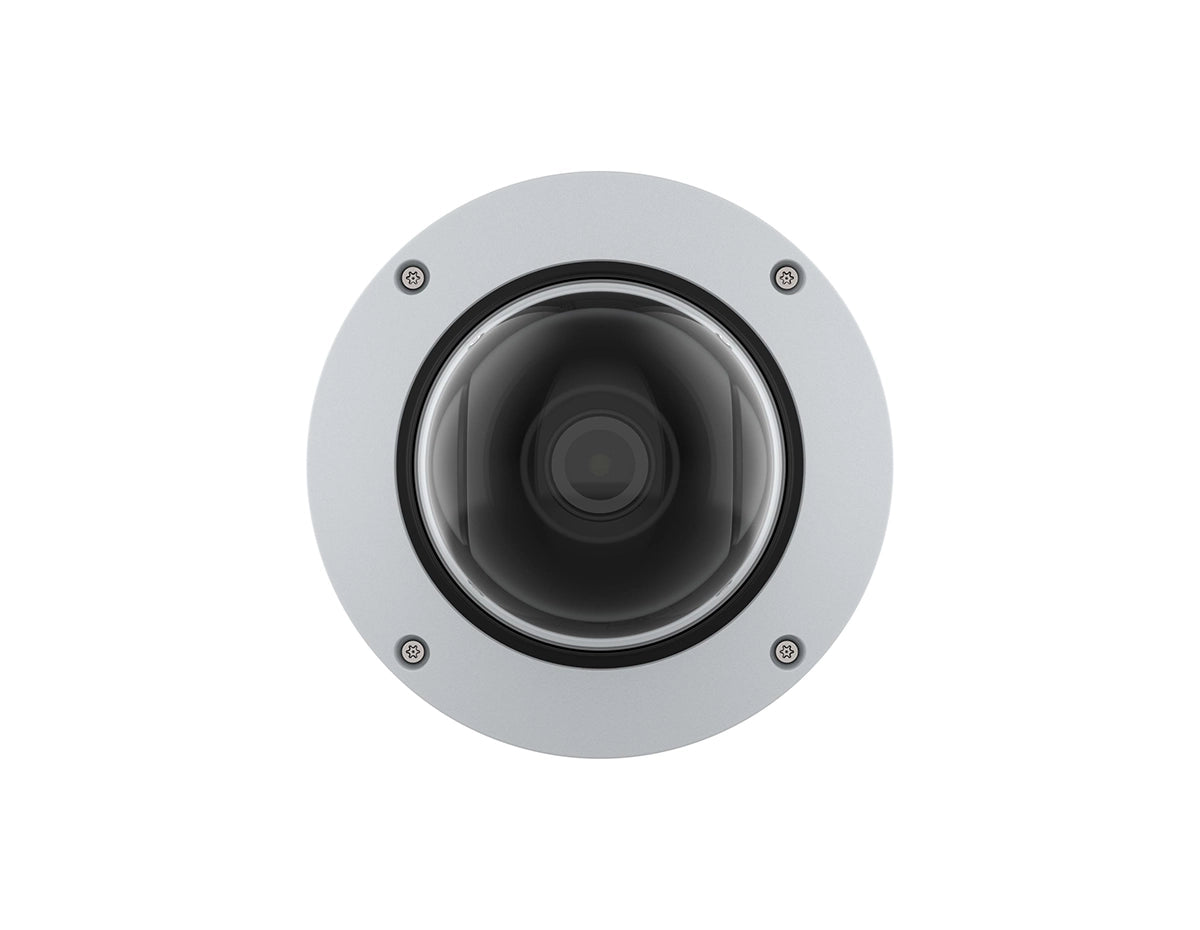

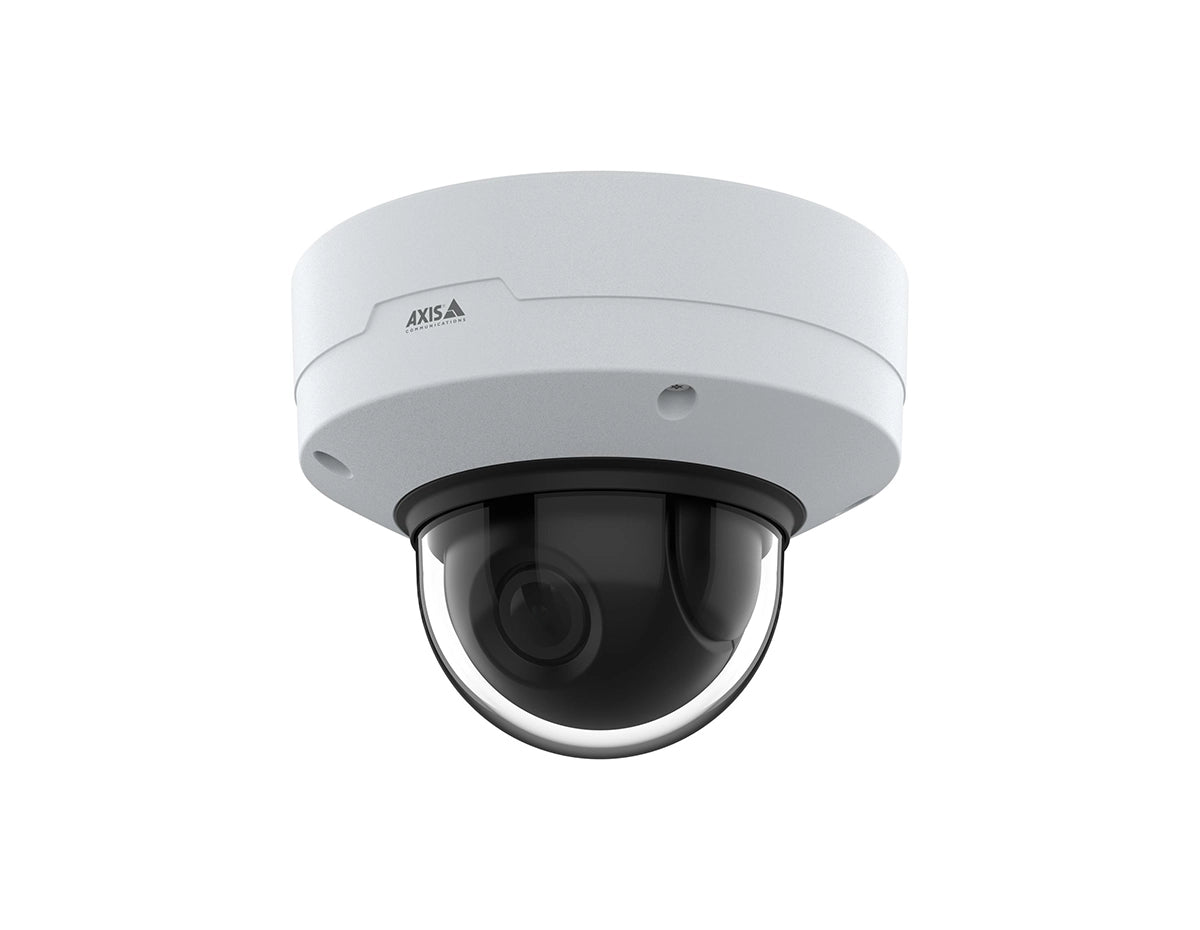

AXIS Q3626-VE Dome Camera (02616-004)
This sophisticated camera provides convenient installation, upkeep, and usage. With the inclusion of remote pan-tilt-roll-zoom (PTRZ) capabilities, users can efficiently modify and reposition the camera view from a distance via the network, thereby streamlining the process and reducing labor. Designed to withstand harsh conditions, this durable camera, rated IK10 and vandal-resistant, is well-suited for challenging environments and inclement weather. Additionally, electronic image stabilization guarantees steady video output in scenarios where the camera may experience vibrations.
Quick Specs:
- Outstanding image quality in 4 MP
- Remote adjustment of the camera angle
- Analytics with deep learning
- Electronic image stabilization
Please see the related tabs for the 02616-004 datasheet and compatible accessories.
| Feature | AXIS Q3626-VE | AXIS Q3628-VE |
|---|---|---|
| Max video resolution | 2688×1512 | 3840×2160 |
| Horizontal field of view | 103 – 52 | 103 – 48 |
| Day and Night functionality | ✔ | ✔ |
| Electronic image stabilization | ✔ | ✔ |
| Remote PTRZ | ✔ | ✔ |
| Lightfinder | Lightfinder 2.0 | Lightfinder 2.0 |
| Wide dynamic range | Forensic WDR | Forensic WDR |
| Zipstream | ✔ | ✔ |
GUARANTEED to Exceed Expectations.
When purchasing from AMNET Global, rest assured that your information technology equipment is covered for a lifetime. When you receive your order, your unit is already covered by our Lifetime Warranty and Advance Replacement.
Coverage That Never Ends.
In the event of a product malfunction, we fully understand that downtime is not an option. If you experience a product malfunction or failure, we will send you a replacement the same day, fully expedited and at our cost.
Please see our full Terms and Conditions of Warranty here.
QUESTIONS ABOUT THIS PRODUCT OR AVAILABILITY?
You have come to the right place!
If you have an immediate question, please click here and we will be glad to speak with you right away!
To speak to one of our technicians about this product, please call our technical support team at 1.888.428.6677 Option 3 and we will get you taken care of right away!
Properties
| Properties | AXIS Q3626-VE Dome Camera |
| Description | The AXIS Q3626-VE Dome Camera is a top-tier 4 MP camera with remote pan-tilt-roll-zoom for easy network adjustments. Featuring outstanding image quality in challenging light, it utilizes Lightfinder 2.0 and Forensic WDR. The camera supports advanced analytics with deep learning, including AXIS Object Analytics for detecting and classifying moving objects. Encased in a robust, IK10-rated metal housing, it includes electronic image stabilization and Axis Edge Vault for secure device protection with FIPS 140-2 level 2 certification. |
| Product Family | AXIS Q3626-VE Dome Camera |
| Product Type | Camera |
Specifications
| Specifications | AXIS Q3628-VE Dome Camera |
| Camera | |
| Image sensor | 1/1.8” progressive scan RGB CMOS |
| Pixel size 2.9 µm | |
| Lens | Varifocal, 4.3–8.6 mm, F1.5–2.4 |
| Horizontal field of view: 103°–52° | |
| Vertical field of view: 56°–30° | |
| Minimum focus distance: 0.5 m (1.6 ft) | |
| IR corrected, remote zoom and focus, P-Iris control | |
| Day and night | Automatic IR-cut filter |
| Minimum illumination | Color: 0.06 lux at 50 IRE, F1.5 |
| B/W: 0.01 lux at 50 IRE, F1.5 | |
| Shutter speed | 1/91000 s to 1 s with 50 Hz |
| Camera angle adjustment | Pan ±190°, tilt -8 to +75°, roll ±97° |
| System on chip (SoC) | |
| Model | ARTPEC-8 |
| Memory | 2048 MB RAM, 8192 MB Flash |
| Compute capabilities | Deep learning processing unit (DLPU) |
| Video | |
| Video compression | H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles |
| H.265 (MPEG-H Part 2/HEVC) Main Profile | |
| Motion JPEG | |
| Resolution | 16:9: 2688×1512 to 160×90 |
| 16:10: 1280×800 to 160×100 | |
| 4:3: 2016×1512 to 160×120 | |
| Frame rate | With Forensic WDR: Up to 25/30 fps (50/60 Hz) in all resolutions |
| No WDR: Up to 50/60 fps (50/60 Hz) in all resolutions | |
| Video streaming | Up to 20 unique and configurable video streams* |
| Axis Zipstream technology in H.264 and H.265 | |
| Controllable frame rate and bandwidth | |
| VBR/ABR/MBR H.264/H.265 | |
| Low latency mode | |
| Video streaming indicator | |
| *: We recommend a maximum of 3 unique video streams per camera or channel, for optimized user experience, network bandwidth, and storage utilization. A unique video stream can be served to many video clients in the network using multicast or unicast transport methods via built-in stream reuse functionality | |
| Signal-to-noise ratio | >55 dB |
| WDR | Forensic WDR: Up to 120 dB depending on the scene |
| Multi-view streaming | Up to 8 individually cropped-out view areas |
| Noise reduction | Spatial filter (2D noise reduction) |
| Temporal filter (3D noise reduction) | |
| Image settings | Saturation, contrast, brightness, sharpness, white balance, |
| day/night threshold, local contrast, tone mapping, exposure | |
| mode, exposure zones, defogging, barrel distortion correction, | |
| electronic image stabilization, compression, rotation: 0°, 90°, | |
| 180°, 270° including corridor format, mirroring, dynamic text | |
| and image overlay, polygon privacy mask,target aperture | |
| Image processing | Axis Zipstream, Forensic WDR, Lightfinder 2.0 |
| Pan/Tilt/Zoom | Digital PTZ with preset positions |
| PTRZ preset positions | |
| Audio | |
| Audio features | AGC automatic gain control |
| Network speaker pairing | |
| Audio streaming | Configurable duplex: |
| Two-way (half duplex, full duplex) | |
| Audio input | 10-band graphic equalizer |
| Input for external unbalanced microphone, optional 5 V | |
| microphone power | |
| Digital input, optional 12 V ring power | |
| Unbalanced line input | |
| Audio output | Output via network speaker pairing |
| Audio encoding | 24bit LPCM 48 kHz, AAC-LC 8/16/32/44.1/48 kHz, G.711 PCM |
| 8 kHz, G.726 ADPCM 8 kHz, Opus 8/16/48 kHz | |
| Configurable bit rate | |
| Network | |
| Network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS* , HTTP/2, TLS* , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf), IEEE 802.1X (EAP-TLS), IEEE 802.1AR |
| *: This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (openssl.org), and cryptographic software written by Eric Young | |
| System Integration | |
| Application Programming Interface | Open API for software integration, including VAPIX®, metadata |
| and AXIS Camera Application Platform (ACAP); specifications at | |
| axis.com/developer-community. ACAP includes Native SDK and | |
| Computer Vision SDK. | |
| One-click cloud connection | |
| ONVIF® Profile G, ONVIF® Profile M, ONVIF® Profile S, and | |
| ONVIF® Profile T, specifications at onvif.org | |
| Support for Session Initiation Protocol (SIP) for integration with | |
| Voice over IP (VoIP) systems, peer-to-peer or integrated with | |
| SIP/PBX. | |
| Video management systems | Compatible with AXIS Companion, AXIS Camera Station, video |
| management software from Axis’ Application Development | |
| Onscreen controls | Autofocus |
| Electronic image stabilization | |
| Day/night shift | |
| Defogging | |
| Heater | |
| Media clip | |
| Privacy mask | |
| Video streaming indicator | |
| Wide dynamic range | |
| Event conditions | Application |
| Audio: audio detection | |
| Call: state, state change | |
| Device status: above/below/within operating temperature, IP | |
| address removed, new IP address, shock detected, network lost, | |
| system ready, ring power overcurrent protection, live stream | |
| active, casing open | |
| Digital audio input status | |
| Edge storage: recording ongoing, storage disruption, storage | |
| health issues detected | |
| I/O: digital input, manual trigger, virtual input | |
| MQTT: subscribe | |
| Scheduled and recurring: schedule | |
| Video: average bitrate degradation, tampering | |
| Event actions | Audio clips: play, stop |
| Calls: answer call, end SIP call, make SIP call | |
| Day-night mode | |
| Defog mode | |
| I/O: toggle I/O once, toggle I/O while the rule is active | |
| MQTT: Publish | |
| Notification: HTTP, HTTPS, TCP and email | |
| Overlay text | |
| Pre- and post-alarm video or image buffering for recording or upload | |
| Recordings: SD card and network share | |
| SNMP traps: send, send while the rule is active | |
| Status LED: flash | |
| Upload of images or video clips: FTP, SFTP, HTTP, HTTPS, network | |
| share and email | |
| WDR mode | |
| Built-in installation aids | Pan-tilt-roll: designed to withstand at least 500 full movement |
| cycles, autoroll, pixel counter, remote zoom and focus, level grid | |
| Analytics | |
| AXIS Object Analytics | Object classes: humans, vehicles (types: cars, buses, trucks, bikes) |
| Scenarios: line crossing, object in area, crossline counting, | |
| occupancy in area, time in area | |
| Up to 10 scenarios | |
| Metadata visualized with trajectories, color-coded bounding | |
| boxes and tables | |
| Polygon include/exclude areas | |
| Perspective configuration | |
| ONVIF Motion Alarm event | |
| Metadata | Object data: Classes: humans, faces, vehicles (types: cars, buses, |
| trucks, bikes), license plates | |
| Attributes: Vehicle color, upper/lower clothing color, confidence, | |
| position | |
| Event data: Producer reference, scenarios, trigger conditions | |
| Applications | Included |
| AXIS Object Analytics, AXIS Video Motion Detection, active | |
| tampering alarm, audio detection | |
| AXIS Live Privacy Shield | |
| Support for AXIS Camera Application Platform enabling | |
| Approvals | |
| Product markings | CSA, UL/cUL, UKCA, CE, KC, VCCI, RCM |
| Supply chain | TAA compliant |
| EMC | CISPR 35, CISPR 32 Class A, EN 55035, EN 55032 Class A, |
| EN 50121-4, EN 61000-6-1, EN 61000-6-2 | |
| Australia/New Zealand: RCM AS/NZS CISPR 32 Class A | |
| Canada: ICES-3(A)/NMB-3(A) | |
| Japan: VCCI Class A | |
| Korea: KS C 9835, KS C 9832 Class A | |
| USA: FCC Part 15 Subpart B Class A | |
| Railway: IEC 62236-4 | |
| Safety | CAN/CSA C22.2 No. 62368-1 ed. 3, IEC/EN/UL 62368-1 ed. 3, IS 13252 |
| Environment | IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, |
| IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP66, | |
| IEC/EN 62262 IK10, NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9), | |
| ISO 21207 (Method B | |
Accessories
| Optional accessories | • AXIS TQ3103-E Pendant Kit • AXIS TQ3202-E Recessed Mount • AXIS T8415 Wireless Installation Tool • AXIS Surveillance Cards |
