Thermal detection and visual verification, Thermal and visual camera in one, 360-degree infinite pan, Dual Electronic Image Stabilization, Signed firmware, secure boot, and TPM 2.0, Thermal palettes
Description

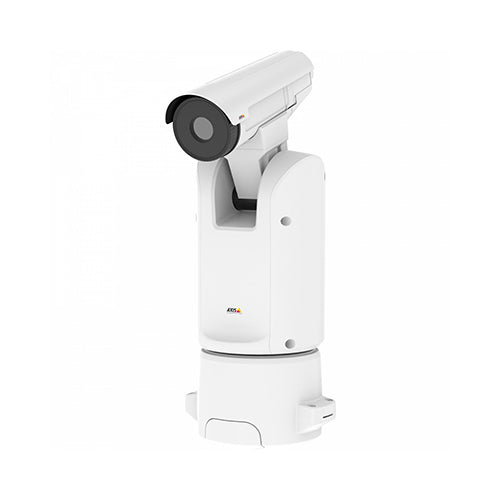

High-accuracy outdoor PTZ positioning Bispectral camera based on AXIS ARTPEC7 platform. The thermal sensor features a 640×480 resolution, 8.3 fps, and zoom lens. Visual sensor have HDTV 1080p video resolution, 32x optical zoom, focus recall and is extremly light sensitive. EIS (Electronic Image Stabilization) on both channels ensures focused and stable video. Integrated long-life silicone wiper for remote maintenance. The bispectral camera supports Zipstream, ONVIF, H.265 and local storage. Included cybersecurity features are TPM-module, Axis secure boot and comes with signed FW. It includes Video motion detection and support for AXIS Camera Application Platform enabling installation of AXIS Perimeter Defender and third-party applications. Responsive absolute positioning with high-speed and ultra-smooth pan and tilt capabilities. Integrated SFP slot for long-distance fiber connection. IP66, NEMA 4X rated and UL listed. Ready for column-mount. Powered by 24 V AC/DC from external power supply (not included). This product is subject to export control regulations. You should always consult and comply with the regulations of the appropriate local export control authorities.
This product has been discontinued.
Properties
| Properties | AXIS Q8752-E Zoom 8.3 fps |
| Description | The AXIS Q8752-E Zoom is a robust outdoor camera with 8.3 fps frame rate. Boasting exceptional zoom capabilities, it excels in detailed surveillance across diverse environments, ensuring comprehensive monitoring and security. |
| Product Family | AXIS Q8752-E Bispectral PTZ Camera |
| Product Type | Camera |
Specifications
| Specifications | AXIS Q8752-E Zoom 8.3 fps |
| Camera | |
| Image sensor | Visual: 1/2.8” progressive scan CMOS |
| Thermal: Uncooled microbolometer 640×480 pixels, pixel size: | |
| 17 µm. Spectral range: 8–14 µm | |
| Lens | Visual: Varifocal, 4.3-137.6 mm, F1.4-4.0 |
| Horizontal field of view: 58.5°–2.4° | |
| Vertical field of view: 35°–1.3° | |
| Autofocus, auto-iris | |
| Thermal: | |
| Zoom: | |
| Athermalized 35–105 mm, F1.6 | |
| Near focus distance: 22–195 m (72–640 ft) | |
| Near manual focus distance: 7 m (23 ft) | |
| Horizontal field of view: 18°–6° | |
| Vertical field of view: 13.5°–4.5° | |
| Day and night | Visual: Automatically removable infrared-cut filter |
| Minimum illumination | Visual: |
| Color: 0.09 lux at 30 IRE, F1.4 | |
| B/W: 0.008 lux at 30 IRE, F1.4 | |
| Color: 0.06 lux at 50 IRE, F1.4 | |
| B/W: 0.01 lux at 50 IRE, F1.4 | |
| Sensitivity | Thermal: NETD < 50 mK |
| Shutter speed | Visual: 1/66500 s to 2 s |
| Pan/Tilt/Zoom | Pan: 360° endless, 0.05°–120°/s |
| Tilt: -90° to +45°, 0.05°–65°/s | |
| Jerk-free movements at low speed: ±0.01°/s (at 0.05°/s) | |
| Preset accuracy: 0.05° | |
| 256 preset positions, guard tour, control queue, focus window, | |
| on-screen directional indicator, de-icing control*, | |
| dynamic load balancing** | |
| Visual: 32x optical zoom, 12x digital zoom, total 384x zoom, | |
| focus recall | |
| Thermal: Zoom: 3x thermal zoom and 4x digital zoom, total | |
| 12x zoom | |
| * Internal heaters to defrost ice build-up, activated by HTTP API (VAPIX) | |
| ** Pan and tilt motors actively compensate for changes in load conditions induced by external forces such as high winds. This allows minimum power consumption at low wind. | |
| System on chip (SoC) | |
| Model | ARTPEC-7 |
| Video | |
| Video compression | H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles |
| H.265 (MPEG-H Part 2/HEVC) Main Profile | |
| Motion JPEG | |
| Resolution | Visual: 1920×1080 HDTV 1080p to 320×180 |
| Thermal: Sensor is 640×480. Image can be scaled up to 800×600 | |
| (SVGA) | |
| Frame rate | Visual: Up to 50/60 fps (50/60 Hz) in HDTV 1080p |
| Thermal: Up to 8.3 fps | |
| Video streaming | Multiple, individually configurable streams in H.264, H.265 and |
| Motion JPEG | |
| Axis Zipstream technology in H.264 and H.265 | |
| Controllable frame rate and bandwidth | |
| VBR/ABR/MBR H.264/H.265 | |
| Image settings | Visual: Saturation, contrast, brightness, sharpness, Forensic |
| WDR: up to 120 dB depending on scene, white balance, day/night | |
| threshold, tone mapping, exposure control, exposure zones, | |
| defogging, compression, dynamic text and image overlay, 32 | |
| individual polygon privacy masks, electronic image stabilization | |
| Thermal: Compression, brightness, sharpness, contrast, local | |
| contrast, exposure control, exposure zones, text and image | |
| overlay, electronic image stabilization | |
| Audio | |
| Audio streaming | Audio in, simplex |
| Echo cancellation and noise cancellation | |
| Audio encoding | 24bit LPCM, AAC-LC 8/16/32/48 kHz, G.711 PCM 8 kHz, G.726 |
| ADPCM 8 kHz, Opus 8/16/48 kHz | |
| Configurable bit rate | |
| Audio input/output | External microphone input or line input |
| Network | |
| Security | Password protection, IP address filtering, HTTPS* encryption, IEEE 802.1x (EAP-TLS)* network access control, digest authentication, user access log, centralized certificate management, brute force delay protection, signed firmware, secure boot, signed video, Axis Edge Vault, Axis device ID, secure keystore (CC EAL4 certified), TPM (FIPS 140-2 certified) |
| *This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (openssl.org), and cryptographic software written by Eric Young | |
| Supported protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS*, HTTP/2, TLS*, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, NTCIP, LLDP, CDP, MQTT v3.1.1, Syslog, Link-Local address (ZeroConf) |
| * This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (openssl.org), and cryptographic software written by Eric Young | |
| System Integration | |
| Application Programming Interface | Open API for software integration, including VAPIX® and |
| AXIS Camera Application Platform; specifications at axis.com | |
| ONVIF® Profile G, ONVIF® Profile S, and ONVIF® Profile T, | |
| specification at onvif.org | |
| Event conditions | Device status: above operating temperature, above or below |
| operating temperature, below operating temperature, IP address | |
| removed, network lost, new IP address, shock detected, ring | |
| power overcurrent protection, storage failure, system ready, | |
| within operating temperature | |
| Edge storage: recording ongoing, storage disruption | |
| I/O: digital input, manual trigger, virtual input | |
| MQTT subscribe | |
| PTZ: PTZ malfunctioning, PTZ movement, PTZ preset position | |
| reached, PTZ ready | |
| Scheduled and recurring: scheduled event | |
| Video: average bitrate degradation, day-night mode, ive stream | |
| open, tampering | |
| Event actions | Record video: SD card and network share |
| Upload of images or video clips: FTP, SFTP, HTTP, HTTPS, network share and email | |
| Pre- and post-alarm video or image buffering for recording or upload | |
| Notification: email, HTTP, HTTPS, TCP and SNMP trap | |
| PTZ: PTZ preset, start/stop guard tour | |
| Overlay text, external output activation, wiper sequence, washer | |
| sequence, zoom preset, day/night mode | |
| MQTT publish | |
| Data streaming | Event data |
| Built-in installation aids | Pixel counter, focus assistant |
| Analytics | |
| Applications | Included |
| AXIS Motion Guard, AXIS Fence Guard, AXIS Loitering Guard | |
| AXIS Video Motion Detection, Orientation AID PTZ, audio | |
| detection, advanced gatekeeper | |
| Support for AXIS Camera Application Platform enabling | |
| installation of third-party applications, see axis.com/acap | |
| General | |
| Casing | IP66-, NEMA 4X- and IK10-rated* |
| powder coated aluminum | |
| Color: white NCS S 1002-B | |
| Front window: visual: glass, thermal: germanium | |
| Long-life silicone wiper | |
| Weathershield: high-impact UV-stabilized thermoplastic | |
| * Excluding front window | |
| Sustainability | PVC free |
| Memory | 2048 MB RAM, 512 MB Flash |
| Power | 20–28 V AC/DC, typical 16 W, max 204 W |
| Power loss recovery* | |
| TVS 2000V, surge protection, voltage transient protection | |
| I/O connector: output power 12 V DC, max load 50 mA | |
| *IP data and home position retained, and guard tour and other events resumed | |
| Connectors | SFP slot (SFP module not included)* |
| Shielded RJ45 10BASE-T/100BASE-TX/1000BASE-T | |
| I/O: 6-pin 2.5 mm terminal block for 4 configurable | |
| inputs/outputs | |
| Power: terminal block | |
| Audio (in camera unit): 3.5 mm mic/line in | |
| Illumination (in upper part of positioning unit) | |
| *If a network link is established via both the SFP slot and the RJ45 connector, the former acts as the primary link and the latter as the fail-over link. | |
| Storage | Support for microSD/microSDHC/microSDXC card and encryption |
| Recording to network-attached storage (NAS) | |
| For SD card and NAS recommendations see axis.com | |
| Operating conditions | (-40 °C to 55 °C) (-40 °F to 131 °F) |
| Maximum temperature (intermittent): 65 °C (149 °F) | |
| Start-up temperature: -40 °C (-40 °F) | |
| Humidity 10-100% RH (condensing) | |
| Wind load when PTZ operational | |
| 37 m/s (83 mph)*, 45 m/s (100 mph) without weathershield | |
| With AXIS PT IR Illuminator Kit C: 40 m/s (90 mph), | |
| 52 m/s (116 mph) without weathershield | |
| Maximum effective projected area (EPA): 0.138 m² | |
| * The values shown are based on results from actual wind tunnel testing. For drag force calculations, use maximum effective projected area (EPA). | |
| Storage conditions | (-40 °C to 70 °C) (-40 °F to 158 °F) |
| Approvals | EMC |
| EN 55032 Class A, EN 55024, EN 61000-6-1, EN 61000-6-2, | |
| FCC Part 15 Subpart B Class A, VCCI Class A ITE, | |
| ICES-3(A)/NMB-3(A), CISPR 35, RCM AS/NZS CISPR 32 Class A, | |
| EN 50121-4, IEC 62236-4, EN 50498, KC KN32 Class A, KC KN35 | |
| Safety | |
| IEC/EN/UL 62368-1, IEC/EN/UL 60950-22, | |
| CAN | |
Accessories
| Optional accessories | • AXIS Surveillance Cards • AXIS T94J01A Wall Mount • AXIS T94N01G Pole Mount • AXIS T95A64 Corner Bracket • AXIS Washer Kit B • AXIS Cable 24 V DC/24-240 V AC 22 m* • AXIS T8611 SFP Module LC.LX • AXIS T8612 SFP Module LC.SX • AXIS T8613 SFP Module 1000BASE-T • AXIS PT IR Illuminator Kit C • AXIS T99 Illuminator Bracket Kit A • Power supply DIN PS24 480 W • AXIS T61 Audio and • I/O Interface Series * When using the 22 m (72 ft) AXIS Cable 24 V DC/24–240 V AC, a power supply capable of delivering 300 W is required to compensate for the power loss in the cable |
