Call for Price
Provides up to 60 W of power for high-demand network devices, Built to withstand harsh environments, ideal for industrial applications, Data Rate
Description

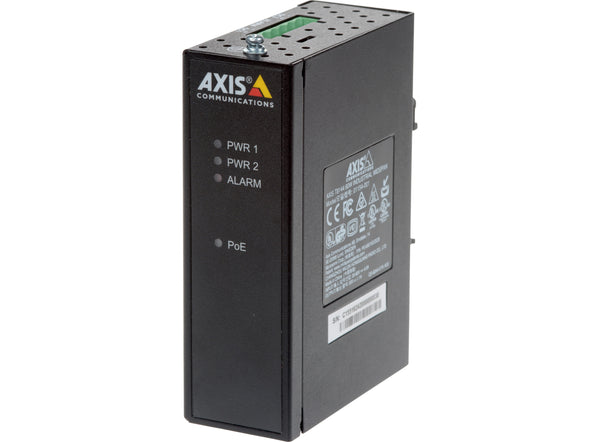

AXIS T8144 60 W Industrial Midspan
The AXIS T8144 60 W Industrial Midspan is an industrial-grade, 1-port midspan designed for powering network devices in harsh environments. With its robust construction, wide temperature range, and dual DC input for power redundancy, this midspan is ideal for industrial applications where reliable power delivery is essential. It supports Power over Ethernet (PoE) with up to 60 W of power, making it compatible with high-power Axis network devices. The AXIS T8144 is easy to install with plug-and-play functionality and can be mounted inside cabinets or on DIN rails for added versatility.
Key Features:
- 60 W Power over Ethernet: Provides up to 60 W of power for high-demand network devices.
- Wide Operating Temperature Range: Operates in extreme temperatures from -40 °C to 75 °C (-40 °F to 167 °F).
- Dual DC Input: Ensures power redundancy with support for 20-60 V DC input.
- Industrial-Grade Construction: Built to withstand harsh environments, ideal for industrial applications.
- Plug-and-Play Installation: Automatically detects PoE and High PoE-enabled devices for easy setup.
Technical Specifications:
- Power Output: 55 V DC, max 60 W
- Input Voltage: 20-60 V DC, max 72 W
- Data Rate: 10/100/1000 Mbps
- Connectors: Shielded RJ45, EIA 568A/568B, 6-pin DC power and alarm terminal connector
- Operating Conditions: -40 °C to 75 °C (-40 °F to 167 °F), humidity max 95% RH (non-condensing)
- Dimensions: 78 x 36 x 111 mm (3.1 x 1.4 x 4.4 in)
- Weight: 315 g (0.7 lb)
For more information about the AXIS T8144 60 W Industrial Midspan, visit the Axis product page.
Properties
| Product Name | AXIS T8144 60 W Industrial Midspan |
| Description | The AXIS T8144 is an industrial-grade, 1-port midspan providing reliable PoE power up to 60 W for network devices in harsh environments. It features a rugged design, wide operating temperature range, and dual DC input for redundancy, ideal for industrial applications requiring high power delivery. |
| Power Output | 55 V DC, max 60 W |
| Input Voltage | 20-60 V DC, max 72 W |
| Data Rate | 10/100/1000 Mbps |
| Connector Type | Shielded RJ45, EIA 568A/568B, 6-pin DC power and alarm terminal connector |
| Dimensions | 78 mm x 36 mm x 111 mm (3.1 in x 1.4 in x 4.4 in) |
| Weight | 315 g (0.7 lb) |
| Mounting Options | Cabinet or DIN rail mount |
| Usage | Designed for powering high-power Axis network devices in industrial settings |
| Durability | Engineered for extreme conditions with industrial-grade construction |
Specifications
| PoE Compatibility | IEEE 802.3af/at, up to 60 W for high-power devices |
| Certifications | CE, FCC, UL, RoHS compliant |
| Environmental Safety | RoHS 3 compliant (Directive 2015/863/EU) |
| EMC Compliance | Meets EN 55032, EN 55024, and FCC Part 15 standards |
| Operating Temperature | -40°C to 75°C (-40°F to 167°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity | Max 95% RH (non-condensing) |
| Redundancy | Dual DC input (20-60 V) for power redundancy |
| Power Consumption | Maximum 72W input for efficient power management |
| Installation Features | Plug-and-play for automatic device detection and setup |
| Reliability | Tested for continuous operation in industrial and extreme environments |
| Monitoring and Diagnostics | Real-time status monitoring through compatible network interfaces |
| Security Features | Standard security through shielded connections and secure power inputs |
| Firmware Updates | Not applicable |
