Description

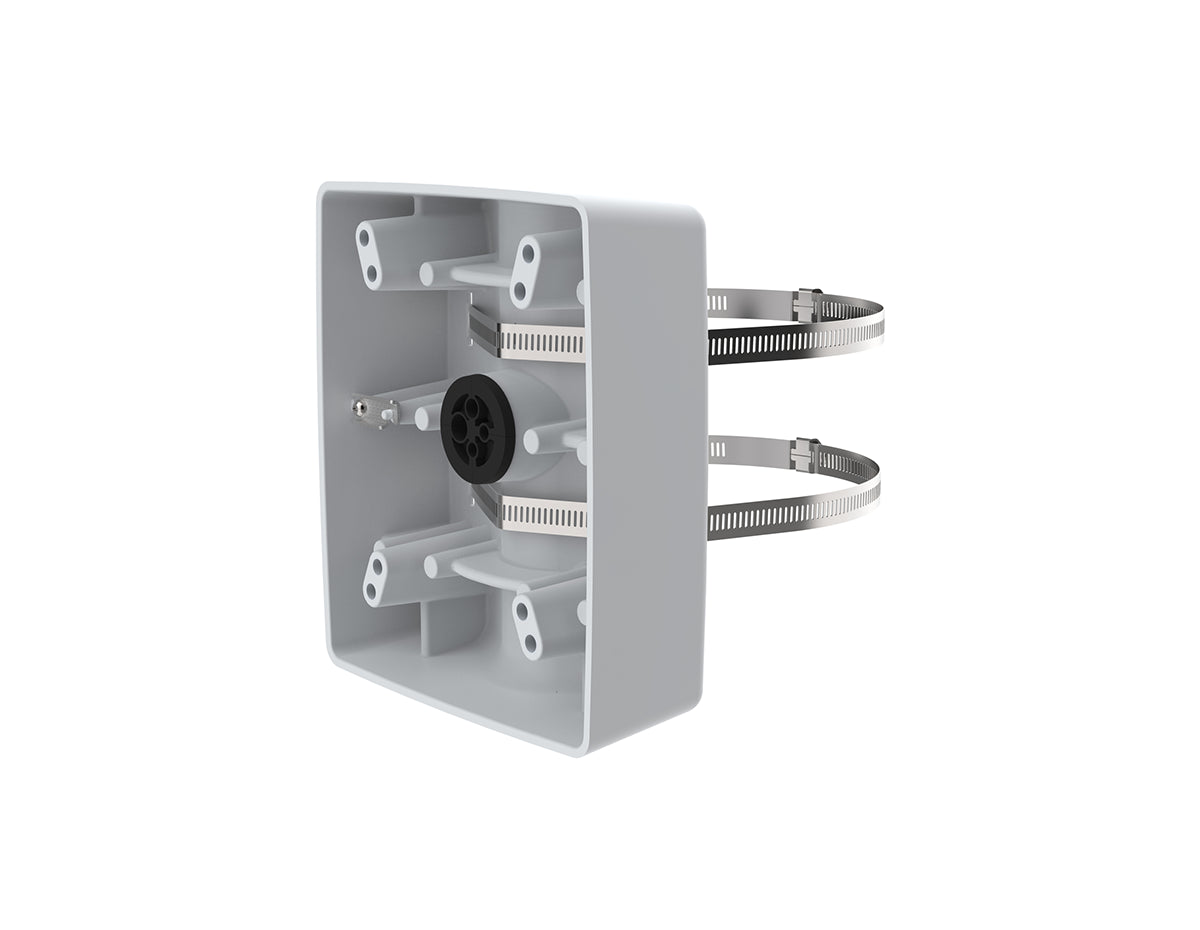

AXIS T91B57 Pole Mount 100-410MM

The AXIS T91B57 Pole Mount is a robust and durable solution designed for secure installations on poles with diameters between 100–410 mm (4–16 in). It is compatible with a range of Axis wall mounts and cabinet series, providing flexible mounting options for various environments. The IK10-rated mount ensures protection against vandalism and impacts, making it ideal for both indoor and outdoor installations. Additionally, the closed back design and cable gasket offer protection against insect infestation, ensuring a long-lasting and reliable installation.

Key Features:

• Indoor and Outdoor Use: Suitable for use in various environments with robust protection against weather conditions.
• IK10 Impact Resistance: Vandal-resistant design to withstand harsh environments and tampering.
• Flexible Pole Diameter Support: Fits poles with a diameter of 100–410 mm (4–16 in), providing versatile installation options.
• Cable Protection: Closed back design and cable gasket prevent insect infestation and ensure secure cable management.
• High Load Capacity: Supports up to 30 kg (66 lb) of equipment, making it suitable for heavy-duty installations.

Technical Specifications:

• Supported Products: AXIS T91G61 Wall Mount, AXIS T91H61 Wall Mount, AXIS T98A-VE Cabinet Series, AXIS A9188-VE Network I/O Relay Module
• Pole Diameter: 100–410 mm (4–16 in)
• Maximum Load: 30 kg (66 lb)
• Material: IK10-rated powder-coated aluminum
• Cable Routing: Back cable hole, requires AXIS T91G61 or AXIS T98A
• Dimensions: 190 x 214 x 67 mm (7 1/2 x 8 7/16 x 2 5/8 in)
• Weight: 1.4 kg (3.2 lb)

For more information about the AXIS T91B57 Pole Mount 100-410MM, visit the Axis product page.
