Description

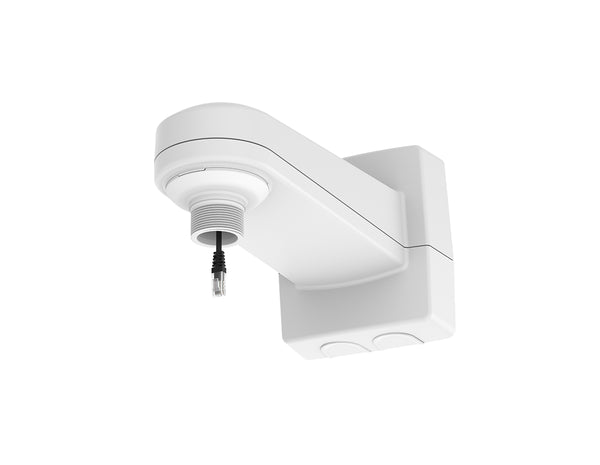

AXIS T91H61 Wall Mount

The AXIS T91H61 Wall Mount is a durable and versatile mounting solution designed for fixed dome cameras. It accommodates and safely protects accessories such as connectivity devices and midspans within the mount. Featuring a built-in RJ45 cable for quick and easy connections, this mount is impact- and weather-resistant, making it suitable for both indoor and outdoor installations. With optional accessories, it can also be mounted on poles or corners, providing flexibility for various installation environments.

Key Features:

• Room for Connectivity Devices: Designed to protect accessories such as midspans and service loops inside the mount (midspan not included).
• Impact and Weather-Resistant: Built to withstand rain, dust, corrosion, and impacts with IK10- and IP66-rated protection.
• Built-in RJ45 Cable: Includes an integrated RJ45 cable for quick connection to power and data.
• Flexible Mounting Options: Can be installed on walls, poles, or corners with optional accessories.

Technical Specifications:

• Material: Powder-coated aluminum casing (white NCS S 1002-B)
• Dimensions: 185 x 214 x 404 mm (7.28 x 8.43 x 15.9 in)
• Weight: 3.9 kg (8.6 lb)
• Maximum Load: 30 kg (66 lb)
• Cable Routing: Back cable hole and 3/4″ conduit entrance x2
• Approvals: IK10, IP66, IEC/EN/UL 60950-1, IEC/EN/UL 60950-22, NEMA 250 Type 4X, MIL-STD 810G

For more information about the AXIS T91H61 Wall Mount, visit the Axis product page.
