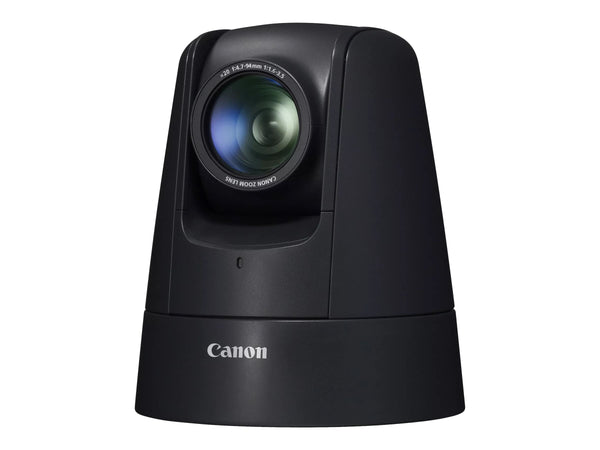

AXIS VB-H47B 1.3 MP Canon PTZ Network Camera (5715C002)

The AXIS VB-H47B 1.3 MP Canon PTZ Network Camera is a high-performance full HD PTZ security camera designed for precise indoor surveillance. With a powerful 20x optical zoom and 16x digital zoom, this camera provides clear, detailed images even in challenging lighting conditions. The advanced WDR (Wide Dynamic Range) function enhances visibility in high-contrast scenes, while low-light performance ensures color capture at 0.02 lux and monochrome at 0.003 lux. The camera supports intelligent video analytics, multiple streaming options, and ONVIF compliance for seamless integration with security systems.

Key Features:

• Full HD 1080p Resolution: Captures sharp and clear images.
• 20x Optical Zoom: Provides detailed close-up views.
• Excellent Low-Light Performance: 0.02 lux (color) and 0.003 lux (monochrome) sensitivity.
• Wide Dynamic Range (WDR): Enhances visibility in high-contrast scenes.
• Fast & Accurate PTZ: High-precision pan, tilt, and zoom functionality.
• ONVIF Compliant: Supports ONVIF Profile S, G, and T.
• Multiple Streaming Options: H.265, H.264, and MJPEG compression formats.

Technical Specifications:

• Image Sensor: 1/2.8” CMOS
• Resolution: 1920 x 1080 (Full HD)
• Lens: 20x optical zoom, 16x digital zoom
• Field of View: Horizontal: 62.4° (wide) – 3.3° (tele), Vertical: 36.3° (wide) – 1.9° (tele)
• Minimum Illumination: 0.02 lux (color), 0.003 lux (monochrome)
• Pan/Tilt Range: 340° pan, 100° tilt
• Pan/Tilt Speed: 150°/sec (max)
• Video Compression: H.265, H.264, MJPEG
• Frame Rate: Up to 60 fps
• Network Interface: RJ45, 100Base-TX
• Audio Input/Output: 3.5 mm mini-jack (mono)
• Power Supply: PoE (IEEE 802.3at) or 12V DC
• Operating Temperature: -10°C to 50°C (14°F to 122°F)
• Storage Support: microSD/microSDHC/microSDXC
• Dimensions: 132 x 155 mm (5.2 x 6.1 in)
• Weight: 1.1 kg (2.43 lb)
