Description

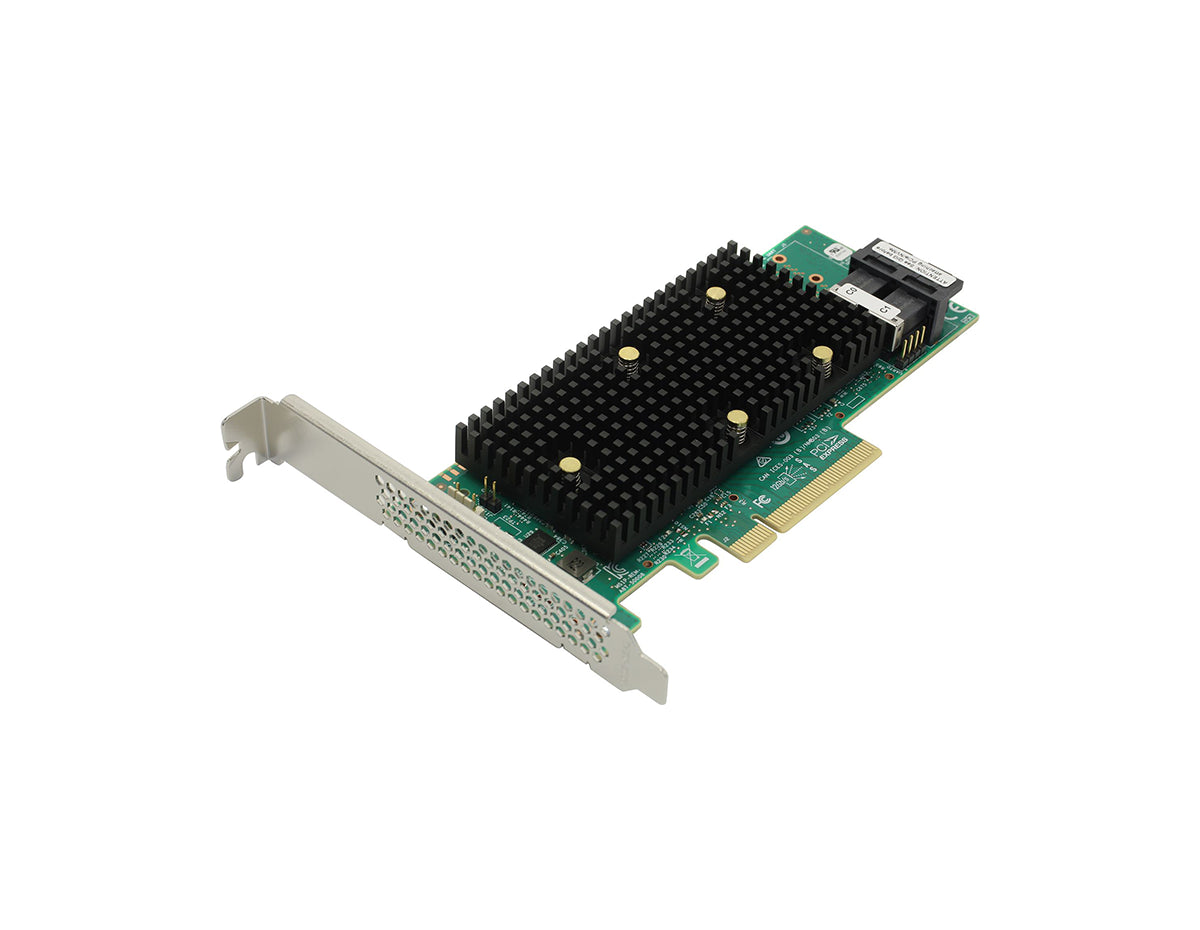

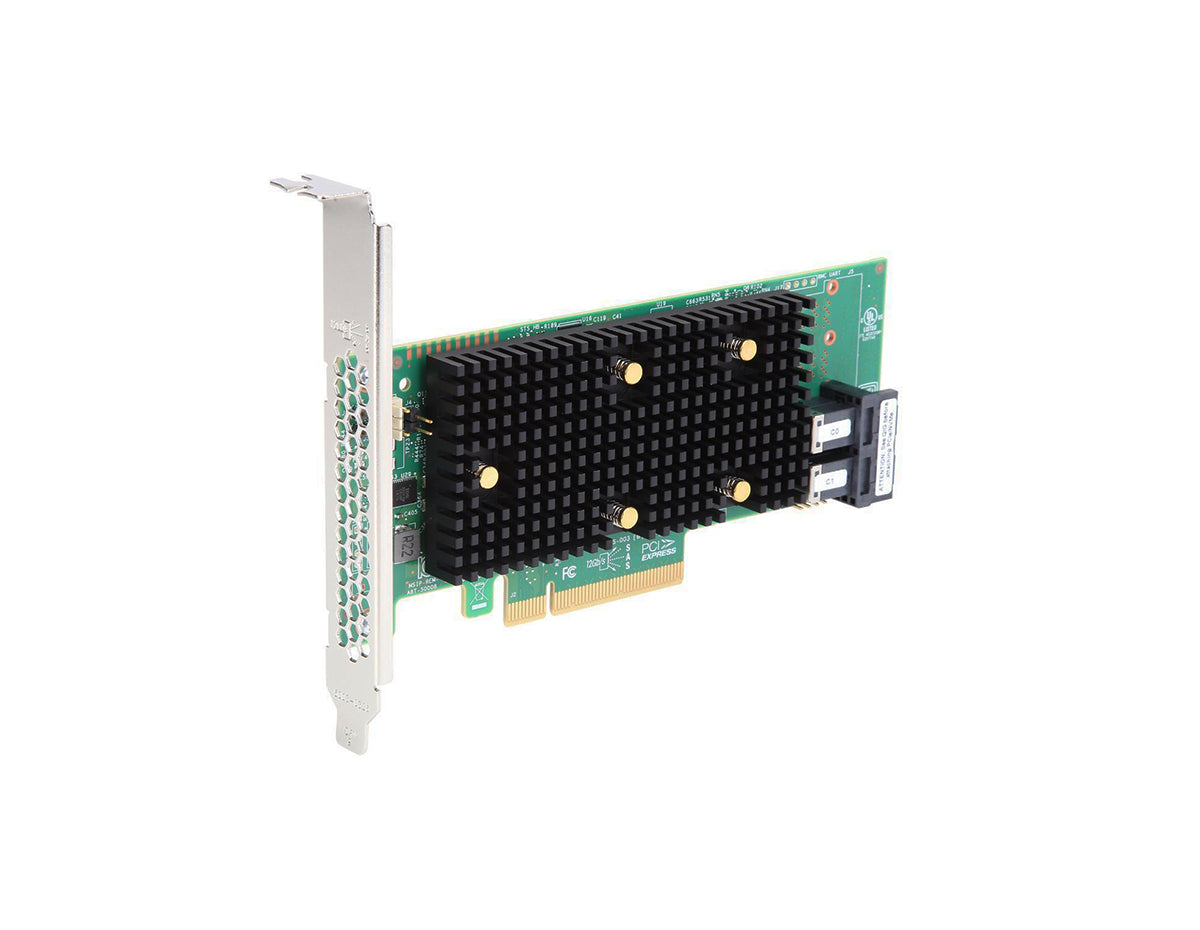

Broadcom LSI 9440-8i PCIe 3.1 x8 SAS3408 8 Internal Ports MegaRAID Tri-Mode Storage Adapter
The Broadcom LSI 9440-8i is the industry’s first hardware RAID adapter with Tri-Mode SerDes Technology, providing high performance storage connectivity and flexible system designs supporting NVMe, SAS, and SATA devices.
Key Features
- Tri-Mode Storage Interface Ports
- Supports NVMe, SAS, and SATA devices
- RAID levels: 0, 1, 5, 6, 10, 50, and 60
- CacheVault flash back-up at power fail
- PCIe 3.1 Host Interface with x8, x4, x2, x1 PCIe lanes
Specifications
- Product: 9440-8i
- Ports: 8 internal
- Connectors: Two SFF-8643
- Storage Interface Support: SAS, SATA, PCIe (NVMe)
- Max PCIe (NVMe) Direct Attach Devices: Two x4, Two x2 (Direct Attached Only)
- Max Devices Per Controller: SAS/SATA: 63, NVMe: 2
- Host Bus Type: PCIe 3.1 x8
- Physical Dimensions: 6.127″ x 2.712″ (155.65 mm x 68.90 mm)
- Typical Power: 10.05W
- Operating Conditions: 0°C to 55°C, 20 to 80% non-condensing
- Storage Conditions: -45°C to 105°C, 5 to 95% non-condensing
- MTBF (Calculated): >3,000,000 hours at 40°C
- Operating Voltage: +12V +/-8%; 3.3V +/-9%
- Management Software: LSI Storage Authority (LSA), StorCLI (command-line interface), HII (UEFI Human Interface Infrastructure)
Properties
| Product Name | Broadcom LSI 9440-8i PCIe 3.1 x8 SAS3408 8 Internal Ports MegaRAID Tri-Mode Storage Adapter |
| Description | The Broadcom LSI 9440-8i is the industry’s first hardware RAID adapter with Tri-Mode SerDes Technology, providing high-performance storage connectivity and flexible system designs supporting NVMe, SAS, and SATA devices. |
| Manufacturer Part # | 05-50008-02 |
| Ports | 8 internal |
| Connectors | Two SFF-8643 |
| Storage Interface Support | SAS, SATA, PCIe (NVMe) |
| Cache Memory | N/A |
| Cache Protection | N/A |
| I/O Processor / SAS Controller | SAS3408 |
| Host Bus Type | PCIe 3.1 x8 |
| Management Software | LSI Storage Authority (LSA), StorCLI (command-line interface), HII (UEFI Human Interface Infrastructure) |
Specifications
| Tri-Mode Connectivity | Supports NVMe, SAS, and SATA devices |
| RAID Levels | 0, 1, 5, 6, 10, 50, 60 |
| Max PCIe (NVMe) Direct Attach Devices | Two x4, Two x2 (Direct Attached Only) |
| Max Devices Per Controller | SAS/SATA: 63, NVMe: 2 |
| Physical Dimensions | 6.127″ x 2.712″ (155.65 mm x 68.90 mm) |
| Typical Power | 10.05W |
| Airflow | 200 LFM at 55°C |
| Operating Voltage | +12V +/-8%; 3.3V +/-9% |
| Operating Conditions | 0°C to 55°C, 20 to 80% non-condensing |
| Storage Conditions | -45°C to 105°C, 5 to 95% non-condensing |
| MTBF | >3,000,000 hours at 40°C |
| Regulatory Certifications | USA (FCC 47 CFR part 15 Subpart B, class B); Canada (ICES-003, Class B); Taiwan (CNS 13438); Japan (VCCI V-3); Australia/New Zealand (AS/NZS CISPR 22); Korea (RRA no 2013-24 & 25); Europe (EN55022/EN55024); Safety (EN/IEC/UL 60950); RoHS; WEEE |
| OS Support | Microsoft Windows. Contact Oracle support for Oracle Solaris driver or software support. See www.broadcom.com/support/download-search for details on versions. |
