Broadcom MegaRAID 9560-8I Storage Controller The MegaRAID 9500 series represents the first RAID adapter family in the industry to utilize PCIe Gen 4.0 technology, providing support for both PCIe…
Description

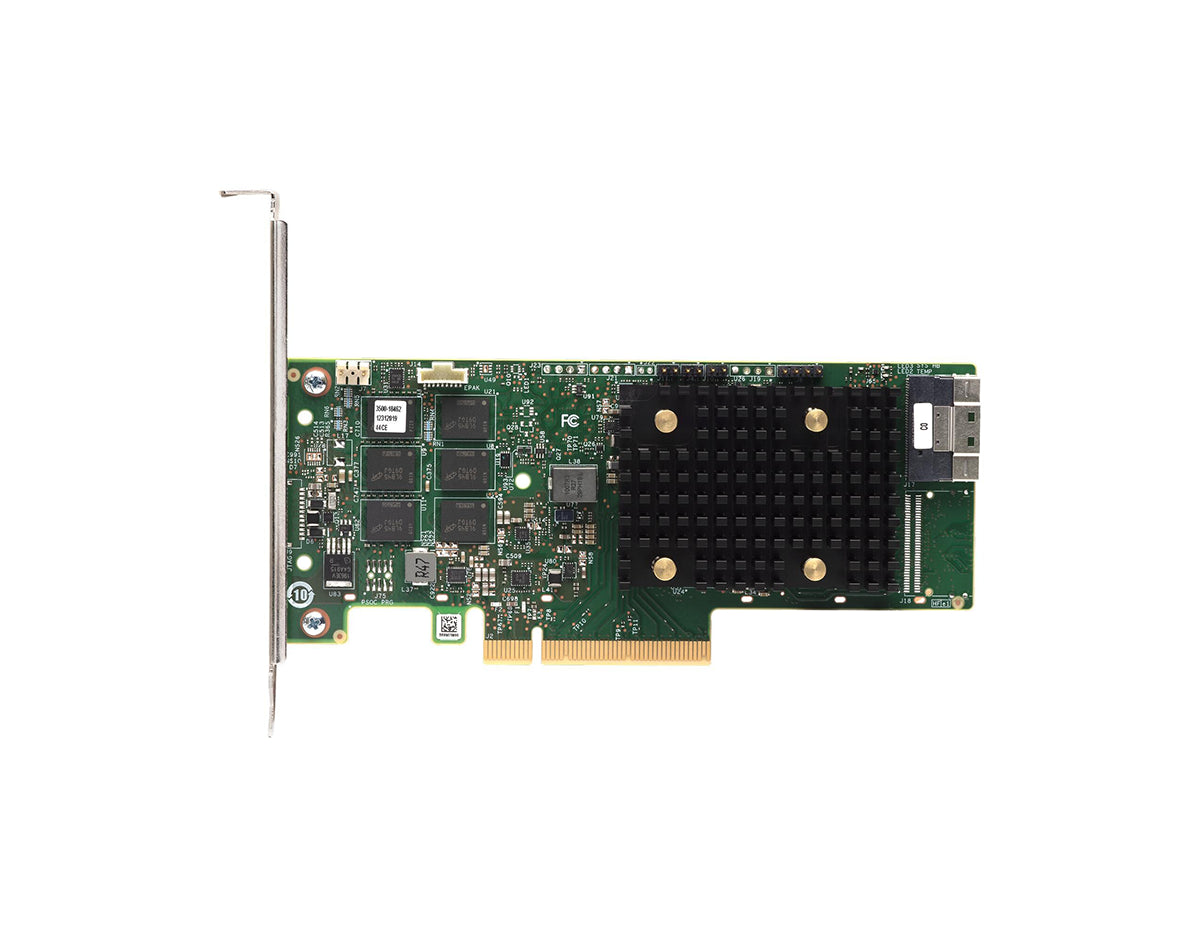

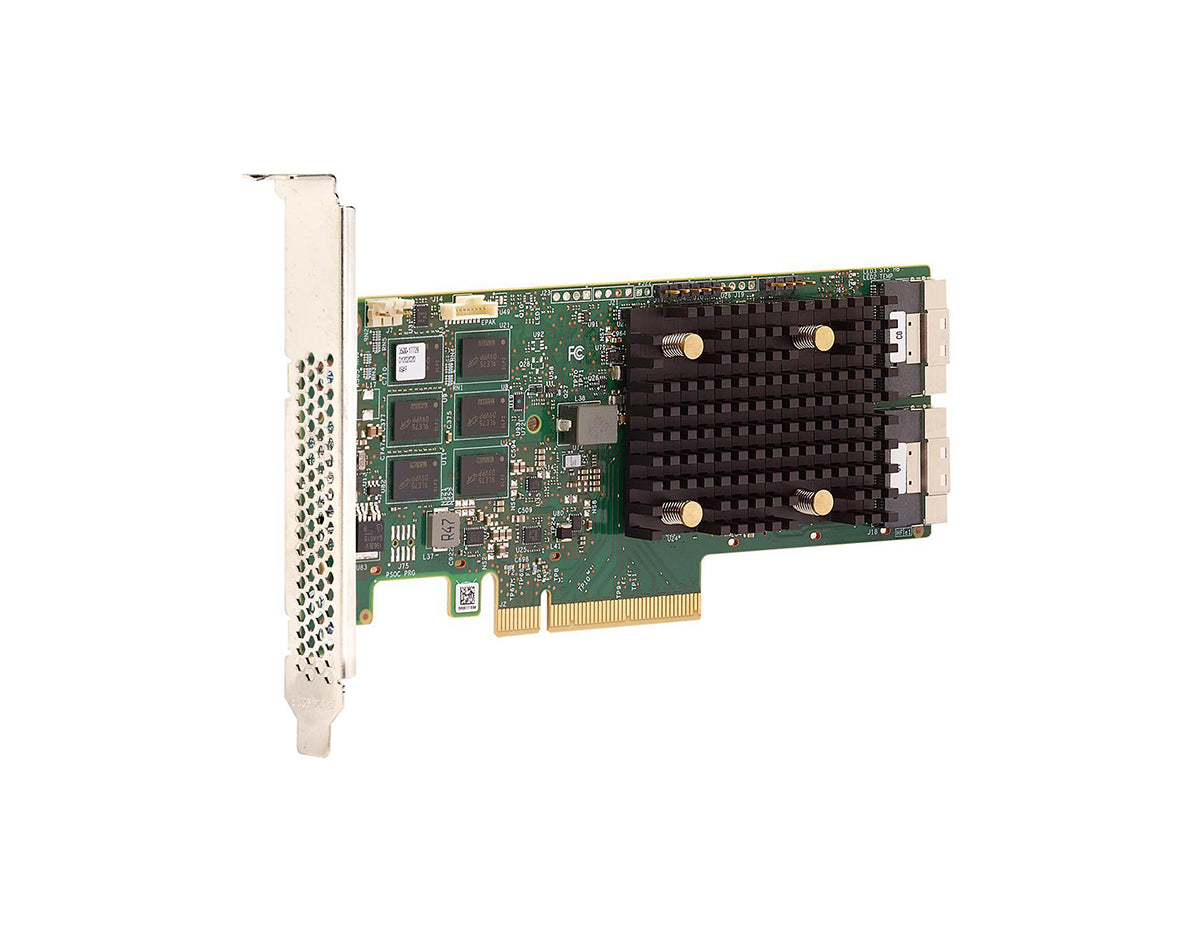

Broadcom MegaRAID 9560-8I Storage Controller
The MegaRAID 9500 series represents the first RAID adapter family in the industry to utilize PCIe Gen 4.0 technology, providing support for both PCIe Gen 4.0 host and storage interfaces. The MegaRAID 9560-8i adapter, which is built on the SAS3908 high-port count PCIe 4.0 x8 RAID-on-Chip (RoC), offers a performance improvement of up to two times compared to previous generations. Additionally, the 9560-8i is designed to be compatible with existing PCIe SFF-8639 Module (U.2) backplanes, enabling users to enhance performance in today’s increasingly bandwidth-intensive environments.
Quick Specs:
- Form-factor friendly cable exit
- Connects up to 240 SAS/SATA devices or 32NVMe devices
- Universal Bay Management (UBM) ready
- 8 internal ports
Please see the related tabs for the 9500-8e datasheet and compatible accessories.
Properties
| Product Name | Broadcom 9500-8e GEN4 Tri-Mode Storage Adapter | |
| Product Description | PCIe Gen 4.0 HBA with eight external ports, optimized for high-performance connectivity and scalability in enterprise data centers. | |
| Interface | PCIe Gen 4.0 | SATA 6 Gbps |
| Port Configuration | 8 external ports | |
| Supported Devices | Connects up to 1024 SAS/SATA devices or 32 NVMe devices | |
| Controller Type | SAS3808 x8 Gen 4.0 I/O Controller | |
| Compatibility | Universal Bay Management (UBM) ready | |
| Performance Feature | Enhanced bandwidth and IOPS for critical applications | |
| Intended Application | Enterprise data centers requiring high performance and scalability | |
Specifications
| Interface Type | PCIe Gen 4.0 |
| External Ports | 8 |
| Device Compatibility | Supports SAS, SATA, and NVMe devices with Tri-Mode operation |
| Maximum Device Support | Up to 1024 SAS/SATA or 32 NVMe devices |
| Controller Type | SAS3808 x8 Gen 4.0 I/O Controller |
| Performance Benefits | Optimized for high bandwidth and IOPS performance |
| Compatibility Feature | Universal Bay Management (UBM) ready |
| Ideal for | Critical applications in enterprise data centers |
