Original price was: $16,535.00.$8,433.00Current price is: $8,433.00.

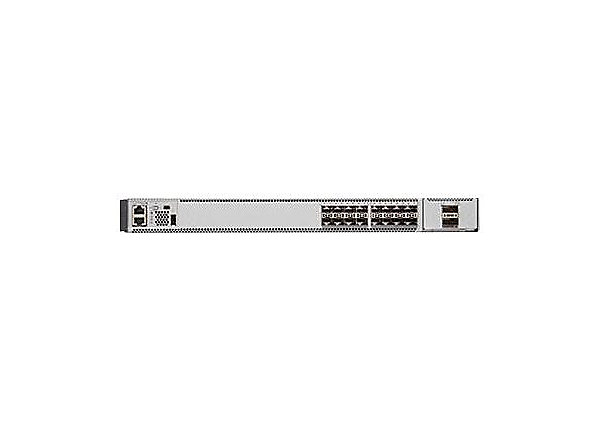

Cisco Catalyst 9500 16-port 10G switch, NW Adv. License
Call 1.888.428.6677 Option 1 To Order or For Pricing
Tech Specs
-
Header
- Cisco Systems
- Cisco
- Cisco Catalyst
- 9500
- Network Advantage
- 1
-
Chassis
- RFID tag
-
Processor
- 1
- 2.4 GHZ
-
RAM
- 16 GB
-
Flash Memory
- 16 GB
-
Performance
- Forwarding rate: up to 360 Mpps, Switching capacity (full duplex): up to 480 Gbps
-
Capacity
- Host IPv4 routes: 80000, QoS ACL scale: 18000, VLAN IDs: 4000, Multicast scale: 16000, Host IPv6 routes: 40000, Switched virtual interfaces (SVIs): 4000, Indirect IPv6 routes: 32000, Security ACL scale: 18000, FNF entries: 512000, Indirect IPv4 routes: 64000
-
Networking
- Switch
- Network hubs and switches
- 10 Gigabit Ethernet
- Rack-mountable
- Stackable
- 16
- Layer 3
- PIM-SM, RIP-1, RIP-2, RIPng, VRRP, OSPF, Policy-based routing (PBR), IGMP, PIM-SSM
- 64K entries
- 9198 bytes
- Yes
- RMON 1, TFTP, NETCONF, SNMP 3, SNMP 1, RESTCONF, SNMP, RMON 2
- Status
- Hot Standby Router Protocol (HSRP) support, Private VLAN, CoAP support, NAT support, VLAN Double Tagging (Q-in-Q), Hierarchical Virtual Private LAN Service (H-VPLS), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Ethernet over MPLS (EoMPLS), Non-Stop Routing (NSR), Remote Switch Port Analyzer (RSPAN), MPLS support, Virtual Routing and Forwarding (VRF), Virtual Route Redundancy Protocol (VRRP) support, Flexible NetFlow (FNF), Trunking, Weighted Random Early Detection (WRED), Access Control List (ACL) support, Switched Port Analyzer (SPAN), Quality of Service (QoS), Non-Stop Forwarding (NSF), PAT support, Integrated Wireshark, DHCP support, Class-Based Weighted Fair Queuing (CBWFQ), Layer 3 VPN (L3VPN) support, Maximum Likelihood Demodulation (MLD), Spanning Tree Protocol (STP) support, Multicast Source Discovery Protocol (MSDP), MACsec support
- IEEE 802.1w, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3ba, IEEE 802.1ae, IEEE 802.3x, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1D, IEEE 802.1s, IEEE 802.3ad (LACP), IEEE 802.1p, IEEE 802.3
-
Ports
- 16
- 10 Gigabit Ethernet
-
Ports (2nd)
- 2
- 10 Gigabit SFP+
-
Interface Provided
- 16 x 10Gbit LAN RJ-45, 2 x 10GBase-X SFP+
-
Software
- Cisco IOS Universal
-
Power Device
- Internal power supply
- Hot-plug
- Yes
- 2
- 2
- 950 watt
- AC 120/230 V
- 50 – 60 hertz
- Front-to-rear air?ow
-
Miscellaneous
- Gray
- 1
- 256-bit AES
- 315,790 Hours
- AS/NZS 60950-1, IEC 60950-1, CISPR 22 Class A, EN50082-1, AS/NZS CISPR22:2004 Class A, KN24, KN22 Class A, EN 61000-3-3, ICES-003 Class A, CNS 13438 Class A, EN 61000-3-2, EN 61000-6-1, EN55024, EN 55022 Class A, EN 300386, GB 4943, VCCI Class A, CAN/CSA-C22.2 No. 60950-1, UL 60950-1, FCC CFR47 Part 15 A, EN 60950-1, CISPR 24, KN 61000-4, EN 300 386
-
Dimensions & Weight
- 1.7 inch
- 17.5 inch
- 21.5 inch
- 23.59 lbs
-
Service & Support
- Limited lifetime warranty
-
Service & Support Details
- Limited warranty – replacement – lifetime – response time: next business day, Technical support – consulting – 90 days
-
Environmental Parameters
- 32 degree Fahrenheit
- 104 degree Fahrenheit
- -4 degree Fahrenheit
- 149 degree Fahrenheit
- 5 – 90% (non-condensing)
- 5 – 95% (non-condensing)
