Original price was: $16,560.00.$8,446.00Current price is: $8,446.00.

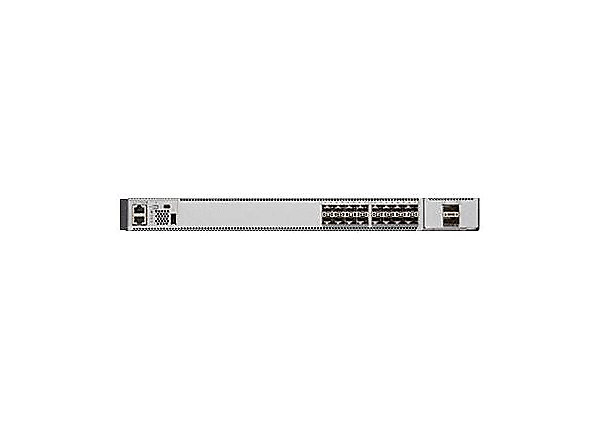

Cisco Catalyst 9500 16-port 10G switch, 8 x 10GE Network Module, NW Ess. License
Call 1.888.428.6677 Option 1 To Order or For Pricing
-
Header
- CISCO DS HARDWARE DIRECT
- Cisco
- Cisco Catalyst
- 9500
- Network Essentials
- 1
-
Chassis
- RFID tag
-
Processor
- 1
- 2.4 GHZ
-
RAM
- 16 GB
-
Flash Memory
- 16 GB
-
Performance
- Switching capacity (full duplex): up to 480 Gbps, Forwarding rate: up to 360 Mpps
-
Capacity
- Switched virtual interfaces (SVIs): 4000, Security ACL scale: 18000, Multicast scale: 16000, Host IPv4 routes: 80000, VLAN IDs: 4000, Indirect IPv4 routes: 64000, QoS ACL scale: 18000, FNF entries: 512000, Host IPv6 routes: 40000, Indirect IPv6 routes: 32000
-
Networking
- Switch
- Network hubs and switches
- 10 Gigabit Ethernet
- Rack-mountable
- 24
- Layer 3
- RIP-1, OSPF, PIM-SM, VRRP, RIP-2, Policy-based routing (PBR), PIM-SSM, IGMP, RIPng
- 64K entries
- 9198 bytes
- Yes
- RESTCONF, SNMP 3, SNMP 1, TFTP, SNMP, SNMP 2c, RMON 2, NETCONF, RMON 1
- Status
- NetFlow, DHCP support, Layer 3 VPN (L3VPN) support, Syslog support, Multicast Source Discovery Protocol (MSDP), CoAP support, Switched Port Analyzer (SPAN), MPLS support, Integrated Wireshark, Non-Stop Routing (NSR), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Trunking, PAT support, Spanning Tree Protocol (STP) support, NAT support, Private VLAN, Virtual Routing and Forwarding (VRF), Hot Standby Router Protocol (HSRP) support, Non-Stop Forwarding (NSF), Ethernet over MPLS (EoMPLS), Weighted Random Early Detection (WRED), Quality of Service (QoS), Hierarchical Virtual Private LAN Service (H-VPLS), Class-Based Weighted Fair Queuing (CBWFQ), Maximum Likelihood Demodulation (MLD), Virtual Route Redundancy Protocol (VRRP) support, IGMP snooping, Remote Switch Port Analyzer (RSPAN), IPv6 support
- IEEE 802.3ab, IEEE 802.1ae, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.1s, IEEE 802.3ad (LACP), IEEE 802.1D, IEEE 802.3ae, IEEE 802.1Q, IEEE 802.3z, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x
-
Ports
- 16
- 10 Gigabit Ethernet
-
Ports (2nd)
- 8
- 10 Gigabit SFP+
-
Interface Provided
- 16 x 10GBase-T RJ-45, 8 x 10GBase-X SFP+
-
Software
- Cisco IOS Universal, Cisco DNA Essential (5 years)
-
Power Device
- Internal power supply
- Hot-plug
- Yes
- 1+1
- 2
- 2
- 950 watt
- AC 120/230 V
- 50 – 60 hertz
- Front-to-rear air?ow
-
Miscellaneous
- Gray
- 1
- 256-bit AES
- GB 4943, EN 300386, AS/NZS CISPR22:2004 Class A, EN 55022 Class A, CAN/CSA-C22.2 No. 60950-1, KN 61000-4, KN22 Class A, VCCI Class A, UL 60950-1, CISPR 22 Class A, EN50082-1, EN55024, KN24, CISPR 24, EN 61000-6-1, AS/NZS 60950-1, EN 60950-1, EN 61000-3-2, EN 61000-3-3, FCC CFR47 Part 15 A, IEC 60950-1, ICES-003 Class A, CNS 13438 Class A, EN 300 386
-
Dimensions & Weight
- 17.5 inch
- 21.5 inch
- 1.7 inch
-
Service & Support
- Limited lifetime warranty
-
Service & Support Details
- Technical support – consulting – 90 days, Limited warranty – replacement – lifetime – response time: next business day
-
Environmental Parameters
- 32 degree Fahrenheit
- 104 degree Fahrenheit
- -4 degree Fahrenheit
- 149 degree Fahrenheit
- 5 – 90% (non-condensing)
- 5 – 95% (non-condensing)
