Original price was: $21,600.00.$11,016.00Current price is: $11,016.00.

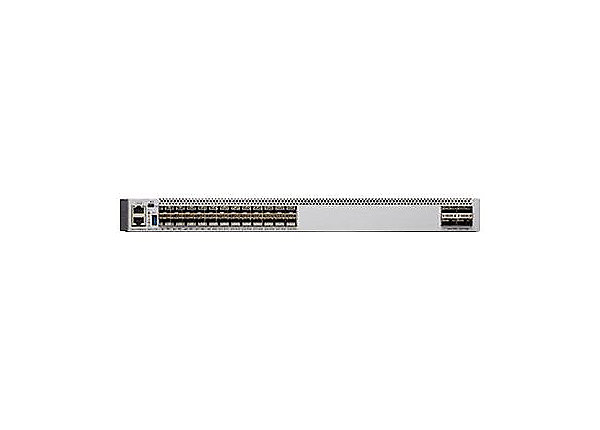

Cisco Catalyst 9500 Series high performance 24-port 1/10/25G switch, NW Adv. License
Call 1.888.428.6677 Option 1 To Order or For Pricing
-
Header
- CISCO DS HARDWARE DIRECT
- Cisco
- Cisco Catalyst
- 9500
- Network Advantage
- 1
-
Chassis
- RFID tag
-
Processor
- 1
- 2.4 GHZ
-
RAM
- 16 GB
-
Flash Memory
- 16 GB
-
Performance
- Forwarding rate: 1 Bpps, Switching capacity (full duplex): 1.6 Tbps
-
Capacity
- Switched virtual interfaces (SVIs): 4000, Multicast scale: 32000, Indirect IPv6 routes: 212000, Host IPv4 routes: 90000, Indirect IPv4 routes: 212000, Security ACL scale: 270000, Routing table entries: 80000, FNF entries: 96000, QoS ACL scale: 16000, Host IPv6 routes: 90000, VLAN IDs: 4000
-
Networking
- Switch
- Network hubs and switches
- 25 Gigabit Ethernet
- Rack-mountable
- 24
- Layer 3
- BGP, VRRP, EIGRP, PIM-SM, IGMP, RIPng, IS-IS, MSDP, OSPF, MPLS, RIP-2, PIM-SSM
- 64K entries
- 9198 bytes
- Yes
- TFTP, RESTCONF, NETCONF, SNMP 2c, SNMP 3, RMON 1, SNMP 1, RMON 2, SNMP
- Integrated Wireshark, NAT support, Stateful switchover (SSO), CoAP support, Class-Based Weighted Fair Queuing (CBWFQ), Non-Stop Forwarding (NSF), Hierarchical Virtual Private LAN Service (H-VPLS), Trunking, Multicast Source Discovery Protocol (MSDP), Weighted Random Early Detection (WRED), Hot Standby Router Protocol (HSRP) support, Maximum Likelihood Demodulation (MLD), Non-Stop Routing (NSR), MACsec support, VLAN Double Tagging (Q-in-Q), Access Control List (ACL) support, MPLS support, DHCP support, Control plane protection (CoPP), Remote Switch Port Analyzer (RSPAN), Switched Port Analyzer (SPAN), Ethernet over MPLS (EoMPLS), PAT support, Layer 3 VPN (L3VPN) support, Spanning Tree Protocol (STP) support, Private VLAN, Virtual Routing and Forwarding (VRF), Flexible NetFlow (FNF), Quality of Service (QoS), Virtual Route Redundancy Protocol (VRRP) support
- IEEE 802.1p, IEEE 802.3, IEEE 802.1s, IEEE 802.3ad (LACP), IEEE 802.3ba, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3ae, IEEE 802.3x, IEEE 802.1x, IEEE 802.1D, IEEE 802.1w, IEEE 802.1Q, IEEE 802.1ae
-
Ports
- 24
- 25 Gigabit SFP28
-
Interface Provided
- 2 x USB 3.0, 24 x 25Gbit LAN SFP28, 4 x 100Gbit LAN
-
Software
- Cisco IOS XE 16.8.1
-
Power Device
- Internal power supply
- Hot-plug
- Optional
- 1+1
- 1
- 2
- 650 watt
- AC 120/230 V
- 50 – 60 hertz
-
Miscellaneous
- Gray
- 1
- 256-bit AES
- 336,780 Hours
- ICES-003 Class A, CISPR 22 Class A, IEC 60950-1, BSMI Class A, EN 61000-4-5, EN 60950-1, EN 61000-3-3, FCC CFR47 Part 15 A, EN 55022 Class A, EN 61000-4-3, UL 60950-1, EN 61000-4-6, VCCI Class A, EN 61000-4-2, EN 61000-6-1, CCC, EN 61000-3-2, EN55024, AS/NZS 3548 Class A, VCCI V-3/2009 Class A, EN 61000-4-4, CISPR 24, RoHS 5/6, EN 300386, CAN/CSA C22.2 No. 60950-1, TVCN 7317, EN50082-1, EN 300 386, CAN/CSA-C22.2 No. 60950-1
-
Dimensions & Weight
- 17.5 inch
- 18 inch
- 1.7 inch
- 20.99 lbs
-
Service & Support
- Limited lifetime warranty
-
Service & Support Details
- Limited warranty – replacement – lifetime – response time: next business day, Technical support – consulting – 90 days
-
Environmental Parameters
- 32 degree Fahrenheit
- 104 degree Fahrenheit
- -4 degree Fahrenheit
- 149 degree Fahrenheit
- 5 – 90% (non-condensing)
- 5 – 95% (non-condensing)
