Description

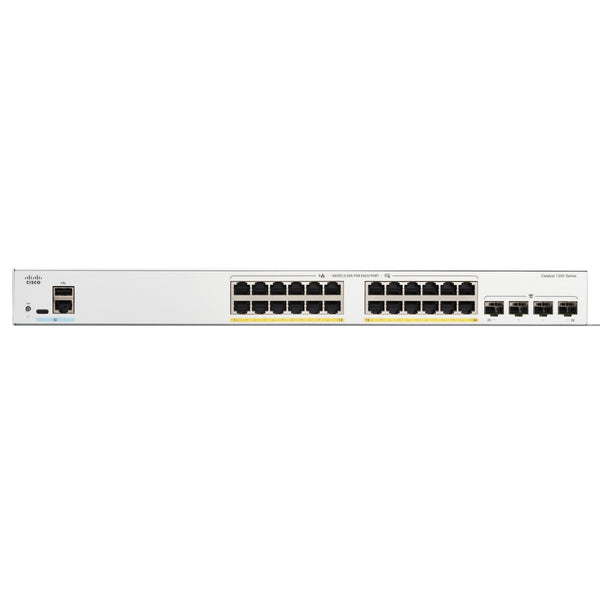

Cisco Catalyst C1200-24FP-4G 24-Port PoE+ Switch
The Cisco C1200-24FP-4G is a high-performance Layer 3 smart switch designed to meet the connectivity demands of small and medium-sized businesses. With 24 Gigabit Ethernet PoE+ ports and 4 dedicated Gigabit SFP uplinks, it offers fast and reliable network performance, delivering up to 30W of power per port with a total PoE budget of 375W. Managed through the Cisco Business Dashboard or mobile app, this switch provides intuitive control, Layer 3 static routing, VLAN management, and robust security features including ACLs, RADIUS, and DoS protection. Its rack-mountable design and comprehensive feature set make it ideal for IP phones, access points, cameras, and core network integration.
Key Features:
- Enterprise-Class PoE+: Supports 24 x 10/100/1000 PoE+ ports with a total PoE budget of 375W.
- High-Speed Uplinks: 4 x dedicated 1G SFP ports provide reliable fiber uplink options.
- Layer 3 Routing: Enables static IP routing with support for up to 32 routes and 16 IPv4 interfaces.
- Enhanced Network Control: Manage via web GUI, CLI, Cisco Business Dashboard, or mobile app.
- Advanced Security: IEEE 802.1X authentication, port security, ACLs, and DoS attack prevention.
- Traffic Optimization: QoS features with 8 hardware queues, WRR queuing, and DSCP/CoS tagging.
- Built for SMBs: Combines powerful performance with simplified cloud-managed configuration.
Technical Specifications:
- Model: C1200-24FP-4G
- Ports: 24 x 10/100/1000 Mbps (PoE+), 4 x 1G SFP uplinks
- PoE Budget: 375W total; up to 30W per port (IEEE 802.3af/at)
- Switching Capacity: 56 Gbps
- Forwarding Rate: 41.66 Mpps
- Layer Support: Layer 3 static routing
- VLAN Support: Up to 255 active VLANs
- MAC Address Table: 8000 entries
- Packet Buffer: 1.5 MB shared
- QoS Queues: 8 hardware queues per port
- Jumbo Frames: Up to 9000 bytes
- Management: Web UI, CLI, Cisco Business Dashboard, SNMP, RMON, SSH, Telnet
- Security: RADIUS, ACLs, DHCP snooping, DoS protection, port-based VLANs
- MTBF: 698,220 hours
- Fan: Yes (1 unit, 34.8 dBA)
- Power Consumption: Max 449.7W
- Power Supply: Internal, 100–240V AC, 50–60 Hz
- Form Factor: 1U rack-mountable
- Dimensions: 445 x 345 x 44 mm
- Weight: 4.6 kg
- Operating Temperature: -5°C to 50°C
