Call for Price
Description

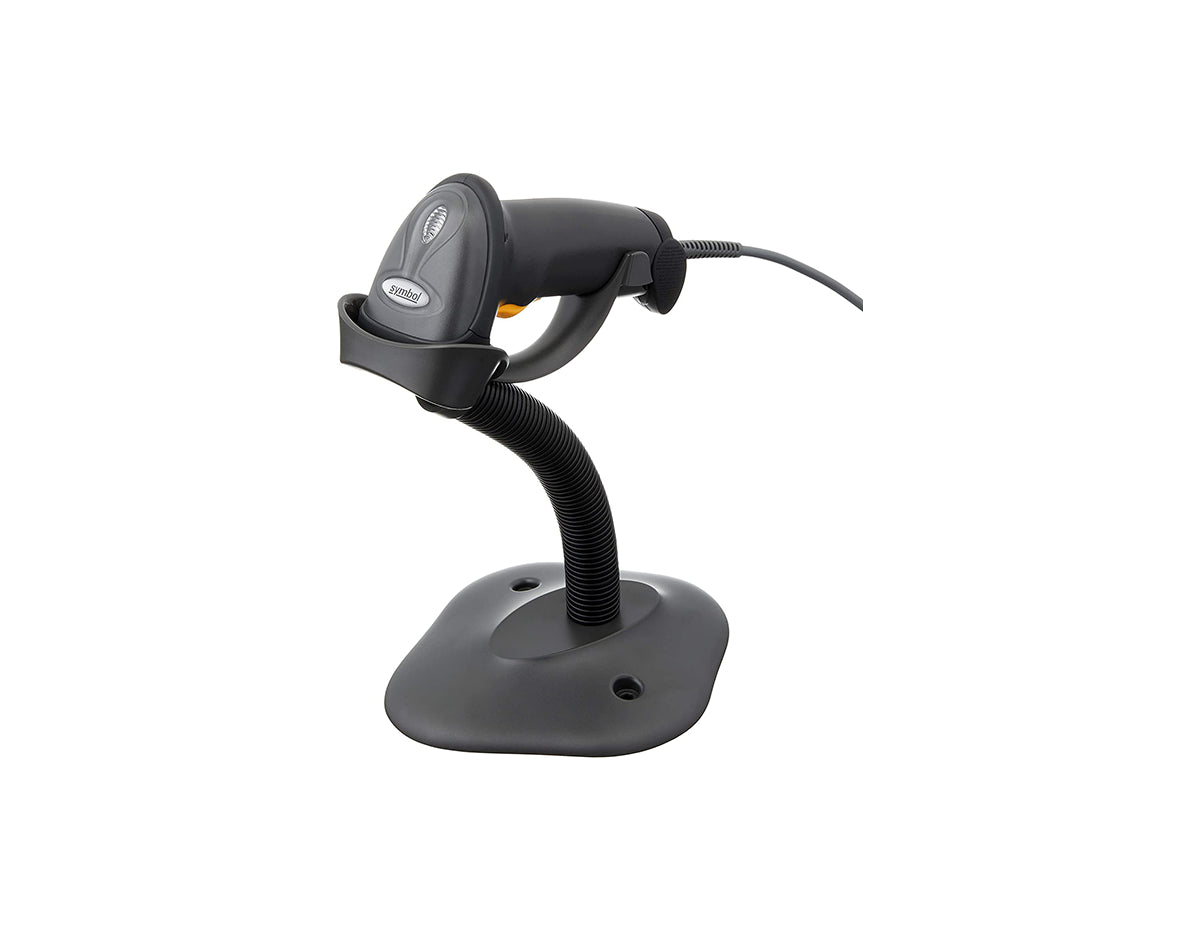

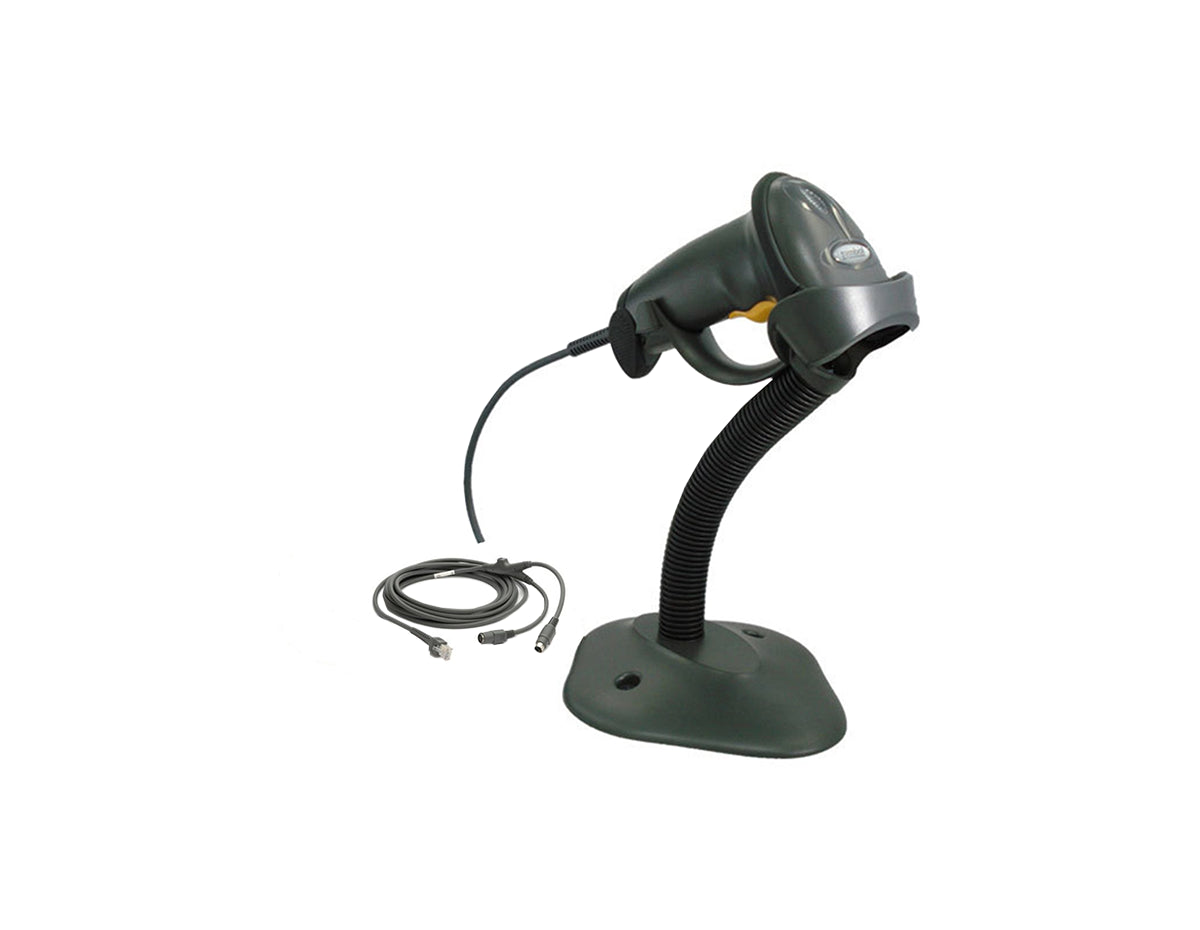

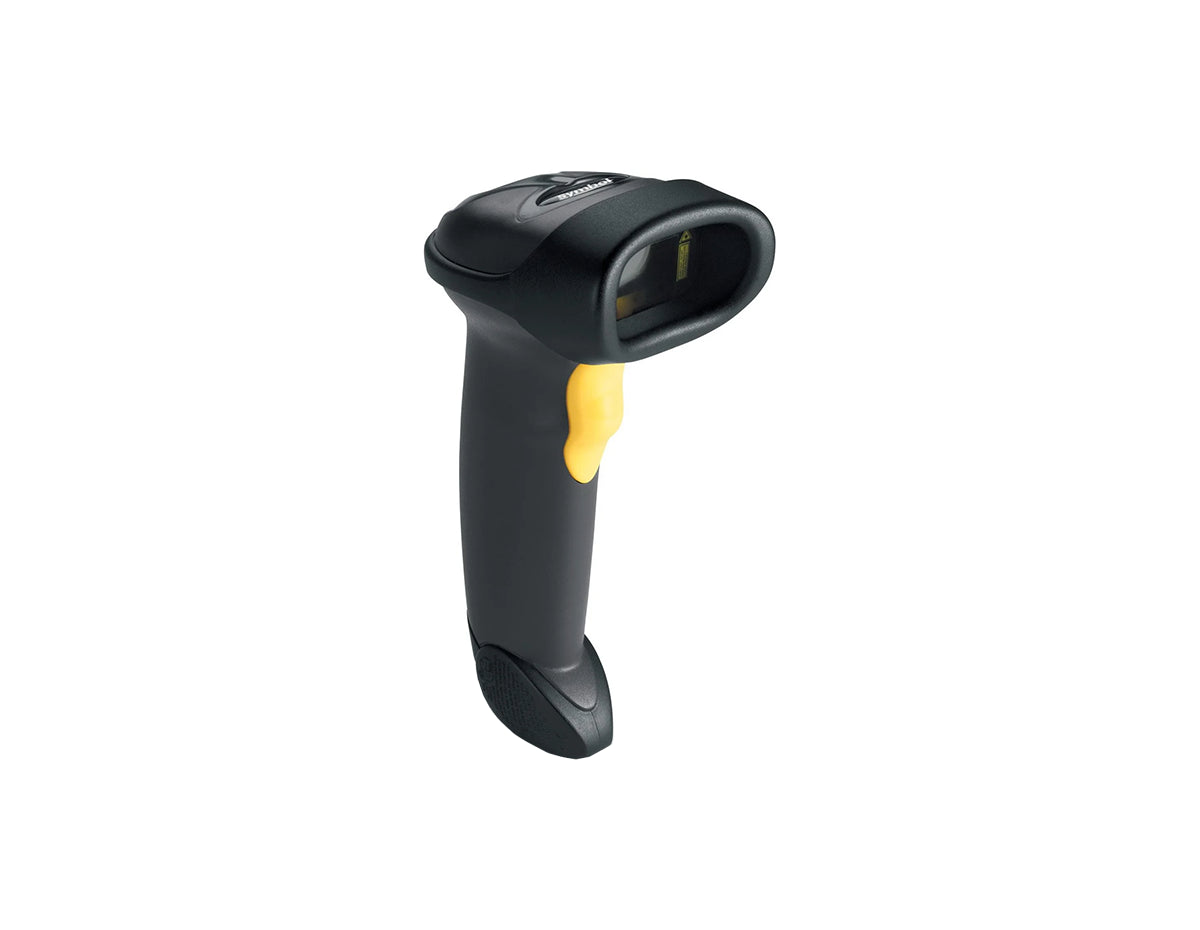

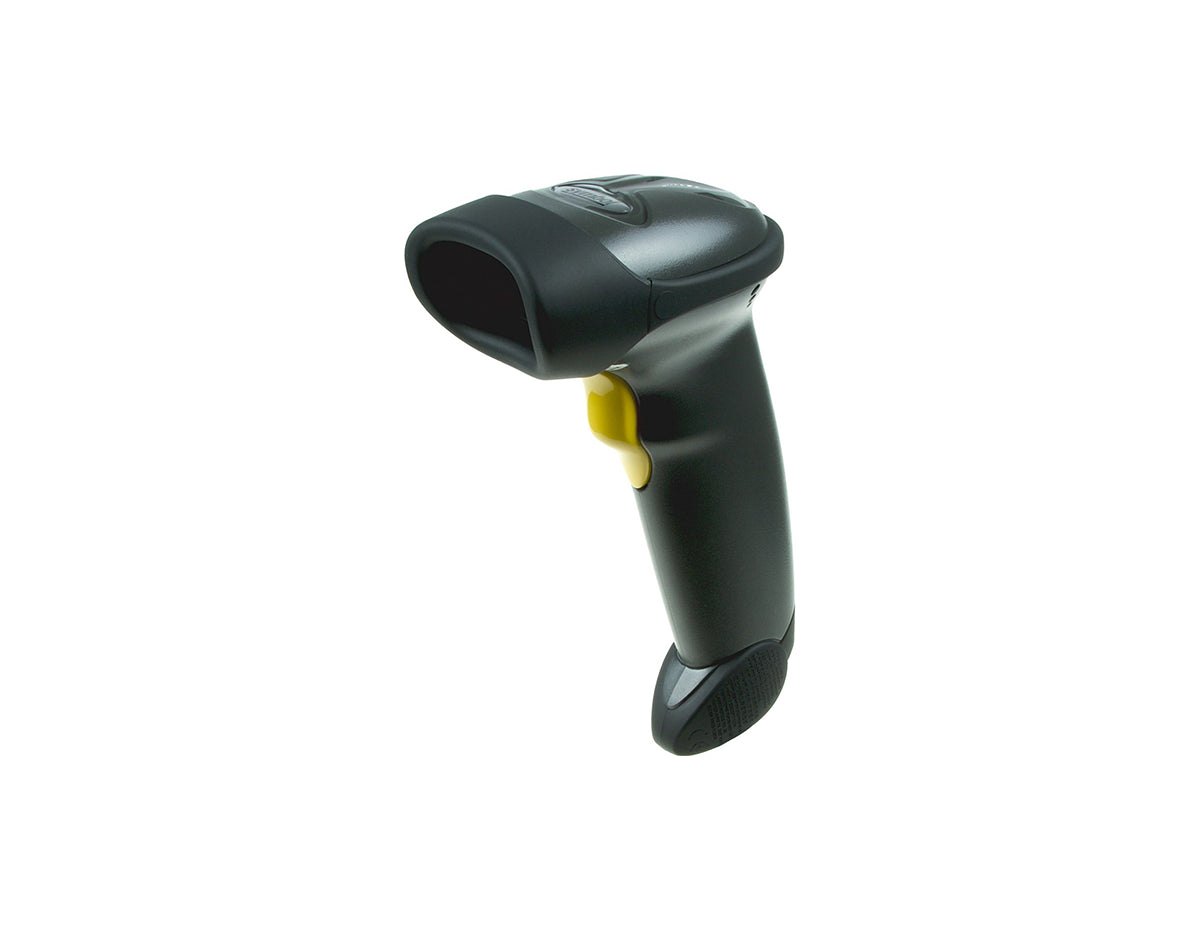

Zebra LS2208-SR20007R Barcode Scanner
The LS2208 scanner, manufactured by Zebra Technologies, provides superior scanning capabilities at a competitive price. It is well-suited for various uses that demand swift, dependable, and effective barcode scanning. The LS2208 delivers enhanced scanning performance and resilience, rendering it well-suited for retail, warehouse, and workshop settings and in healthcare facilities and laboratories. Its harmonious blend of performance and durability contributes to heightened productivity and efficiency while concurrently lowering operational and maintenance expenses.
Quick Specs:
- Maximum read distance exceeds 40m
- Reads 1D barcodes at 100 scans/sec.
- Multi-interface for universal configuration
- Handheld barcode scanner with pistol grip
Please see the related tabs for the LS2208-SR20007R datasheet and compatible accessories.
Properties
| Properties | LS2208 |
| Description | The LS2208 Handheld Scanner is a highly efficient 1D USB Laser Scanner with stand. It ensures fast and accurate scanning with a comfortable ergonomic design, enhancing operational efficiency. |
| Product Type | Scanner |
| Supported Host Interfaces | USB, RS232, Keyboard Wedge, TGCS (IBM) 46XX over RS485 |
| Keyboard Support | Supports over 90 international keyboards |
| User Indicators | Direct decode indicator, good decode LEDs, beeper (adjustable tone/volume) |
| Color | Cash Register White, Twilight Black |
| Input Voltage Range | 4.5 to 5.5 VDC host powered; 4.5 to 5.5 VDC external power supply |
| Operating Current at Nominal Voltage (5.0V) | 175 mA (typical) |
| Standby Current (idle) at Nominal Voltage (5.0V) | 90 mA (typical) |
| Scanner Type | Bi-directional |
| Light Source | 650 nm Laser Diode Class 2 |
| Scan Pattern | Single line |
| Scan Speed | 100 scans per second |
| Scan Angle | 35° |
| Minimum Print Contrast | 20% minimum reflective difference |
| Skew Tolerance | ± 10° |
| Pitch Tolerance | ± 65° |
| Roll Tolerance | ± 60° |
| Dimensions | 6.3 cm x 8.4 cm x 15.2 cm |
Specifications
| Specifications | LS2208 |
| Scanning Technology | Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma). Refer to Product Reference Guide for complete list of symbologies. |
| Minimum Element Resolution | Code 39: 3.0 mil |
| Electrostatic Discharge (ESD) | ESD per EN61000-4-2, +/-15 KV Air, +/-8 KV Direct, +/-8 KV Indirect |
| Environmental Sealing | IP30 |
| Operating Temperature | 32° to 122° F/0° to 50° C |
| Electrical Safety | EN 60950-1: 2006 + A11: 2009 + A1: 2010 + A12: 2011 + AC 2011; IEC 60950-1: 2005 + A1: 2009; UL 60950-1, second edition; CAN/CSA-C22.2 No. 60950-1-07 |
| EMI/RFI | FCC 47 CFR Part 15, Subpart B, Class B; ICES-003 Issue 4, Class B; Compliant with EMC Directive 2004/108/EC |
| Laser Safety | CDRH Class II; IEC Class 2 |
| Environmental | Compliant with RoHS Directive 2011/65/EU; EN 50581: 2012 |
