Description

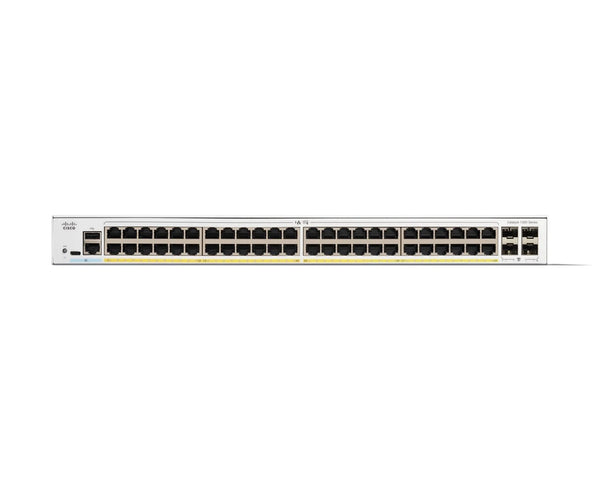

Cisco Catalyst C1300-48FP-4G 48-Port PoE+ Switch with 4 SFP Uplinks

The Cisco C1300-48FP-4G is a powerful and scalable Layer 3 Gigabit Ethernet switch built for small to medium-sized business environments requiring full PoE+ power and secure high-performance networking. It includes 48 x 10/100/1000 PoE+ ports and 4 x 1G SFP uplinks, offering seamless device connectivity and fiber expansion. With an impressive PoE budget of 740W, it easily powers VoIP phones, cameras, and wireless APs. Managed via Cisco Business Dashboard and mobile app, the switch simplifies deployment, monitoring, and updates. Designed for rackmount deployment, it supports advanced Layer 3 features, VLANs, QoS, and robust security protocols for enterprise-grade reliability.

Key Features:

• High-Density PoE+: 48 x Gigabit Ethernet PoE+ ports delivering up to 740W total PoE budget for IP phones, cameras, and access points
• Flexible Uplinks: 4 x 1G SFP uplink ports for fiber expansion and high-speed backbone integration
• Layer 3 Switching: Supports static routing, RIP v2, IPv6 routing, and Policy-Based Routing for network segmentation and control
• Enterprise Security: Features 802.1X, DHCP snooping, IP Source Guard, Dynamic ARP Inspection, Private VLAN, and more
• Intelligent Management: Manage via Cisco Business Dashboard, CLI, SNMP, and web GUI with support for Plug and Play (PnP)
• Power Efficiency: IEEE 802.3az Energy Efficient Ethernet, automatic shutoff on inactive ports, cable length power optimization
• Reliable Architecture: Internal universal power supply, fan cooling (48.7 dBA at 25°C), MTBF of 1,469,406 hours
• Business-Grade Features: Includes VLAN translation, voice VLAN, multicast VLAN, IGMP/MLD snooping, and RSPAN

Technical Specifications:

• Model: C1300-48FP-4G
• Ports: 48 x Gigabit Ethernet PoE+ (10/100/1000Base-T), 4 x 1G SFP
• PoE Budget: 740W
• Switching Capacity: 104 Gbps
• Forwarding Rate: 77.38 Mpps
• Packet Buffer: 1.5 MB
• MAC Address Table: 16,000 entries
• Memory: 1 GB DDR4 RAM, 512 MB Flash
• Management: Web GUI, CLI, SNMP v1/2c/3, Cisco Business Dashboard, Bluetooth, Cisco PnP
• Power Input: 100–240V AC, 50–60 Hz (internal power supply)
• Power Consumption (Max): 886.42W
• Cooling: 1 fan, 48.7 dBA at 25°C
• Form Factor: Rackmount (1U)
• Dimensions: 445 x 350 x 44 mm (17.5 x 13.78 x 1.73 in)
• Weight: 6.48 kg (14.28 lb)
• Operating Temperature: -5°C to 50°C (23°F to 122°F)
• Networking Standards: IEEE 802.1X, 802.3af, 802.3at, 802.3az, 802.1Q, 802.1p, 802.3ab, etc.
• Advanced Features: Front Panel Stacking (up to 8 switches), QoS, VLAN translation, IGMP snooping, sFlow, RSPAN
