Call for Price
Managed, Rack-mountable, 8 x 10G copper ports, 2 x 10G copper/SFP+ combo Uplinks, No PoE (Data Only), Layer 3
Description

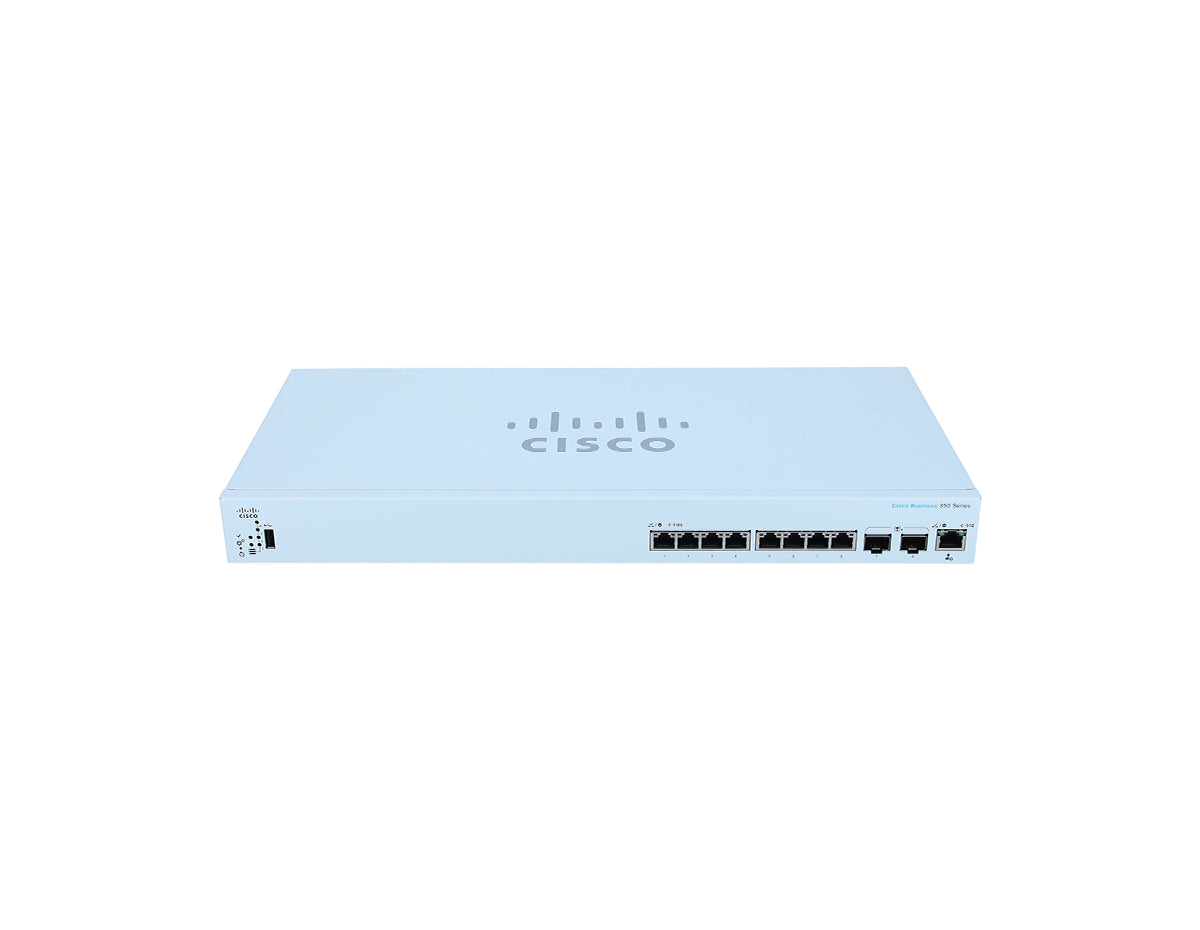

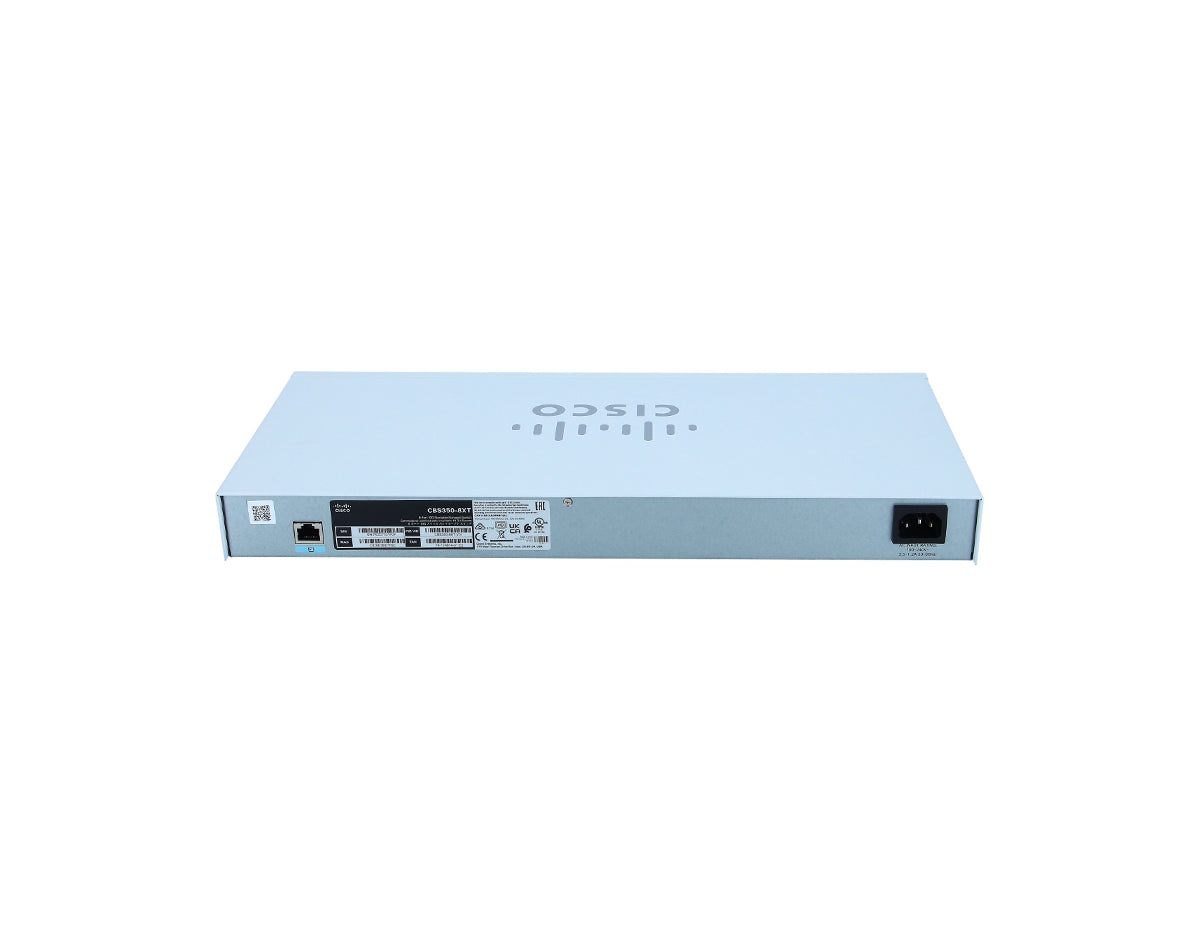

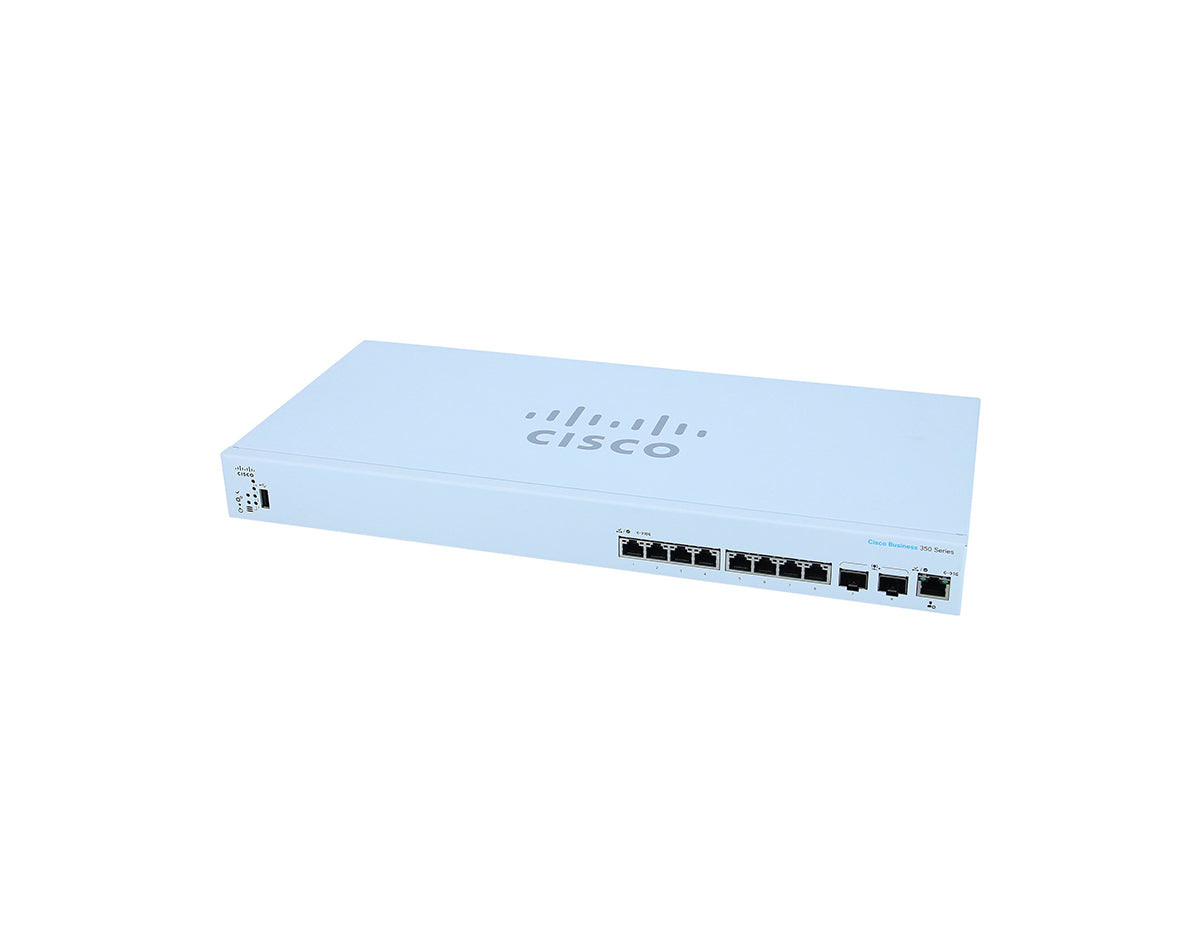

Cisco CBS350-8XT Switch
The Cisco CBS350-8XT is a high-performance, compact switch designed for businesses needing 10 Gigabit Ethernet connectivity with robust security and management features. With 8 dedicated 10G copper ports and 2 combo 10G copper/SFP+ uplink ports, this switch is perfect for high-speed network setups in small to medium-sized businesses. It provides flexible uplink options and is rack-mountable, making it ideal for enterprise environments.
Key Features:
- 8 x 10G Copper Ports: Provides high-speed, low-latency connectivity for demanding business applications.
- 2 x 10G Copper/SFP+ Combo Uplink Ports: Offers flexibility for both fiber and copper connections, ensuring seamless network expansion.
- Advanced Layer 2/3 Features: Includes VLANs, static routing, and QoS for efficient network segmentation and traffic management.
- Energy Efficiency: Designed to meet IEEE 802.3az standards, reducing power consumption during idle periods.
- Robust Security: Includes 802.1X authentication, ACLs, and IP Source Guard to protect against unauthorized access.
Technical Overview:
- Recommended for: Small to medium-sized businesses and high-performance network environments.
- Ports: 8 x 10G copper ports, 2 x 10G copper/SFP+ combo uplink ports.
- Switching Capacity: 160 Gbps.
- Forwarding Rate: 119.05 Mpps.
- Layer 2/3 Features: VLANs, QoS, static routing, and IGMP snooping for optimized traffic control.
- Management: Web-based GUI, CLI, SNMP, and Cisco Business Dashboard for simplified management.
- Security: 802.1X authentication, ACLs, IP Source Guard, and advanced access control features.
- Energy Efficiency: Compliant with IEEE 802.3az for energy-efficient operation.
You can check the related tab for the CBS350-8XT datasheet.
Properties
| Properties | Cisco CBS350-8XT Switch |
| Description | CBS350-8XT is designed to meet the needs of small and medium-sized businesses |
| Product Family | Cisco Business 350 series smart switches |
| Product Type | Small Business Switch |
Specifications
| Specifications | Cisco CBS350-8XT Switch |
| Capacity in millions of packets per second (mpps) (64-byte packets) | 119.05 |
| Switching capacity in gigabits per second (Gbps) | 160.0 |
| System Power Consumption | 110V=50.3W 220V=50.3W |
| Power Consumption (with PoE) | N/A |
| Heat Dissipation (BTU/hr) | 171.6 |
| Total System Ports | 6 x 10G copper + 2 x 10G copper/SFP+ combo + 1 x GE OOB management |
| RJ-45 Ports | 6 x 10G copper |
| Combo Ports (RJ45 + Small form-factor pluggable [SFP]) | 2 x 10G copper/SFP+ combo |
| Unit Dimensions | 440 x 203 x 44 mm (17.3 x 8.0 x 1.73 in) |
| Unit Weight | 2.98 kg (6.57 lb) |
| Operating temperature | 32° to 122°F (0° to 50°C) |
| Storage temperature | (-13° to 158°F) (-25° to 70°C) |
| Operating humidity | 10% to 90%, relative, noncondensing |
| Storage humidity | 10% to 90%, relative, noncondensing |
| FAN (Number) | 2 |
| Acoustic Noise | 25°C: 40.8 dB |
| MTBF at 25°C (hours) | 1,418,411 |
| Port grouping/link aggregation | Support for IEEE 802.3ad Link Aggregation Control Protocol (LACP) ● Up to 8 groups ● Up to 8 ports per group with 16 candidate ports for each (dynamic) 802.3ad link aggregation |
| VLAN | Support for up to 4,094 VLANs simultaneously Port-based and 802.1Q tag-based VLANs; MAC-based VLAN; protocol-based VLAN; IP subnet-based VLAN Management VLAN Private VLAN with promiscuous, isolated, and community port Private VLAN Edge (PVE), also known as protected ports, with multiple uplinks Guest VLAN, unauthenticated VLAN Dynamic VLAN assignment via RADIUS server along with 802.1x client authentication CPE VLAN |
| Voice VLAN | Voice traffic is automatically assigned to a voice-specific VLAN and treated with appropriate levels of QoS. Voice Services Discovery Protocol (VSDP) delivers network wide zero-touch deployment of voice endpoints and call control devices |
| Multicast TV VLAN | Multicast TV VLAN allows the single multicast VLAN to be shared in the network while subscribers remain in separate VLANs. This feature is also known as Multicast VLAN Registration (MVR) |
| VLAN Translation | Support for VLAN One-to-One Mapping. In VLAN One-to-One Mapping, on an edge interface customer VLANs (C-VLANs) are mapped to service provider VLANs (S-VLANs) and the original C-VLAN tags are replaced by the specified S-VLAN |
| Q-in-Q | VLANs transparently cross a service provider network while isolating traffic among customers |
| Selective Q-in-Q | Selective Q-in-Q is an enhancement to the basic Q-in-Q feature and provides, per edge interface, multiple mappings of different C-VLANs to separate S-VLANs Selective Q-in-Q also allows configuring of Ethertype (Tag Protocol Identifier [TPID]) of the S-VLAN tag Layer 2 protocol tunneling over Q-in-Q is also supported |
| Generic VLAN Registration Protocol (GVRP)/Generic Attribute Registration Protocol (GARP) |
Generic VLAN Registration Protocol (GVRP) and Generic Attribute Registration Protocol (GARP) enable automatic propagation and configuration of VLANs in a bridged domain |
| Unidirectional Link Detection (UDLD) |
UDLD monitors physical connection to detect unidirectional links caused by incorrect wiring or cable/port faults to prevent forwarding loops and black holing of traffic in switched networks |
| Dynamic Host Configuration Protocol (DHCP) Relay at Layer 2 |
Relay of DHCP traffic to DHCP server in different VLAN; works with DHCP Option 82 |
| Internet Group Management Protocol (IGMP) versions 1, 2, and 3 snooping |
IGMP limits bandwidth-intensive multicast traffic to only the requesters; supports 2K multicast groups (source-specific multicasting is also supported) |
| IGMP Querier | IGMP querier is used to support a Layer 2 multicast domain of snooping switches in the absence of a multicast router |
| IGMP proxy | The IGMP proxy provides a mechanism for multicast forwarding based on IGMP membership information without the need for more complicated multicast routing protocols. |
| Head-of-Line (HOL) blocking | HOL blocking prevention |
| Loopback Detection | Loopback detection provides protection against loops by transmitting loop protocol packets out of ports on which loop protection has been enabled. It operates independently of STP |
